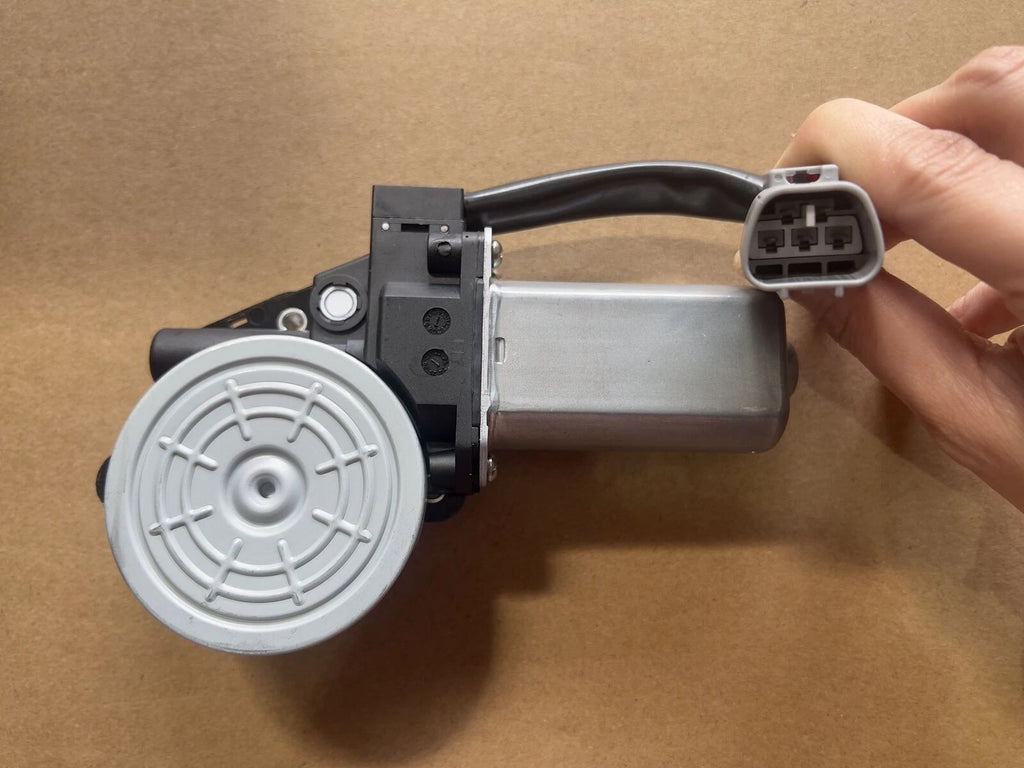

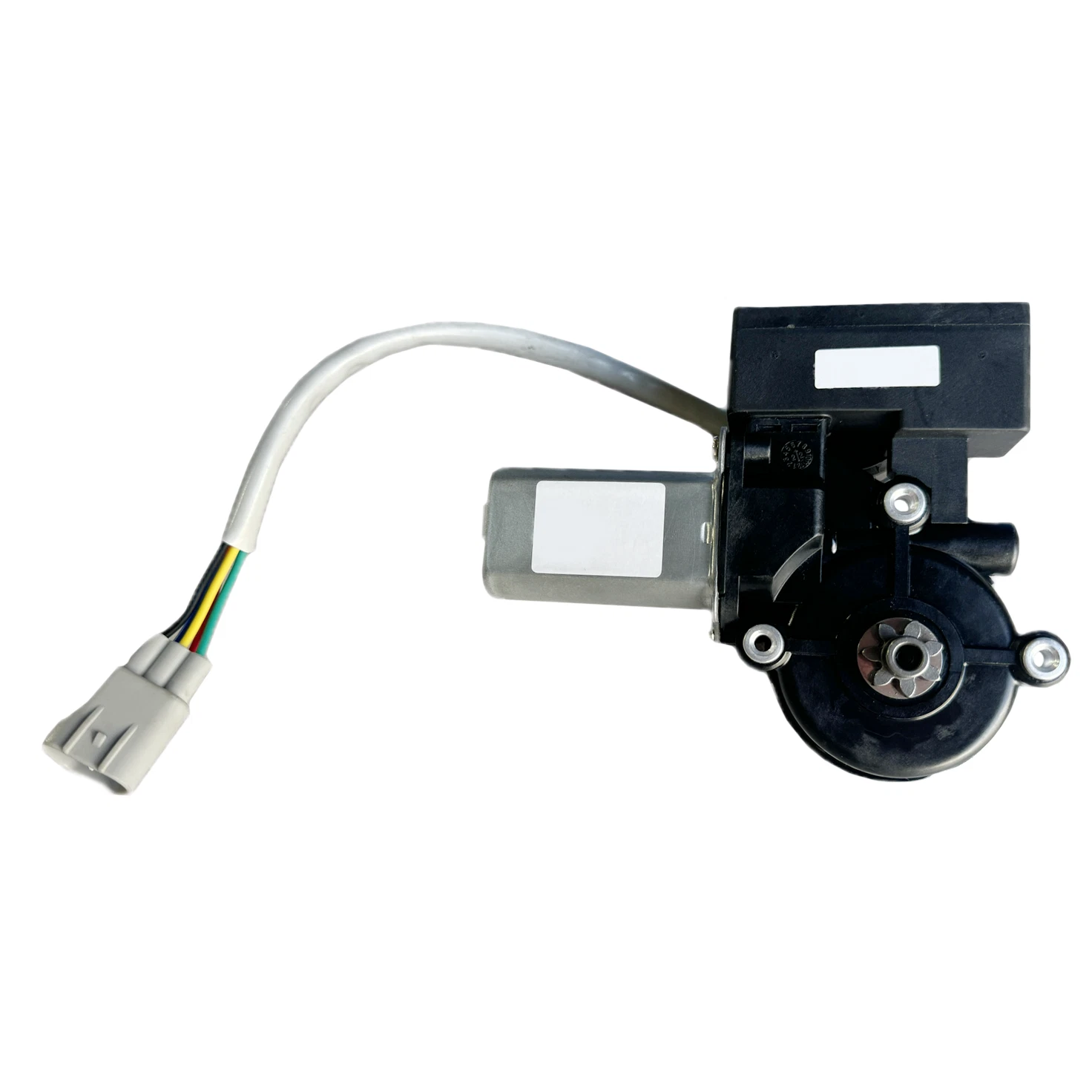

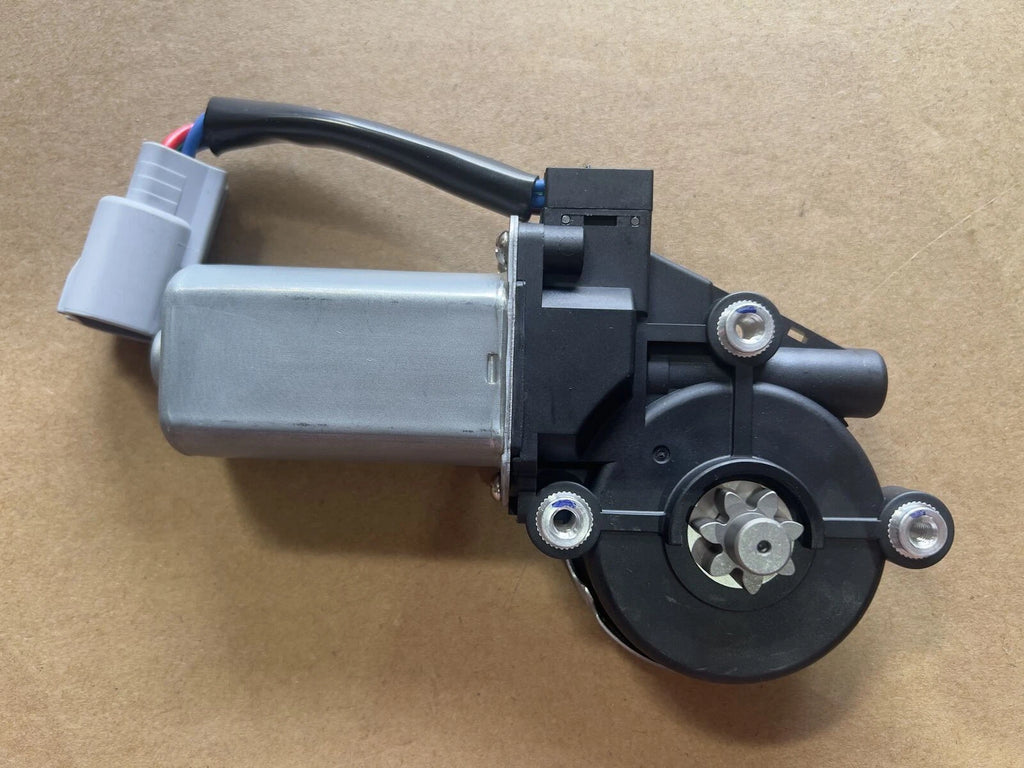

Front Right Window Lift Motor 5-Pin for Toyota Landcruiser 100 1998-2007

PRODUCT OVERVIEW

This front right electric window lift motor is a high-quality aftermarket replacement designed for Toyota Landcruiser 100 Series (J100) models built from 01/1998 to 08/2007. It is supplied brand new as a single 5-pin motor unit.

KEY FEATURES

• Application: Power window lift motor
• Operating mode: Electric
• Position: Front right (front driver side)

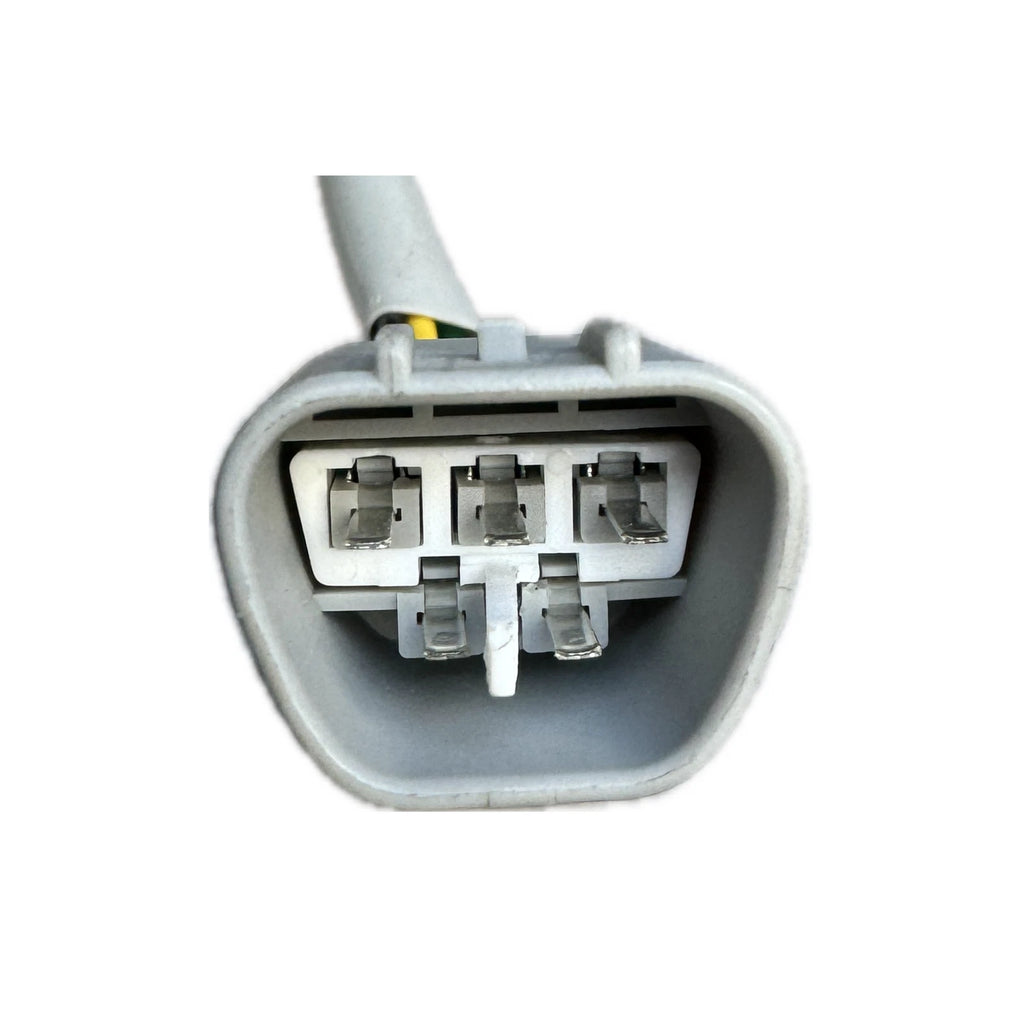

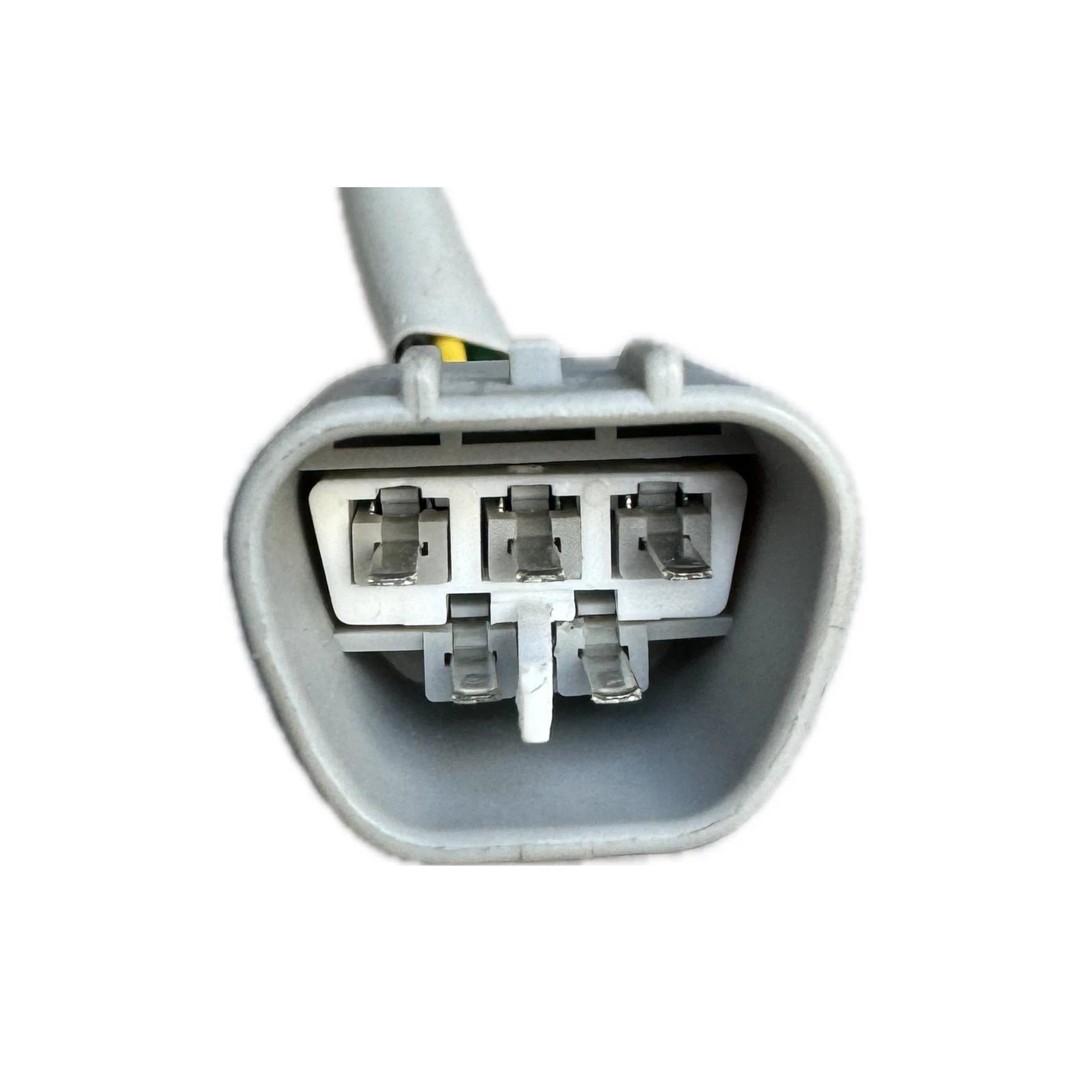

• Connector: 5-pin motor
• Specification: High-quality aftermarket component
• Condition: Brand new
• MPN / Item No.: 102256M5F
• Quantity supplied: 1 piece
• Manufacturer warranty: 1 year (part only)

VEHICLE FITMENT

• Toyota Landcruiser J100: 01/1998 – 08/2007

Always compare the connector, mounting points, and overall design with your original motor before purchase.

ANTI-PINCH FUNCTION SETUP

This motor may be used with window systems equipped with anti-pinch and one-touch functions. Do not test the motor outside the door assembly, as the anti-pinch function can lose its calibration and require resetting.

RESET PROCEDURE (IF REQUIRED)

• Step 1: Pull the window switch briefly to move the glass slightly up to the top position.
• Step 2: Hold the one-touch switch in the UP position for 3–5 seconds at the top.
• Step 3: Press the window switch briefly to move the glass slightly down to the bottom position.
• Step 4: Hold the one-touch switch in the DOWN position for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch to move the window fully up to the top and check operation.

If the window still drops after reaching the top, repeat the reset sequence until the anti-pinch function is correctly calibrated.

INSTALLATION & NOTES

• Professional installation by a qualified automotive technician is recommended.
• Image colour and finish may vary slightly due to lighting and screen settings.
• Product is intended as a replacement part for repair and maintenance.
