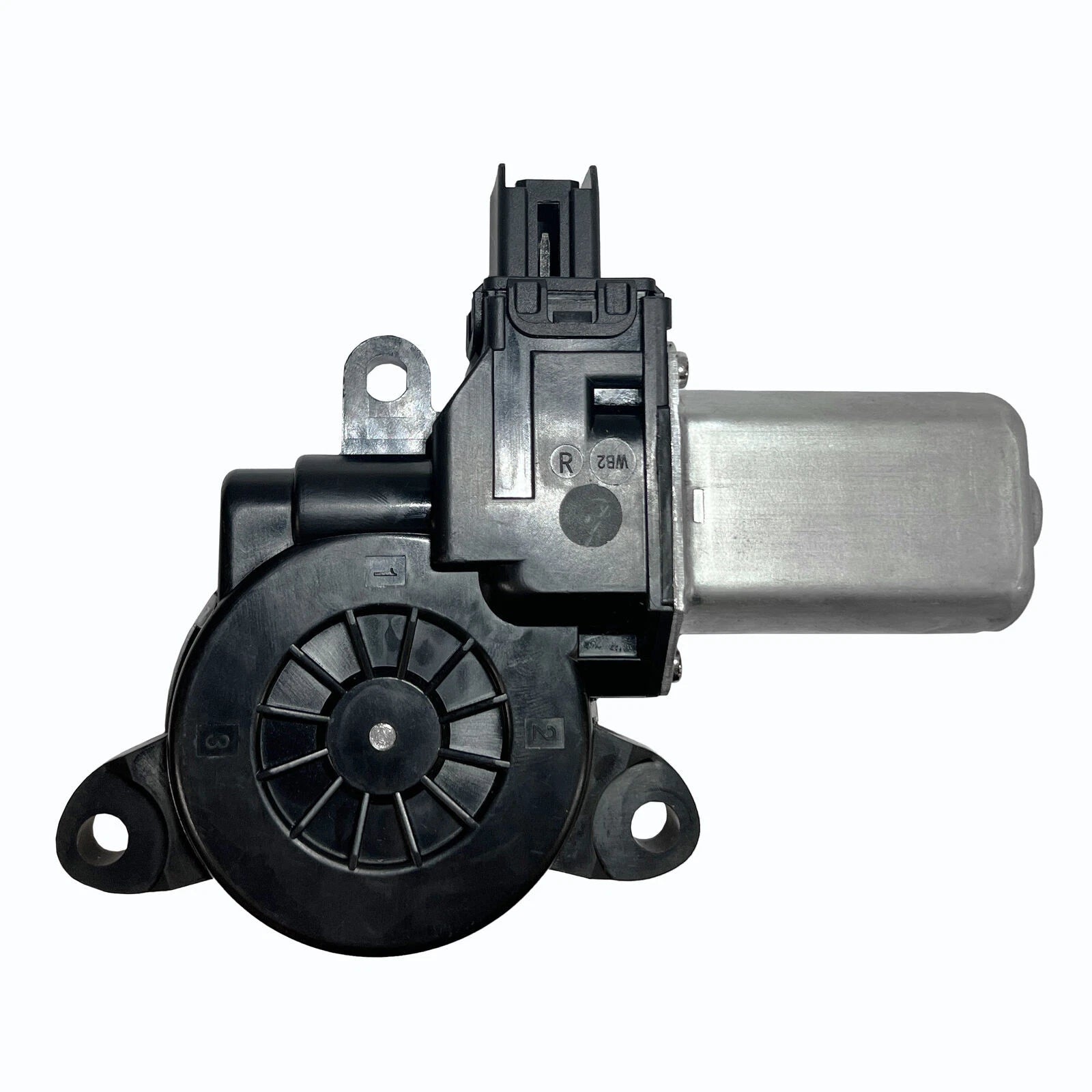

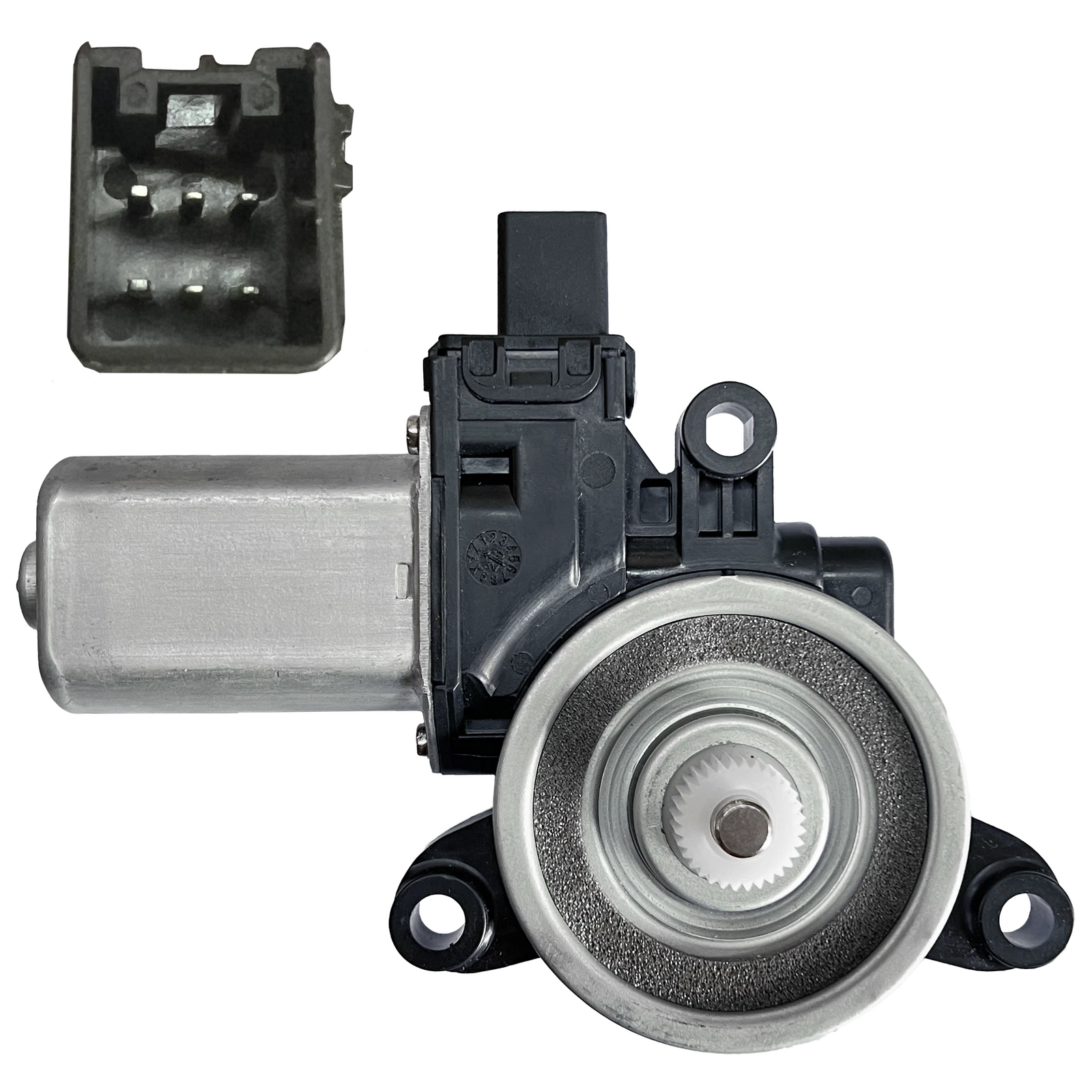

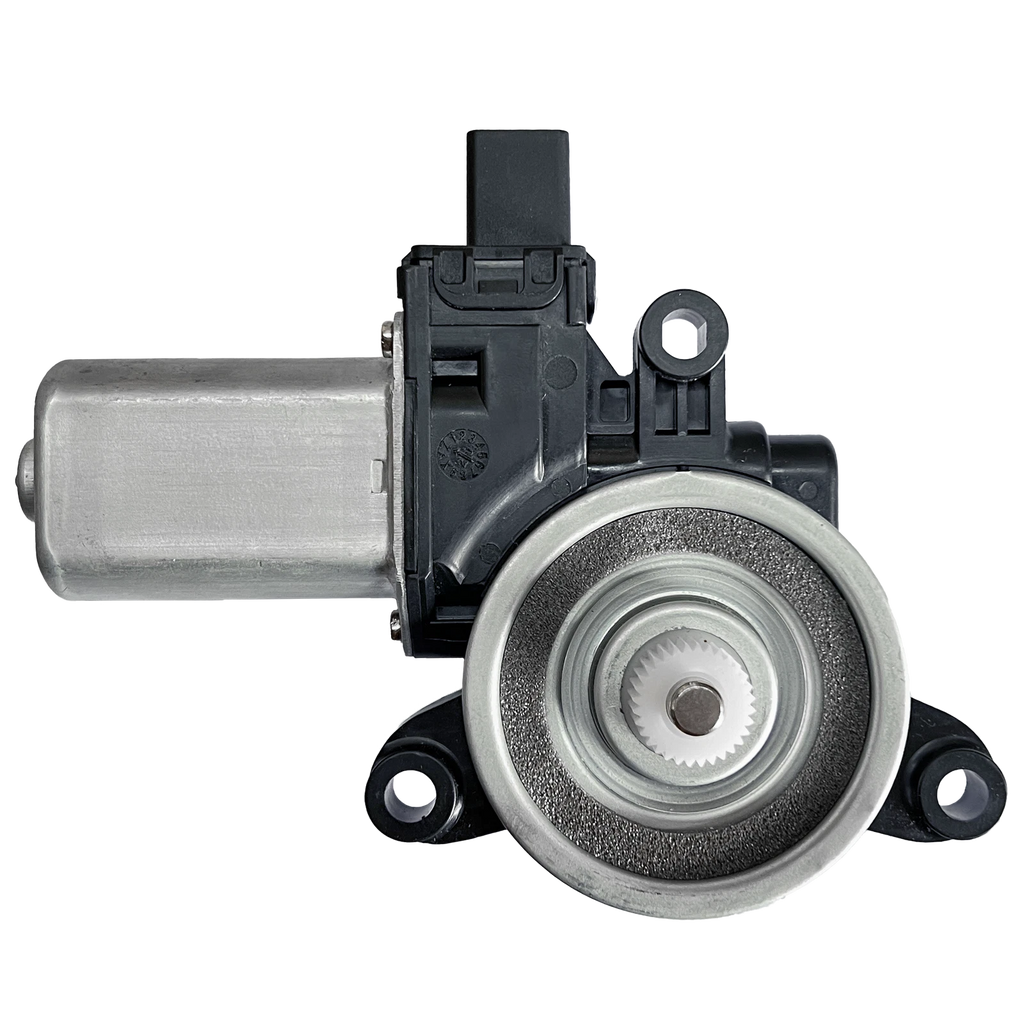

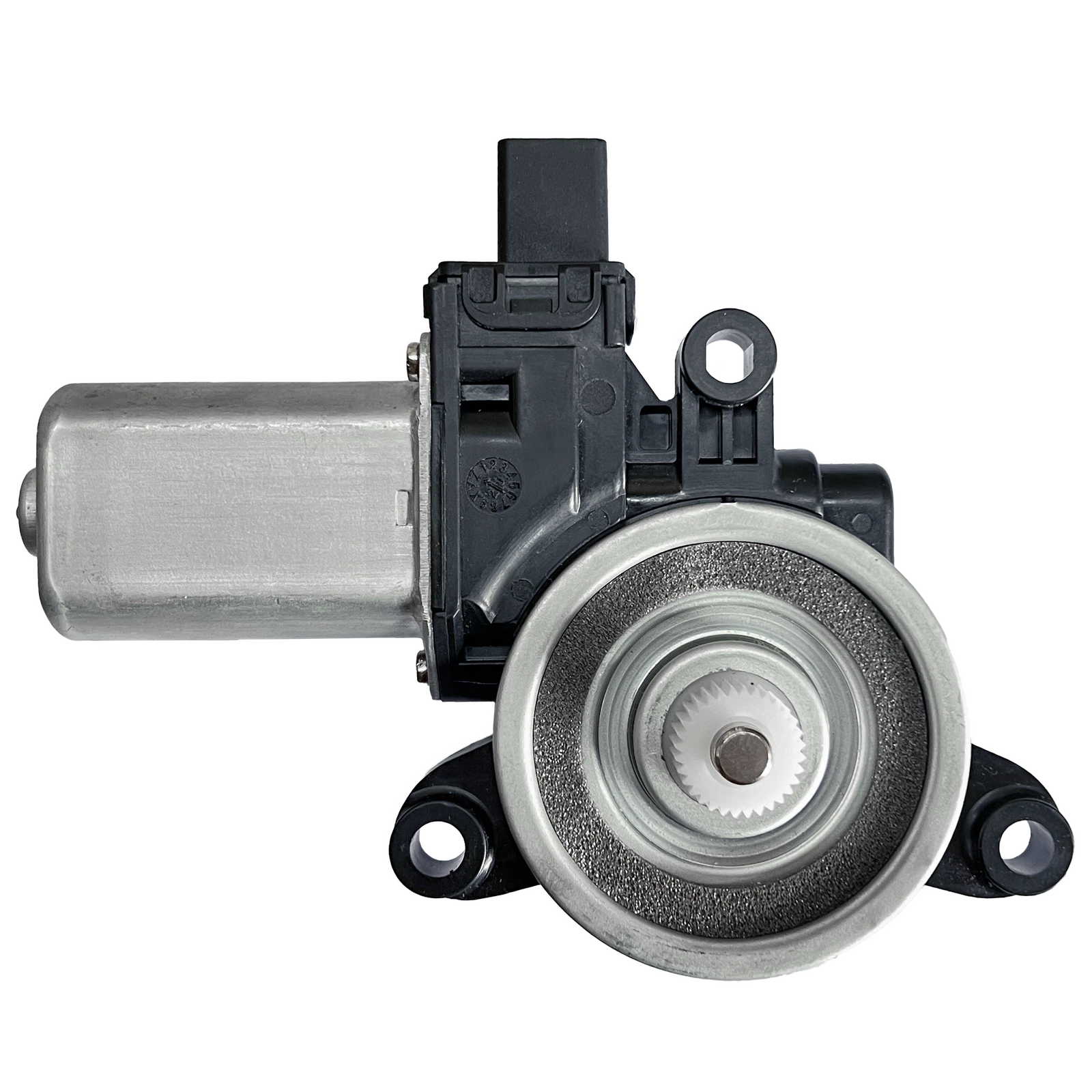

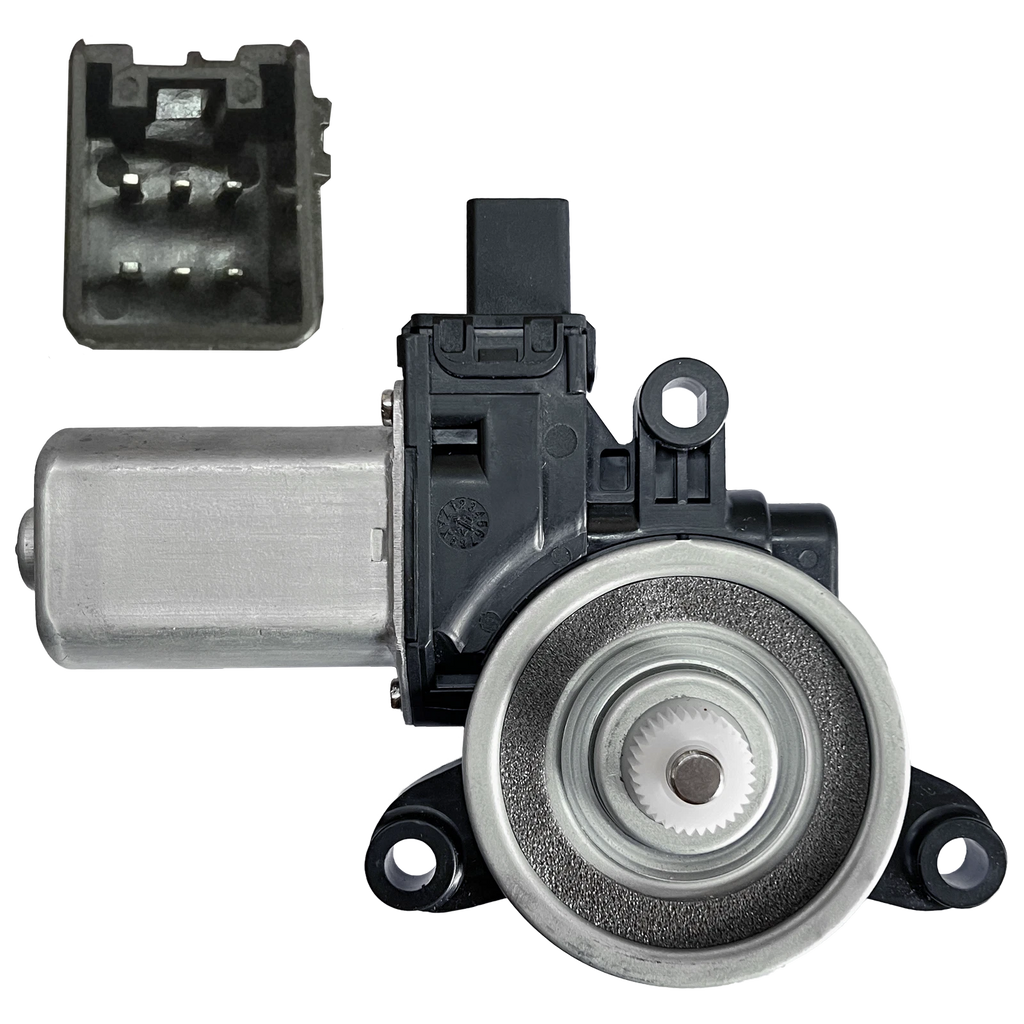

Front Right 6-Pin Window Lift Motor for Mazda 2, 3, CX-3, CX-5, CX-9

PRODUCT OVERVIEW

This high-quality aftermarket electric window lift motor is designed for the front right (driver side) door. It features a 6-pin motor connector and is supplied as a brand new replacement part.

KEY FEATURES

• Electric window lift motor
• Front right (front driver side) position

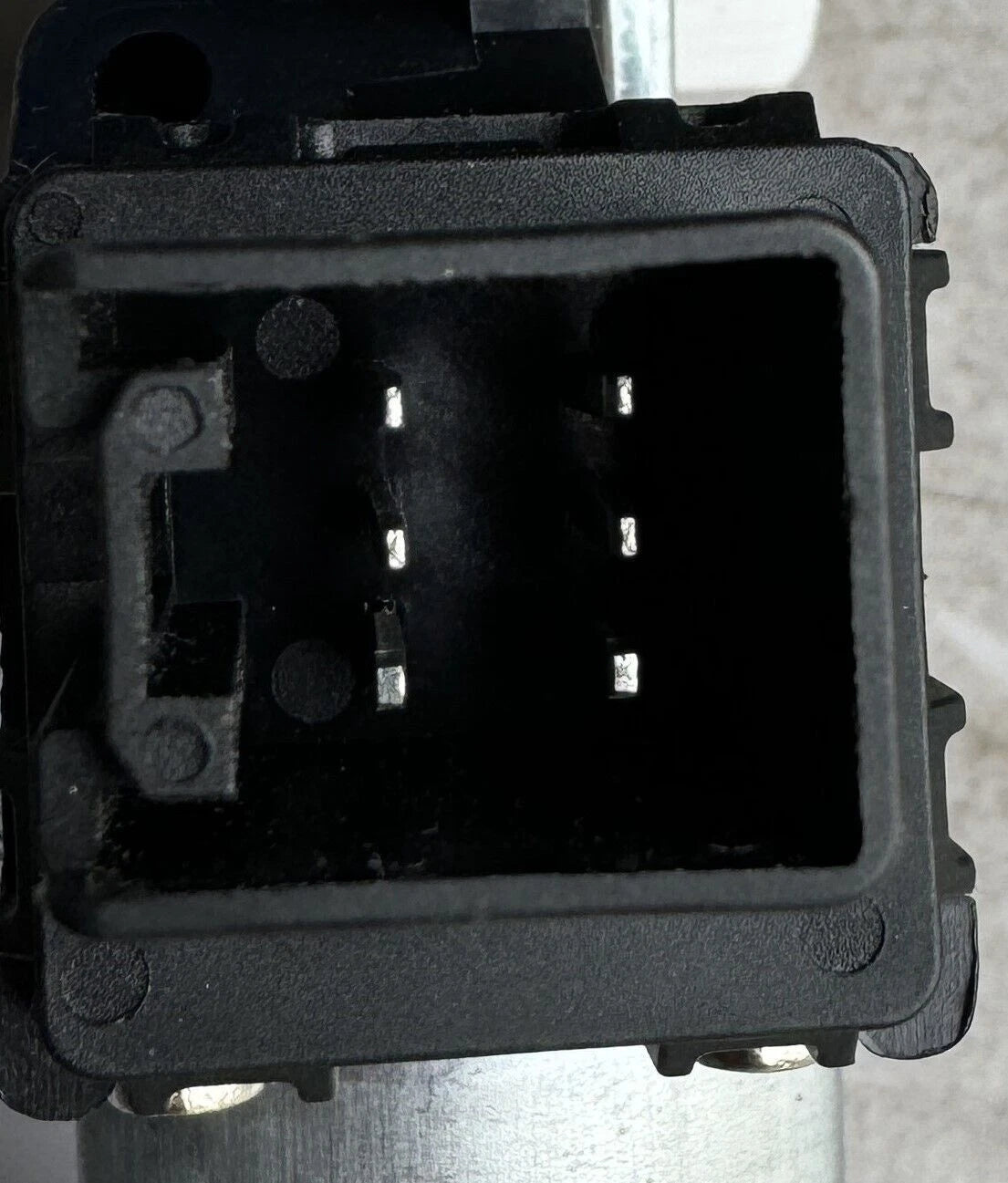

• 6-pin motor connector
• High-quality aftermarket construction
• Supplied brand new
• Includes 1 x window lift motor
• Manufacturer warranty: 1 year (part only)
• MPN/Item No.: 101307BM6

VEHICLE COMPATIBILITY

Ensure compatibility by matching your existing part and connector type before purchase.

• Mazda 2 DJ/DL 08/2014 - On (VIN: NMO)
• Mazda 3 BM 09/2013 - 07/2016
• Mazda 3 BN 07/2016 - 02/2019
• Mazda CX-3 DK 03/2015 - On
• Mazda CX-5 KF 03/2017 - On
• Mazda CX-9 TC 07/2016 - On

Images are for reference. Actual product appearance may vary slightly due to lighting and screen settings. Always compare the product photos and specifications with your original part.

ANTI-PINCH FUNCTION & RESET

This window motor may be used with a regulator system that includes an anti-pinch safety function. Follow the reset procedure after installation if the window does not operate correctly.

• Do not test the motor before it is installed in the door, or the anti-pinch calibration may fail.
• Install the motor and connect it to the one-touch window switch.
• Pull the switch up to raise the window. If the window goes fully up and stays at the top, the setup is correct.
• If the window drops after reaching the top, perform the reset procedure below.

Anti-pinch reset steps:

• Step 1: Pull the window switch briefly so the window moves slightly up to the top position.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top.
• Step 3: Press the window switch briefly so the window moves slightly down to the bottom position.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch to raise the window fully to the top.

If the window still drops after reaching the top, repeat the above steps until the anti-pinch function is correctly set.

INSTALLATION & WARRANTY NOTES

• Recommended installation by a qualified automotive mechanic.
• Warranty covers replacement of the defective part only.
• Warranty does not cover labour, incorrect installation, misuse, or modification.
• Some motors and regulators may use tamper-evident seals on plugs or housings; do not remove these unless instructed, as this may affect return eligibility.

This part is intended as a replacement component for repair and maintenance purposes.
