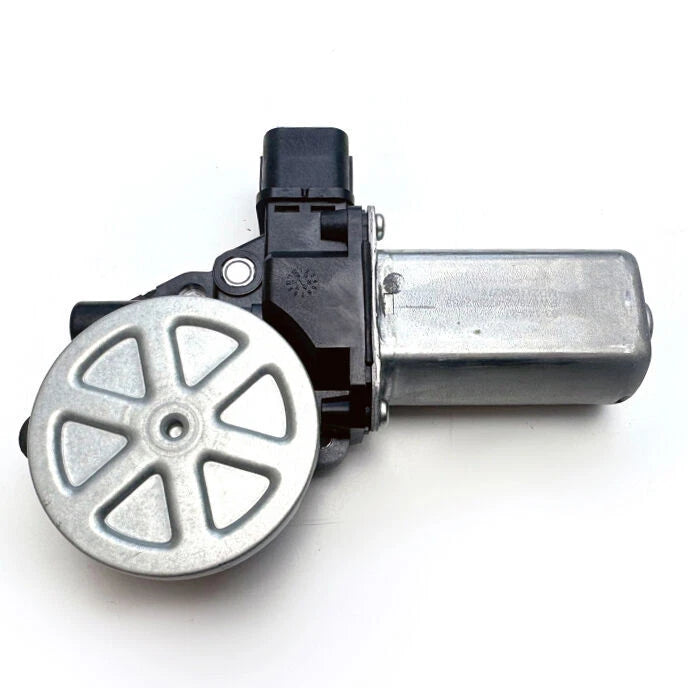

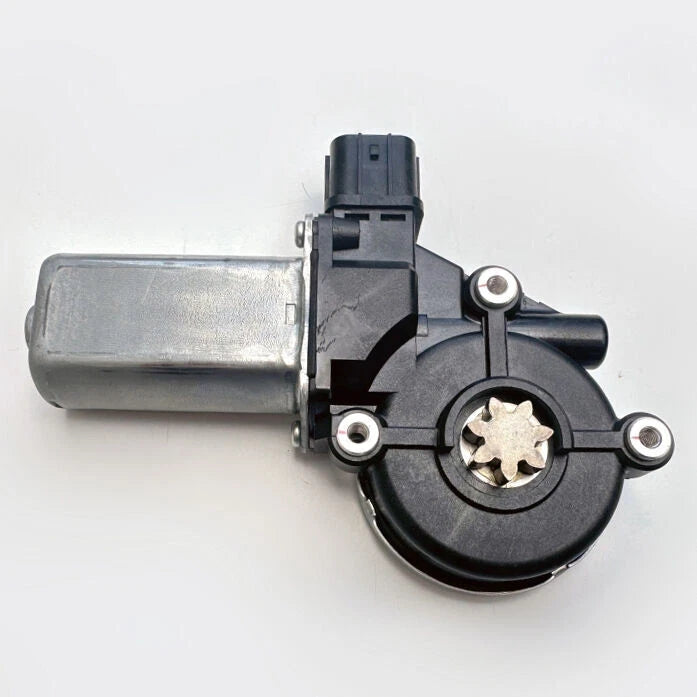

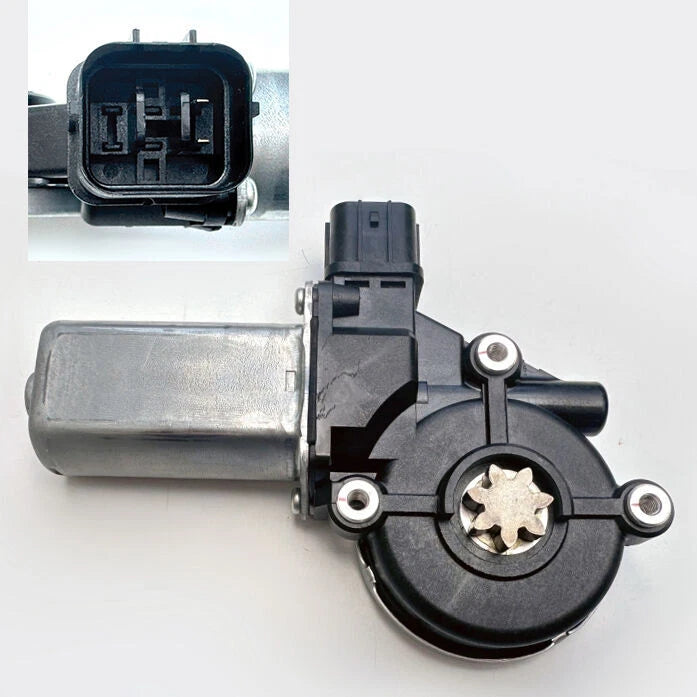

Front Right Power Window Motor 2-Pin for Holden Trailblazer RG 2012-2020

PRODUCT OVERVIEW

This front right electric window lift motor is a high-quality aftermarket replacement designed for select Holden and Isuzu models. It is supplied brand new and includes a 12-month manufacturer warranty (part only).

KEY FEATURES

• Product type: Window lift motor
• Operating mode: Electric
• Position: Front right (front driver side)

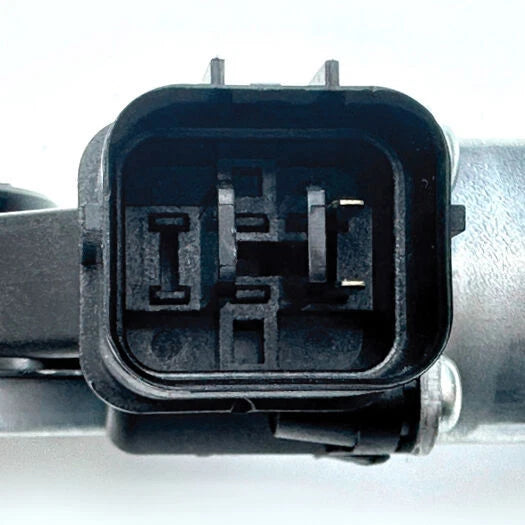

• Connector: 2-pin motor
• Specification: High-quality aftermarket replacement
• Condition: Brand new
• MPN / Item No.: 100703M2MF
• Quantity supplied: 1 piece
• Manufacturer warranty: 12 months (part only)

VEHICLE FITMENT

Use this information as a guide only. Always compare the part number, plug type, and images with your original unit before purchase.

• Holden Colorado RG 06/2012 - 06/2020
• Holden Trailblazer RG 10/2016 - 06/2020
• Isuzu D-Max RT 06/2012 - 2020
• Isuzu MU-X UCR85 / UCS85 11/2013 - 06/2021

ANTI-PINCH FUNCTION SETUP

This motor may be used with window regulators featuring an anti-pinch (one-touch) safety function.

• Do not test the motor before it is installed in the door, or the anti-pinch function may need to be reset.
• Motors are factory tested and preset before dispatch.
• Install the motor, connect to the one-touch window switch and raise the window fully to confirm correct operation.
• If the window drops after reaching the top, perform the reset procedure below.

ANTI-PINCH RESET PROCEDURE

• Step 1: Pull the window switch briefly to move the glass slightly up to the top position.
• Step 2: Hold the one-touch switch in the up position for 3–5 seconds at the top.
• Step 3: Press the switch briefly to move the glass slightly down to the bottom position.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch to raise the window fully to the top and confirm it does not drop back down.

If the window still moves down after reaching the top, repeat the above steps until the function is correctly set.

INSTALLATION & NOTES

• Professional installation by a qualified automotive technician is strongly recommended.
• Compare plug type, mounting points and orientation with your original motor before installation.
• Product images are representative of the actual item supplied; colour or finish may vary slightly due to screen settings and lighting.

WARRANTY SUMMARY

• Standard 12-month manufacturer warranty on this part, effective from invoice or delivery date.
• Warranty covers replacement of the defective part only.
• Labour, installation costs, and consequential damage are not covered.
• Incorrect installation, misuse, modification, or tampering may void warranty.

For any warranty or return enquiries, please retain your proof of purchase and follow the store’s returns procedure.
