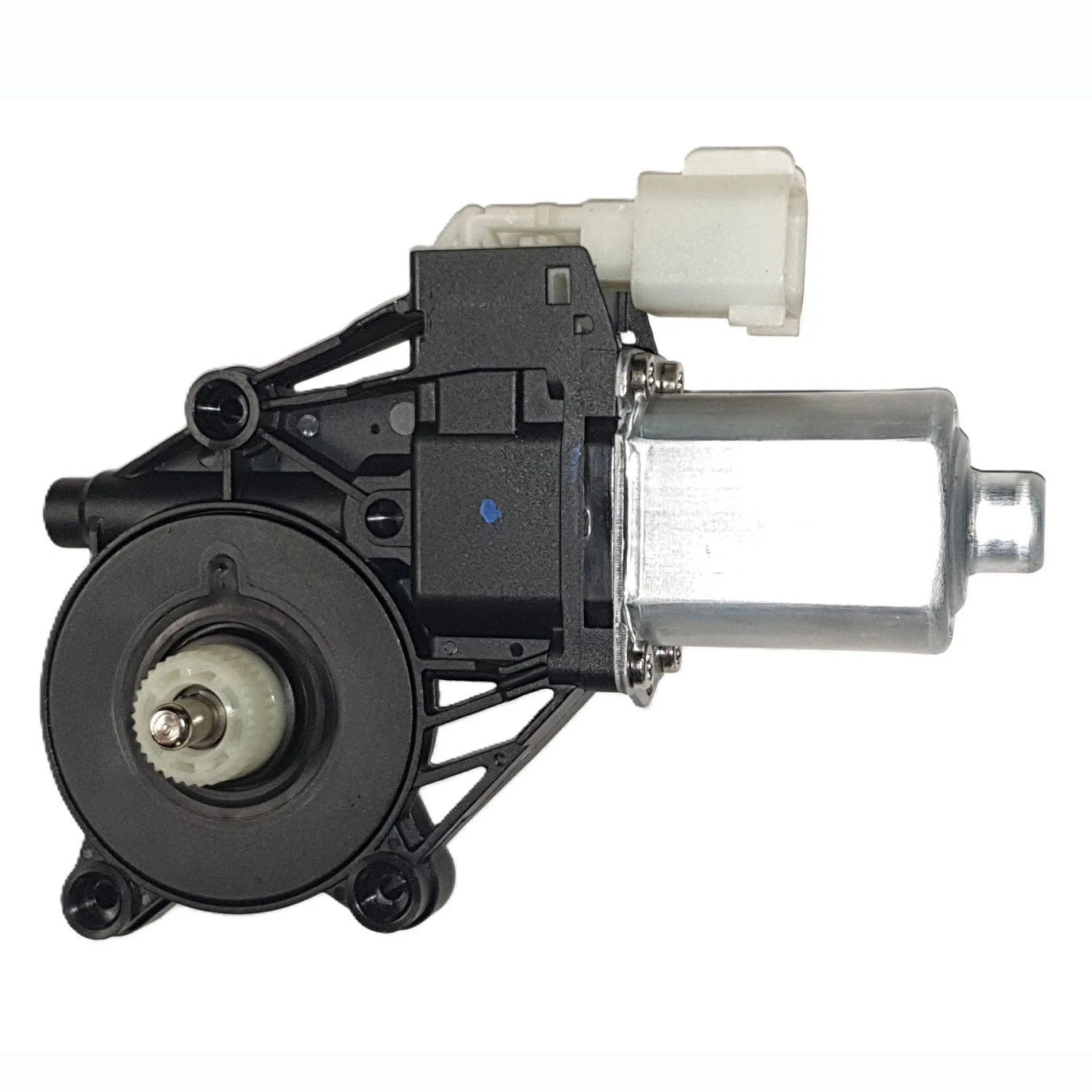

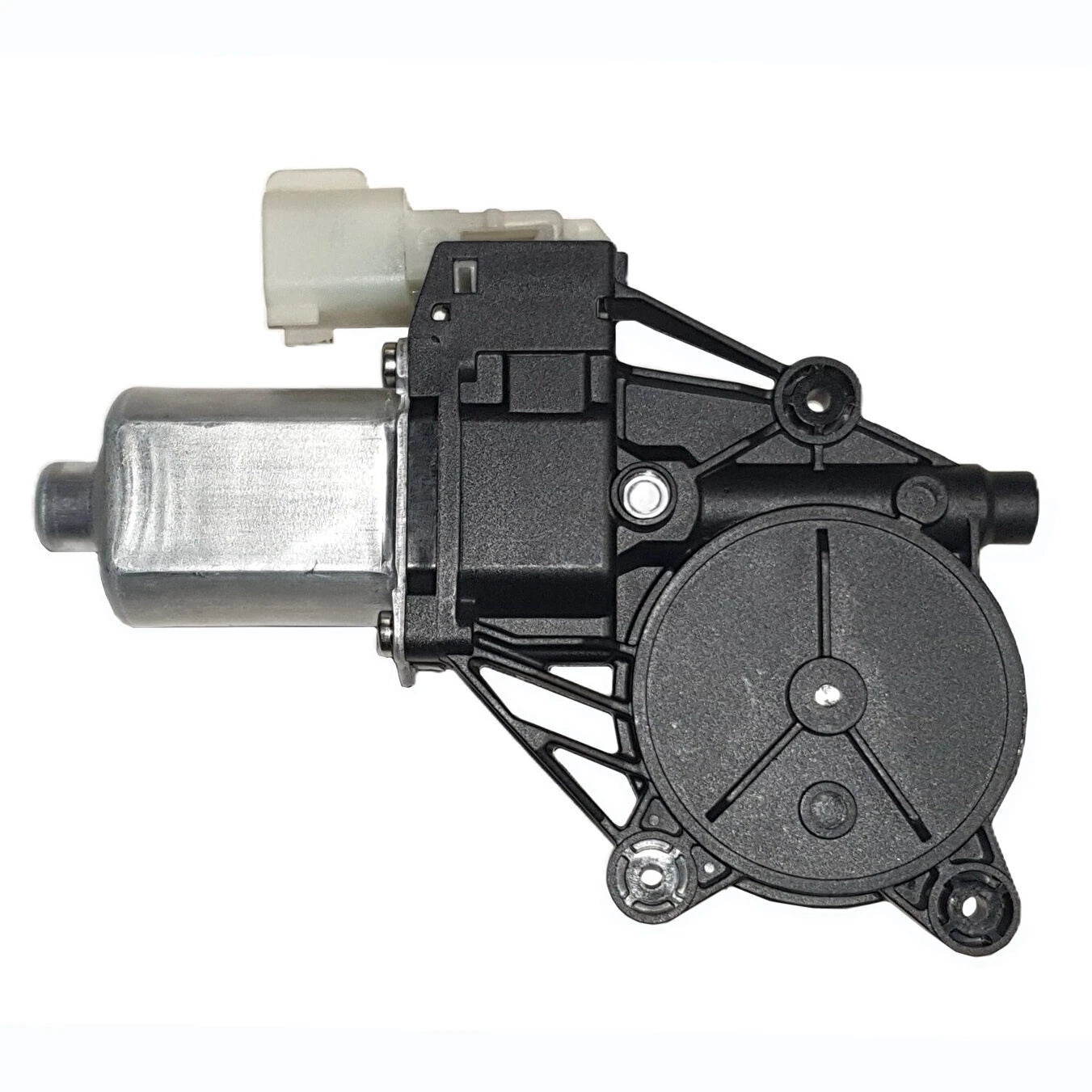

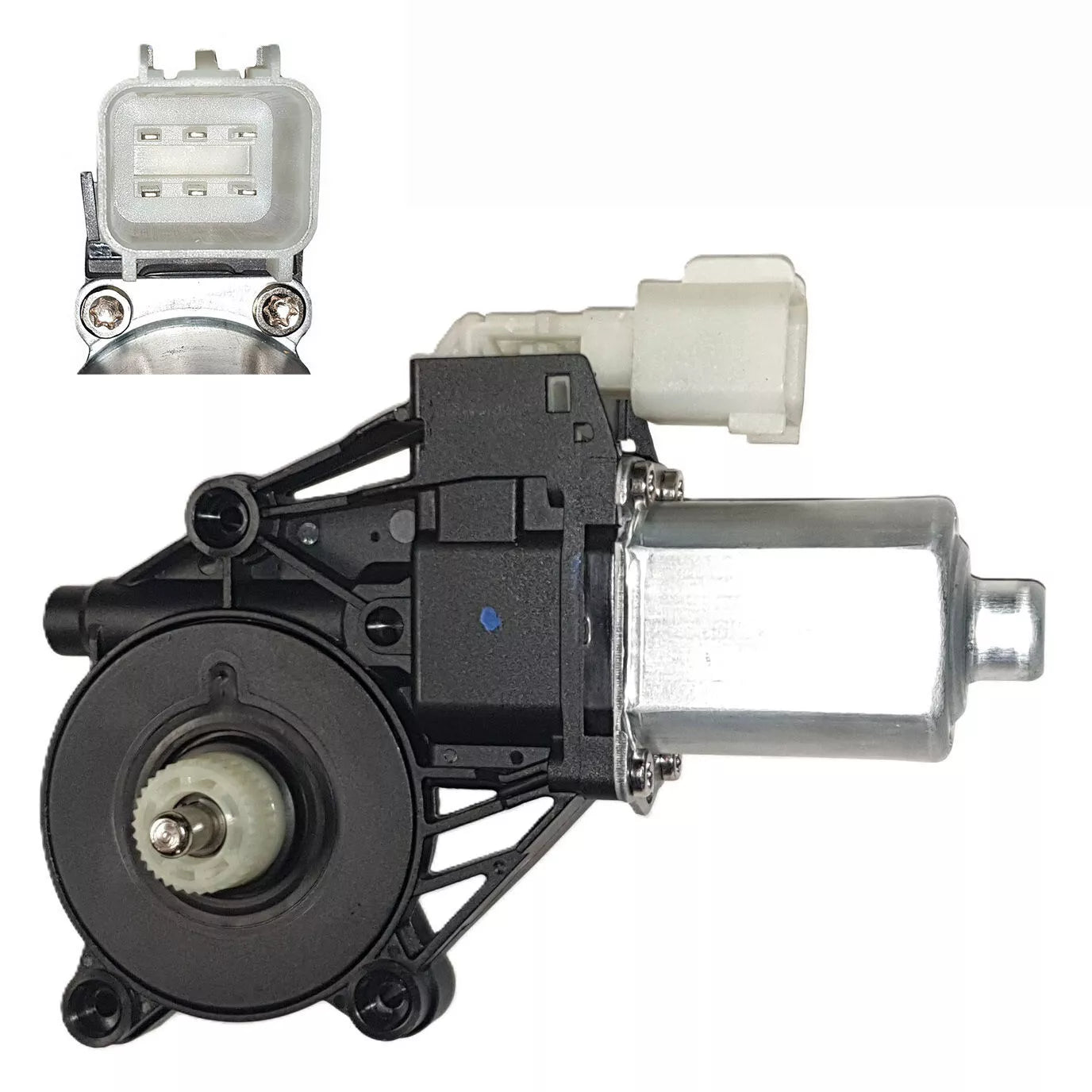

Front Right 6-Pin Window Lift Motor for Ford Ranger PX & Mazda BT-50

PRODUCT OVERVIEW

Front right electric window lift motor designed as a high-quality aftermarket replacement for selected Ford Ranger PX and Mazda BT-50 UP/UR models. Supplied as a brand new unit with 1-year parts warranty.

KEY FEATURES

• Electric window lift motor for power window systems
• Front right (driver side) door position

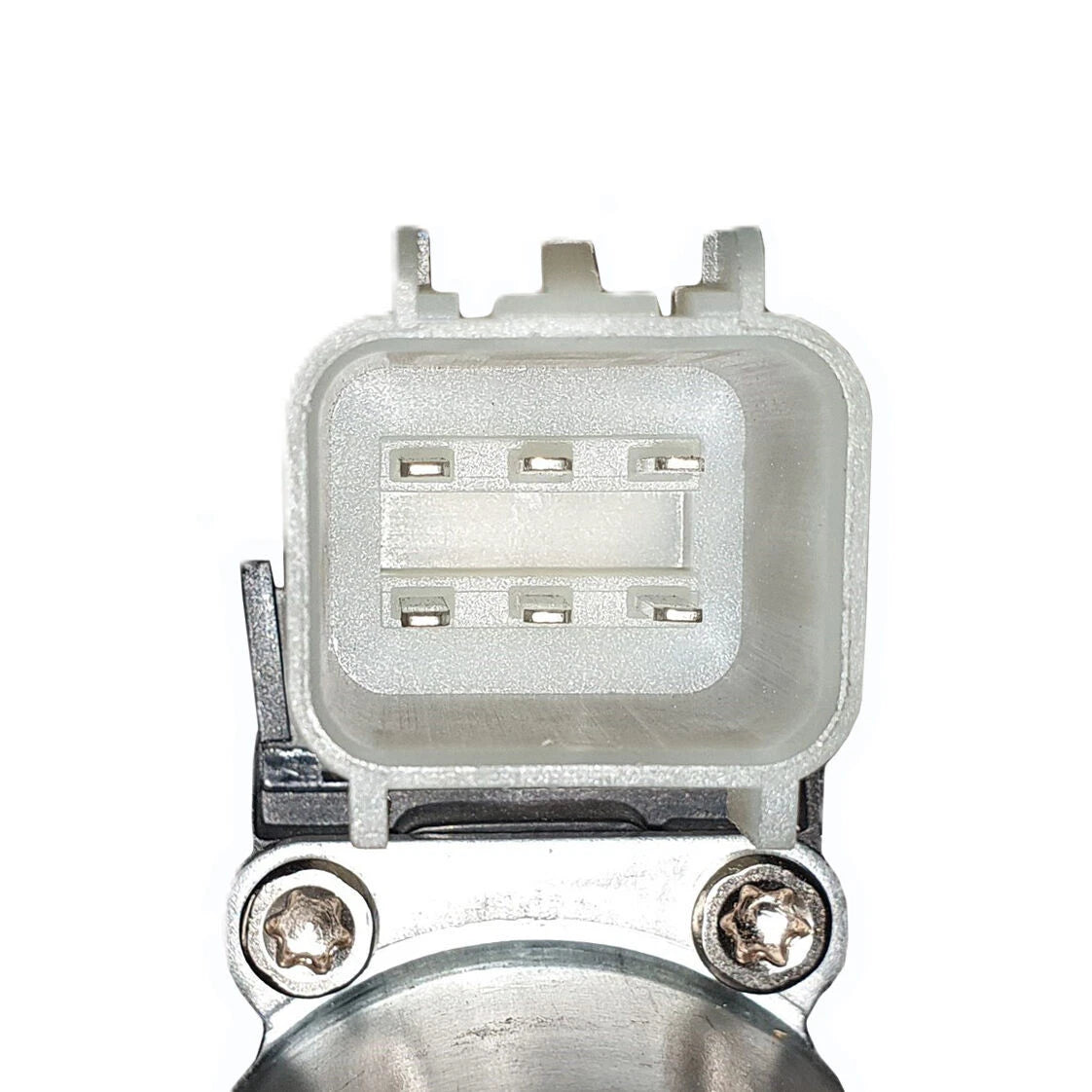

• 6-pin motor connector
• High quality aftermarket construction
• Supplied as 1 piece, ready to install
• 12-month manufacturer parts warranty

SPECIFICATIONS

• Product: Window lift motor
• Operating mode: Electric
• Placement on vehicle: Front right (front driver side)
• Connector: 6 pins
• Condition: Brand new
• Part specs: High quality aftermarket
• MPN / Item No.: 101685MF
• OE reference numbers: AB3914A389AB, AB3Z9923395B
• Quantity supplied: 1 piece
• Warranty: 1 year (part only)

VEHICLE FITMENT

• Ford Ranger PX 09/2011 - 03/2022
• Mazda BT-50 UP 07/2011 - 2015
• Mazda BT-50 UR 07/2015 - 07/2020

Fitment information is provided as a guide only. Always compare the part number, plug type, and mounting points to your original motor before purchase.

ANTI-PINCH FUNCTION RESET

This window motor may use an anti-pinch safety function. If the window drops after reaching the top, reset the motor as follows:

• Install the motor in the door and connect it to the one-touch window switch before testing.
• Pull the switch and confirm the window travels fully to the top.
• If the glass drops after reaching the top, perform the reset steps below.

Reset procedure:

• Step 1: Pull the window switch briefly to move the window up slightly to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top position.
• Step 3: Press the window switch briefly to move the window slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom position.
• Step 5: Pull the one-touch switch to move the window fully up to the top and check that it no longer drops.

If the window still drops after reaching the top, repeat the reset procedure until the function is correctly set.

IMPORTANT NOTES

• This part is intended for repair and replacement use only.
• Colours in images may vary slightly due to screen settings and lighting.
• Images shown are of the actual type of product supplied.
• Professional installation by a qualified automotive mechanic is recommended to maintain warranty.
