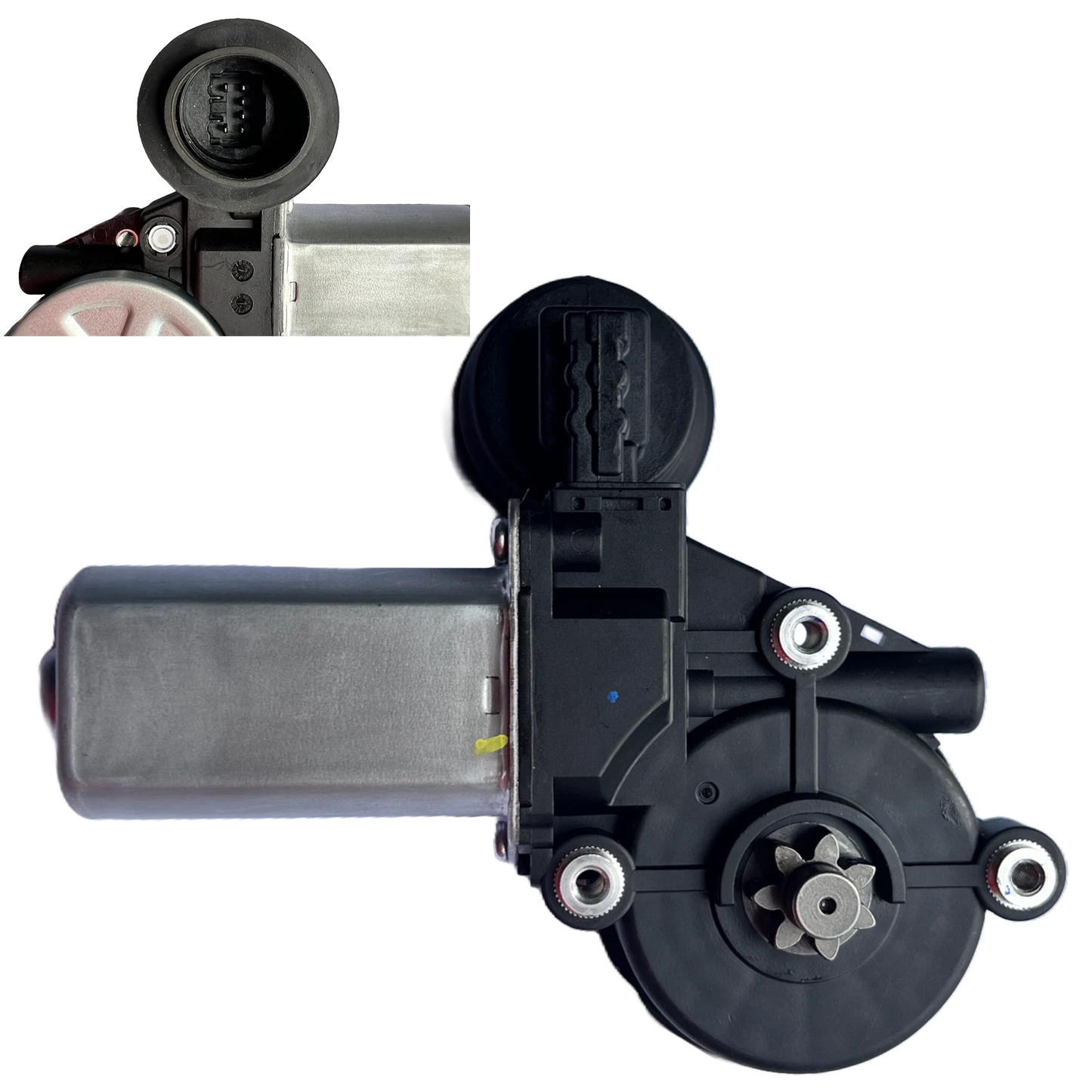

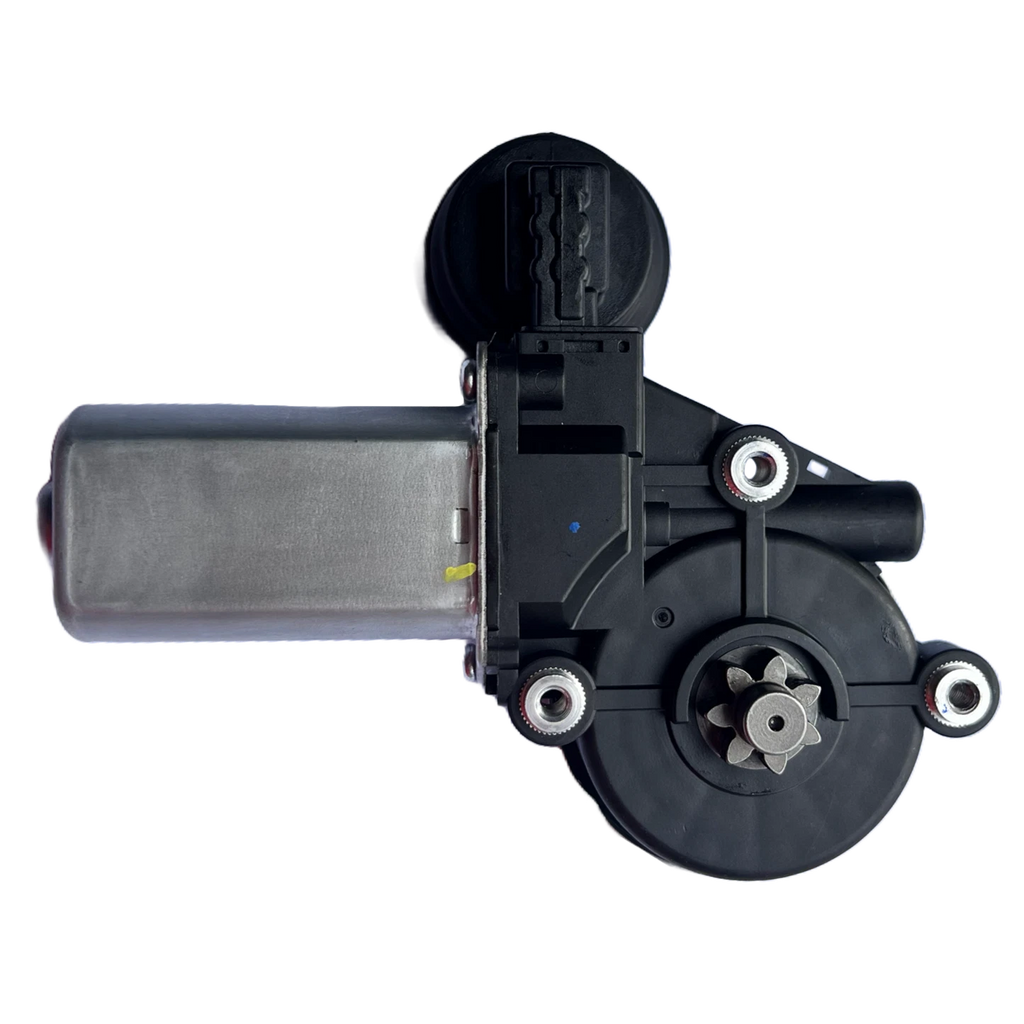

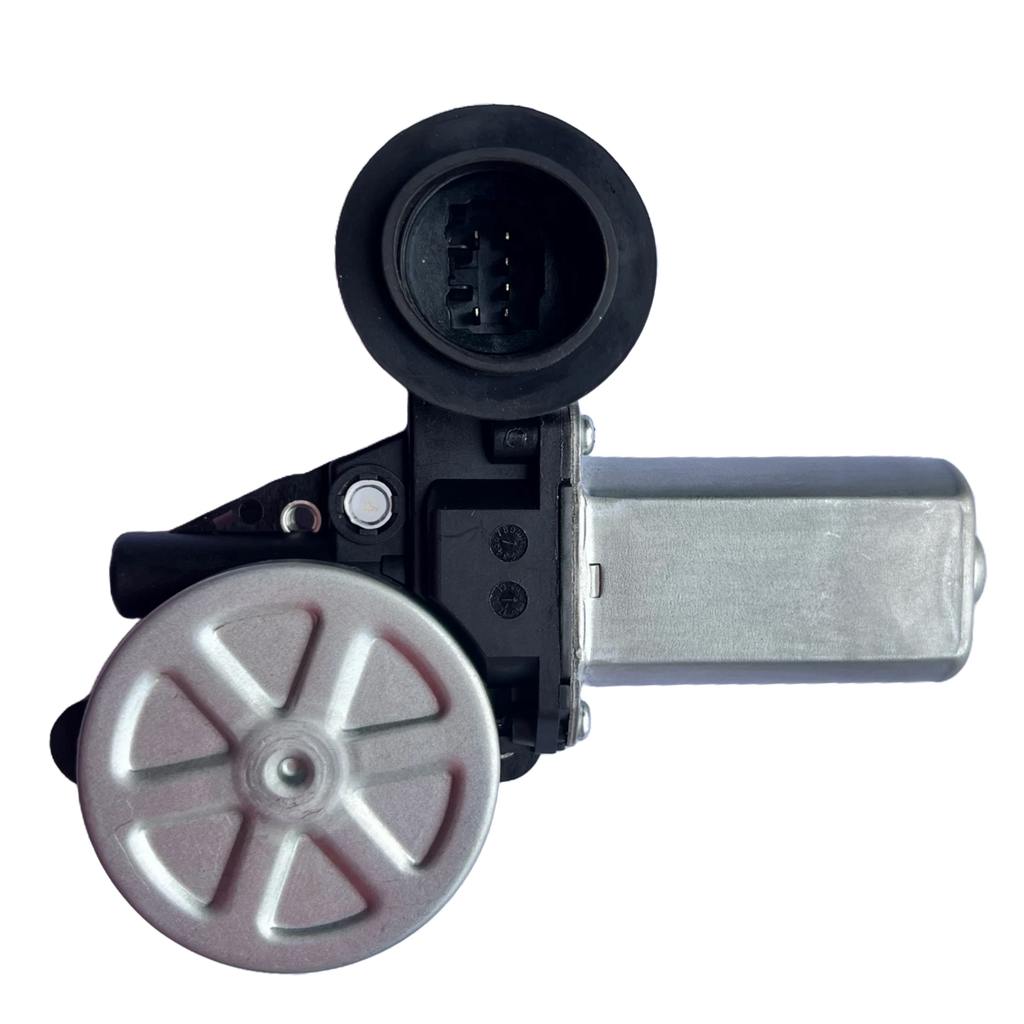

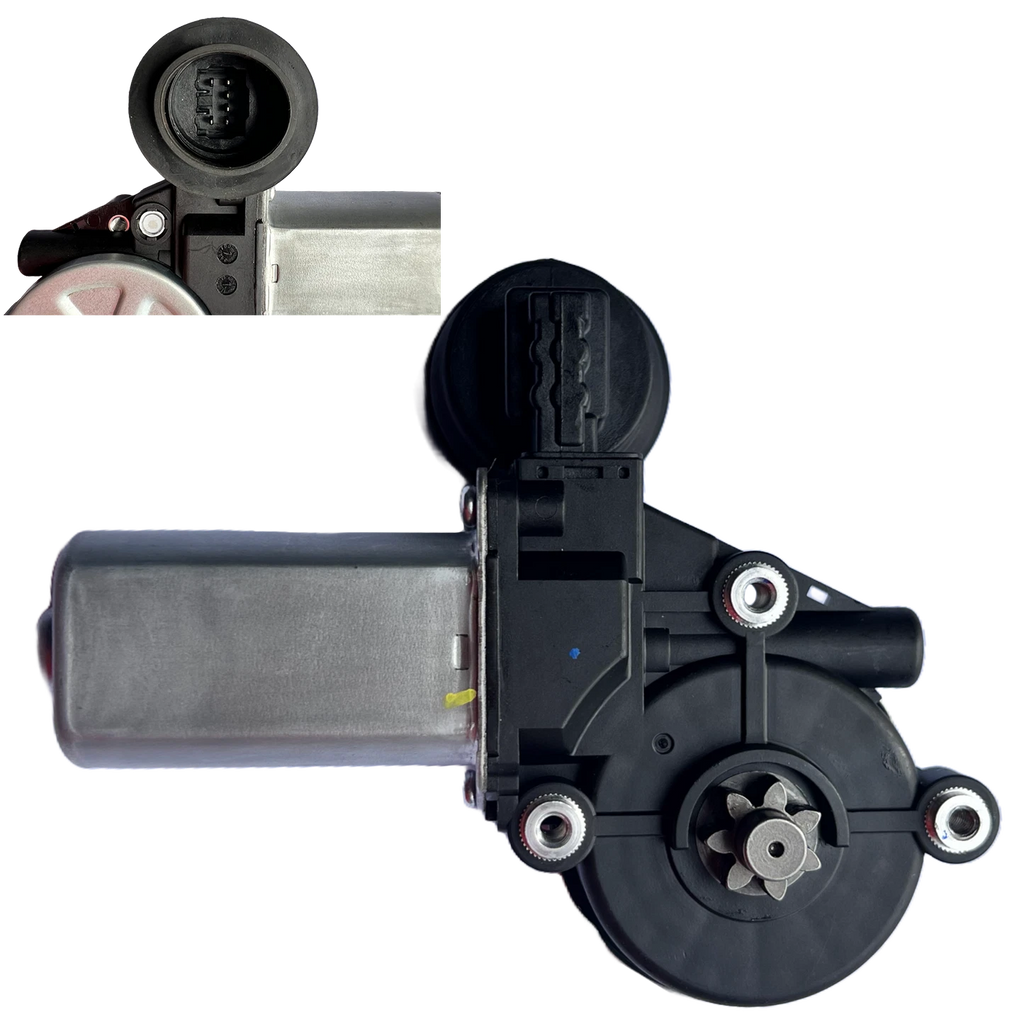

Front Right 6-Pin Window Lift Motor for Toyota Hilux 05-15 & HiAce 05-19

PRODUCT OVERVIEW

This high-quality aftermarket electric window lift motor is designed for the front right (driver side) door, providing reliable power window operation and direct replacement of the original motor.

KEY FEATURES

• Electric window lift motor for power window systems
• Front right (driver side) fitment

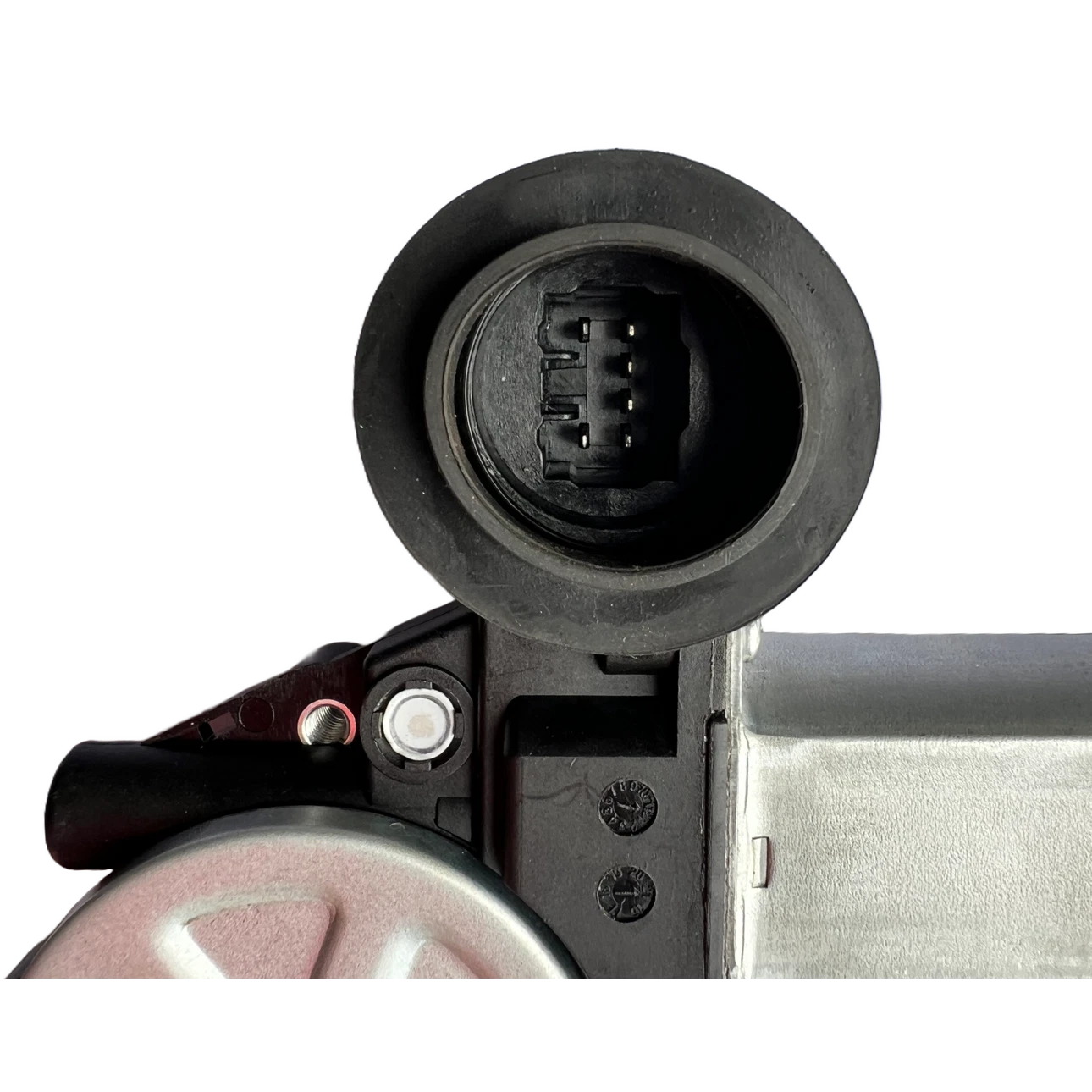

• 6-pin motor connector
• High-quality aftermarket construction
• Brand new unit – not remanufactured
• MPN / Item No.: 101502M6F
• Supplied as 1 piece
• 12-month manufacturer warranty (part only)

VEHICLE COMPATIBILITY

• Toyota Hilux 02/2005 – 08/2015 (TGN / KUN / GGN)
• Toyota HiAce TRH / KDH 01/2005 – 01/2019

Use the above compatibility as a guide only. Always compare the connector, mounting points and images with your original motor before purchase.

ANTI-PINCH FUNCTION SETUP

This motor is suitable for systems with anti-pinch (one-touch) window function. Incorrect testing before installation can cause the anti-pinch function to fail and require resetting.

• Do not power the motor before it is installed in the door.
• The motors are tested and preset before dispatch.
• Install the motor, connect to the one-touch switch and raise the window fully.
• If the glass drops after reaching the top, perform the reset procedure.

ANTI-PINCH RESET PROCEDURE

• Step 1: Pull the window switch briefly to move the glass slightly up to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top position.
• Step 3: Press the switch briefly to move the glass slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom position.
• Step 5: Pull the one-touch switch to raise the window fully to the top.

The reset is complete if the window no longer drops after reaching the top. If it still drops, repeat the above steps until successful.

INSTALLATION & IMPORTANT NOTES

• Intended for use as a replacement part for repair.
• Professional installation by a qualified automotive mechanic is strongly recommended.
• Colour and finish may vary slightly from photos due to screen and lighting differences.
• Images show the actual style of product supplied; match to your original part before ordering.
• Do not remove any tamper-evident seals or labels on plugs or motor housings, as this may affect return eligibility subject to inspection.

WARRANTY SUMMARY

• Standard 12-month manufacturer’s warranty on this part, from invoice or delivery date.
• Warranty covers replacement of the defective part only.
• Labour, fitting costs, and consequential damage are not covered.
• Incorrect installation, misuse, modification or poor storage will void warranty.
• All parts should be installed by a qualified automotive mechanic to maintain warranty validity.

For warranty assessment, the item must be returned for inspection. Some cases may require evaluation by the manufacturer or an authorised repair agent.
