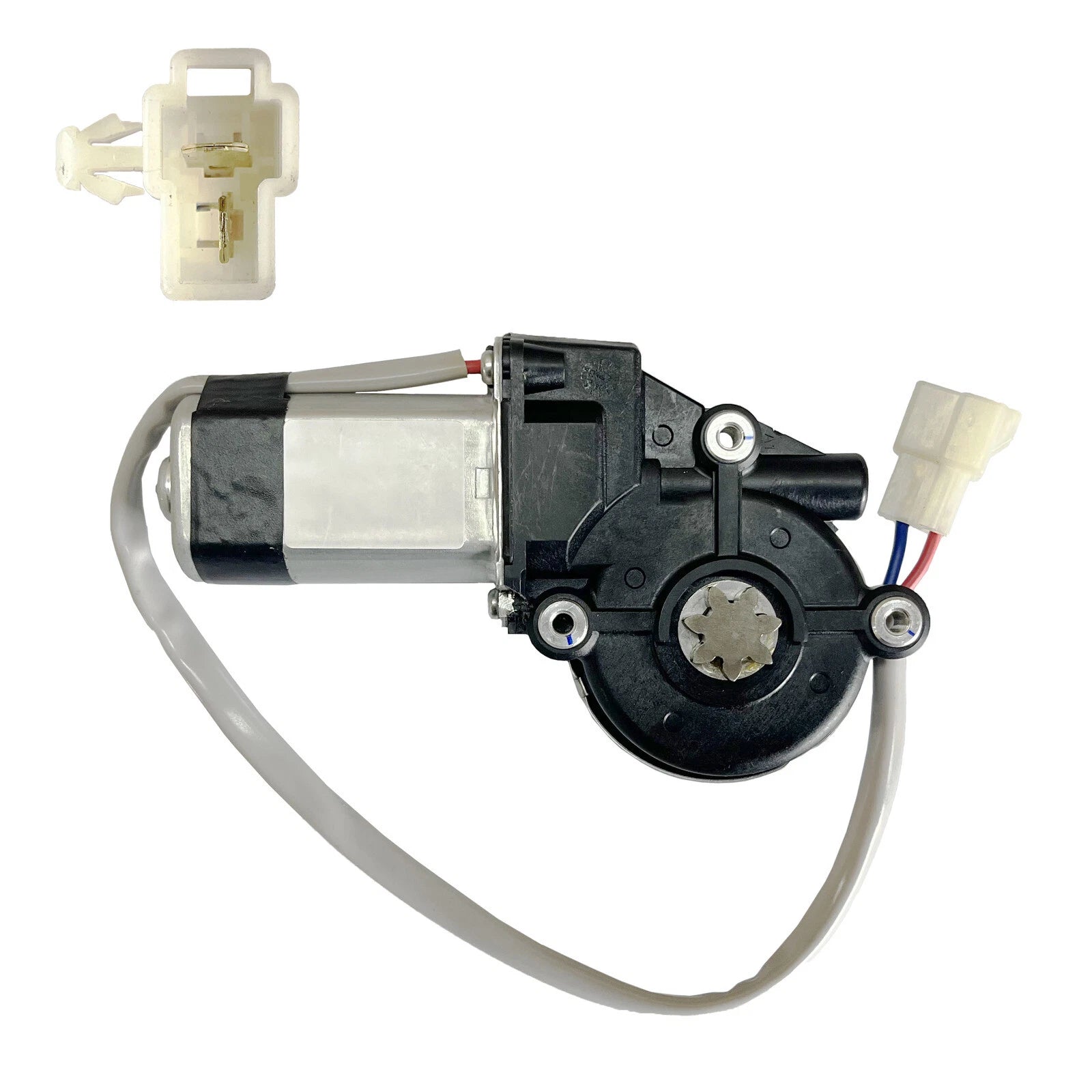

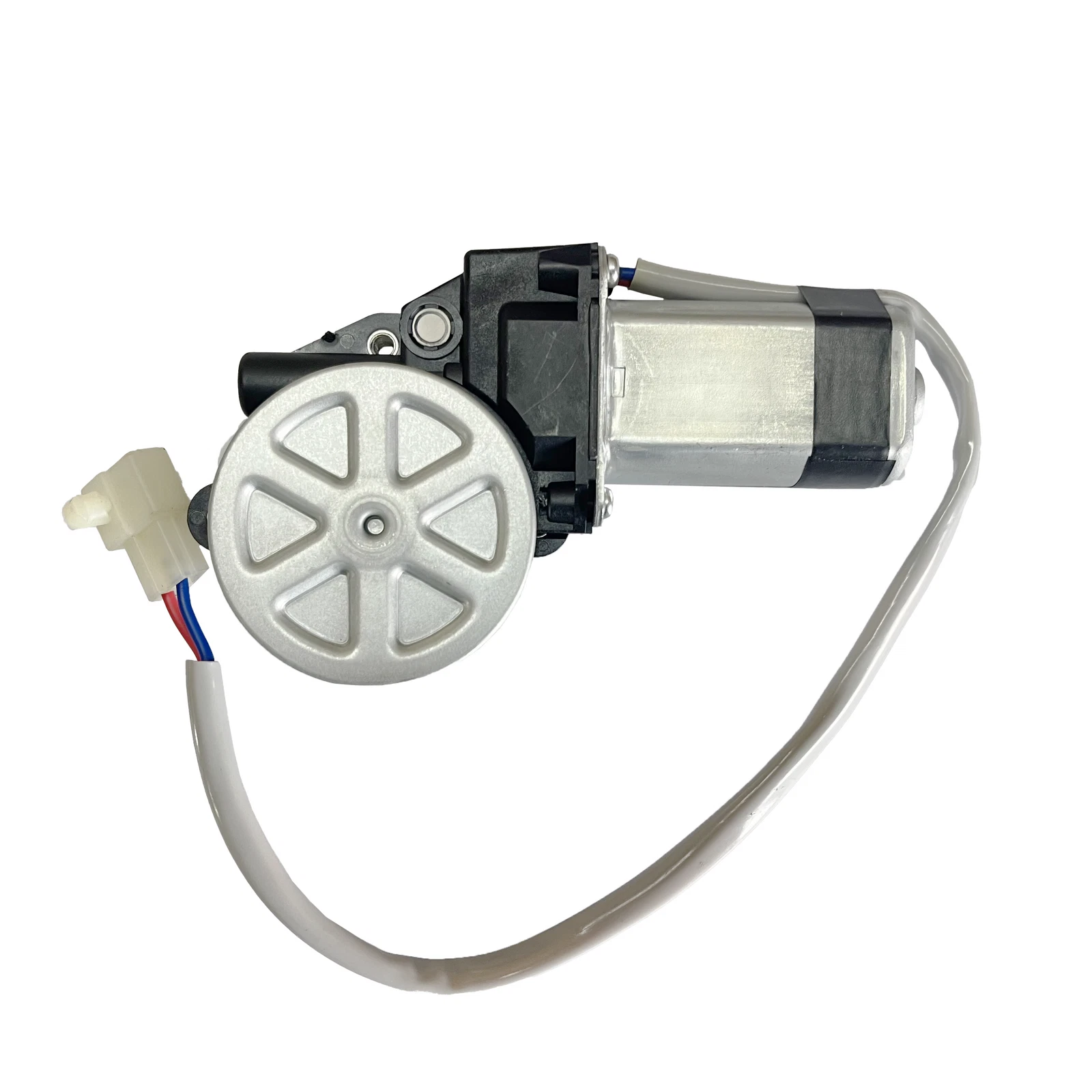

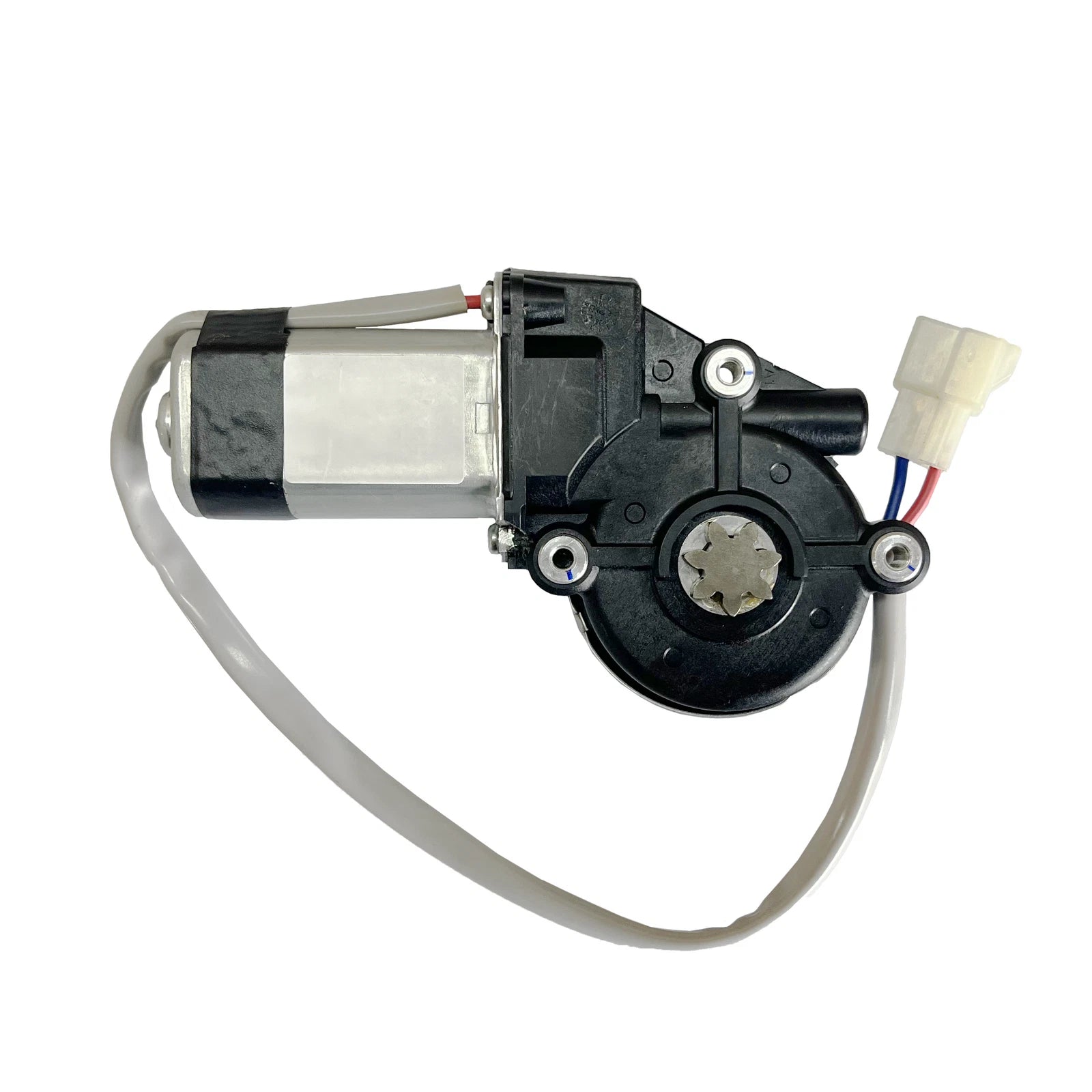

Front Right 2-Pin Window Lift Motor for Toyota Hilux TGN/KUN/GGN 05-15

PRODUCT OVERVIEW

This high-quality aftermarket electric window lift motor is designed for the front right (driver side) position and provides reliable operation for the power window system.

KEY FEATURES

• Application: Front right (front driver side) power window

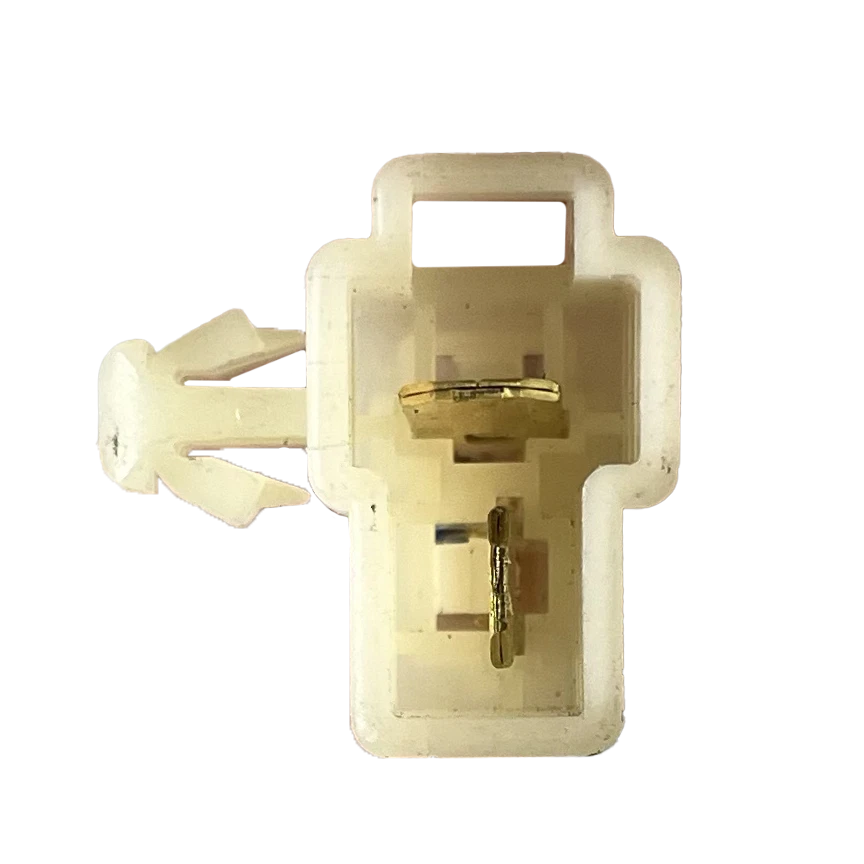

• Motor connection: 2-pin electric motor
• Construction: High-quality aftermarket replacement
• Condition: Brand new component
• Quantity supplied: 1 piece
• Reference: MPN/Item No. 102024GM2
• Warranty: 1-year manufacturer part-only warranty

FITMENT

• Toyota Hilux 02/2005 - 08/2015 TGN/KUN/GGN (front right / driver side)

Always compare the images and specifications with your original motor before purchasing to ensure correct fitment.

ANTI-PINCH FUNCTION NOTICE

This motor may be used with window regulators that feature an anti-pinch safety function. Correct setup is essential for proper operation.

• Do not test the motor before installing it in the door, or the anti-pinch function may fail and require resetting.
• Motors are tested and pre-set before dispatch.
• After installation, connect to the one-touch window switch and operate the window to full travel to confirm correct function.
• If the window drops down after reaching the top, follow the reset procedure below.

ANTI-PINCH RESET PROCEDURE

• Step 1: Pull the window switch briefly so the glass moves slightly up to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top position.
• Step 3: Press the window switch briefly so the glass moves slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom position.
• Step 5: Pull the one-touch switch to raise the window fully to the top and check that it no longer drops.

If the window still drops after reaching the top, repeat the reset steps until the function operates correctly.

PRODUCT NOTES

• Intended for repair and replacement of existing window regulator systems.
• Product colour or finish may appear slightly different due to lighting and screen settings.
• Images shown are of the actual type of product supplied; match the plug, mounting points, and shape to your original unit.
• To maintain warranty coverage, installation by a qualified automotive mechanic is strongly recommended.
