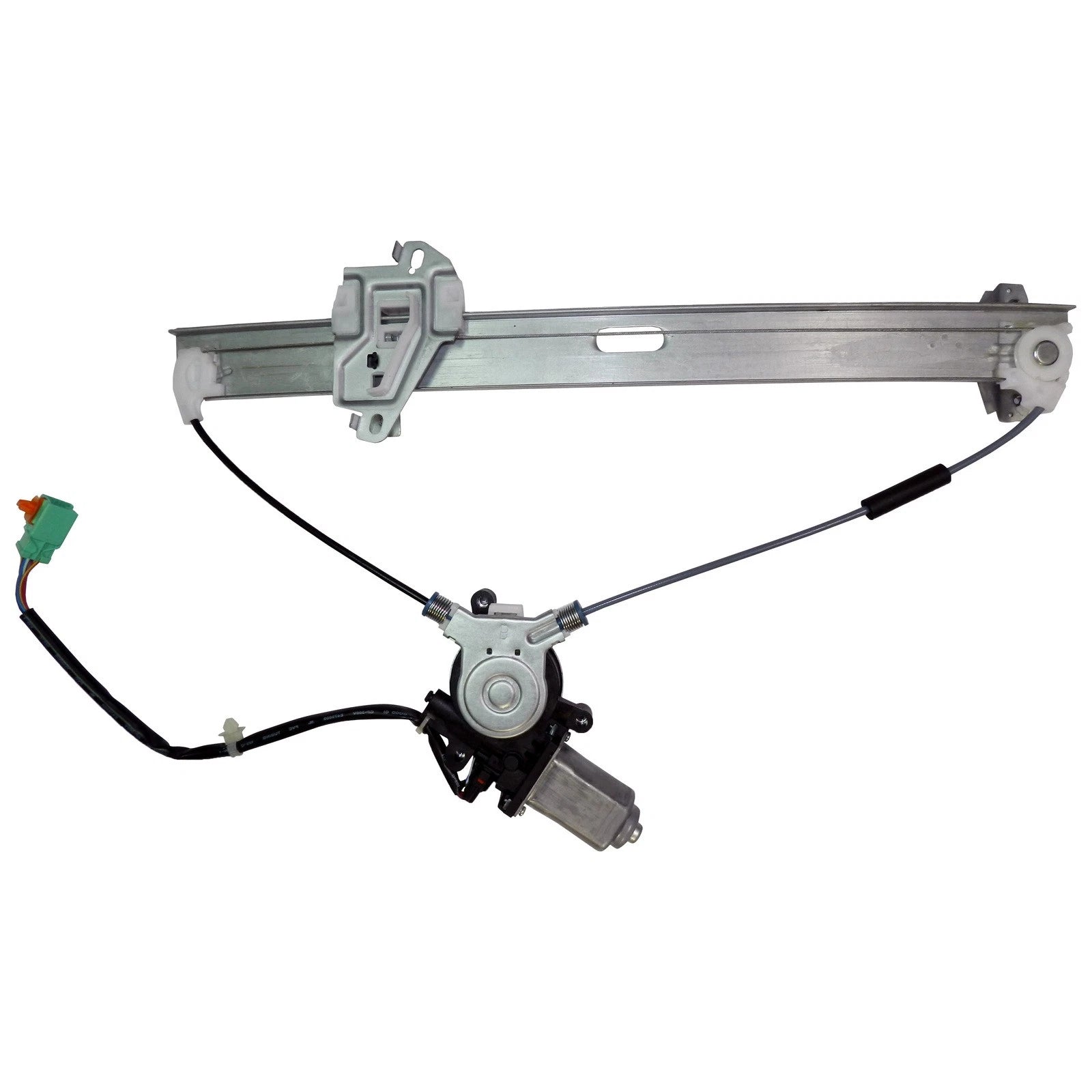

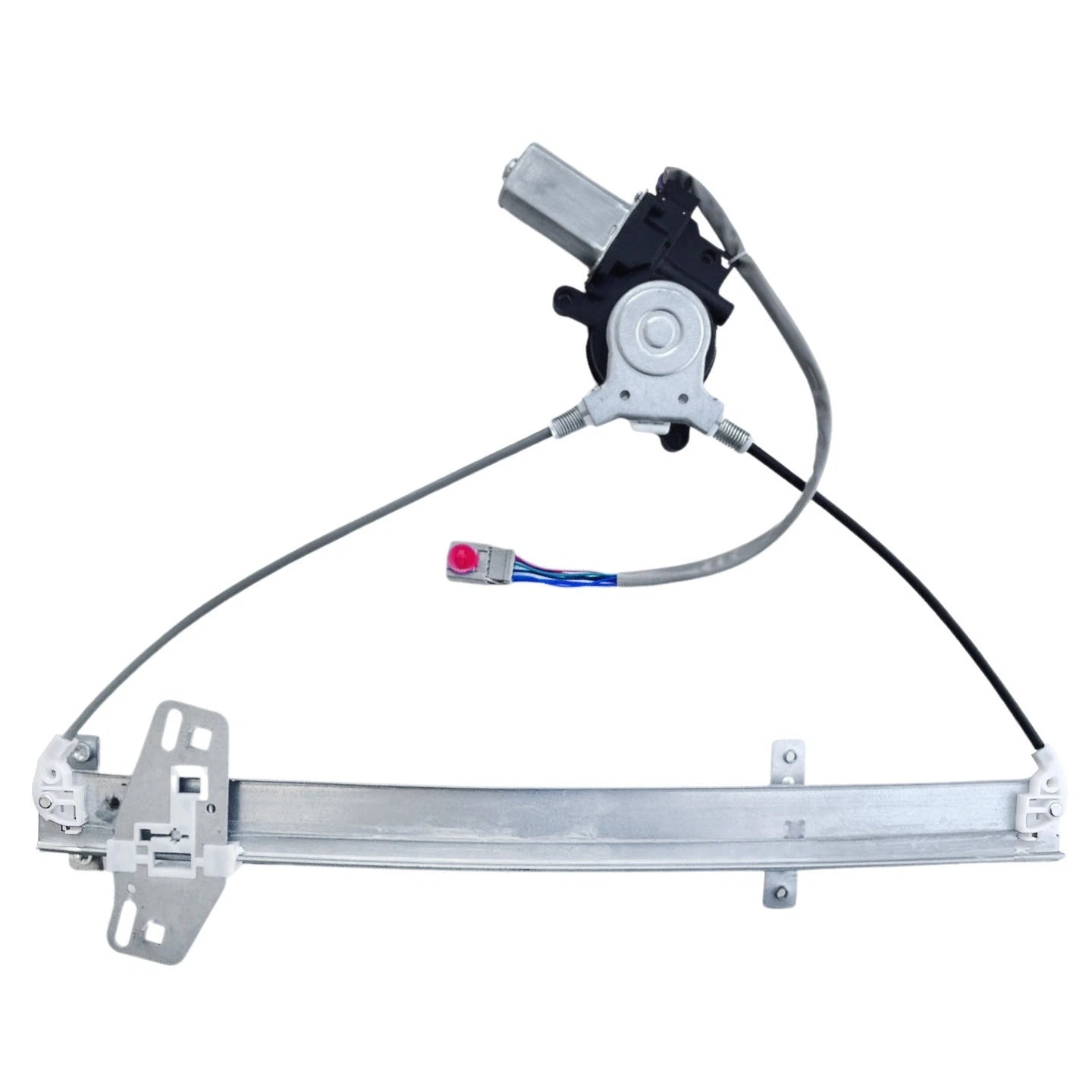

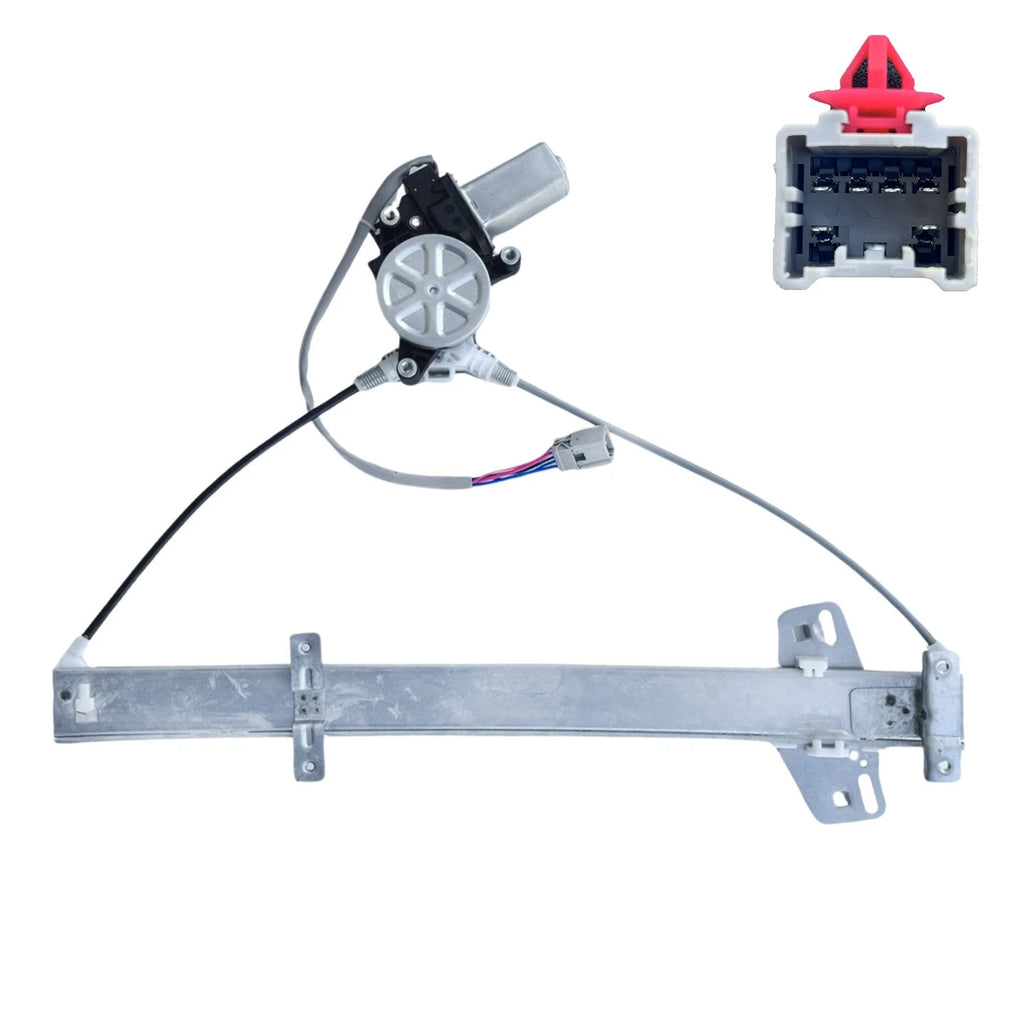

Front Right Electric Window Regulator w/ 6-Pin Motor for Honda Jazz GD 02-08

PRODUCT OVERVIEW

This front right electric window regulator with 6-pin motor is a high-quality aftermarket replacement designed for Honda Jazz GD hatch models from 11/2002 to 09/2008. Supplied as a complete assembly for straightforward installation and reliable window operation.

KEY FEATURES

• Complete electric window regulator assembly with motor
• Front right (driver side) position
• 6-pin electric motor connection
• High-quality aftermarket construction
• Brand new part – not reconditioned
• Supplied as a single piece (QTY: 1)

SPECIFICATIONS

• Product: Window regulator
• Operating mode: Electric
• Placement on vehicle: Front right (front driver side)
• Motor: 6-pin connector
• Condition: Brand new
• Part specification: High quality aftermarket
• MPN/Item No.: 101299
• Quantity supplied: 1 piece
• Manufacturer warranty: 1 year (part only)

VEHICLE COMPATIBILITY

• Honda Jazz GD 11/2002 – 09/2008 (5-door hatch)

Please compare the product photos and specifications with your original regulator and motor before purchasing to ensure correct fitment.

ANTI-PINCH FUNCTION SETUP

This regulator motor may include an anti-pinch (one-touch) safety function. The motor must be installed and initialised correctly to operate as intended.

• Do not power-test the motor before it is installed in the door.
• Install the motor and connect it to the one-touch window switch.
• Pull the switch up to confirm the window travels fully to the top.
• If the window goes up then drops down at the top, perform the reset procedure below.

ANTI-PINCH RESET PROCEDURE

• Step 1: Pull the window switch briefly so the window moves slightly up to the top position.
• Step 2: Hold the one-touch switch up for 3–5 seconds with the window fully closed.
• Step 3: Press the window switch briefly so the window moves slightly down to the bottom position.
• Step 4: Hold the one-touch switch down for 3–5 seconds with the window fully open.
• Step 5: Pull the one-touch switch to raise the window fully to the top.

The reset is complete if the window remains at the top and does not drop. If it drops again, repeat the above steps until successful.

INSTALLATION & WARRANTY NOTES

• Parts are intended for repair and replacement use.
• Professional installation by a qualified automotive mechanic is strongly recommended.
• Warranty covers replacement of the defective part only and does not include labour or associated costs.
• Products cannot be returned if modified, tampered with, damaged, or incorrectly installed.
• Colour and finish may vary slightly from images due to screen and lighting differences.

Please retain proof of purchase and follow the seller’s returns and warranty process if a claim is required.
