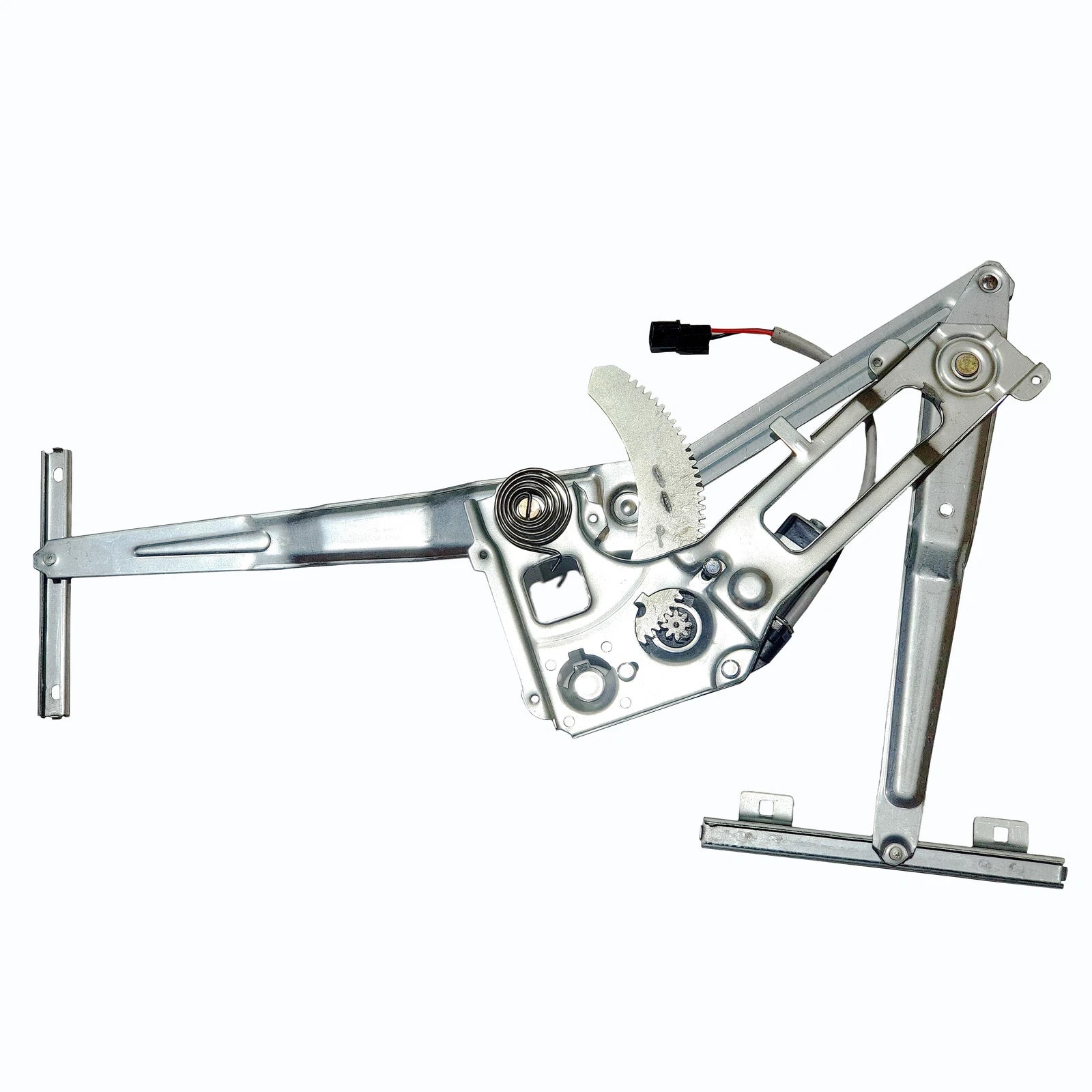

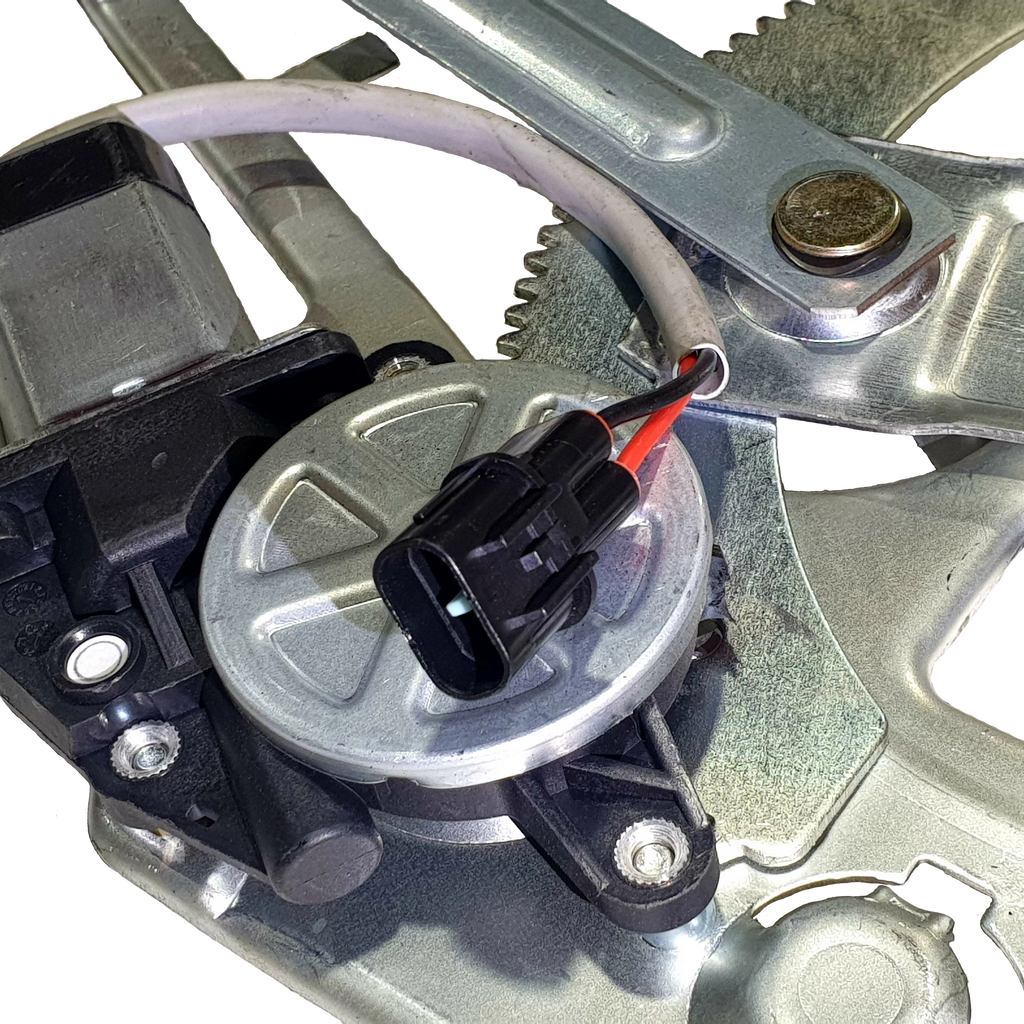

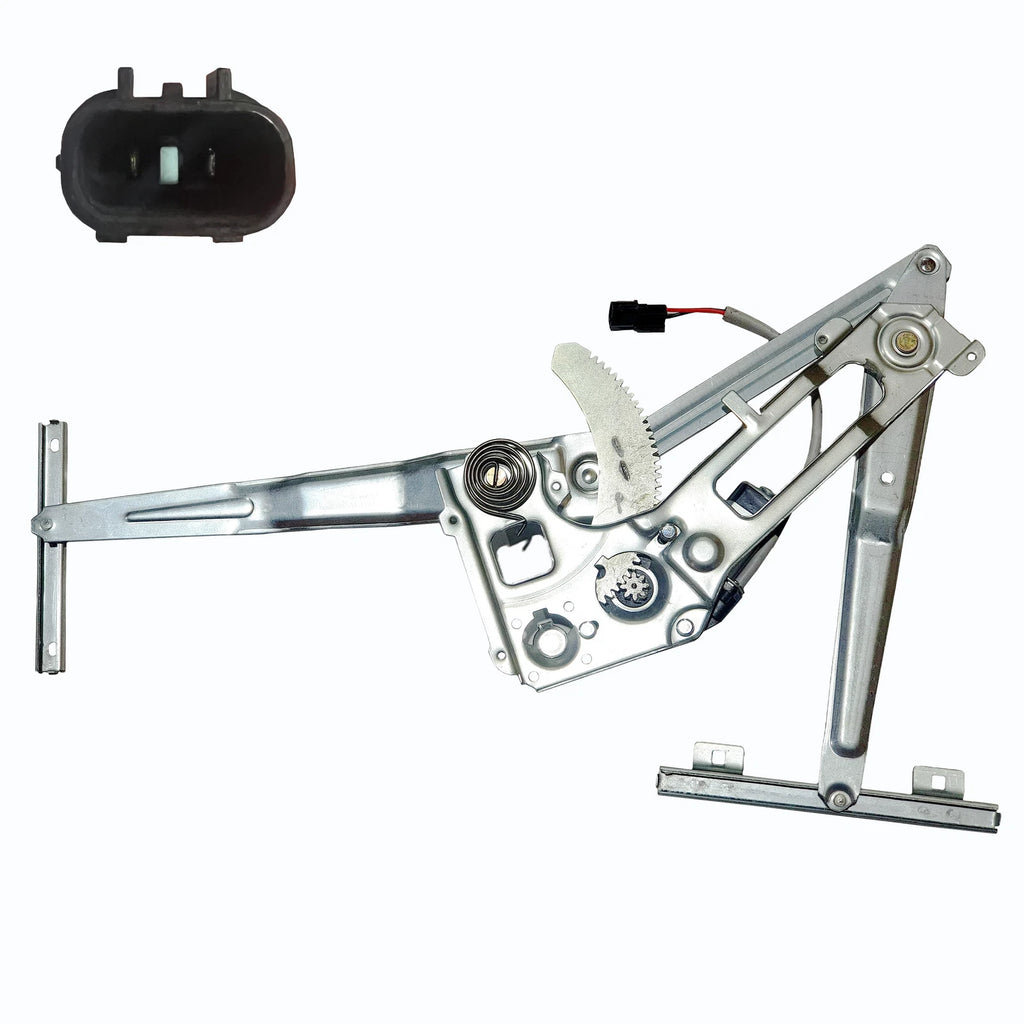

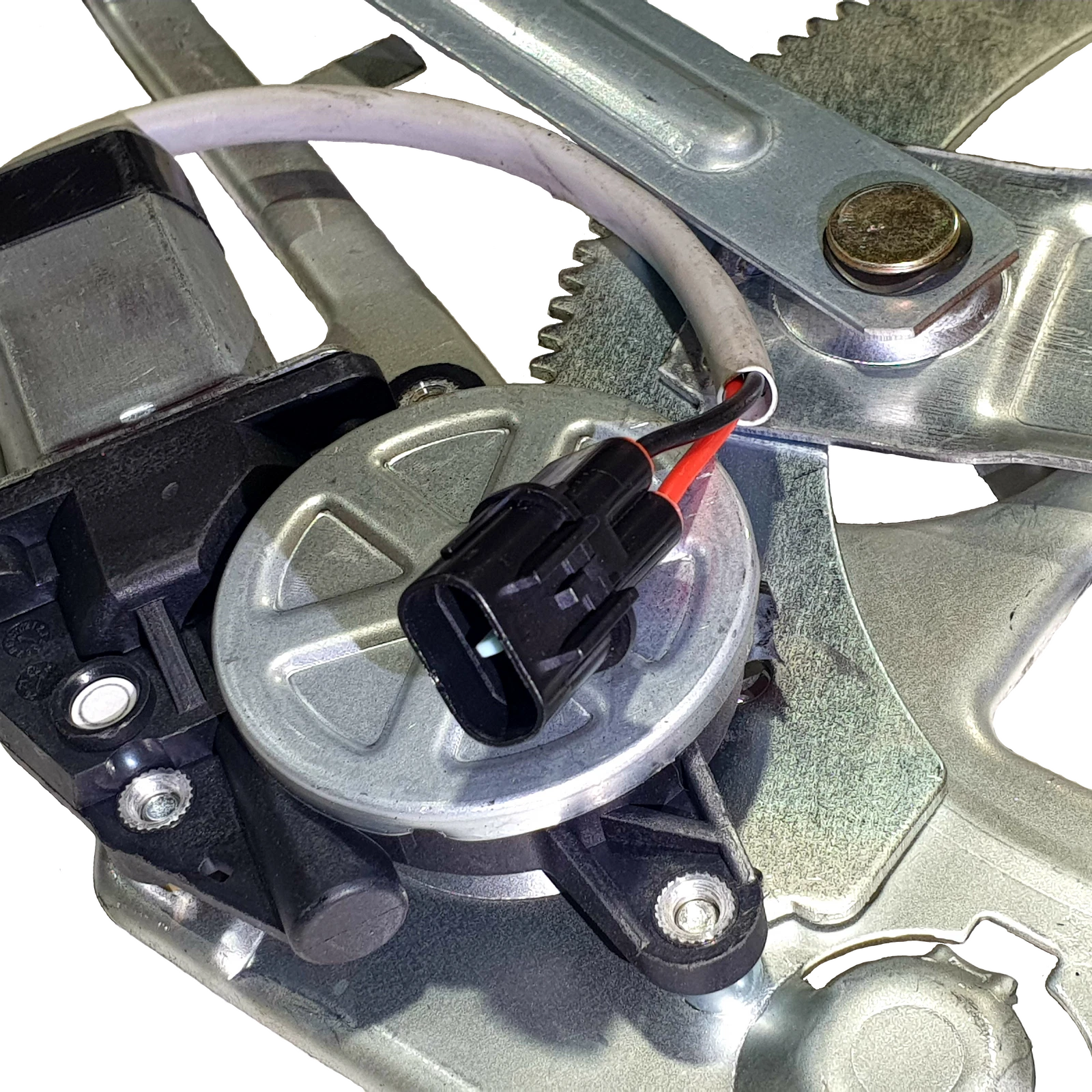

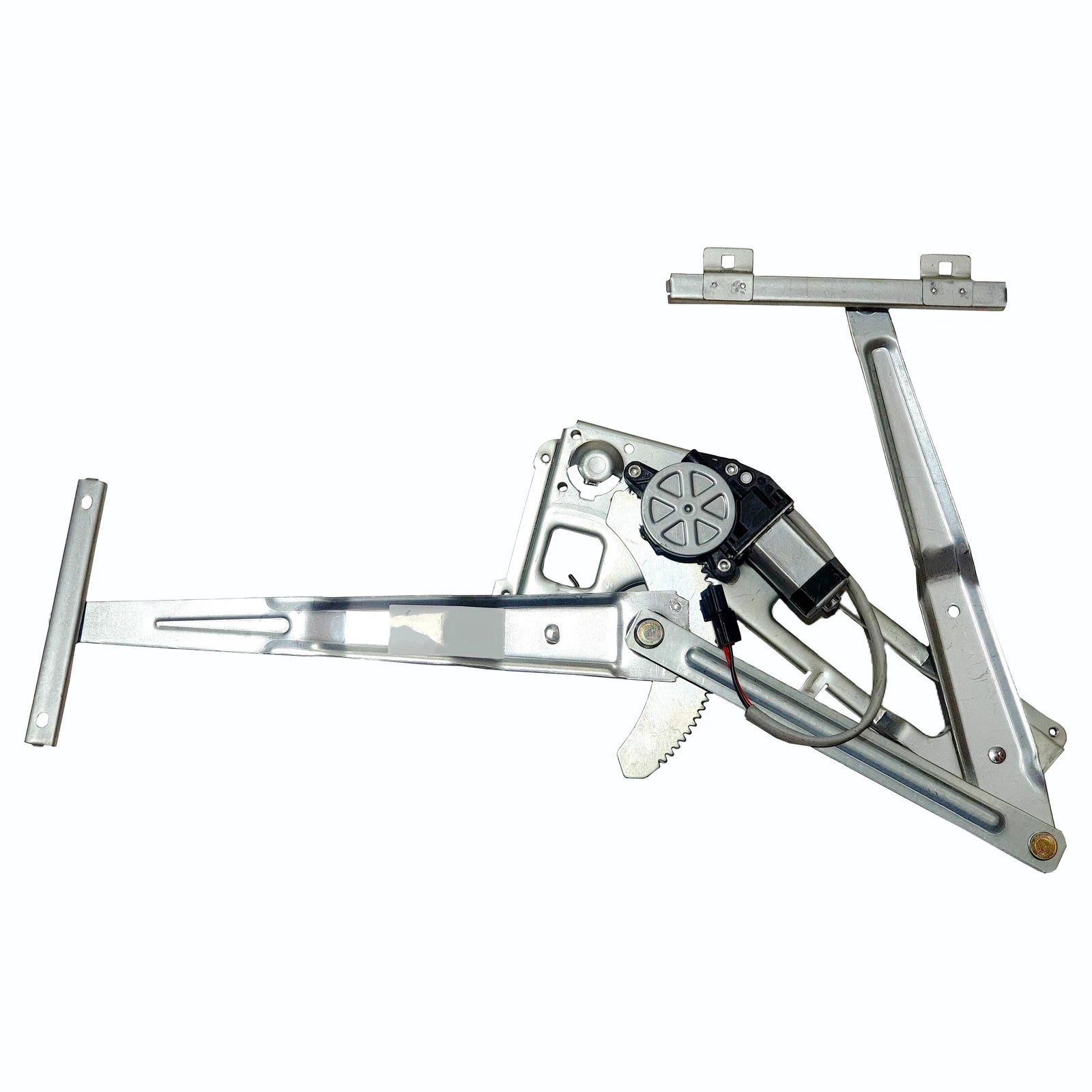

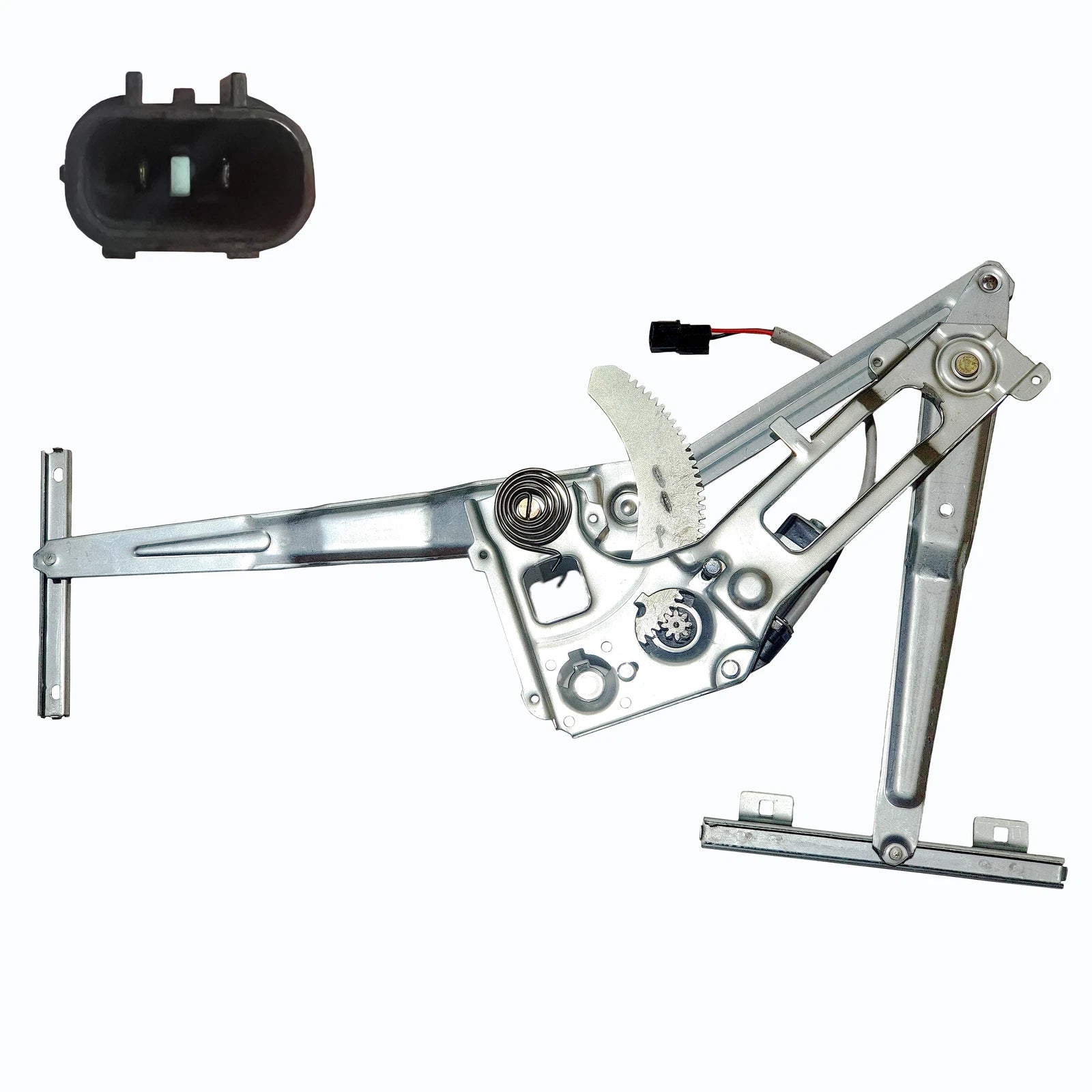

Front Right 24V Electric Window Regulator with Motor for Isuzu N-Series

PRODUCT OVERVIEW

This front right electric window regulator with motor is a high-quality aftermarket replacement for selected Isuzu N-Series ELF NKR and NPR trucks. It restores smooth and reliable power window operation on the driver side.

KEY FEATURES

• Complete window regulator assembly supplied with motor
• 24V electric operation with 2-pin motor connection
• Front right (driver side) configuration
• Durable, high-quality aftermarket construction
• Supplied brand new and ready for installation

SPECIFICATIONS

• Product: Window regulator with motor
• Operating mode: Electric, 24V
• Placement on vehicle: Front right (driver side)

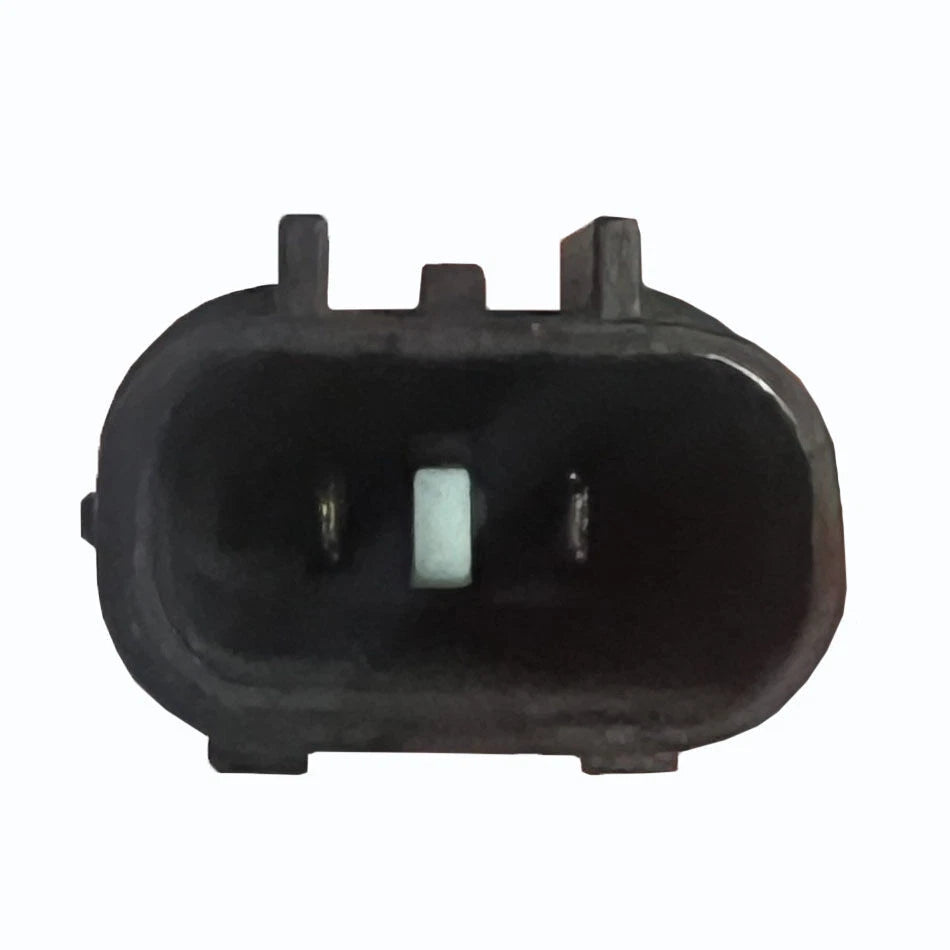

• Motor connection: 2 pins
• Condition: Brand new
• Part type: High-quality aftermarket
• MPN / Item No.: 100374MF
• Quantity supplied: 1 piece
• Warranty: 12 months (part only)

VEHICLE FITMENT

Direct replacement for selected Isuzu N-Series models (ELF NKR / NPR), including but not limited to:

• Isuzu N-Series NKR58 1994 - 1996
• Isuzu N-Series NKR66 10/1994 - 1997
• Isuzu N-Series NKR66 1998 - 2002
• Isuzu N-Series NKR69 1996 - 1997
• Isuzu N-Series NKR77 11/2002 - 02/2005
• Isuzu N-Series NKR77 03/2005 - 09/2007
• Isuzu N-Series NPR58 1994 - 1995
• Isuzu N-Series NPR66 1994 - 1996
• Isuzu N-Series NPR66 1996 - 1998
• Isuzu N-Series NPR66 1998 - 2002
• Isuzu N-Series NPR70 2000 - 10/2002
• Isuzu N-Series NPR70 11/2002 - 2005
• Isuzu N-Series NPR71 1998 - 2002
• Isuzu N-Series NPR75 07/2005 - 2007
• Isuzu N-Series NPS66 06/1993 - 1998
• Isuzu N-Series NPS70 11/2002 - 2005
• Isuzu N-Series NPS71 1998 - 2002
• Isuzu N-Series NPS75 2005 - 2007
• Isuzu N-Series NQR70 1998 - 10/2002
• Isuzu N-Series NQR70 11/2002 - 2005
• Isuzu N-Series NQR75 07/2005 - 2007

Important: Always compare the part number, plug type and mounting points with your original regulator before purchase.

ANTI-PINCH FUNCTION SETUP (IF APPLICABLE)

For window regulator motors equipped with anti-pinch and one-touch function, follow these setup steps after installation:

• Install the regulator and motor in the door and connect to the one-touch window switch before testing.
• If the window drops slightly after reaching the top position, perform a reset of the anti-pinch function.

Reset procedure:

• Step 1: Pull the window switch briefly to move the glass slightly up to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top position.
• Step 3: Press the window switch briefly to move the glass slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom position.
• Step 5: Pull the one-touch switch to raise the window fully to the top and verify it does not drop.

If the window still drops after reaching the top, repeat the reset steps until the function operates correctly.

INSTALLATION & WARRANTY NOTES

• Professional installation by a qualified automotive technician is recommended to maintain warranty coverage.
• Warranty covers the part only and excludes labour, towing or any consequential damage.
• Product images are for reference only; minor visual differences may occur due to lighting and screen settings.
• Match the plug, mounting points and regulator layout to your original part before installation.
