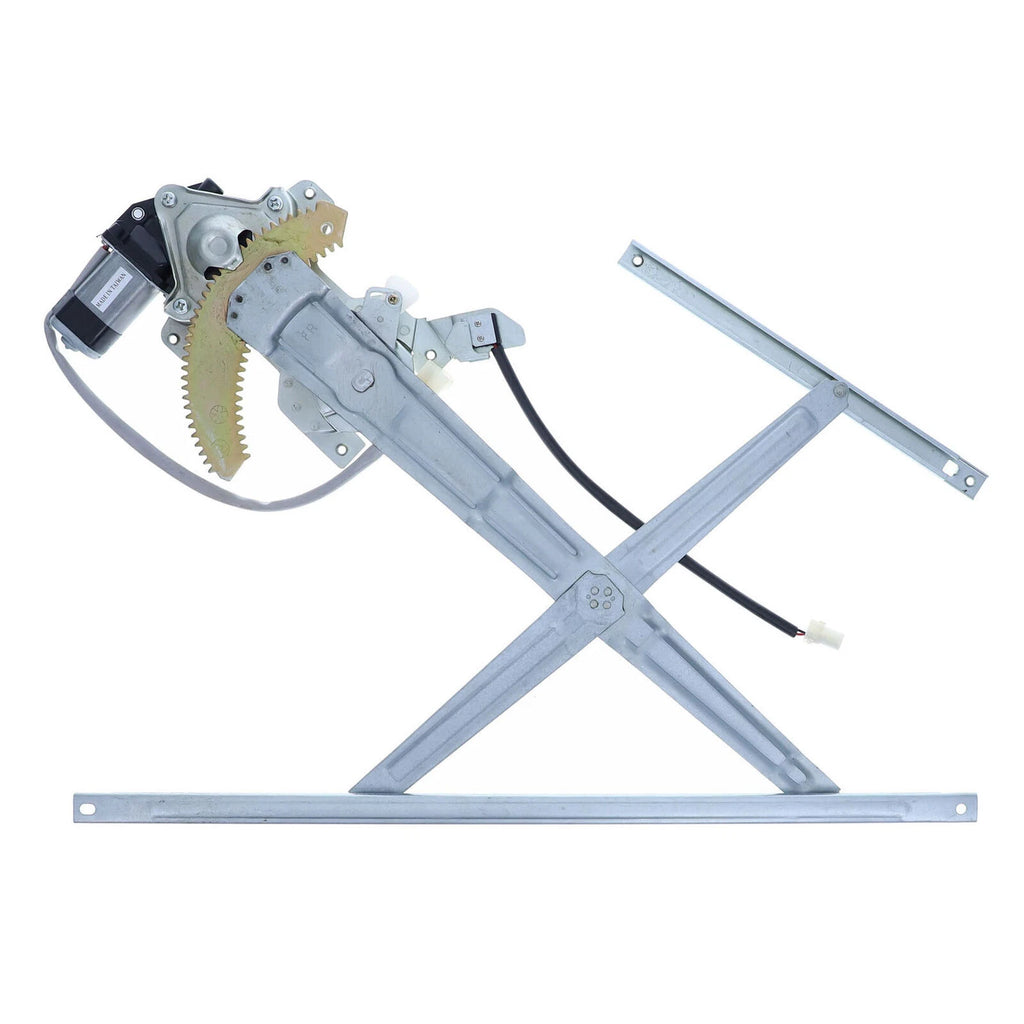

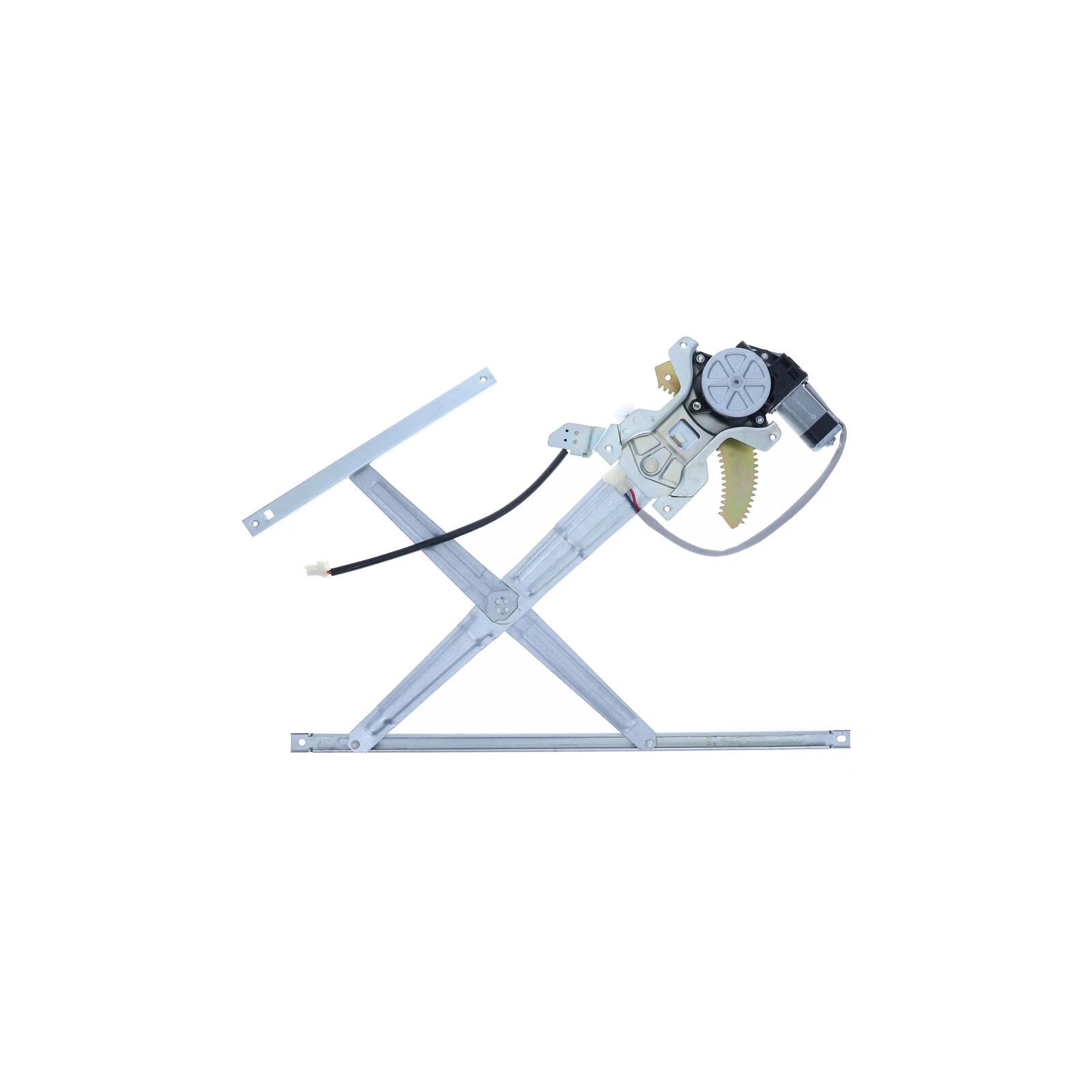

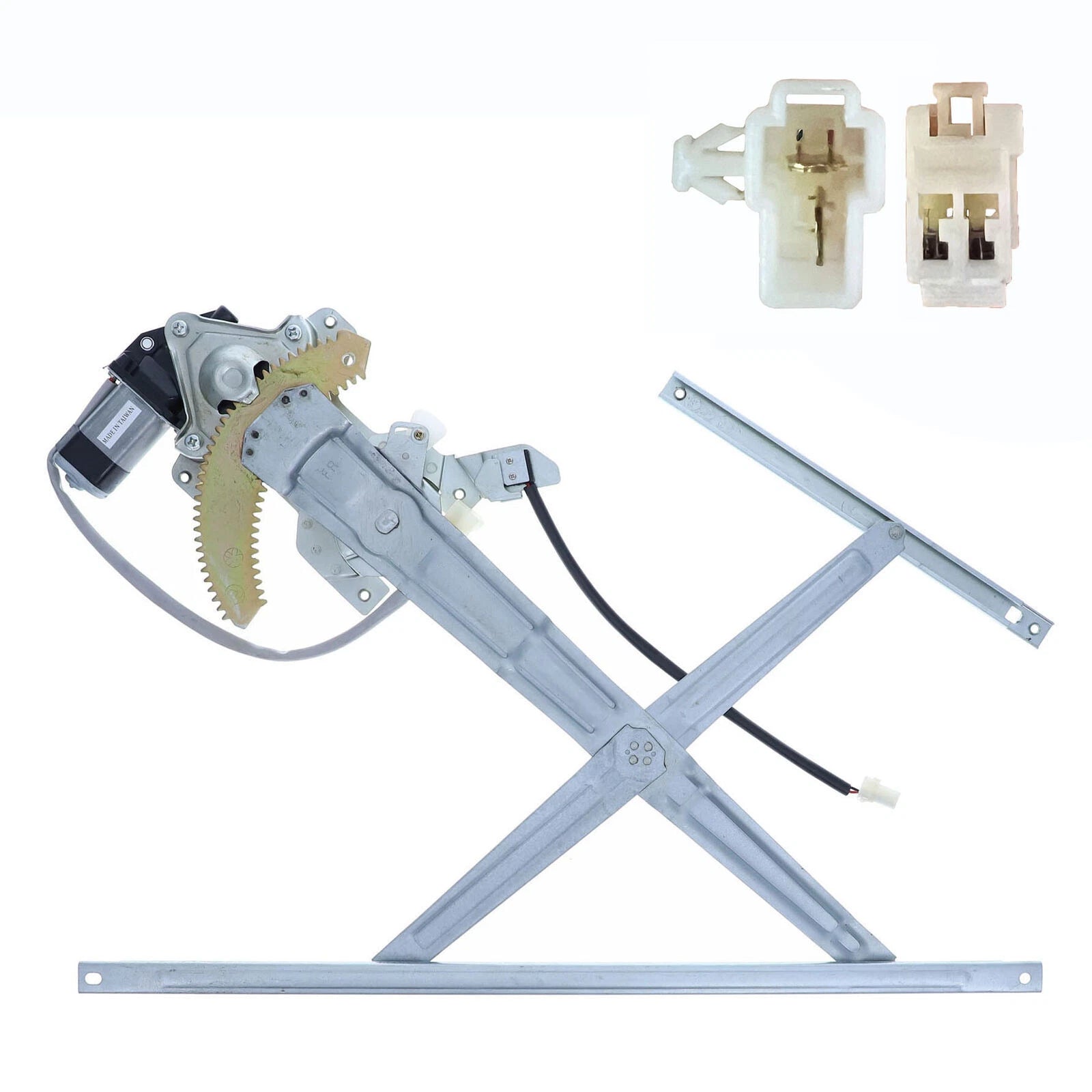

Front Right Electric Window Regulator with Motor for Mitsubishi L400

PRODUCT OVERVIEW

Front right electric window regulator with 2-pin motor, supplied as a complete assembly for repair or replacement of the driver side front window mechanism.

KEY FEATURES

• Complete electric window regulator assembly with integrated motor
• Front right (driver side) placement
• 2-pin motor connection
• High-quality aftermarket construction
• Supplied brand new, 1-piece unit
• Backed by a 1-year parts warranty

SPECIFICATIONS

• Product: Window regulator
• Operating mode: Electric
• Placement on vehicle: Front right (front driver side)

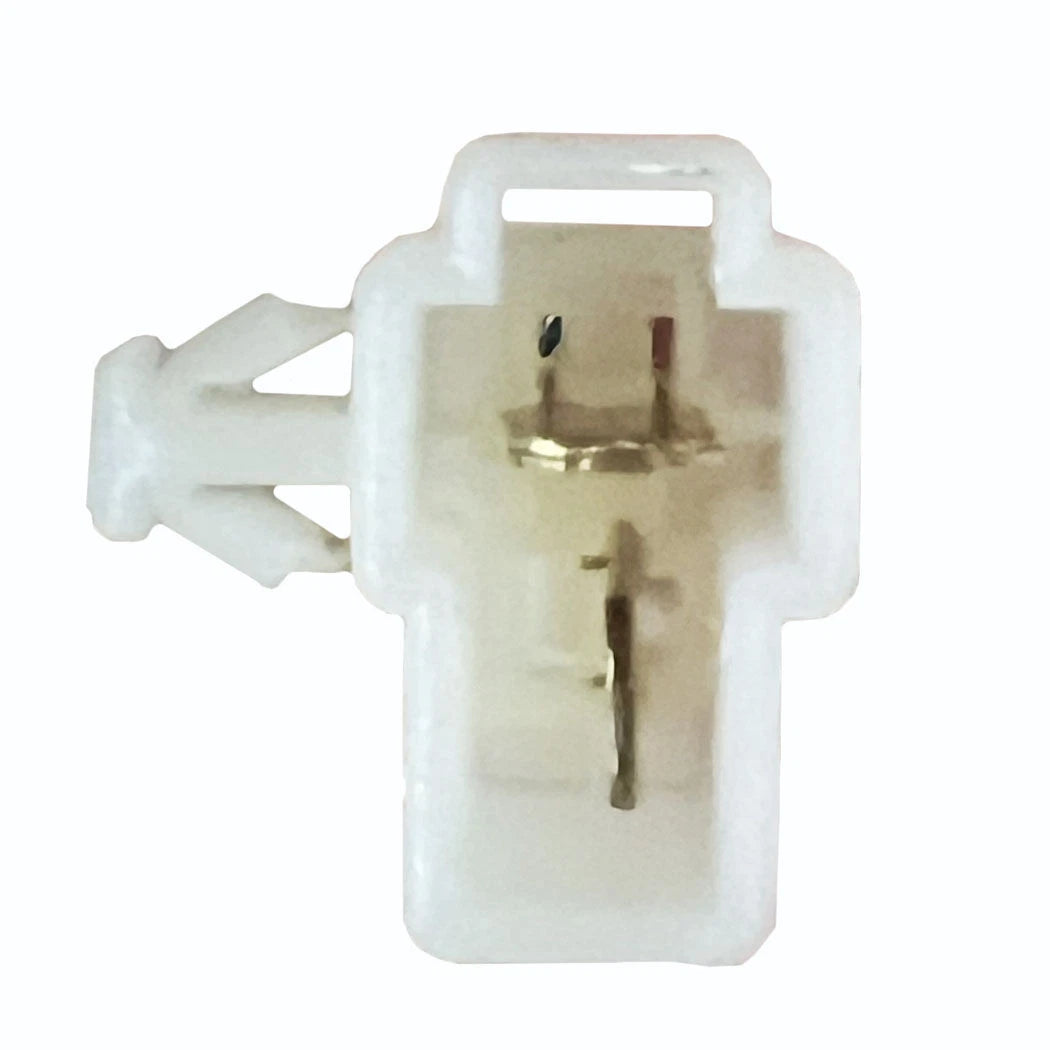

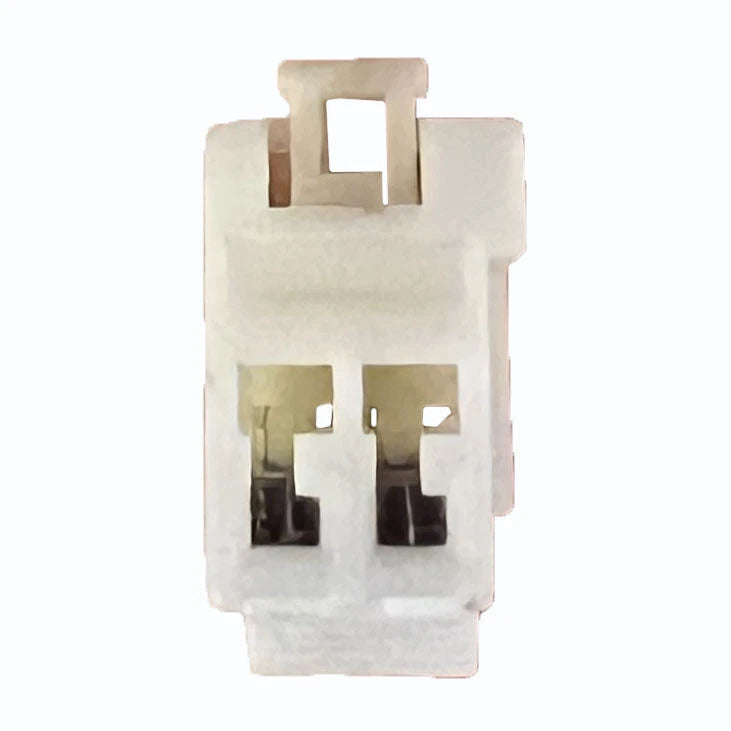

• Motor type: 2-pin
• Part specification: High quality aftermarket
• Condition: Brand new
• MPN / Item No.: 100420
• Warranty: 1 year (part only)
• Quantity supplied: 1 piece

FITMENT

• Mitsubishi Starwagon L400 WA 10/1994 – 11/2005
• Mitsubishi Delica Spacegear 05/1994 – 12/2006

Use the listed years and models as a guide only. Always compare the part and plug type to your original regulator and motor before purchasing.

ANTI-PINCH FUNCTION SETUP (WHERE APPLICABLE)

For window regulator motors equipped with an anti-pinch function, the motor must be set while installed in the door. Do not bench test the motor before installation or the function may need to be reset.

• Install the regulator and motor in the door and connect to the one-touch window switch.
• Operate the switch to raise the window fully. If the glass reaches the top and stays, the setting is correct.
• If the window drops after reaching the top, perform the reset procedure below.

Reset procedure:

• Step 1: Pull the window switch briefly to move the window slightly up to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top position.
• Step 3: Press the window switch briefly to move the window slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom position.
• Step 5: Pull the one-touch switch to raise the window fully to the top.

If the window still drops after reaching the top, repeat the reset steps until the anti-pinch function is correctly set.

INSTALLATION & WARRANTY NOTES

• Intended for use as a replacement part for repair purposes.
• Professional installation by a qualified automotive mechanic is strongly recommended to maintain warranty coverage.
• Images are for reference; colour or minor design details may differ slightly from the actual product.
• Match the mounting points, connector type, and overall design to your original unit before installation.
• Tamper-evident labels or seals (where fitted) should not be removed, as this may affect return or warranty eligibility.
