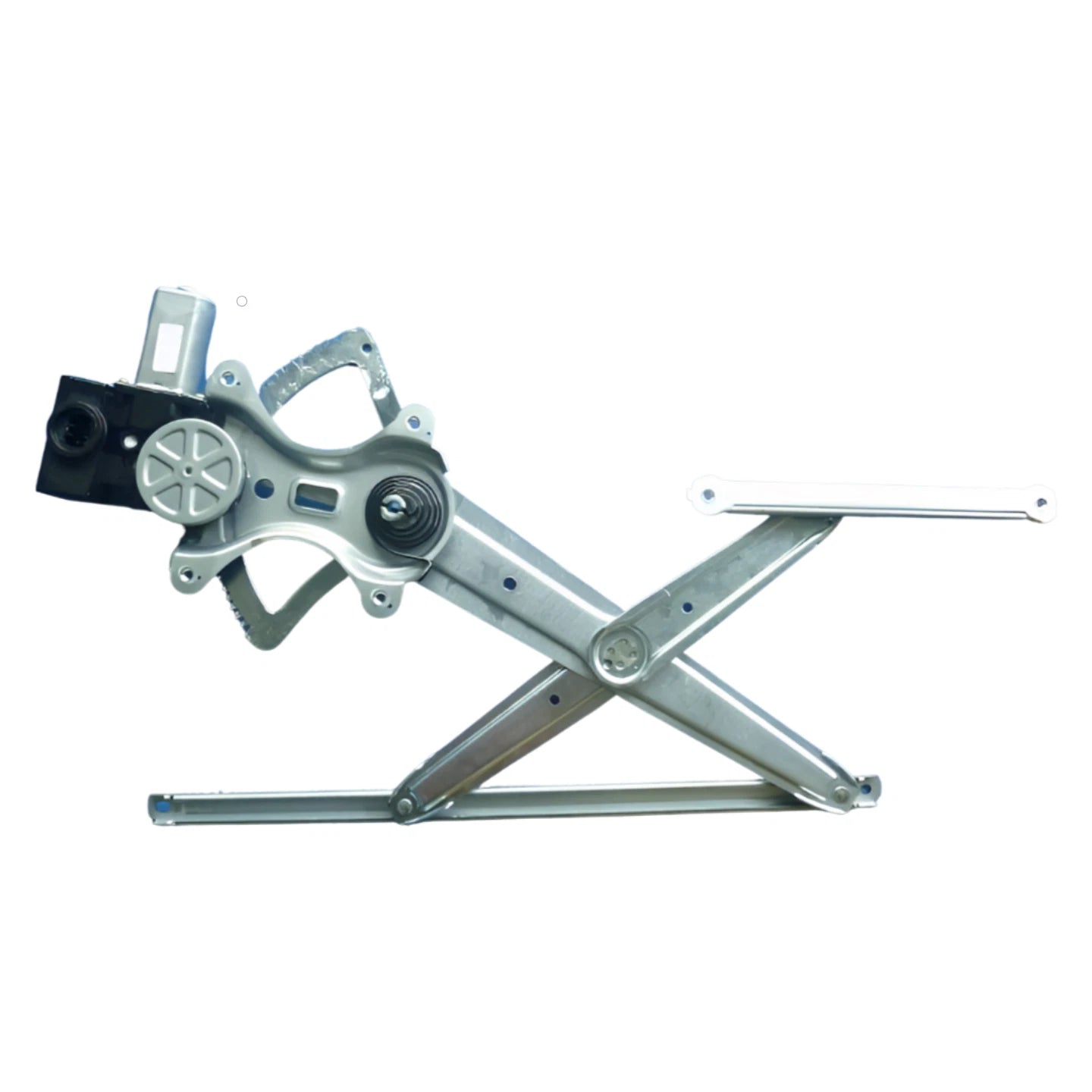

Front Right Power Window Regulator & Motor 6-Pin for Toyota RAV4 2000–2006

Product Overview

Front right electric window regulator with integrated 6-pin motor, designed as a high-quality aftermarket replacement for selected Toyota RAV4 models. Supplied as a brand new complete unit, ready for installation.

Key Features

• Complete assembly – regulator with pre-fitted electric motor
• Front right (driver side) position
• 6-pin motor connection
• Electric operating mode
• High quality aftermarket construction
• Supplied as 1 piece
• Backed by 1-year parts warranty

Specifications

• Product: Window regulator with motor
• Operating mode: Electric
• Placement on vehicle: Front right (front driver side)

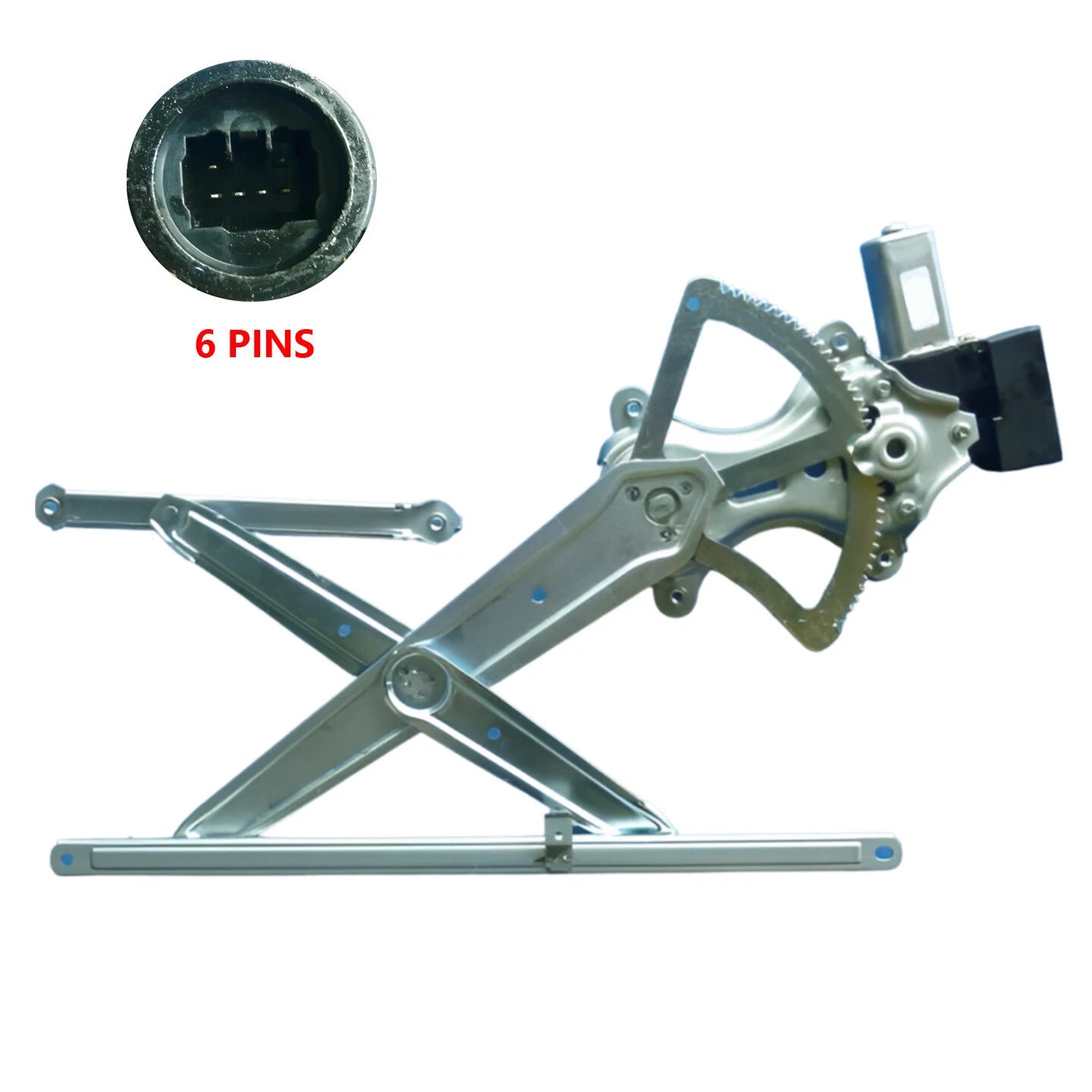

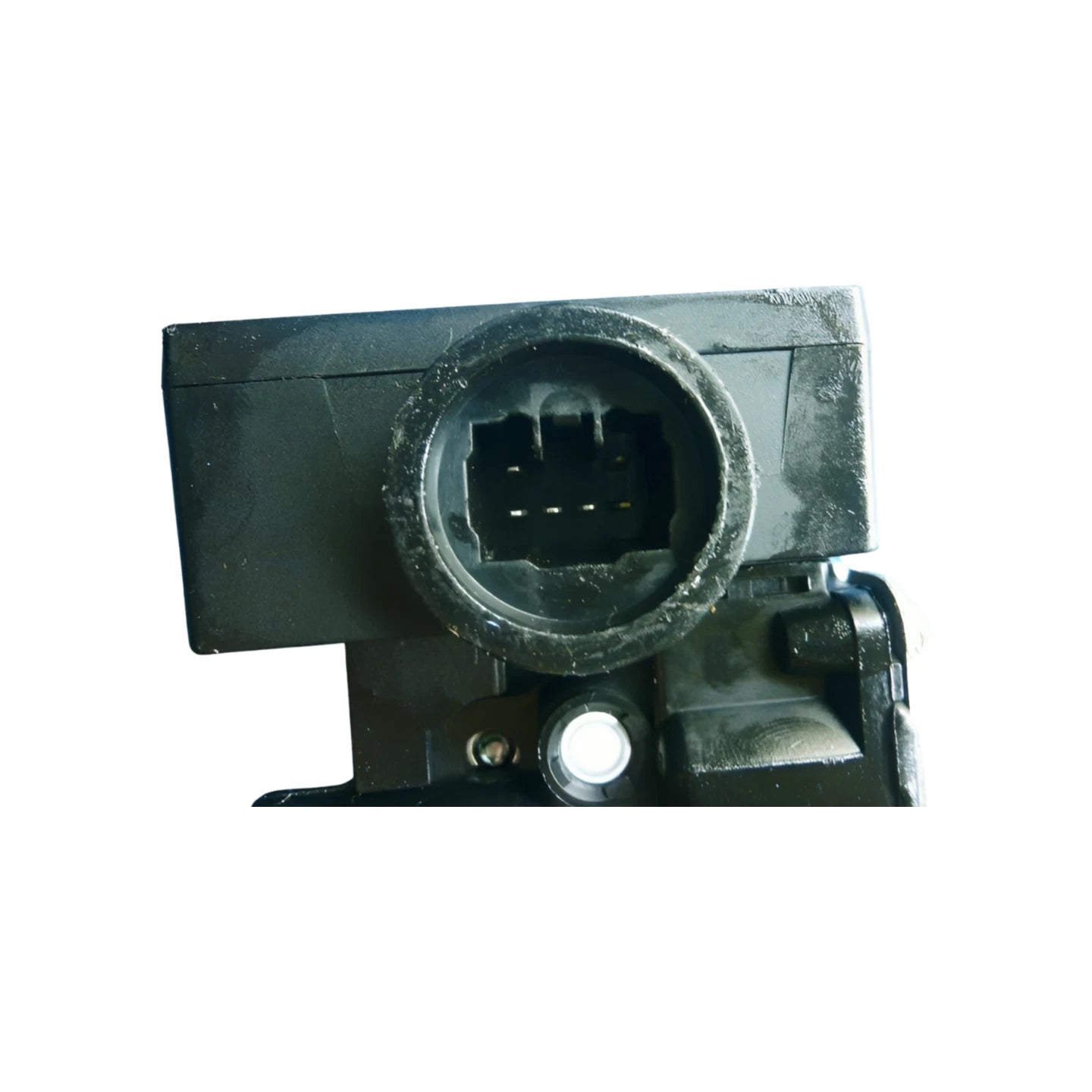

• Motor plug: 6 pins
• Condition: Brand new
• Part type: High quality aftermarket replacement
• MPN / Item No.: 100122B
• Quantity supplied: 1 piece
• Warranty: 1 year (part only)

Vehicle Fitment

• Toyota RAV4 ACA21R 07/2000–03/2003 1AZ-FE 2.0L 4-door SUV compact
• Toyota RAV4 ACA23R 10/2003–01/2006 2AZ-FE 2.4L 4-door SUV compact

Always compare the part number, plug type (6-pin), mounting points and images with your original regulator to confirm compatibility before purchase.

Anti-Pinch Function Setup

This regulator motor is designed for use with anti-pinch / one-touch window systems. Incorrect testing or setup can cause the anti-pinch function to fail and require resetting.

Installation Notes

• Do not power-test the motor before it is installed in the door.
• The motors are pre-tested and correctly set before dispatch.
• Install the motor, connect to the one-touch window switch, and operate the window to full travel.
• If the window drops down after reaching the top, the anti-pinch function must be reset.

Anti-Pinch Reset Procedure

• Step 1: Pull the window switch briefly to move the window slightly up to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top.
• Step 3: Press the window switch briefly to move the window slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch to move the window fully up to the top.

The reset is complete if the window remains at the top. If it drops again, repeat the steps until successful.

Important Information

• Intended for use as a replacement part for repair purposes.
• Colour and finish may appear slightly different due to screen and lighting variations.
• Images shown are of the actual product supplied.
• Professional installation by a qualified automotive technician is strongly recommended, and may be required to maintain warranty.
