Front Right Electric Window Regulator with Motor 6-Pin for Mazda CX-9 TB

Product Overview

This front right electric window regulator is a high-quality aftermarket replacement designed for Mazda CX-9 TB models. It includes a pre-fitted 6-pin motor and is supplied brand new with a 1-year parts warranty.

Key Features

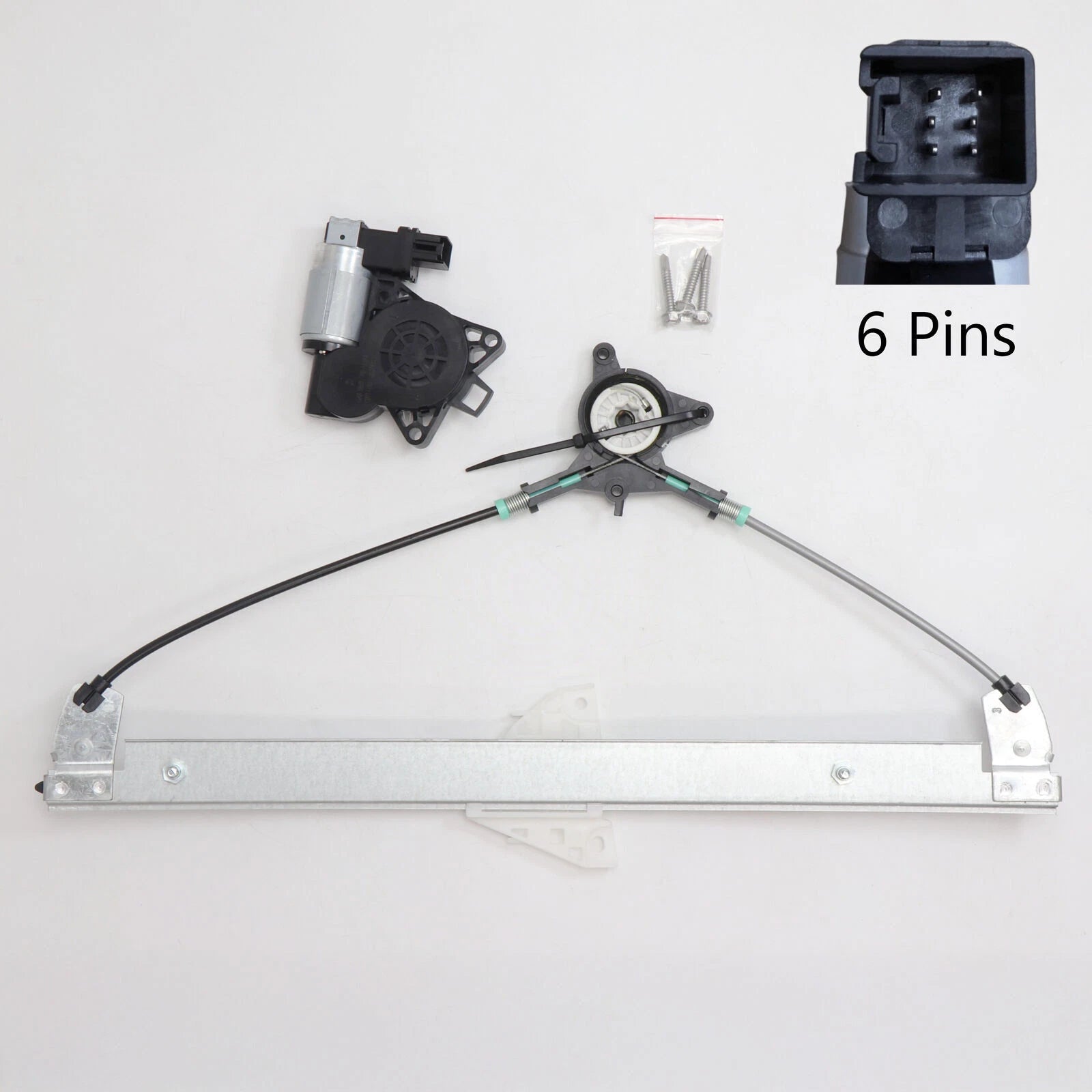

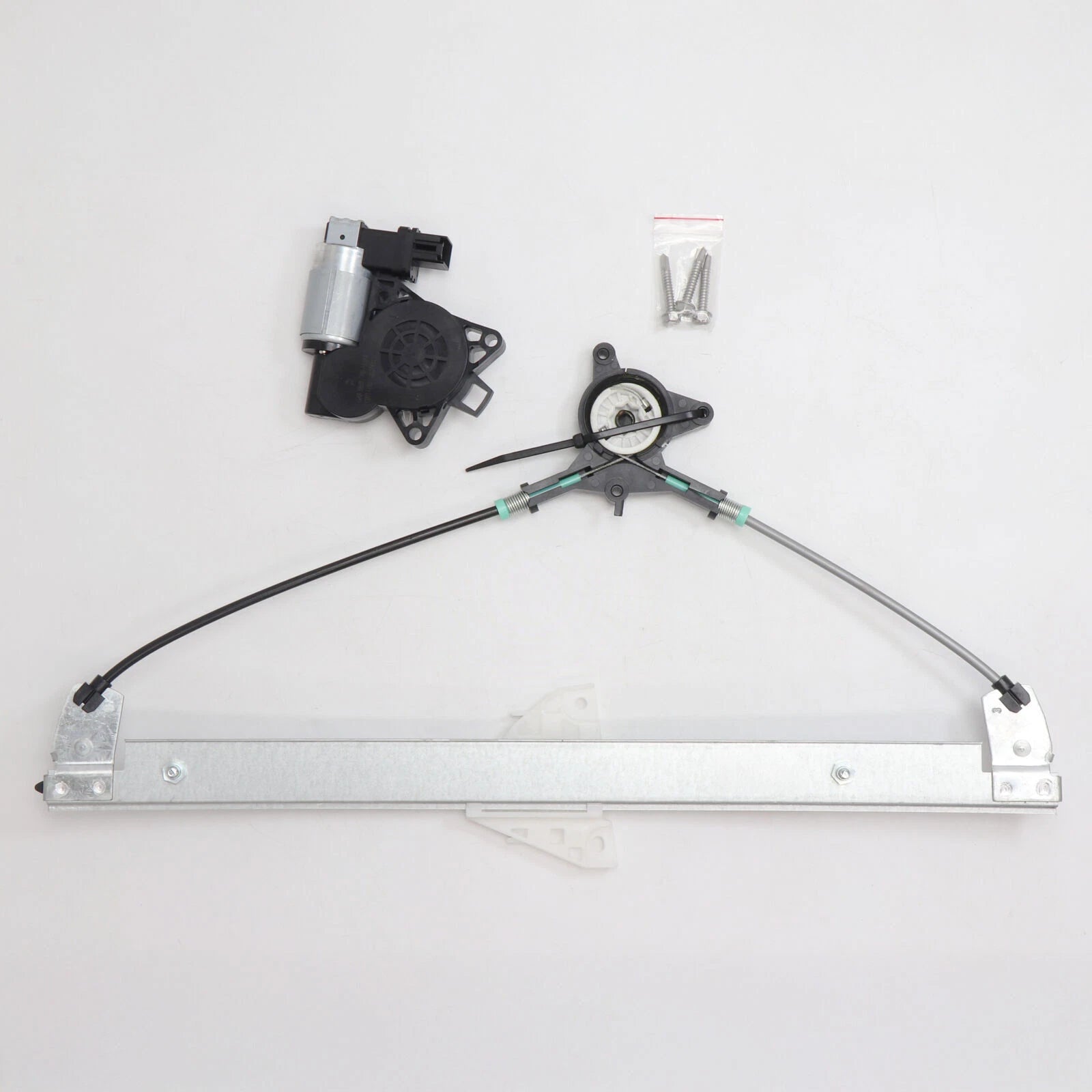

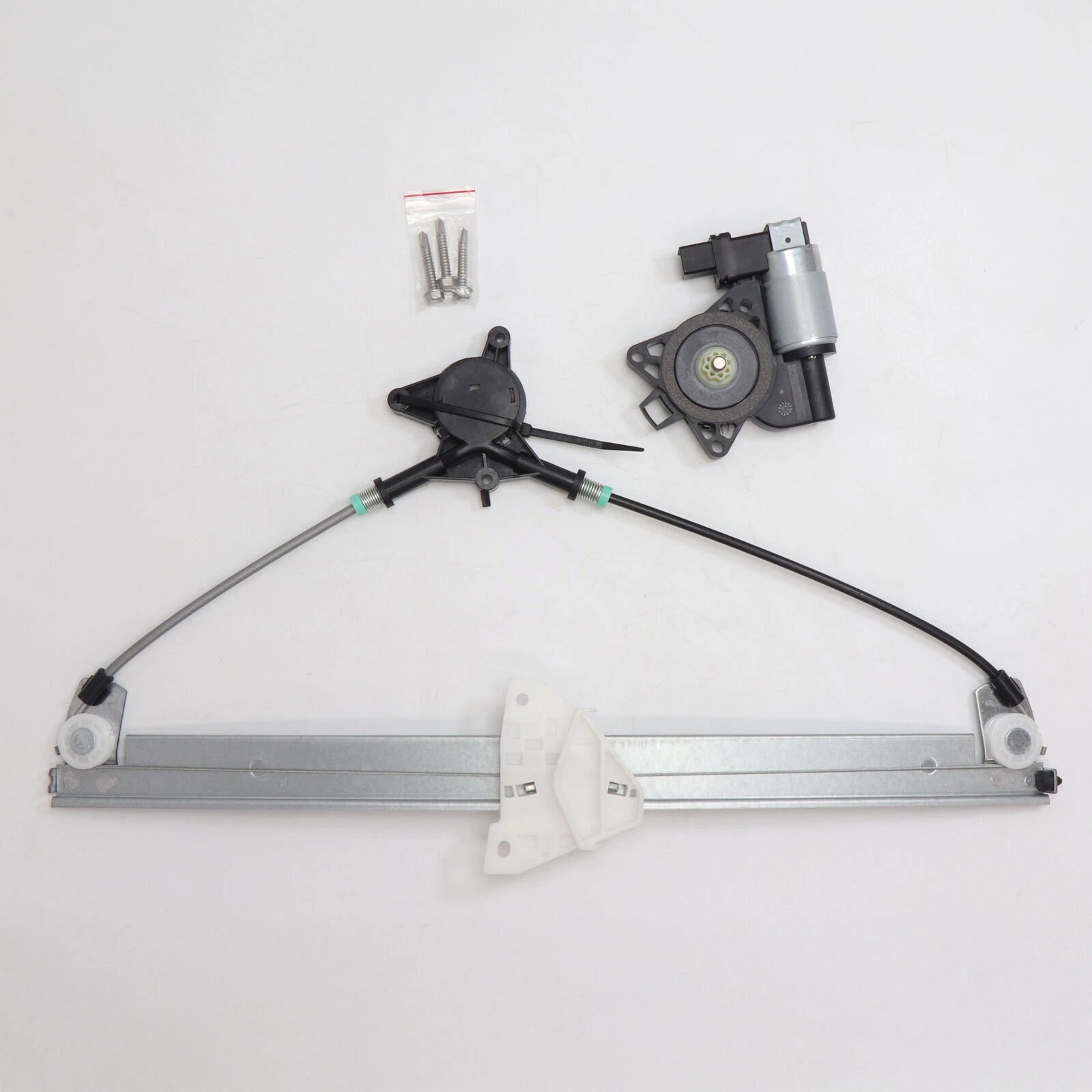

• Complete regulator assembly with electric motor (6-pin connector)
• Placement: Front right (front driver side)
• Direct replacement for worn or faulty window regulators
• High-quality aftermarket construction
• Supplied brand new – 1 piece
• Backed by a 1-year parts warranty

Specifications

• Product type: Window regulator
• Operating mode: Electric
• Placement on vehicle: Front right (front driver side)

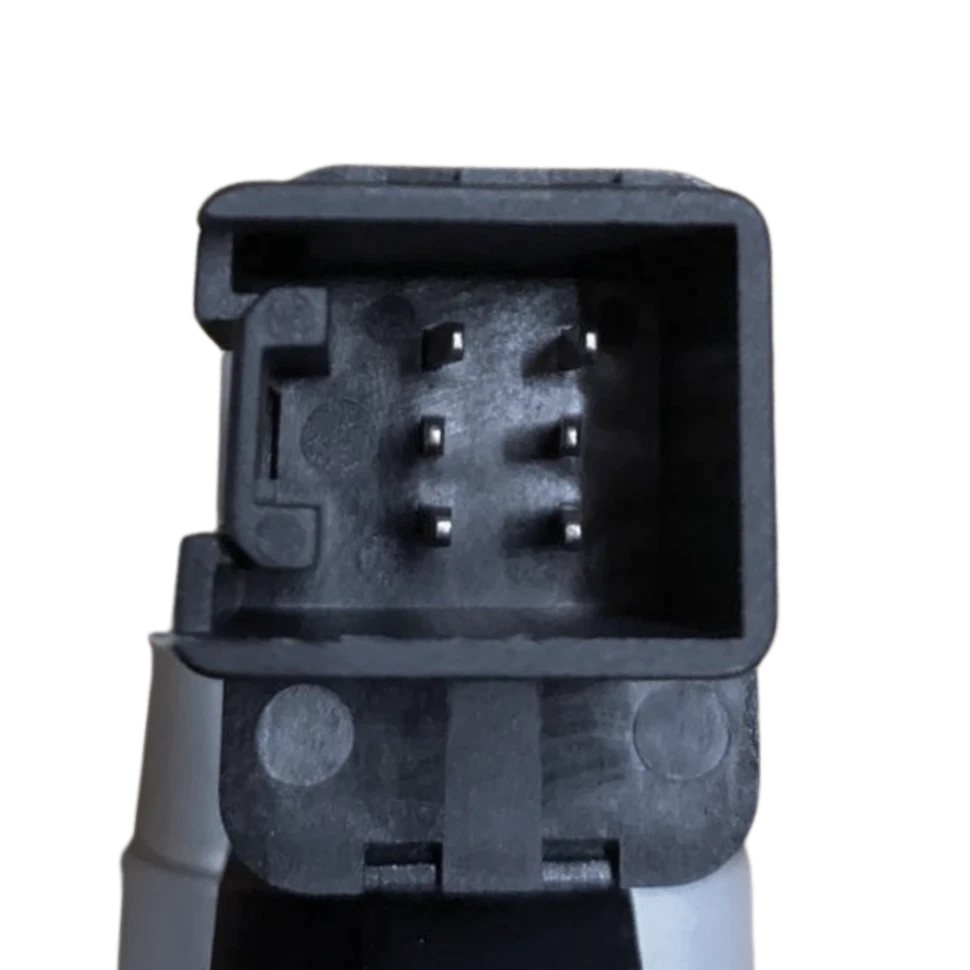

• Motor connector: 6 pins
• Build type: High-quality aftermarket
• Condition: Brand new
• MPN/Item No.: 101454
• Manufacturer warranty: 1 year (part only)
• Quantity supplied: 1 piece

Vehicle Compatibility

• Mazda CX-9 TB 11/2007 – 05/2016

Always compare the product images, mounting points, and connector type to your original part before purchase.

Anti-Pinch Function Setup

This motor is equipped with an anti-pinch safety function. Incorrect initial testing can cause the function to fail and require resetting.

• Do not test the motor before it is installed in the door.
• The motor is pre-tested and preset before dispatch.
• Install the motor, connect the one-touch window switch, and operate the window up.
• If the window drops after reaching the top, follow the reset procedure below.

Anti-Pinch Reset Procedure

• Step 1: Pull the window switch briefly to move the window up slightly to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top position.
• Step 3: Press the window switch briefly to move the window slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom position.
• Step 5: Pull the one-touch switch to move the window fully up to the top.

The reset is complete if the window remains at the top. If it drops again, repeat the steps until successful.

Installation & Warranty Notes

• For best results and warranty validity, installation by a qualified automotive mechanic is recommended.
• Some regulators and motors may have tamper-evident seals on plugs and housings; do not remove these unless instructed, as this may affect return eligibility.
• Colour and finish may appear slightly different on various screens; refer to the product images as the primary reference.

This component is intended as an aftermarket replacement part for repair and maintenance of compatible vehicles.
