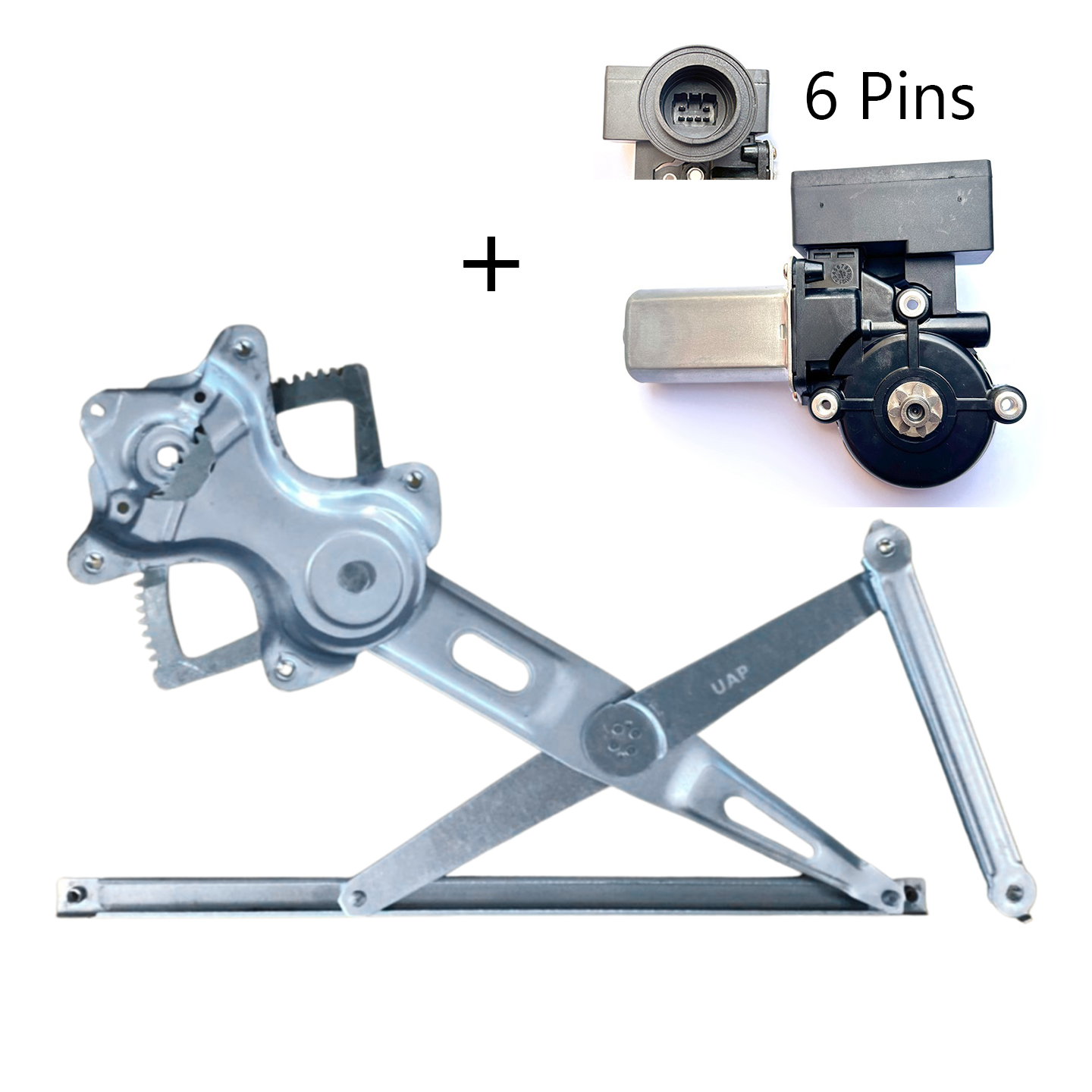

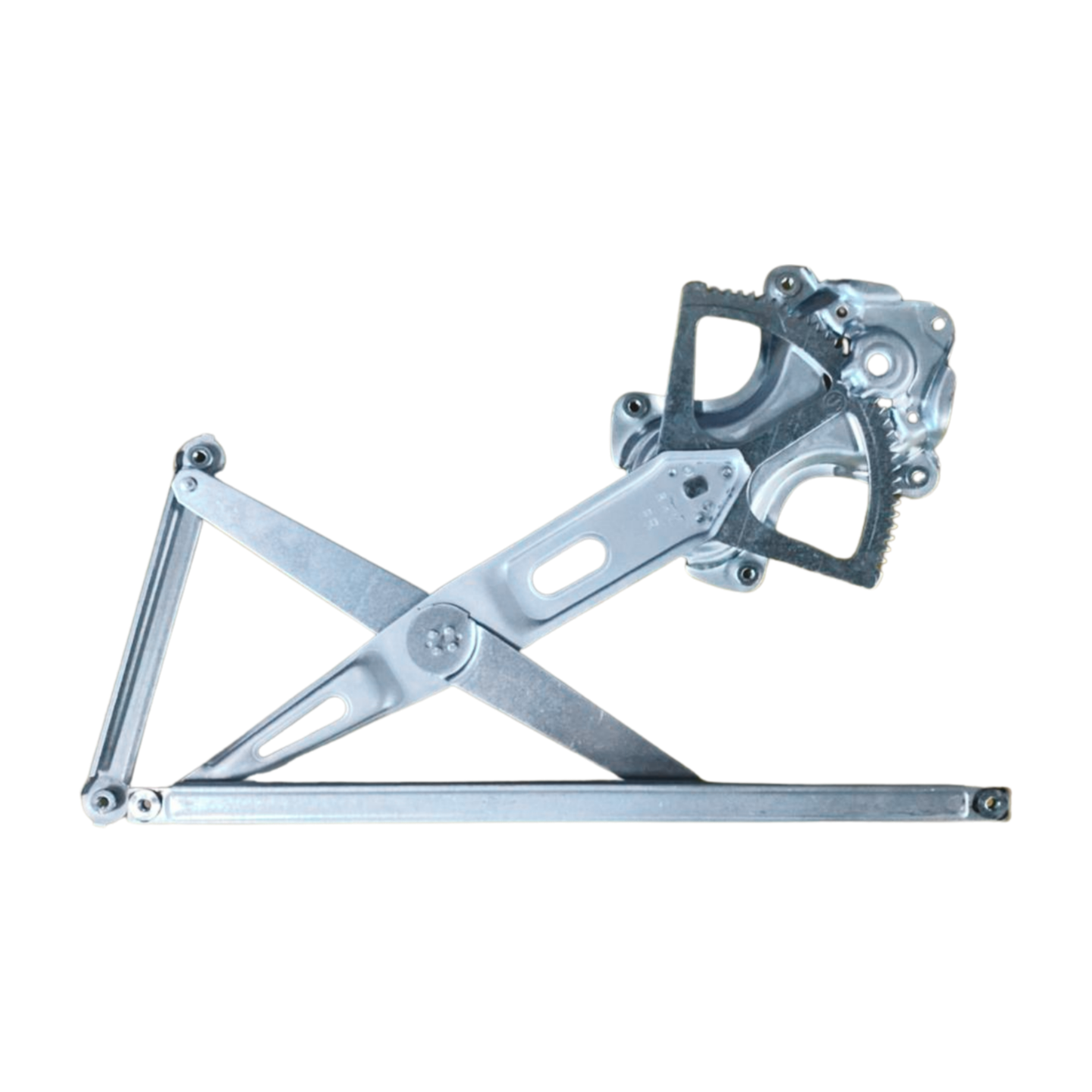

Front Right Electric Window Regulator with Motor 6 Pin for Toyota RAV4 00–06

PRODUCT OVERVIEW

This front right electric window regulator with integrated 6-pin motor is a high-quality aftermarket replacement, supplied as a complete assembly for quick, reliable repair of the power window system.

KEY FEATURES

• Complete regulator with pre-fitted electric motor
• 6-pin motor connector for compatible power window systems
• Designed for front right (driver side) door
• Brand new, high-quality aftermarket construction
• Supplied as a single piece (1 x window regulator assembly)

SPECIFICATIONS

• Product: Window regulator with motor
• Operating mode: Electric
• Placement on vehicle: Front right (front driver side)
• Motor connector: 6 pins
• Condition: Brand new
• Part type: High quality aftermarket
• MPN/Item No.: 101322
• Warranty: 1 year (part only)
• Quantity supplied: 1 piece

VEHICLE FITMENT

• Toyota RAV4 ACA20R 07/2000–09/2003 1AZ-FE 2.0L 2-door SUV compact
• Toyota RAV4 ACA22R 10/2003–01/2006 2AZ-FE 2.4L 2-door SUV compact

Please compare the part, connector (6-pin motor) and mounting points with your original regulator to confirm compatibility before purchase.

ANTI-PINCH FUNCTION SETUP

This regulator motor is designed to work with one-touch window systems that include an anti-pinch safety function. Do not operate or test the motor before installation in the door, as this may require the anti-pinch function to be reset.

ANTI-PINCH RESET PROCEDURE

• Step 1: With the regulator installed and connected, pull the window switch briefly so the glass moves slightly up to the top position.
• Step 2: Hold the one-touch switch in the up position for 3–5 seconds when the window is fully closed.
• Step 3: Press the window switch briefly so the glass moves slightly down to the bottom position.
• Step 4: Hold the one-touch switch in the down position for 3–5 seconds when the window is fully open.
• Step 5: Pull the one-touch switch to raise the window fully to the top and check that it no longer drops after reaching the closed position.

If the window still drops after reaching the top, repeat the reset steps until the anti-pinch function is correctly learned.

INSTALLATION & NOTES

• Professional installation by a qualified automotive technician is recommended.
• Intended as a replacement component for repair of existing power window systems.
• Product images are for reference; colour or finish may vary slightly due to lighting and screen settings.

Ensure all wiring, guides and mounting points are correctly secured and tested after installation for smooth, quiet window operation.
