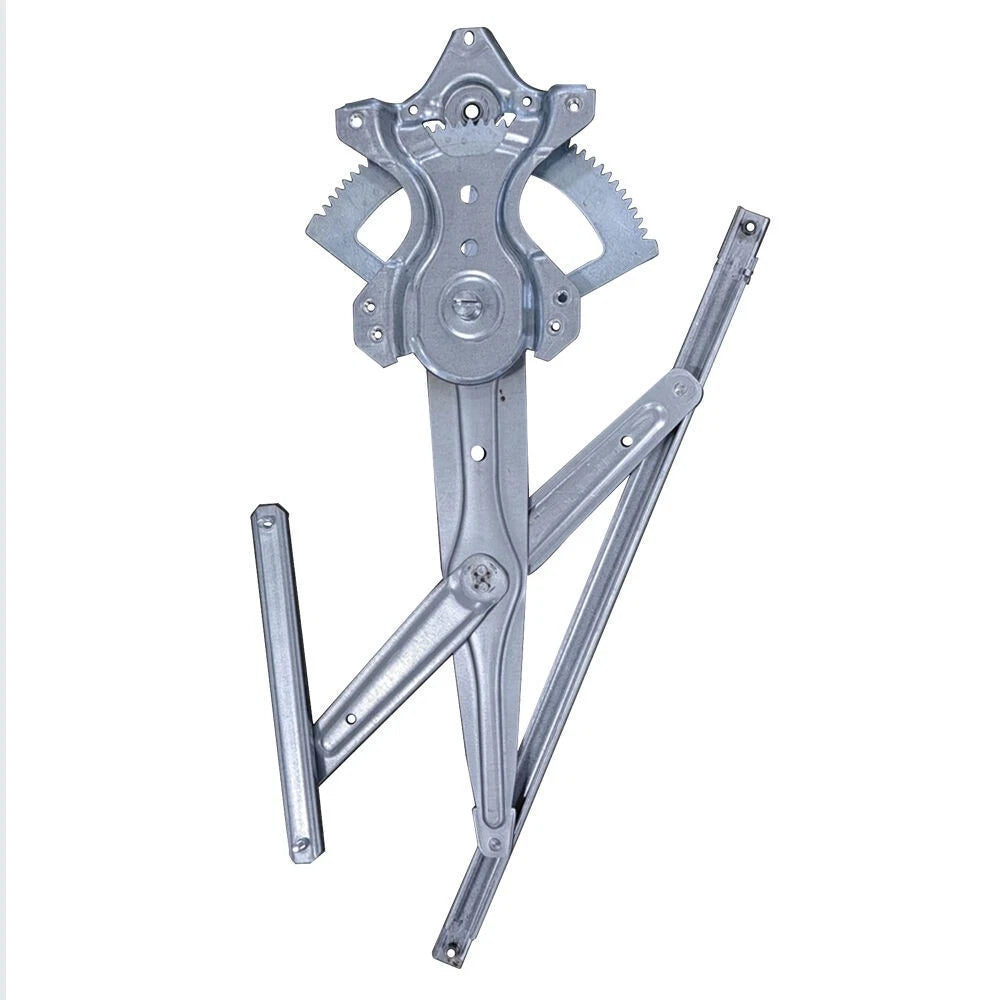

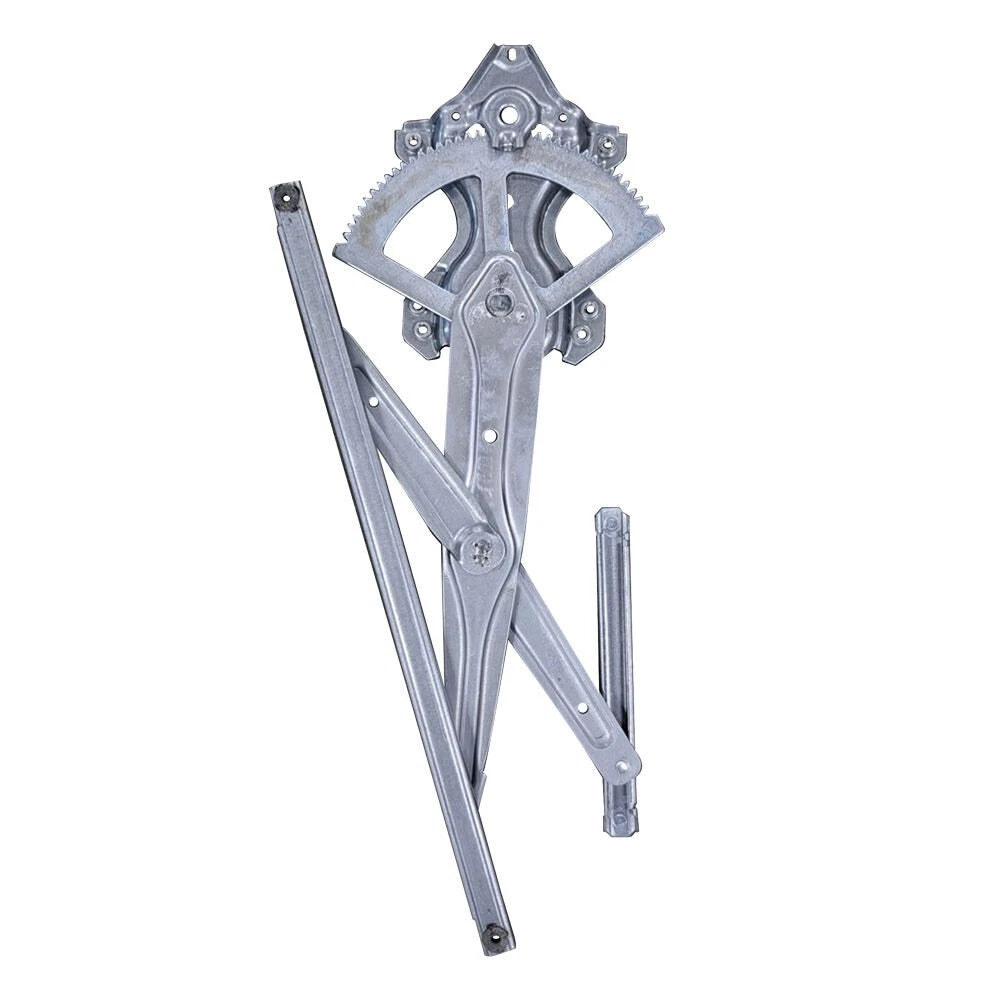

Front Right Electric Window Regulator (No Motor) for Toyota Corolla ZRE152

PRODUCT OVERVIEW

This front right electric window regulator is a high-quality aftermarket replacement designed for selected Toyota Corolla ZRE152R and Toyota Rukus AZE151R models. It is supplied without a motor and is suitable for vehicles with electric window operation on the front right (driver) side.

KEY FEATURES

• Electric window regulator assembly
• Placement: Front right (front driver side)
• Motor not included – reuse existing motor where suitable
• High-quality aftermarket construction
• Brand new part, supplied as a single piece
• MPN/Item No.: 101515D
• 12-month manufacturer warranty (part only)

VEHICLE FITMENT

• Toyota Corolla ZRE152R 05/2007 - 01/2014
• Toyota Rukus AZE151R 05/2010 - 02/2016

Always compare the product photos and specifications with your original part to confirm compatibility before purchase.

ANTI-PINCH FUNCTION RESET (FOR MOTORS WITH ANTI-PINCH)

If your vehicle uses a motor with an anti-pinch (one-touch) function, the motor may need to be reset after installation.

• Do not test the motor before it is correctly installed in the door, otherwise the anti-pinch function may require resetting.
• Install the motor on the regulator and connect it to the one-touch window switch.
• Pull the switch up; the window should travel fully to the top. If it reaches the top and then drops, perform the reset steps below.

RESET PROCEDURE

• Step 1: Pull the window switch briefly so the glass moves slightly up to the top position.
• Step 2: Hold the one-touch switch in the up position for 3–5 seconds at the top.
• Step 3: Press the window switch briefly so the glass moves slightly down to the bottom.
• Step 4: Hold the one-touch switch in the down position for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch to raise the window fully to the top and confirm it no longer drops.

If the window still drops after reaching the top, repeat the reset steps until the anti-pinch function operates correctly.

INSTALLATION & NOTES

• Professional installation by a qualified automotive mechanic is strongly recommended.
• Part is intended for repair and replacement purposes only.
• Product images are for reference; colour or finish may vary slightly due to lighting and screen settings.
• Please ensure the mounting points and connector layout match your original regulator before fitting.

WARRANTY SUMMARY

• Standard 12-month manufacturer’s warranty on this regulator (part only).
• Warranty covers manufacturing defects only.
• Warranty does not cover labour, incorrect installation, misuse, modification, or normal wear and tear.
• All parts must be installed by a qualified mechanic to maintain warranty validity.
