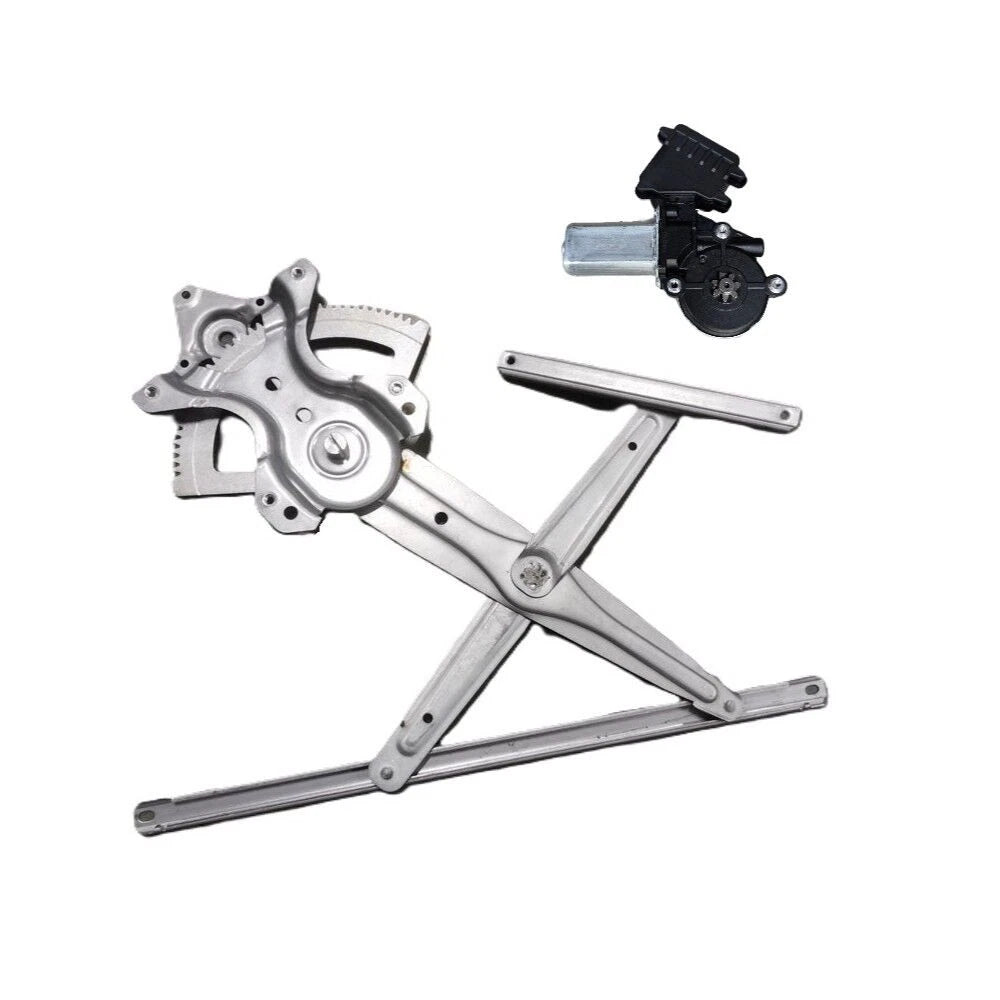

Front Right Power Window Regulator 10-Pin for Toyota Kluger GSU50

PRODUCT OVERVIEW

This front right electric window regulator with integrated 10-pin motor is a high quality aftermarket replacement, designed to restore smooth and reliable window operation on compatible Toyota Kluger GSU50 models.

KEY FEATURES

• Complete electric window regulator assembly with motor
• Integrated 10-pin motor connector
• Front right (front driver side) position
• High quality aftermarket construction
• Brand new part with 1-year manufacturer warranty (part only)
• Supplied as 1 piece

SPECIFICATIONS

• Product: Window regulator
• Operating mode: Electric
• Placement on vehicle: Front right (front driver side)
• Motor connector: 10 pins
• Part type: Aftermarket replacement
• Condition: Brand new
• MPN/Item No.: 102189M10D
• Manufacturer warranty: 1 year (part only)
• Quantity supplied: 1 piece

FITMENT

• Toyota Kluger GSU50 12/2013 – 11/2019

Use the vehicle details above and compare the images and part number with your original component to confirm compatibility before purchase.

ANTI-PINCH FUNCTION SETUP

This electric motor is equipped with an anti-pinch safety function. To ensure correct operation, it must be set while installed in the door.

• Do not test the motor before installation in the door, otherwise the anti-pinch function may fail and require reset.
• Motors are pre-tested and set before dispatch.
• After installation, connect the one-touch window switch and raise the window; it should move fully to the top.
• If the window drops after reaching the top, perform the reset procedure below.

ANTI-PINCH RESET PROCEDURE

• Step 1: Pull the window switch briefly to move the window slightly up to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top position.
• Step 3: Press the window switch briefly to move the window slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom position.
• Step 5: Pull the one-touch switch to raise the window fully to the top.

The reset is complete if the window remains at the top without dropping. If it still drops, repeat the procedure until successful.

INSTALLATION & NOTES

• Recommended installation by a qualified automotive mechanic.
• Intended for repair and replacement purposes only.
• Colour and finish may vary slightly from images due to screen and lighting differences.
• Images shown represent the actual product supplied.
