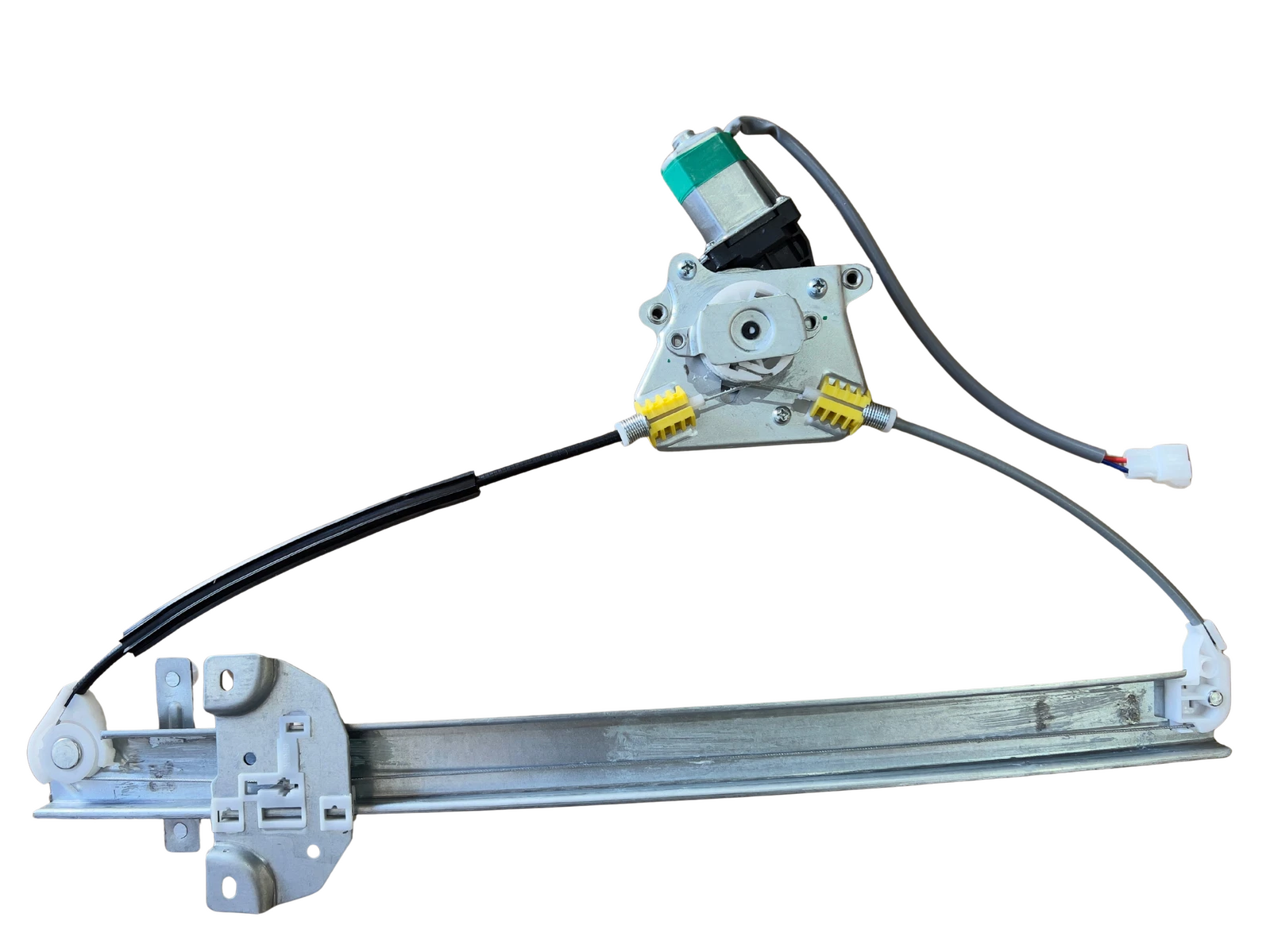

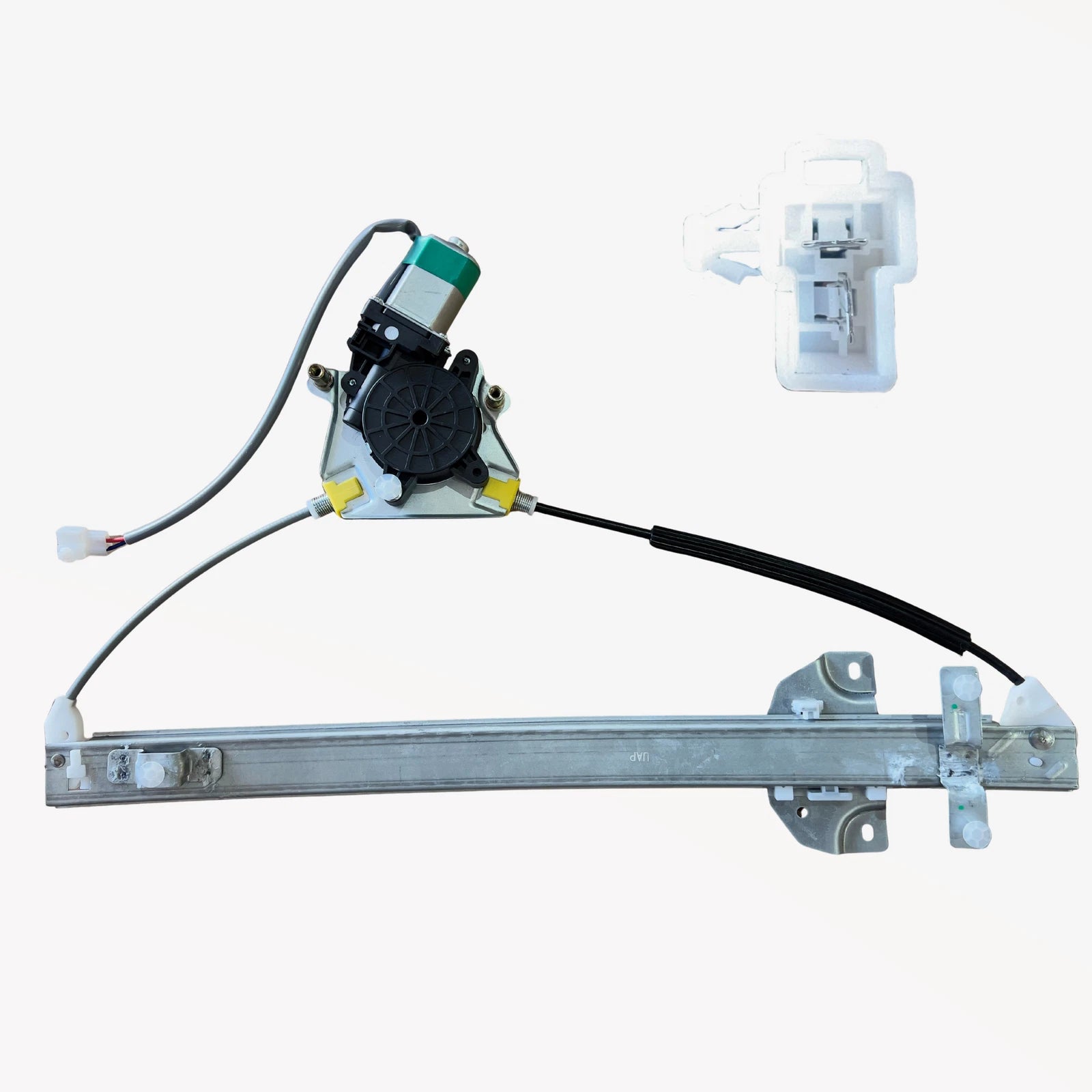

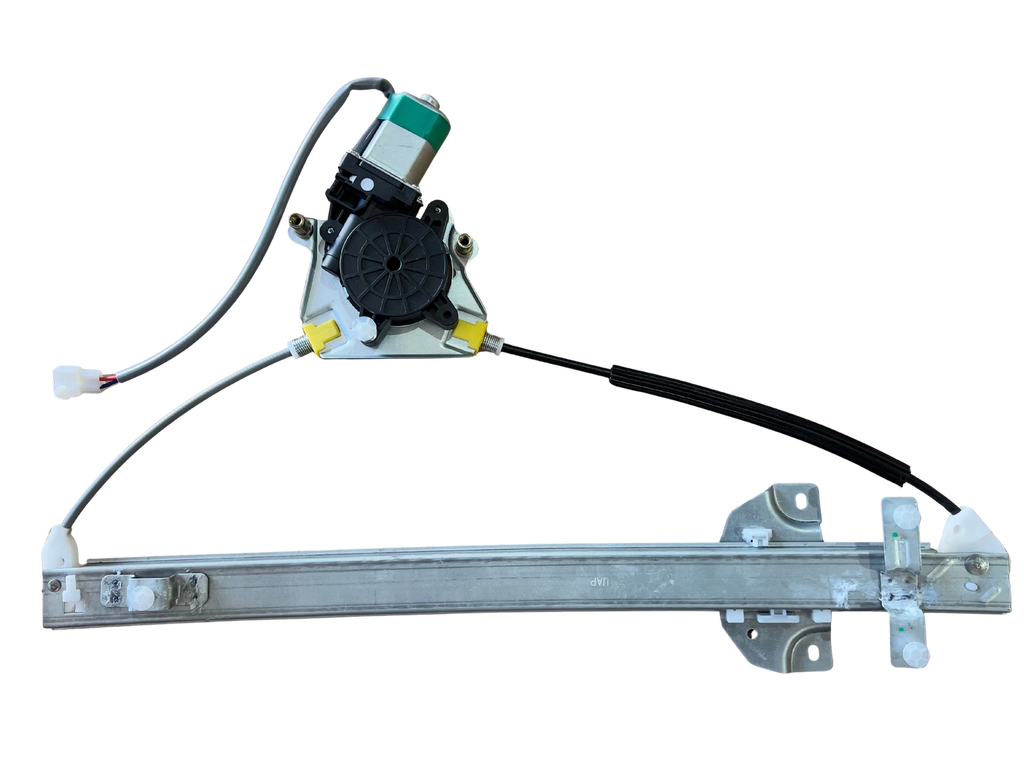

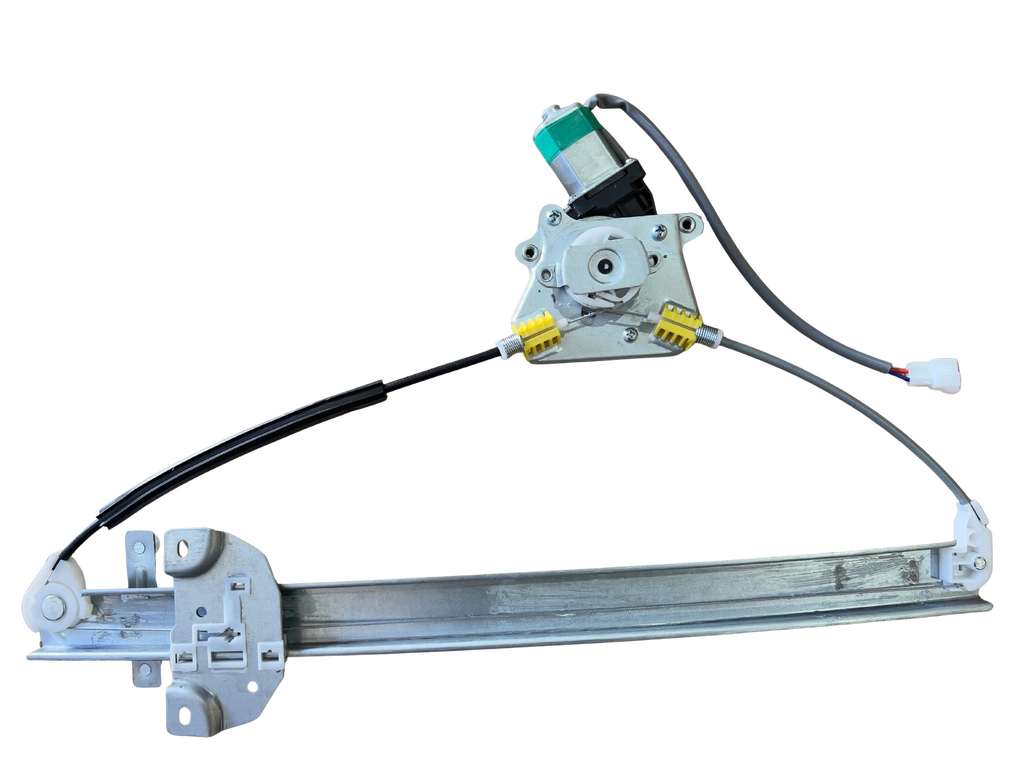

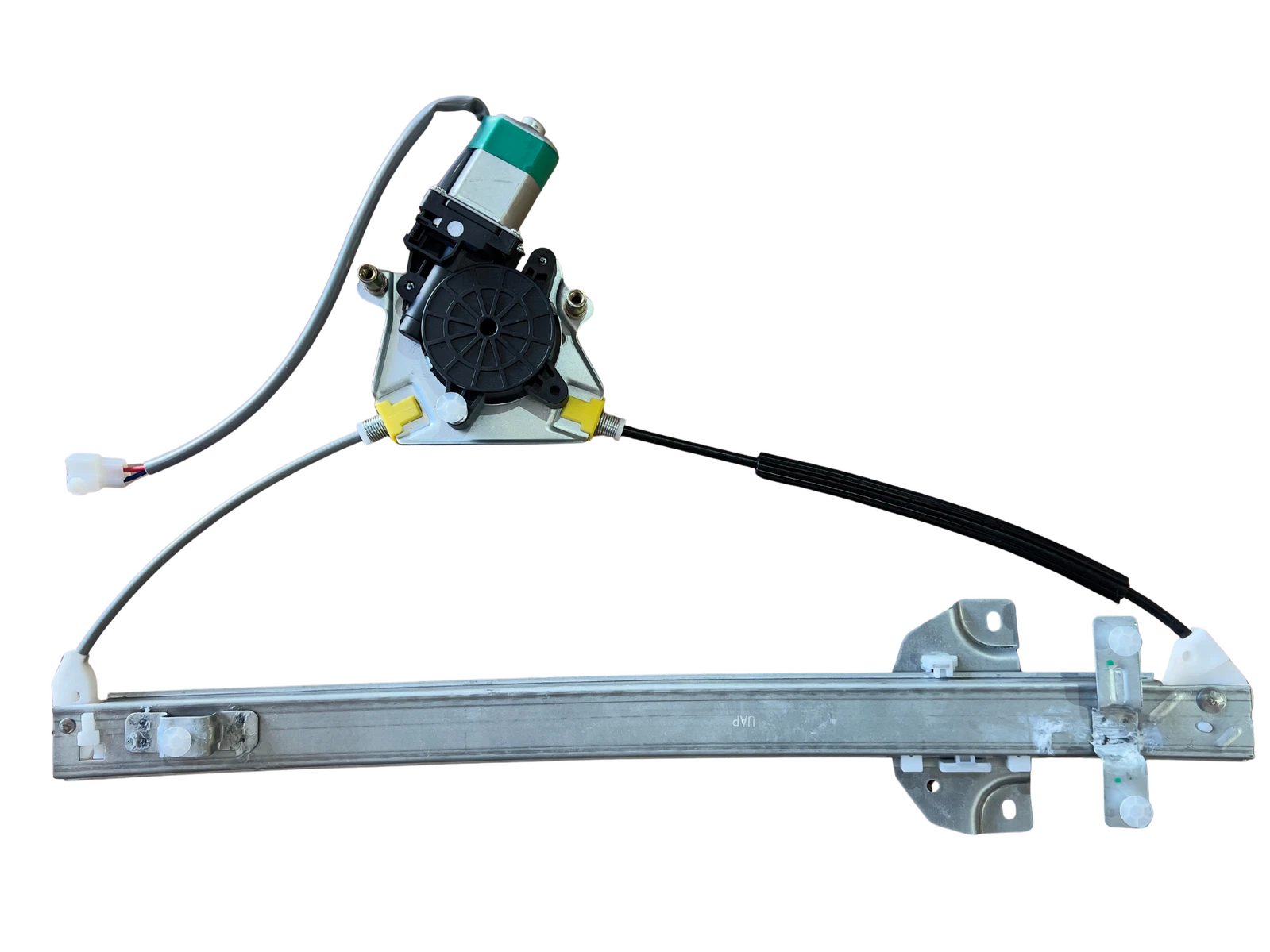

Front Right Electric Window Regulator 2-Pin Motor for Suzuki Vitara

PRODUCT OVERVIEW

This front right electric window regulator with 2-pin motor is a high-quality aftermarket replacement designed for selected Suzuki Vitara SE and SV 4-door models. Supplied as a complete assembly, it is ideal for restoring smooth and reliable window operation.

KEY FEATURES

• Complete electric window regulator assembly
• Front right (driver side) fitment
• Integrated 2-pin electric motor
• High quality aftermarket construction
• Brand new part supplied as a single piece

SPECIFICATIONS

• Product: Window regulator
• Operating mode: Electric
• Placement on vehicle: Front right (front driver side)

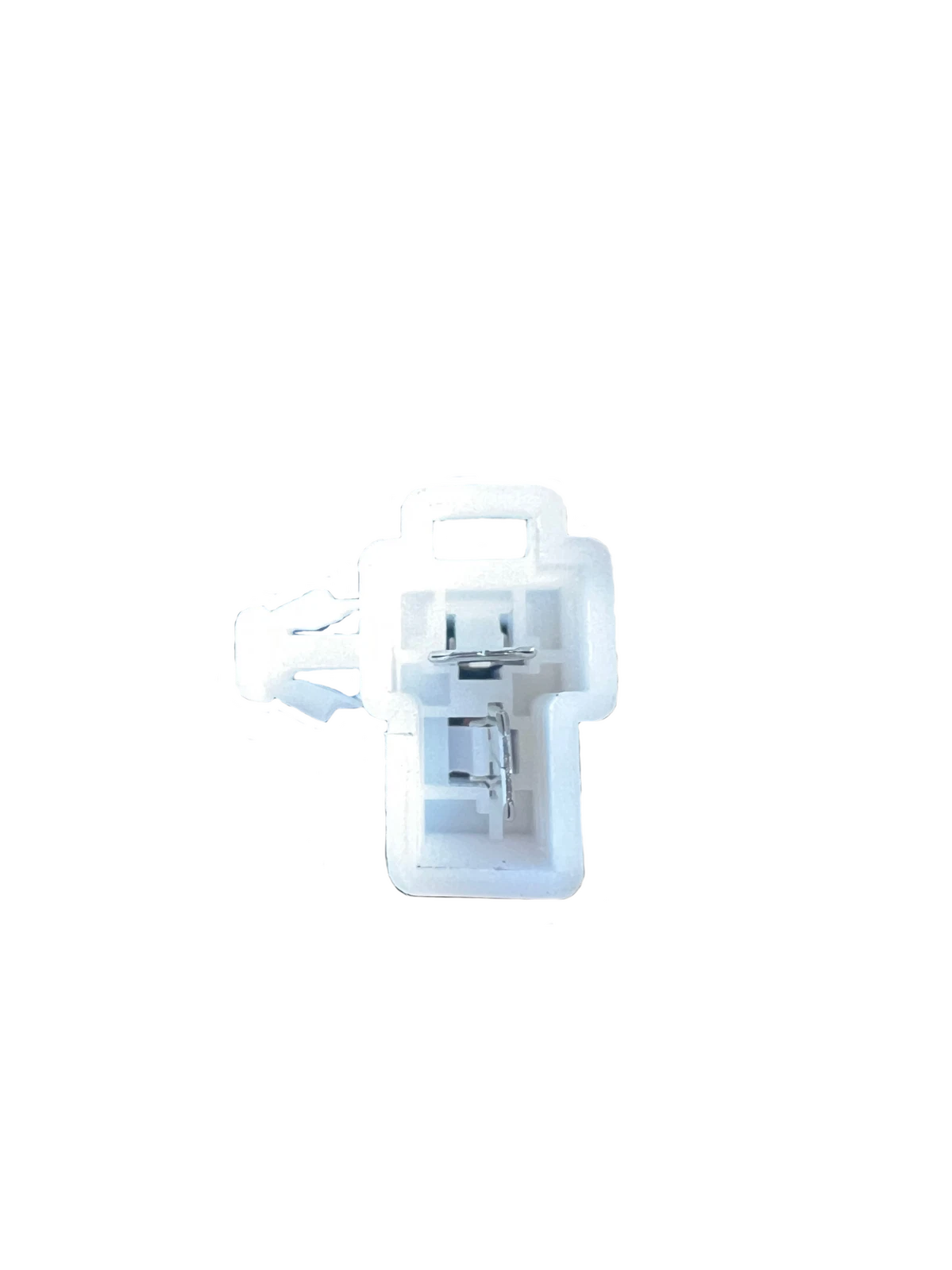

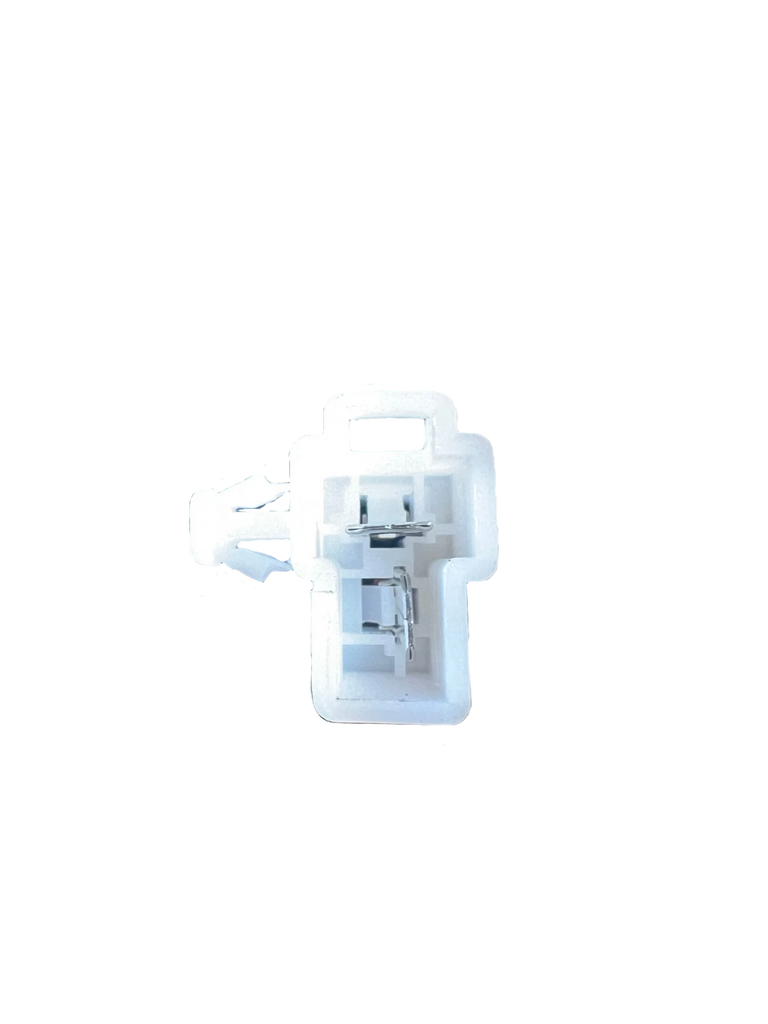

• Motor: 2 pins
• Part type: High quality aftermarket
• Condition: Brand new
• MPN / Item No.: 101318M2D
• Warranty: 1-year manufacturer warranty (part only)
• Quantity supplied: 1 piece

VEHICLE FITMENT

• Suzuki Vitara SE 08/1991 – 12/1998, 4-door
• Suzuki Vitara SV 04/1995 – 09/1998, 4-door

Compare the images and specifications with your original part and confirm compatibility with your vehicle before purchase.

ANTI-PINCH FUNCTION INFORMATION

This window regulator motor may be used in systems with an anti-pinch (one-touch) function. Incorrect testing before installation can cause the anti-pinch function to fail and require resetting.

• Do not test the motor before it is installed in the door.
• Install the motor, connect it to the one-touch window switch and test the operation.
• If the window drops down after reaching the top, the anti-pinch function must be reset.

ANTI-PINCH RESET STEPS

• Step 1: Pull the window switch briefly to move the window fully to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top position.
• Step 3: Press the window switch briefly to move the window fully to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom position.
• Step 5: Pull the one-touch switch to move the window to the top and verify it no longer drops down.

If the window still drops after reaching the top, repeat the reset procedure until the anti-pinch function is correctly set.

INSTALLATION & WARRANTY NOTICE

• Professional installation by a qualified automotive mechanic is strongly recommended.
• Warranty applies to the replacement of the defective part only and does not cover labour or consequential damage.
• Do not modify or tamper with the regulator or motor, as this may affect eligibility for warranty or return.

Images are for reference only; minor visual differences may occur due to lighting or screen settings. Always match the part to your original unit before installation.
