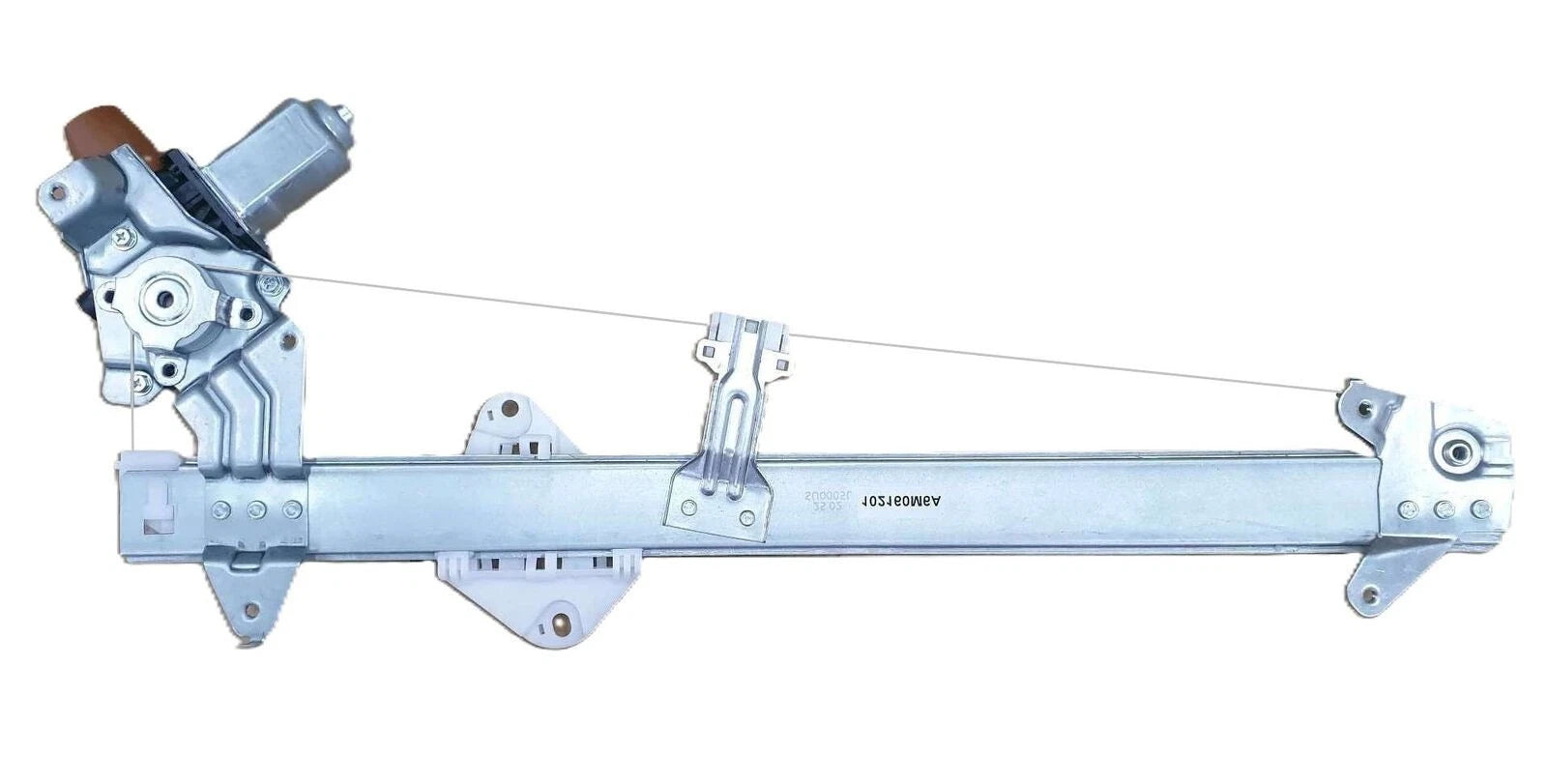

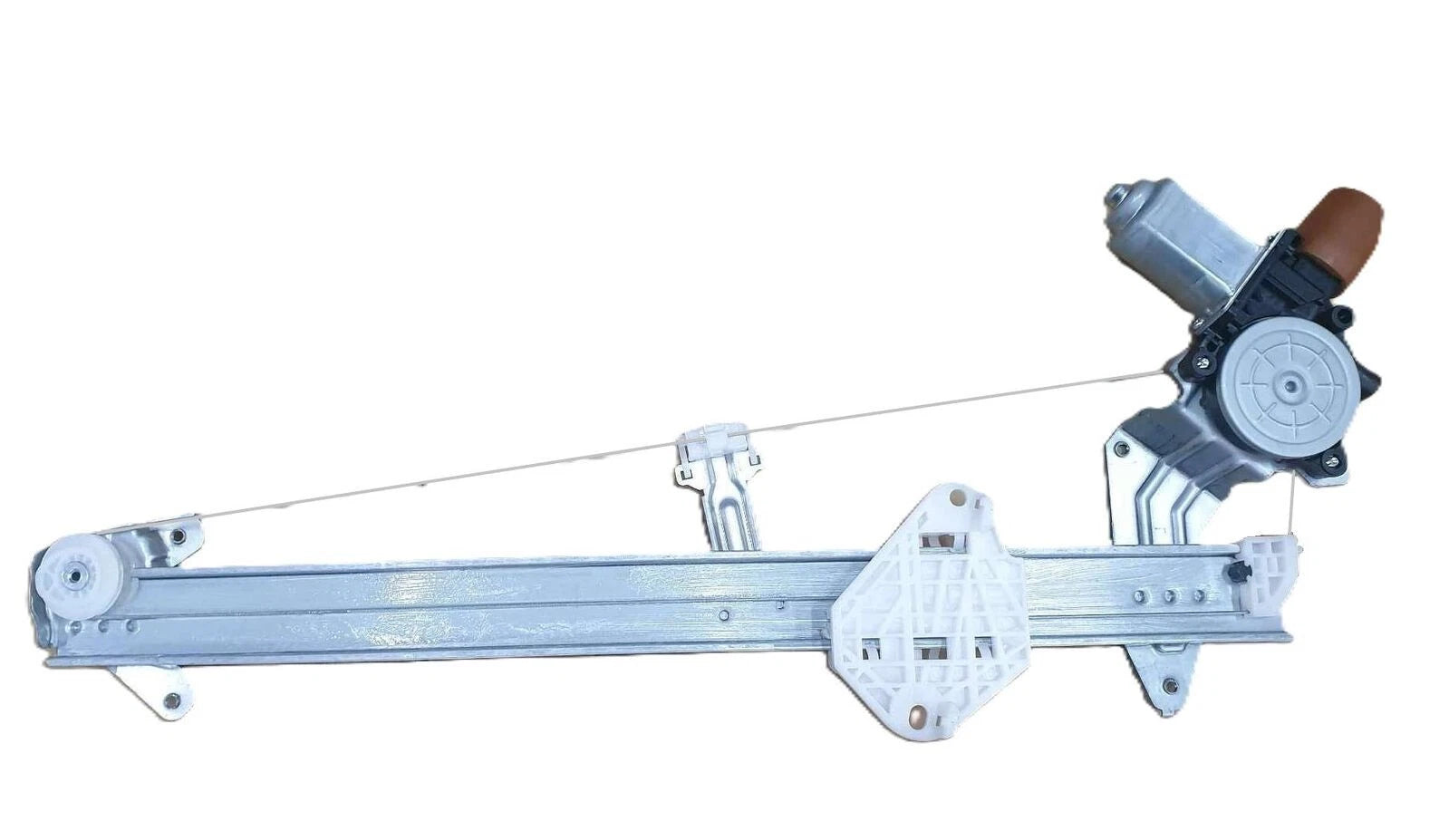

Front Right Electric Window Regulator with 6-Pin Motor for Subaru Forester SJ

PRODUCT OVERVIEW

This front right electric window regulator with integrated 6-pin motor is a high-quality aftermarket replacement engineered for reliable operation and smooth window movement.

KEY FEATURES

• Complete assembly with pre-fitted electric motor for easier installation
• 6-pin motor connector for correct plug-and-play connection
• Direct fit for specified Subaru Forester SJ applications
• Brand new, high-quality aftermarket construction
• Supplied as a single unit (1 piece)

SPECIFICATIONS

• Product: Window regulator with motor
• Operating mode: Electric
• Placement on vehicle: Front right (driver side)

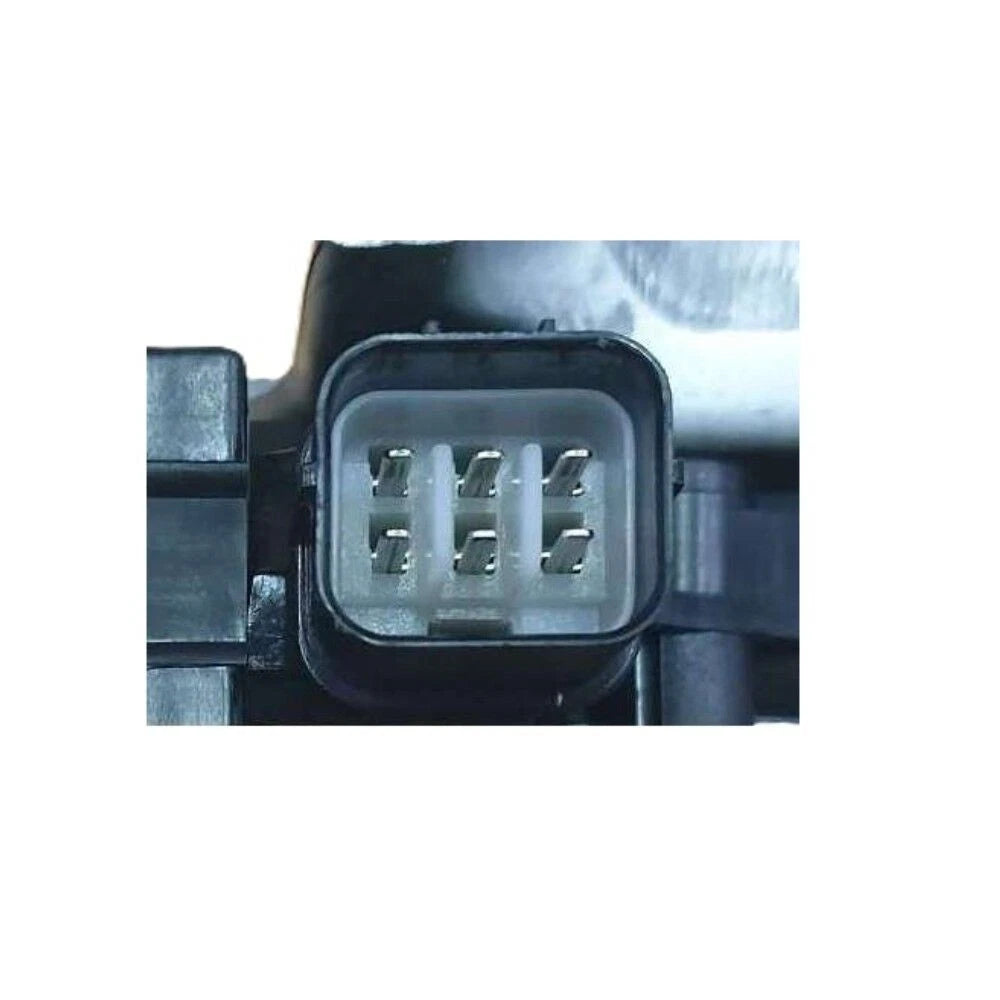

• Motor connector: 6 pins
• Condition: Brand new
• Part type: High-quality aftermarket
• MPN/Item No.: 102161M6A
• Quantity supplied: 1 piece
• Manufacturer warranty: 1 year (part only)

FITMENT

• Subaru Forester SJ 01/2013 – 09/2018 (front right door)

Always compare the connector type, mounting points and overall design with your original window regulator before purchase.

ANTI-PINCH FUNCTION SETUP

This motor supports an anti-pinch (one-touch) function. To avoid malfunction, do not power or test the motor before it is installed in the door.

• Motors are pre-tested and preset before dispatch.
• Install the regulator and connect it to the one-touch window switch.
• Operate the switch to confirm the window runs fully up and down.
• If the window drops after reaching the top, reset the anti-pinch function as described below.

ANTI-PINCH RESET PROCEDURE

• Step 1: Pull the window switch briefly to move the glass slightly up to the top position.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top.
• Step 3: Press the switch briefly to move the glass slightly down to the bottom position.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch to raise the window fully to the top and check that it no longer drops.

If the window still drops after reaching the top, repeat the reset steps until the function operates correctly.

INSTALLATION & WARRANTY NOTES

• Professional installation by a qualified automotive technician is recommended to maintain warranty.
• Warranty covers the part only and does not cover labour or associated costs.
• Electrical components should not be modified, disassembled or installed incorrectly, as this may void warranty.
• Product images are for reference only; minor visual variations may occur. Always match with your original part before installation.
