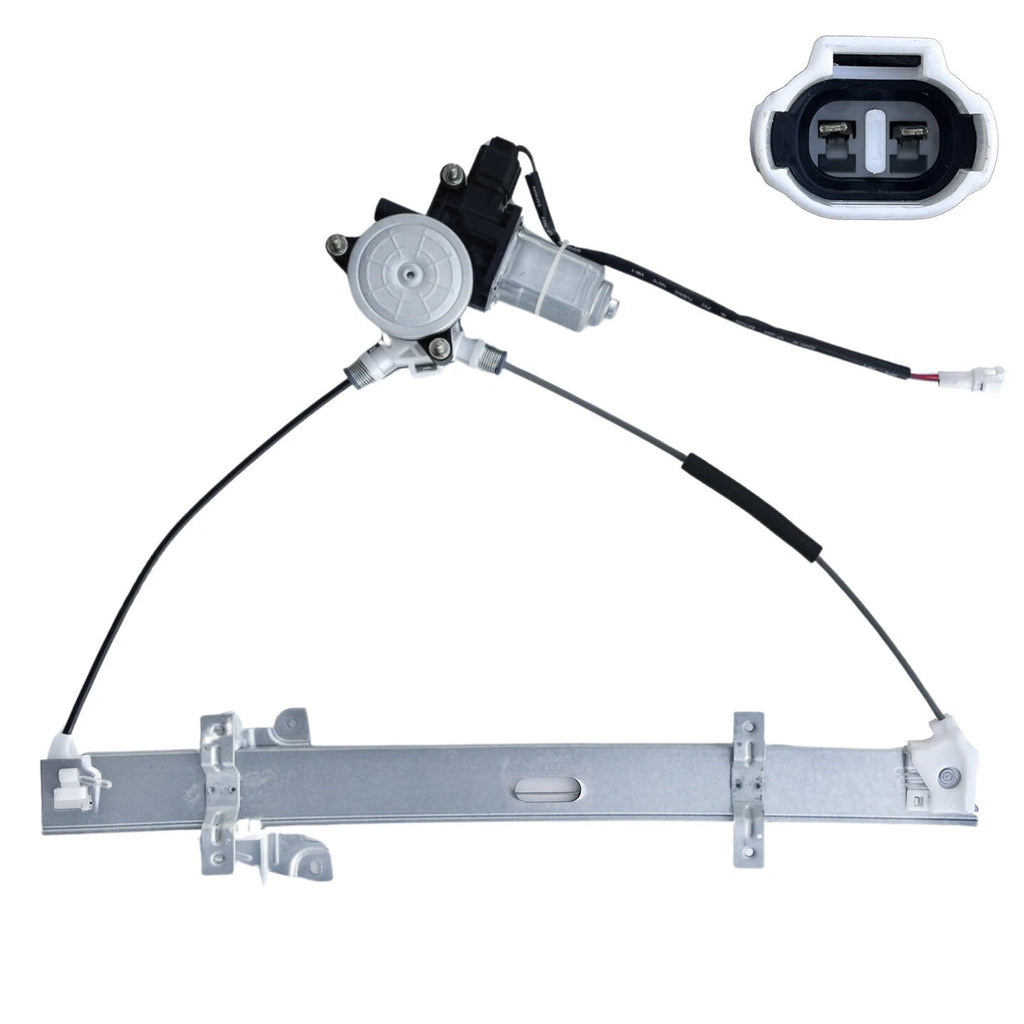

Front Right Power Window Regulator with Motor for Suzuki Grand Vitara 98-05

Product Overview

This brand new electric window regulator is designed for the front right door and includes a 2-pin motor. It is a high-quality aftermarket replacement for repair of the original assembly on compatible Suzuki Grand Vitara models.

Key Features

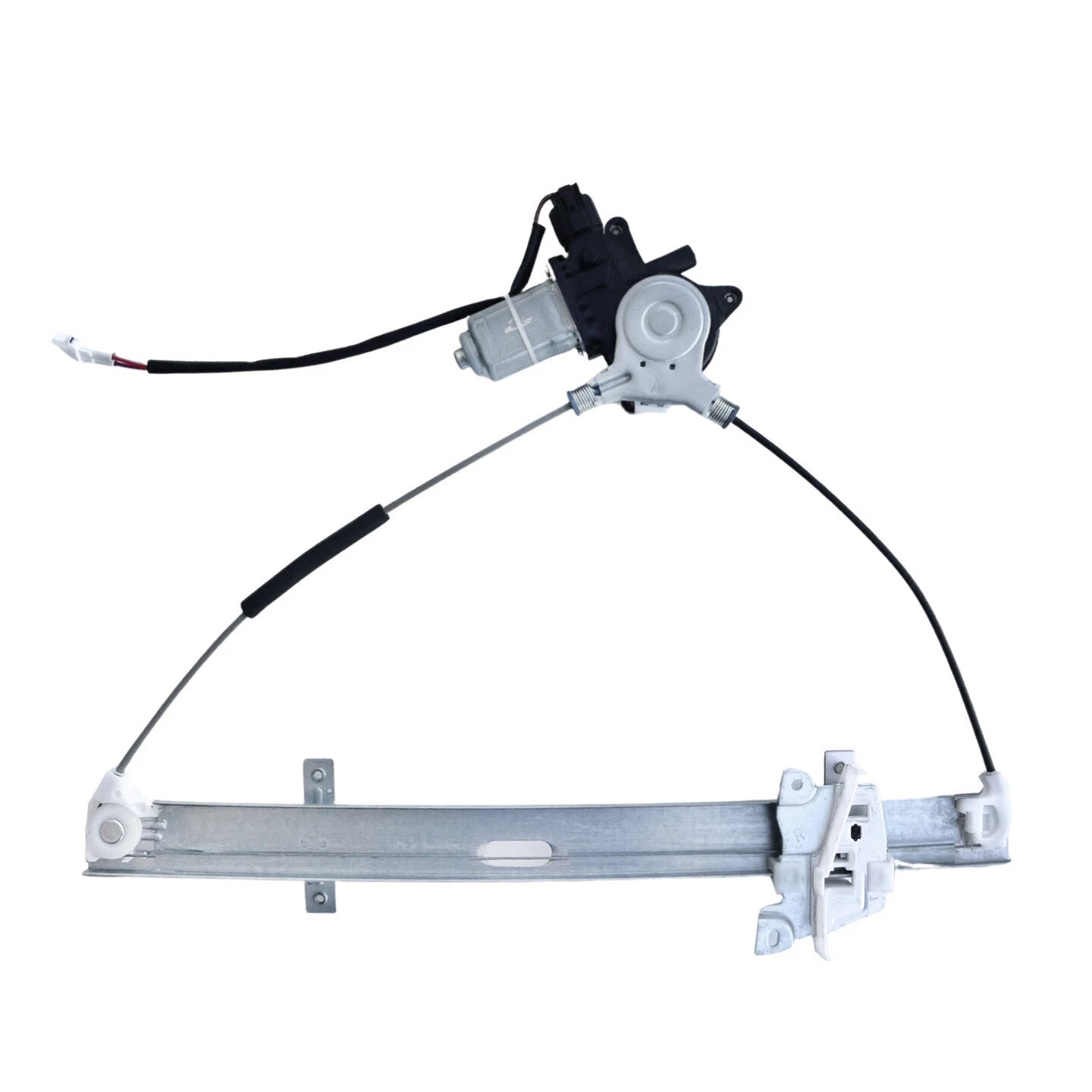

• Complete window regulator with pre-fitted electric motor
• Front right door position

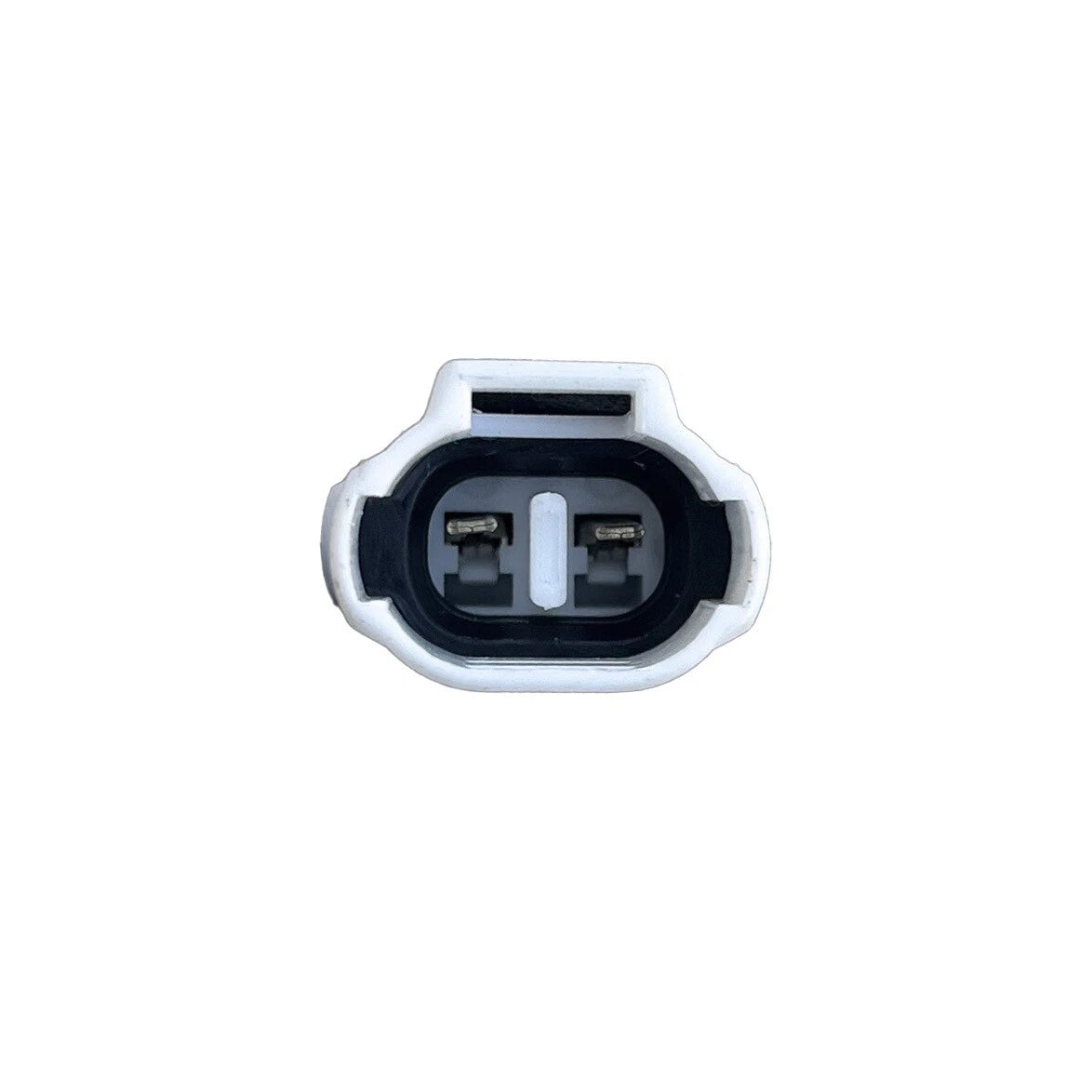

• 2-pin motor connector
• High quality aftermarket construction
• Supplied as a single-piece assembly
• Covered by 1-year parts-only warranty

Specifications

• Product: Window regulator with motor
• Operating mode: Electric
• Placement on vehicle: Front right
• Motor connector: 2 pins
• Condition: Brand new
• Part type: Aftermarket replacement
• MPN / Item No.: 101304
• Quantity supplied: 1 piece
• Warranty: 1 year (part only)

Vehicle Compatibility

• Suzuki Grand Vitara SQ 03/1998 – 12/2005

Always compare the product images, connector type and mounting points with your original part to confirm compatibility before purchase.

Anti-Pinch Reset Instructions (If Applicable)

Some electric window motors include an anti-pinch safety function. If the window automatically drops after reaching the top position, follow the reset procedure below:

• Install the motor in the door and connect it to the one-touch window switch before testing.
• Pull the switch to raise the window fully. If it drops after reaching the top, perform a reset.

Reset procedure:

• Step 1: Pull the window switch briefly to move the glass slightly up to the top position.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top.
• Step 3: Press the switch briefly to move the glass slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch to raise the window fully and confirm it no longer drops.

If the window still drops after reaching the top, repeat the above steps until the anti-pinch function is correctly set.

Installation & Notes

• Professional installation by a qualified automotive mechanic is strongly recommended.
• Intended for repair or replacement of the original window regulator assembly.
• Colour or finish may appear slightly different due to screen settings and lighting.
• Product images show the general style of the part supplied; use them as a visual match to your existing unit.
