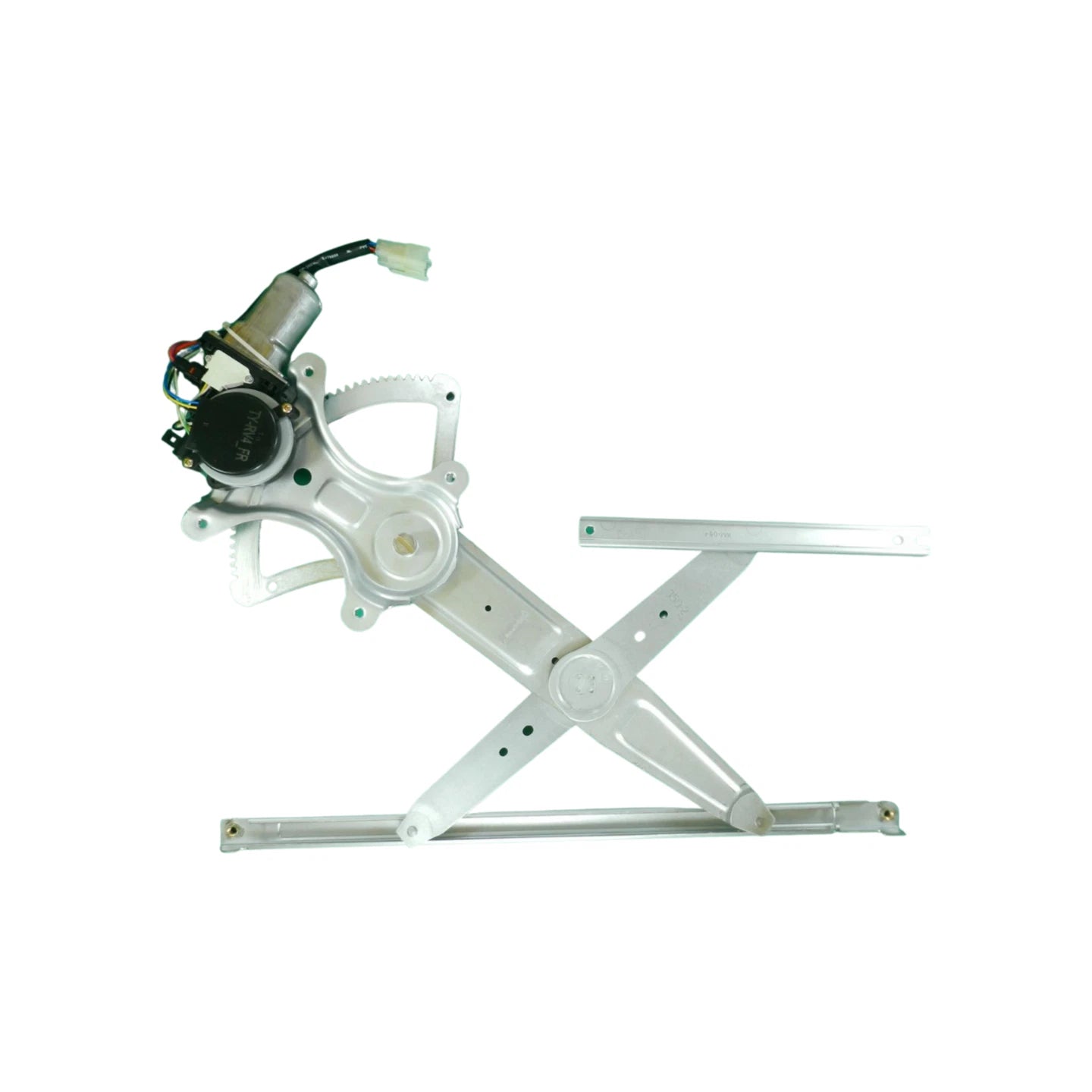

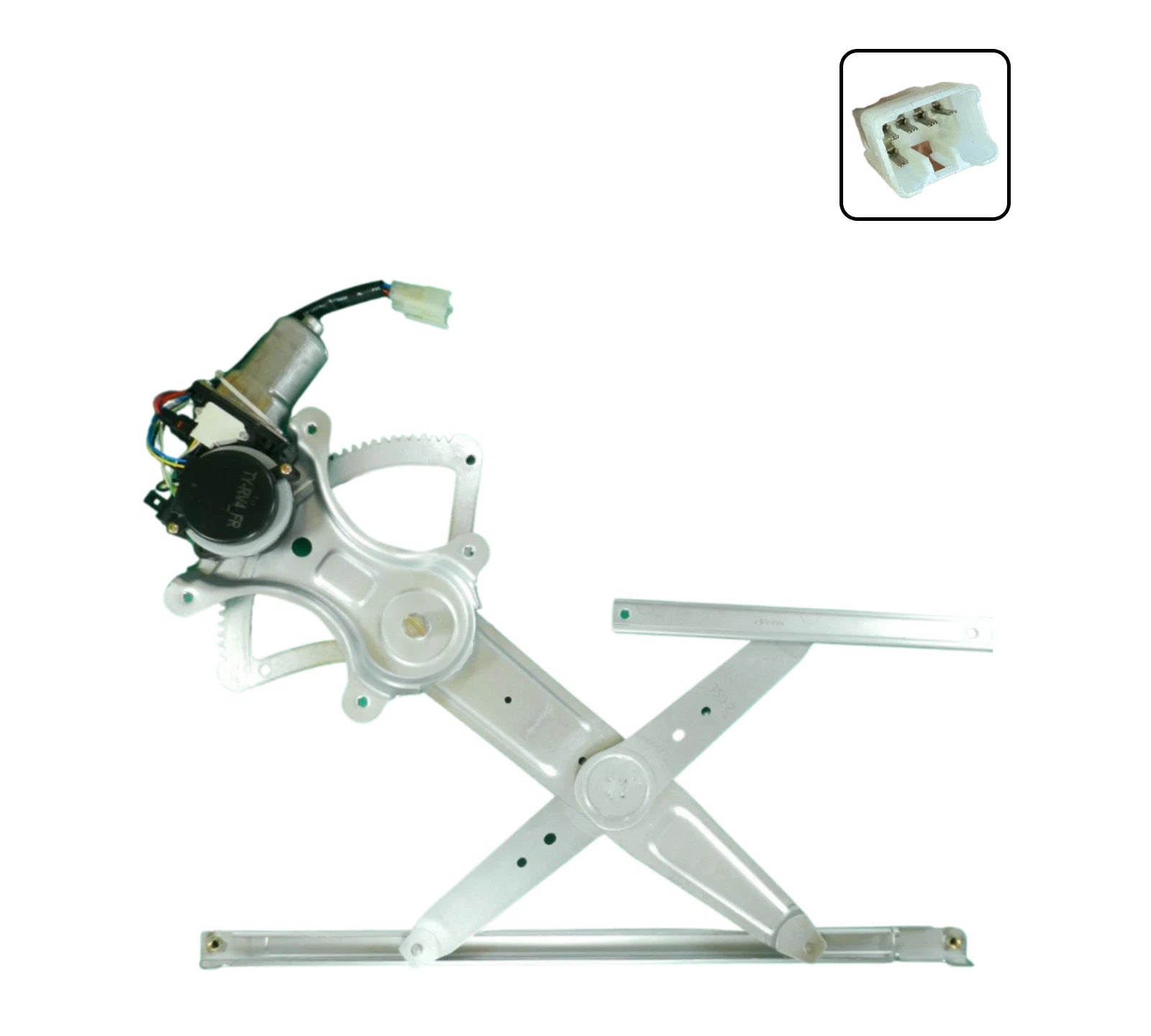

Front Right Electric Window Regulator with Motor 5-Pin for Toyota Kluger MCU28 03-07

PRODUCT OVERVIEW

This front right electric window regulator with integrated 5-pin motor is a high quality aftermarket replacement, designed for reliable operation and smooth window movement.

KEY FEATURES

• Complete assembly with electric motor
• Front right (front driver side) position
• 5-pin motor connection
• High quality aftermarket construction
• Brand new unit, ready to install
• Supplied as 1 piece
• 12-month manufacturer warranty (part only)

SPECIFICATIONS

• Product: Window regulator with motor
• Operating mode: Electric
• Placement on vehicle: Front right (front driver side)

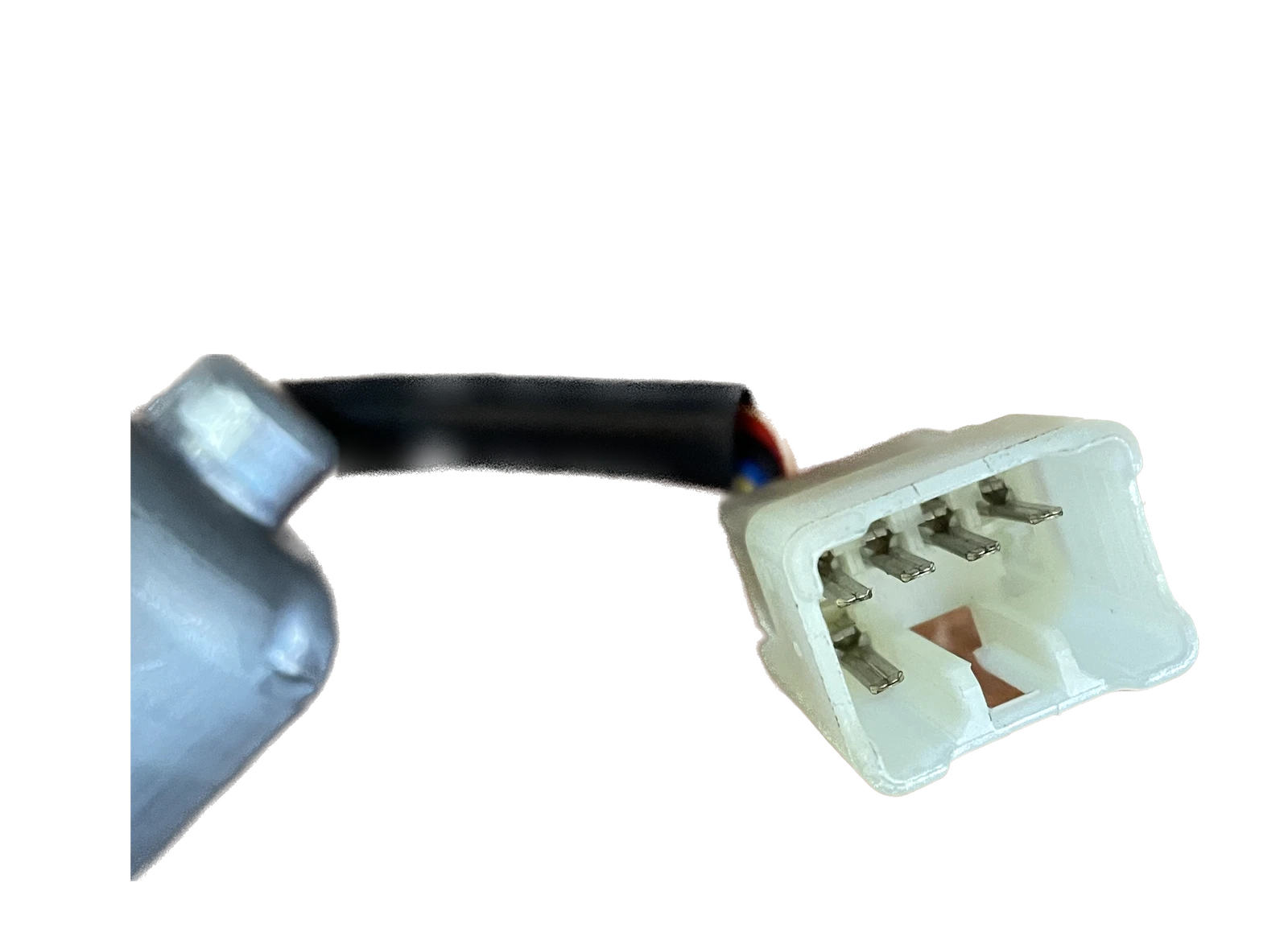

• Motor connector: 5 pins
• Condition: Brand new
• Part specs: High quality aftermarket
• MPN / Item No.: 100121B
• Quantity supplied: 1 piece

VEHICLE COMPATIBILITY

• Toyota Kluger MCU28R 11/2003–07/2007 3MZFE 3.3L SUV mid-size

Always compare the product photos, specifications, and connector type with your original part before purchasing.

ANTI-PINCH FUNCTION SETUP

This regulator motor may be equipped with an anti-pinch safety function. Do not operate or test the motor before installation in the door, otherwise the function may require resetting.

• The motors are factory tested and set correctly before dispatch.
• Install the motor and connect it to the one-touch window switch.
• Pull the switch up; the window should travel fully to the top.
• If the window drops after reaching the top, perform the reset procedure.

Reset procedure:

• Step 1: Pull the window switch briefly to move the glass slightly up to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top position.
• Step 3: Press the switch briefly to move the window slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom position.
• Step 5: Pull the one-touch switch to move the window fully up to the top.

The reset is complete if the window remains at the top. If it drops again, repeat the above steps until successful.

INSTALLATION & NOTES

• Recommended to be installed by a qualified automotive technician.
• Part is intended as a replacement component for repair purposes.
• Colour and finish may vary slightly from images due to screen and lighting differences.
• Images shown are of the actual style of product supplied.

Correct identification of the part number, plug type, and mounting points is essential to ensure proper fitment and operation.
