Front Right Electric Window Regulator w/ Motor 6-Pin for Honda Civic FD 06-12

PRODUCT OVERVIEW

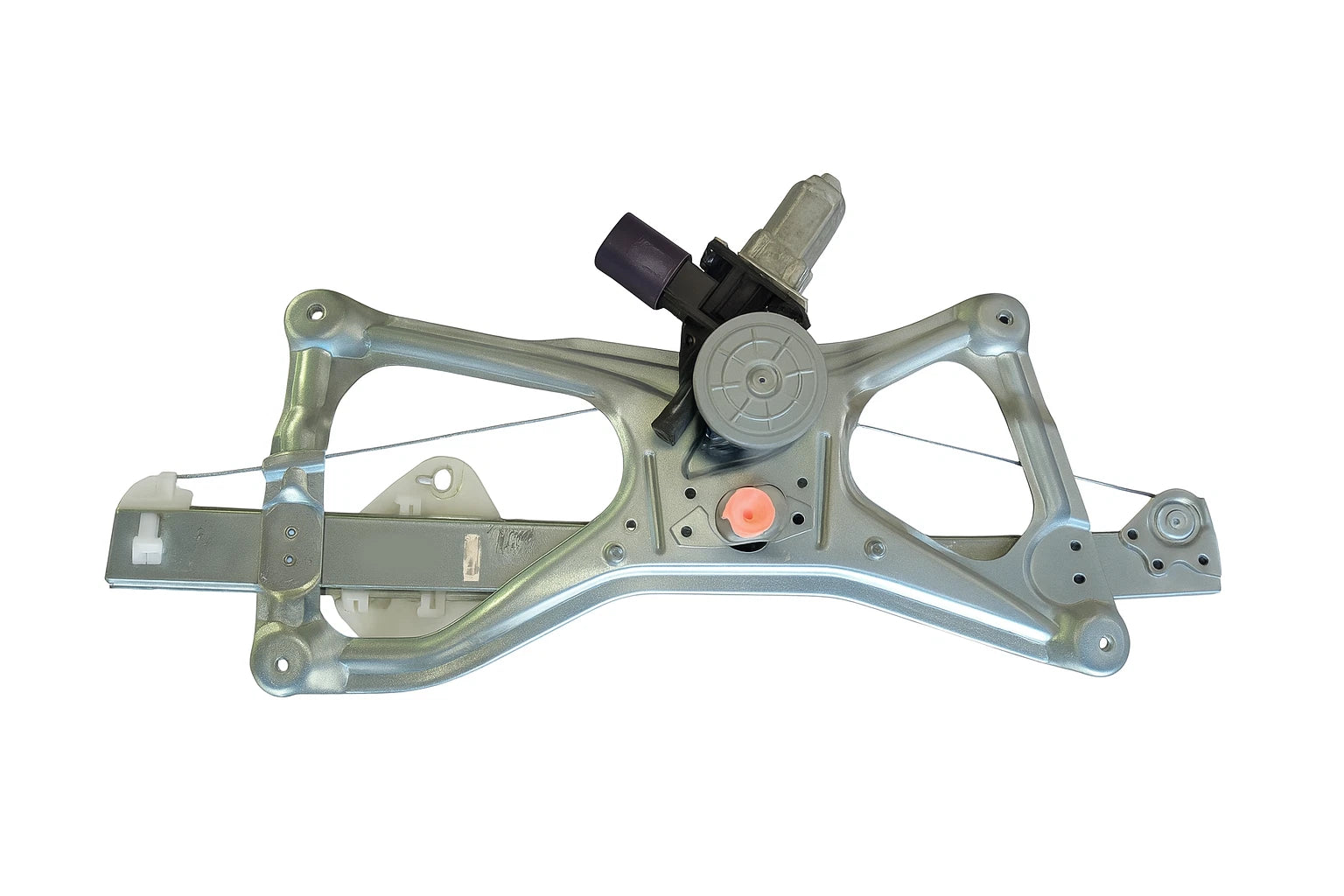

This front right electric window regulator with 6-pin motor is a high-quality aftermarket replacement designed for Honda Civic FD 2006–2012 sedan models. Supplied as a complete assembly, it is suitable for repair and replacement of a faulty or inoperative window mechanism.

KEY FEATURES

• Complete electric window regulator with integrated motor
• Front right (driver side) position
• 6-pin motor connection
• High-quality aftermarket construction
• Brand new part, supplied as 1 piece
• 12-month manufacturer warranty (part only)
• MPN / Item No.: 101297A

SPECIFICATIONS

• Product: Window regulator
• Operating mode: Electric
• Placement on vehicle: Front right (front driver side)

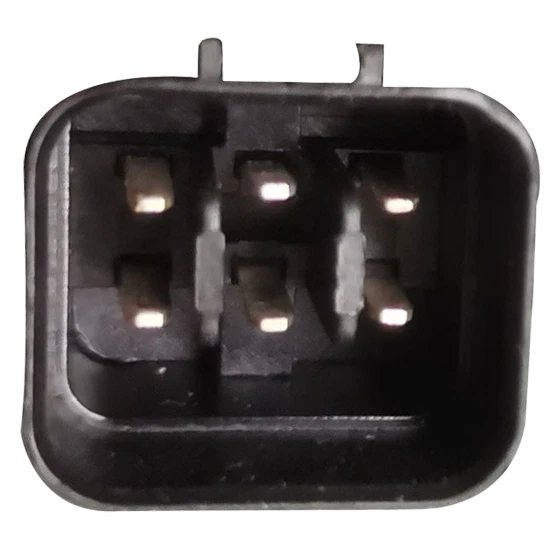

• Motor connection: 6 pins
• Condition: Brand new
• Quantity supplied: 1 piece
• Warranty: 1 year, part only (no labour)

FITMENT

• Honda Civic FD 02/2006–01/2012 R18A1 1.8L sedan

Use the part number, plug type (6-pin), and product images to confirm compatibility with your existing regulator and motor before purchase.

ANTI-PINCH FUNCTION SETUP

This motor is equipped with an anti-pinch function and one-touch operation. Incorrect testing before installation can cause the function to fail and require resetting.

• Do not power-test the motor before it is fitted to the door
• Install the regulator and connect it to the one-touch window switch
• Pull the switch up: the window should move fully to the top
• If the window drops after reaching the top, perform the reset procedure

Reset procedure:

• Step 1: Pull the window switch briefly so the glass moves slightly up to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top.
• Step 3: Press the switch briefly so the glass moves slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch so the window travels fully to the top.

The reset is complete if the window remains at the top. If it still drops, repeat the steps until successful.

INSTALLATION & NOTES

• Professional installation by a qualified automotive mechanic is strongly recommended
• Part is intended for repair and replacement use
• Colour or finish may appear slightly different on screen due to lighting and display settings
• Match all mounting points, plug type, and overall shape to your original unit
• Tamper-evident seals on plugs or motor housings (where applied) should not be removed, as this may affect return eligibility
