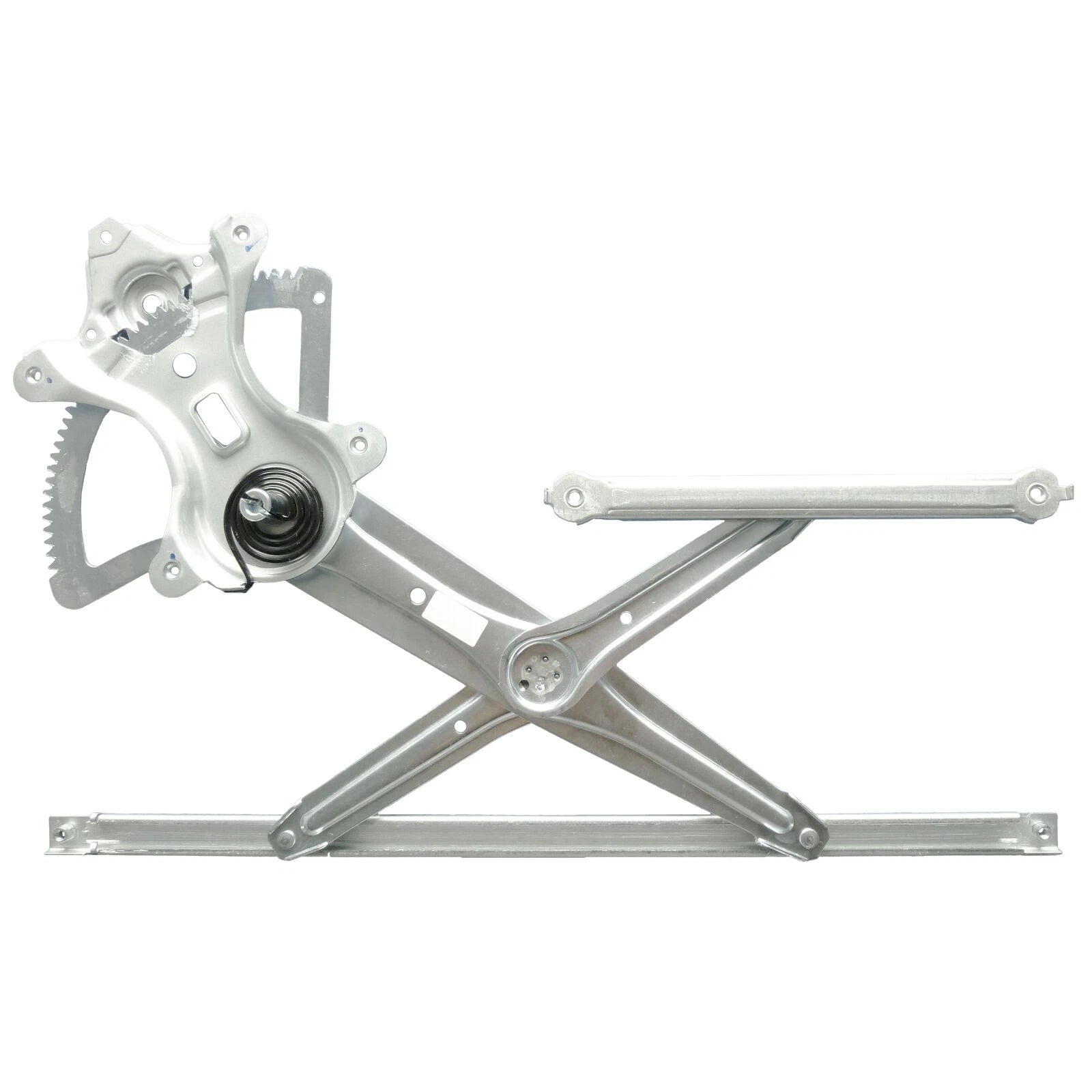

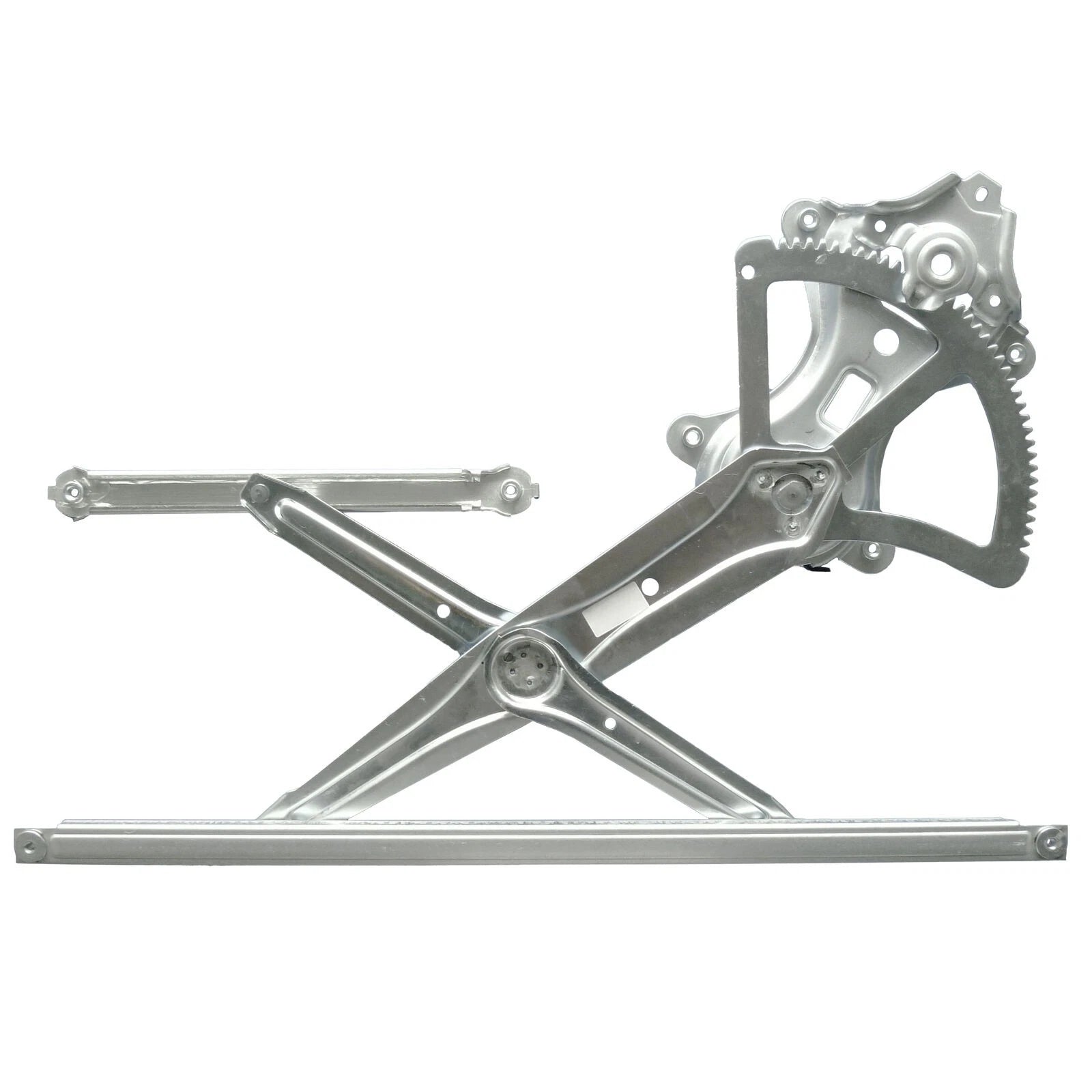

Front Right Electric Window Regulator (No Motor) for Toyota Camry ACV36 02–06

PRODUCT OVERVIEW

This electric window regulator is a high-quality aftermarket replacement designed for the front right (driver) door of Toyota Camry ACV36R 2.4L sedans produced between 09/2002 and 06/2006. Motor is not included and must be re-used or purchased separately.

KEY FEATURES

• Electric window regulator assembly (no motor included)
• Front right / driver side door fitment
• Engineered as a direct-fit replacement
• High quality aftermarket construction
• Brand new part with 1-year manufacturer warranty (part only)
• Supplied as a single piece (quantity: 1)

SPECIFICATIONS

• Product type: Window regulator
• Operating mode: Electric
• Position: Front right (front driver side)
• Motor: Not included
• Condition: Brand new
• Part specs: High quality aftermarket
• MPN / Item No.: 101505
• Warranty: 1 year (part only)
• Quantity supplied: 1 piece

VEHICLE FITMENT

• Toyota Camry ACV36R 09/2002–06/2006 2AZFE 2.4L Sedan

Always compare this regulator and mounting points with your original part before purchase to ensure correct fitment.

ANTI-PINCH MOTOR RESET INFORMATION

If used with a motor that has an anti-pinch (one-touch) function, correct setup is required for proper operation.

• Do not test the motor out of the door, or the anti-pinch function may fail.
• Install the motor to the regulator and connect to the one-touch window switch.
• Pull the switch up to confirm the window travels fully to the top.
• If the window drops slightly after reaching the top, the anti-pinch function must be reset.

ANTI-PINCH RESET STEPS

• Step 1: Pull the window switch briefly so the window moves slightly up to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top position.
• Step 3: Press the window switch briefly so the window moves slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom position.
• Step 5: Pull the one-touch switch to raise the window fully to the top and confirm it does not drop.

If the window still drops after reaching the top, repeat the reset steps until the function is correctly set.

IMPORTANT NOTES

• For repair and replacement use only.
• Product images are for reference; slight colour variation may occur due to lighting and screen settings.
• Professional installation by a qualified automotive mechanic is recommended to maintain warranty coverage.
