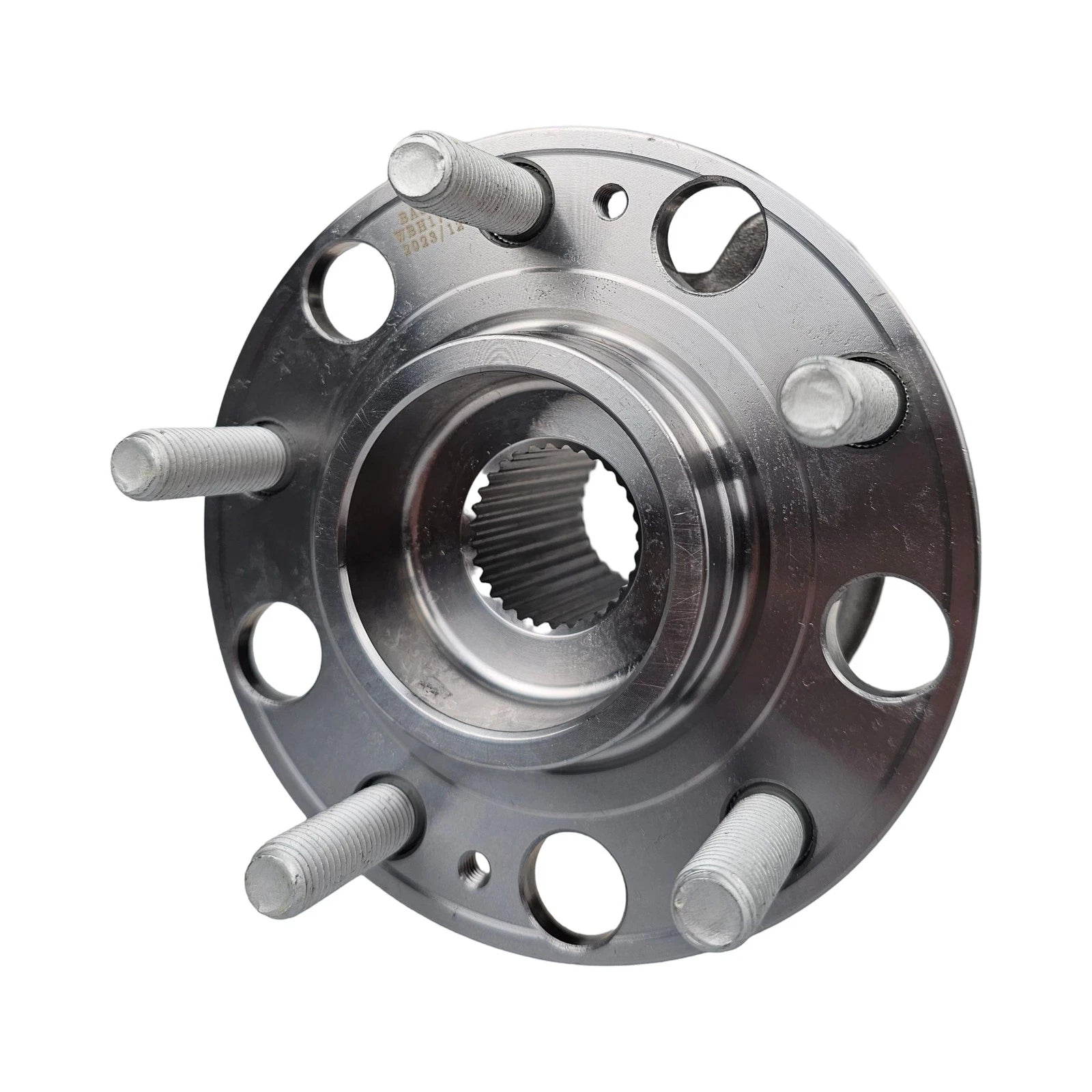

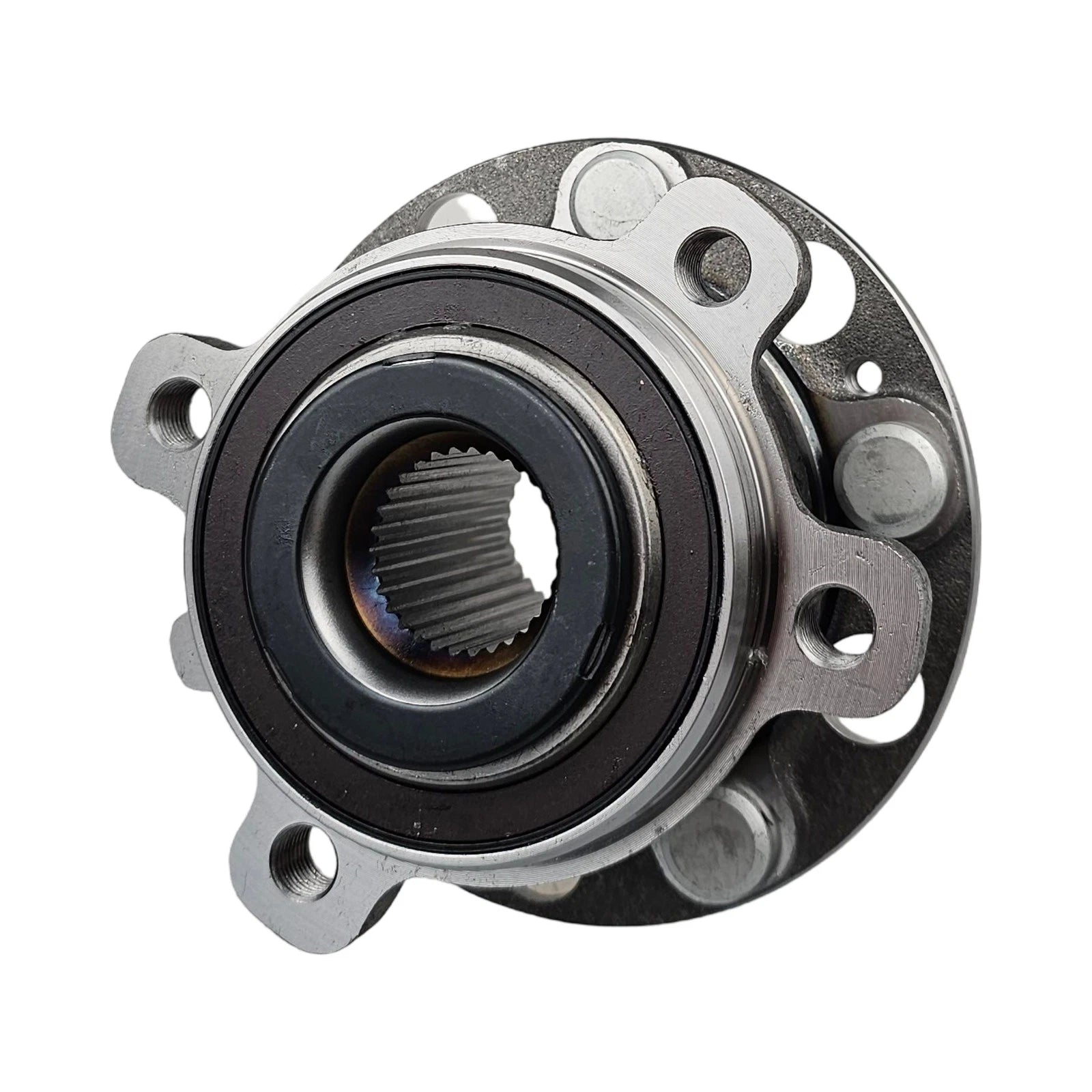

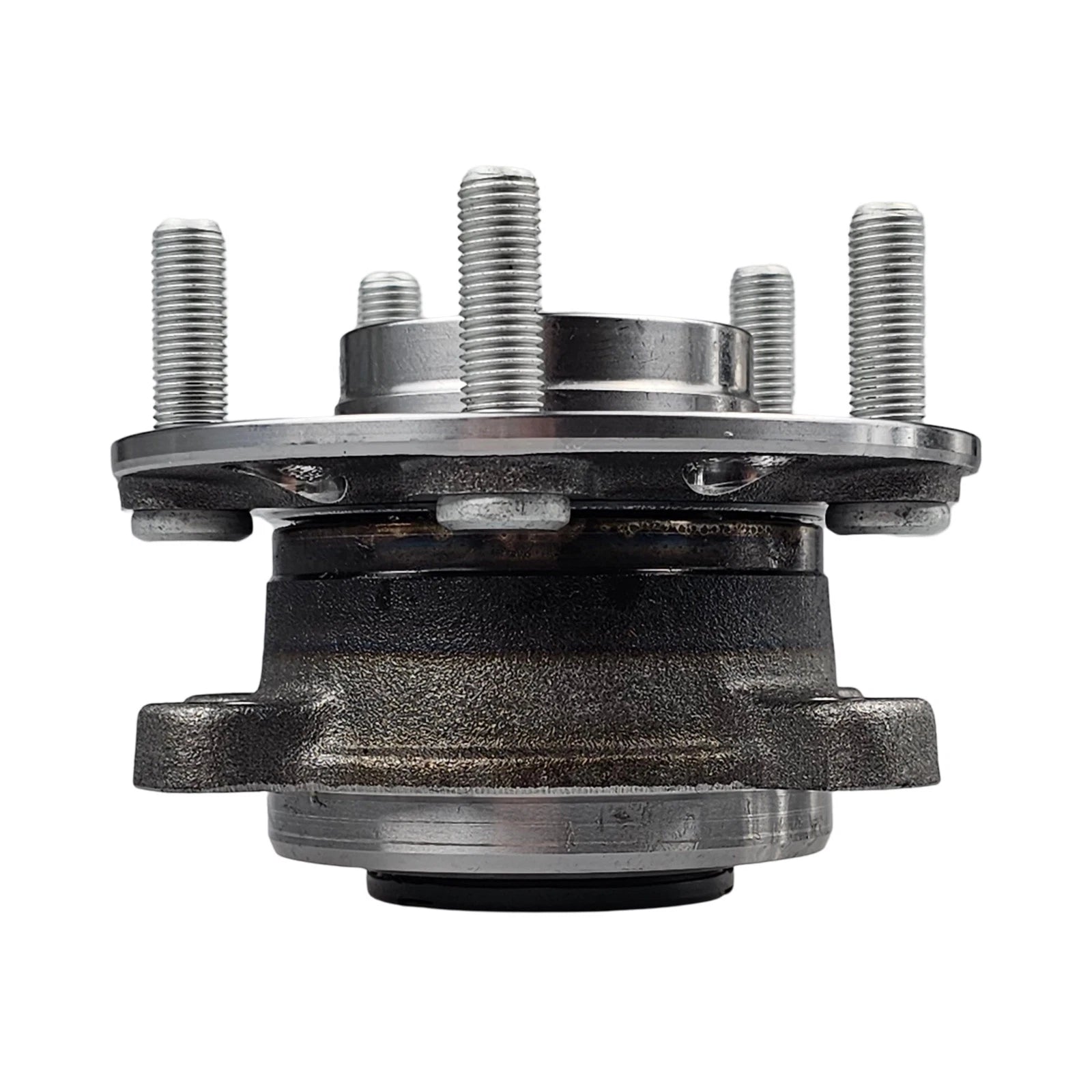

Front Wheel Bearing Hub Assembly for Hyundai i30, Kona, Sonata, Tucson, Kia

PRODUCT OVERVIEW

Premium front wheel bearing hub assembly with 4-bolt flange, engineered to OEM specifications for selected Hyundai and Kia models. Manufactured from high-grade steel with heavy-duty seals and OEM-grade sensors for quiet, smooth operation and long service life.

KEY FEATURES

• Complete front wheel hub and bearing assembly
• 4-bolt flange design (check specific fitment requirements)
• Precision machined to OEM tolerances for smooth rotation
• Premium steel construction with heavy-duty seals
• OEM-grade ABS sensor components where applicable
• Designed for durability and reduced noise and vibration

VEHICLE APPLICATIONS

This front wheel bearing hub assembly suits selected models with 4-bolt flange front hubs. Confirm all dimensions and specifications against your existing part before purchase.

• Hyundai i30 PDE 2.0L G4KH FWD (02/2018 - onwards) with 360 mm brake disc, including N and Fastback N Performance
• Hyundai i30 CN7 1.6L G4FP, 2.0L G4KH, G4NL FWD (08/2020 - onwards) for 4-bolt flange, including N, N Premium, N Line Premium, Active, Elite, Premium
• Hyundai Kona OS 2.0L G4KH FWD (07/2021 - 01/2024) up to 03/2023, including N
• Hyundai Sonata DN 2.5L G4KP FWD (12/2020 - onwards), including N Line
• Hyundai Tucson NX 2.0L G4NL FWD (02/2021 - onwards), including Elite, Elite N Line, Highlander, Highlander N Line
• Hyundai Tucson NX JC81B 1.6L G4PF AWD DCT (02/2021 - onwards), including Elite, Elite N Line, Highlander, Highlander N Line
• Kia Sportage NQ 1.6L G4FP, G4FT, 2.0L G4NL FWD / AWD (09/2021 - onwards), including LX, LX Plus, S, SX, SX+, Deluxe, GT-Line, X-Line, Urban Deluxe

Always verify hub flange configuration, brake disc size and stud pattern prior to installation.

TECHNICAL SPECIFICATIONS

• Mounting bolt holes: 4 x M12 x 1.25
• Wheel flange outer diameter: 139 mm
• Stud pattern (PCD): 5 stud, M12 x 1.5, 114.3 mm
• Wheel pilot diameter: 67 mm
• Brake pilot diameter: 69 mm
• Rotor retaining screw holes: 2 x M6 x 1.0, 114.3 mm
• Flange offset: 53.4 mm
• Hub pilot diameter: 91.9 mm
• Spline quantity: 30 teeth

WHAT'S INCLUDED

• 1 x complete front wheel hub and bearing assembly

INSTALLATION & NOTES

• Professional installation is recommended
• Confirm 4-bolt flange configuration and all critical dimensions before ordering
• Suitable for front axle position only

WARRANTY

• 12 month / 20,000 km warranty (whichever occurs first)

If you are unsure about compatibility, please confirm fitment using your vehicle details and existing hub measurements before purchase.
