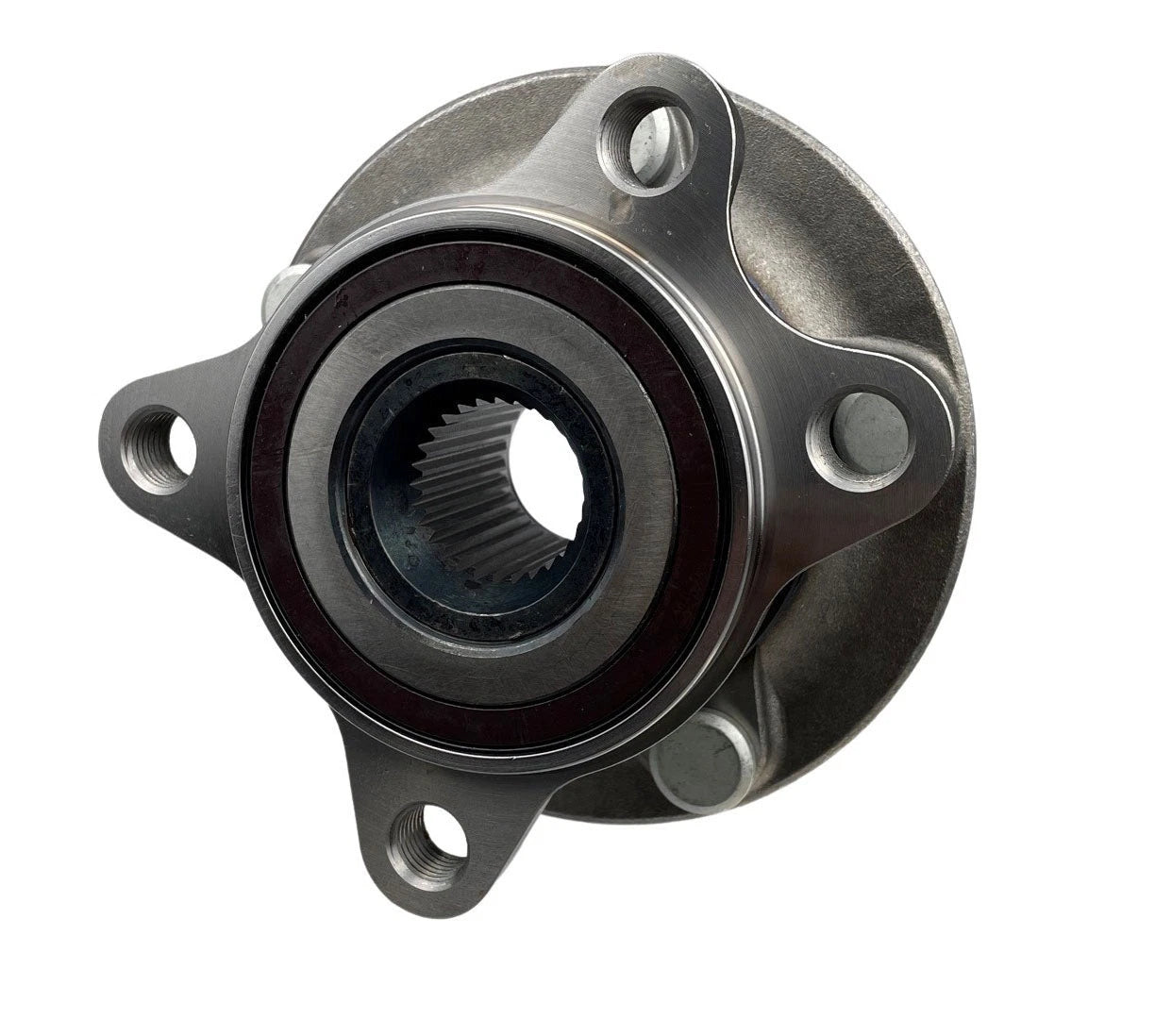

Front Wheel Bearing Hub Assembly for Mazda 3 BP & CX-30 DM 2019-On

PRODUCT OVERVIEW

Premium front wheel bearing hub assembly engineered to OEM specifications for Mazda 3 BP and Mazda CX-30 DM models from 2019-onwards. Designed for quiet, smooth operation and long service life.

KEY FEATURES

• OEM-style full front hub assembly
• 28 spline design (28T) – verify against existing hub
• ABS compatible with integrated OEM-grade sensor (where applicable)
• Manufactured from premium steel with heavy-duty seals
• Precision machined for reduced noise and vibration

FITMENT INFORMATION

Suitable for select Mazda 3 BP and Mazda CX-30 DM applications from 2019-onwards, including various 2.0L, 2.0L hybrid and 2.5L variants as listed below. Always confirm dimensions and spline count before purchase.

• Mazda 3 BP, 300P, 300Q 2.0L PE-VPS 16V DOHC VVT (02/2019-onwards)
• Mazda 3 BP, 300P 2.0L HFY1 Hybrid 16V DOHC VVT (05/2020-onwards)
• Mazda 3 BP, 300P, 300Q 2.5L PY-VPS 16V DOHC VVT (02/2019-onwards)
• Mazda CX-30 DM 2.0L PE-VPS 16V DOHC VVT (11/2019-onwards)
• Mazda CX-30 DM 2.5L PY-ZC 16V DOHC VVT (10/2019-onwards)
• Mazda CX-30 DM, DM2W7, DMFP 2.0L / 2.0L hybrid HF-VPH Hybrid 16V DOHC VVT (10/2019-onwards)

For alternate parts, please refer to WBH1831 if specified by your application or catalog.

TECHNICAL SPECIFICATIONS

• ABS: Yes
• Spline quantity: 28T

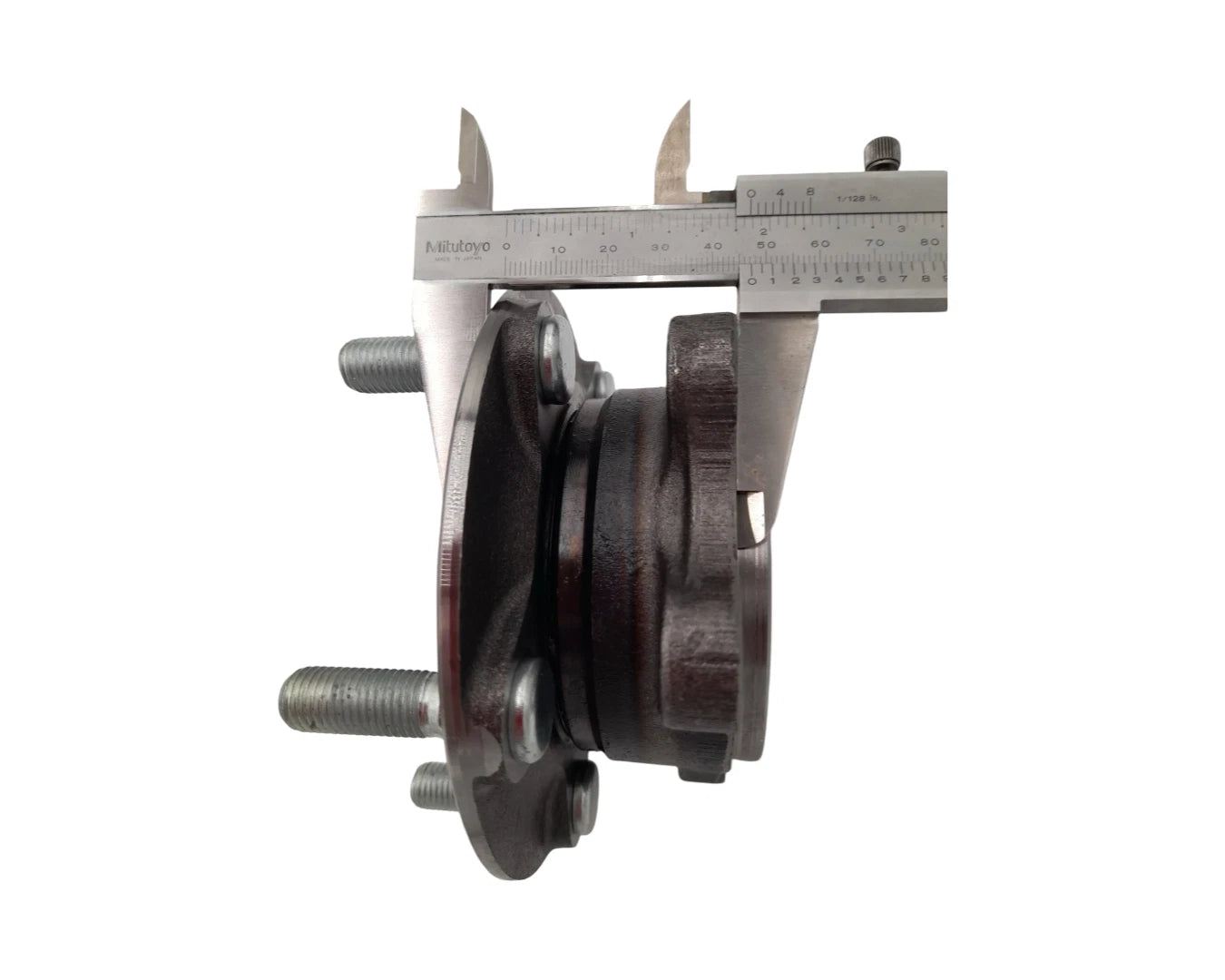

• Flange offset: 47 mm
• Flange diameter: 139 mm
• Wheel pilot diameter: 67 mm
• Brake pilot diameter: 68 mm
• Wheel stud pattern (PCD): 5 x M12 x 1.5 @ 114 mm
• Hub pilot diameter: 86 mm
• Hub pilot depth: 6.4 mm
• Mounting flange: 4-bolt, M14 x 1.5
• 4-bolt centre-to-centre D1: 51.8 mm
• 4-bolt centre-to-centre D2: 79.3 mm

WHAT'S INCLUDED

• 1 x complete front wheel bearing hub assembly

NOTES

• Confirm spline count, flange offset and key dimensions against the original hub before ordering.
• Professional installation is recommended.
