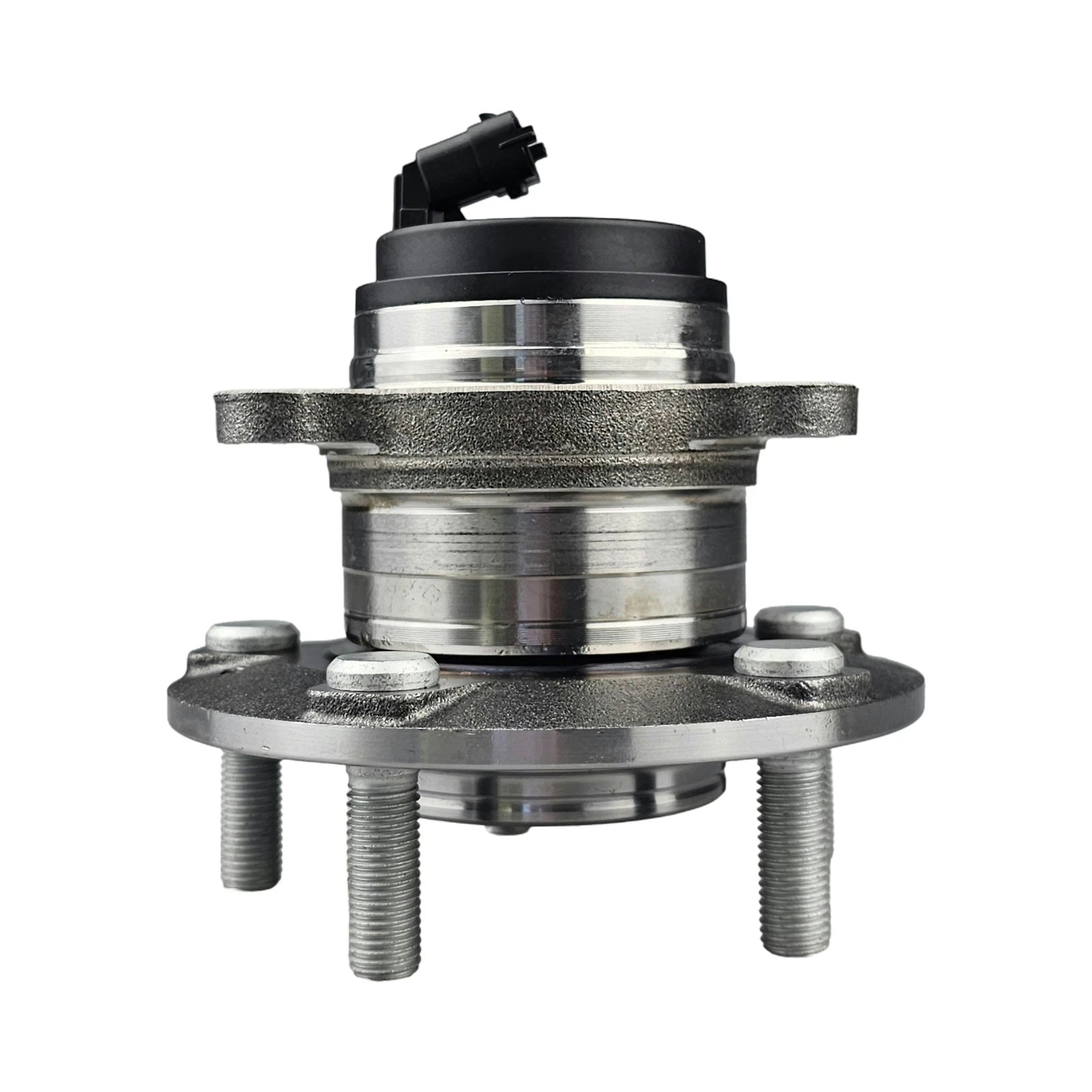

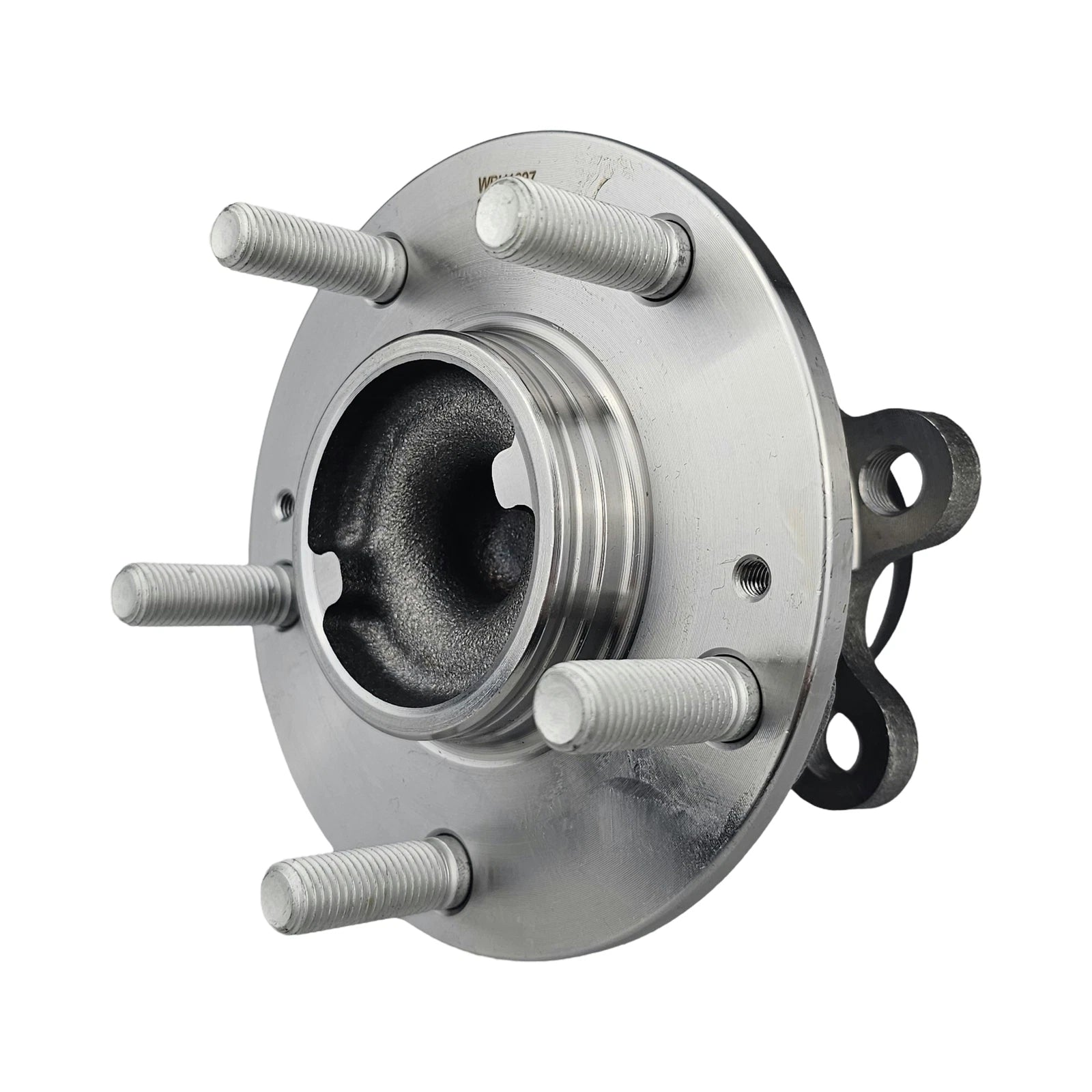

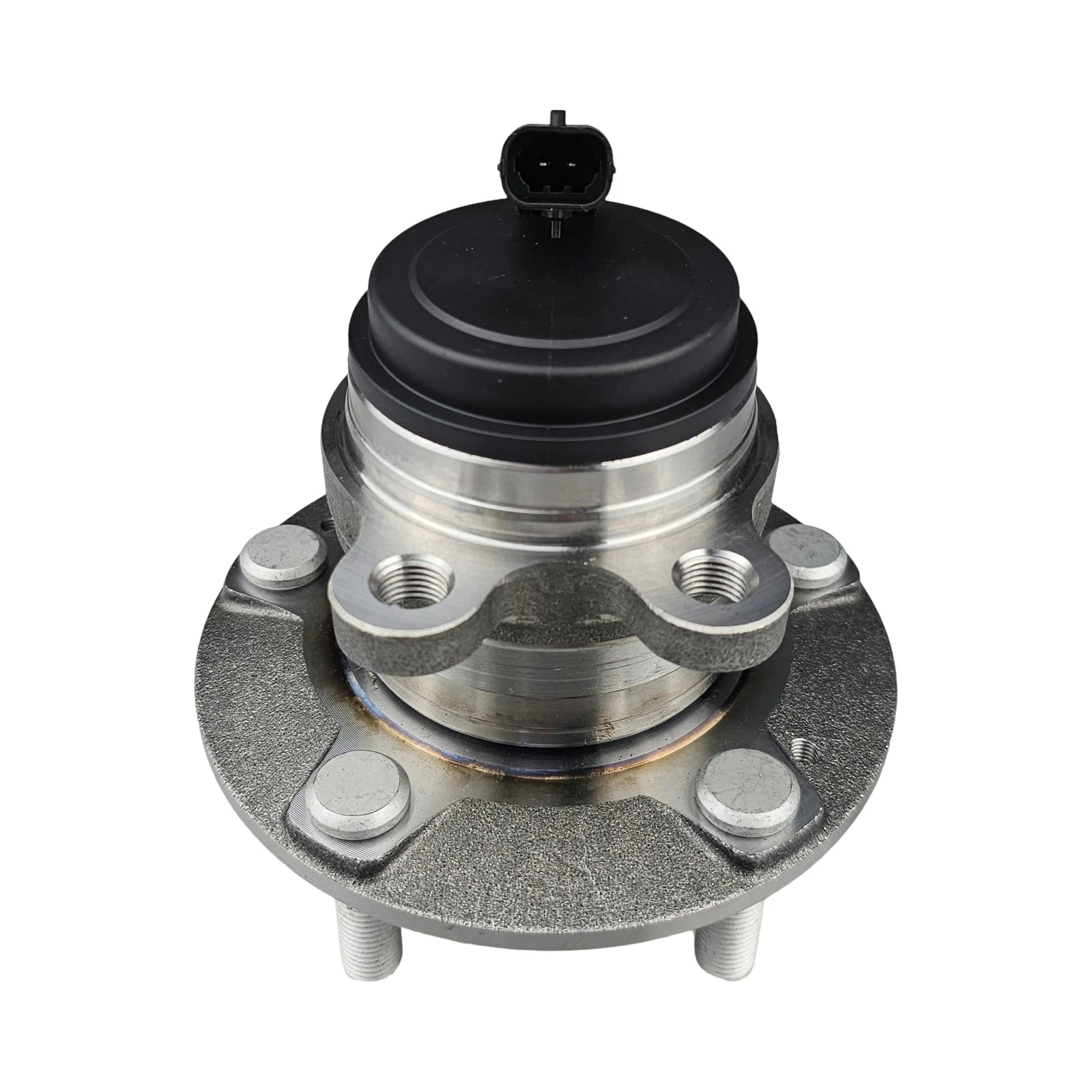

Front Wheel Bearing Hub Assembly for Hyundai Genesis DH 3.8L RWD ABS 14-17

PRODUCT OVERVIEW

Premium front wheel bearing hub assembly designed for Hyundai Genesis DH GN41E 3.8L G6DJ RWD (11/2014-08/2017) with ABS. Manufactured from high-grade steel with heavy-duty seals and OEM-grade sensors for reliable, quiet operation.

Note: ABS-equipped hub. Not suitable for Genesis submodels 3.8P/8AT/4DR/5S 2015-2016. Confirm compatibility before purchase.

KEY FEATURES

• Complete front wheel bearing hub assembly
• ABS integrated sensor with 2-pin plug
• Precision engineered to OEM specifications
• Heavy-duty seals for improved contamination protection
• High-quality rubber on ABS sensor wiring for durability
• Designed for smooth, quiet rotation and long service life

SPECIFICATIONS

• Position: Front
• Drive type: RWD
• ABS: Yes, integrated sensor, 2-pin plug
• Rim mounting holes: 5 x M12 x 1.5 @ 114.3 mm
• Flange mounting holes: 4
• Hub pilot diameter: 73 mm
• Wheel pilot diameter: 67 mm
• Brake pilot diameter: 69 mm
• Outer diameter: 139 mm
• Flange offset: 59 mm
• Flange (4-bolt) centre to centre D1: 88 mm
• Hub (4-bolt) centre to centre D2: 47 mm

WHAT'S INCLUDED

• 1 x complete front wheel bearing hub assembly

QUALITY & WARRANTY

• Precision machining for smoother rotation and reduced noise
• Engineered for extended bearing life and reliability
• 12 month / 20,000 km warranty on hub and bearing components

VEHICLE COMPATIBILITY

Suitable for select Hyundai Genesis DH GN41E 3.8L G6DJ RWD models from 11/2014 to 08/2017 equipped with ABS. Always verify hub specifications and ABS connector type against your original part before installation.
