Front Wheel Bearing Hub & CV Driveshaft Kit for Toyota Hilux 4WD

PRODUCT OVERVIEW

This front axle kit includes new wheel bearing hub assemblies and CV driveshafts designed to meet OEM specifications for selected Toyota Hilux 4WD models. Components are supplied pre-assembled where applicable for straightforward installation.

VEHICLE SUITABILITY

• Toyota Hilux KUN26R 1KDFTE 3.0L Turbo Diesel (4WD)
• Toyota Hilux GGN25R 1GRFE 4.0L Petrol (4WD)

Check all specifications and spline counts against your existing components before purchase and installation.

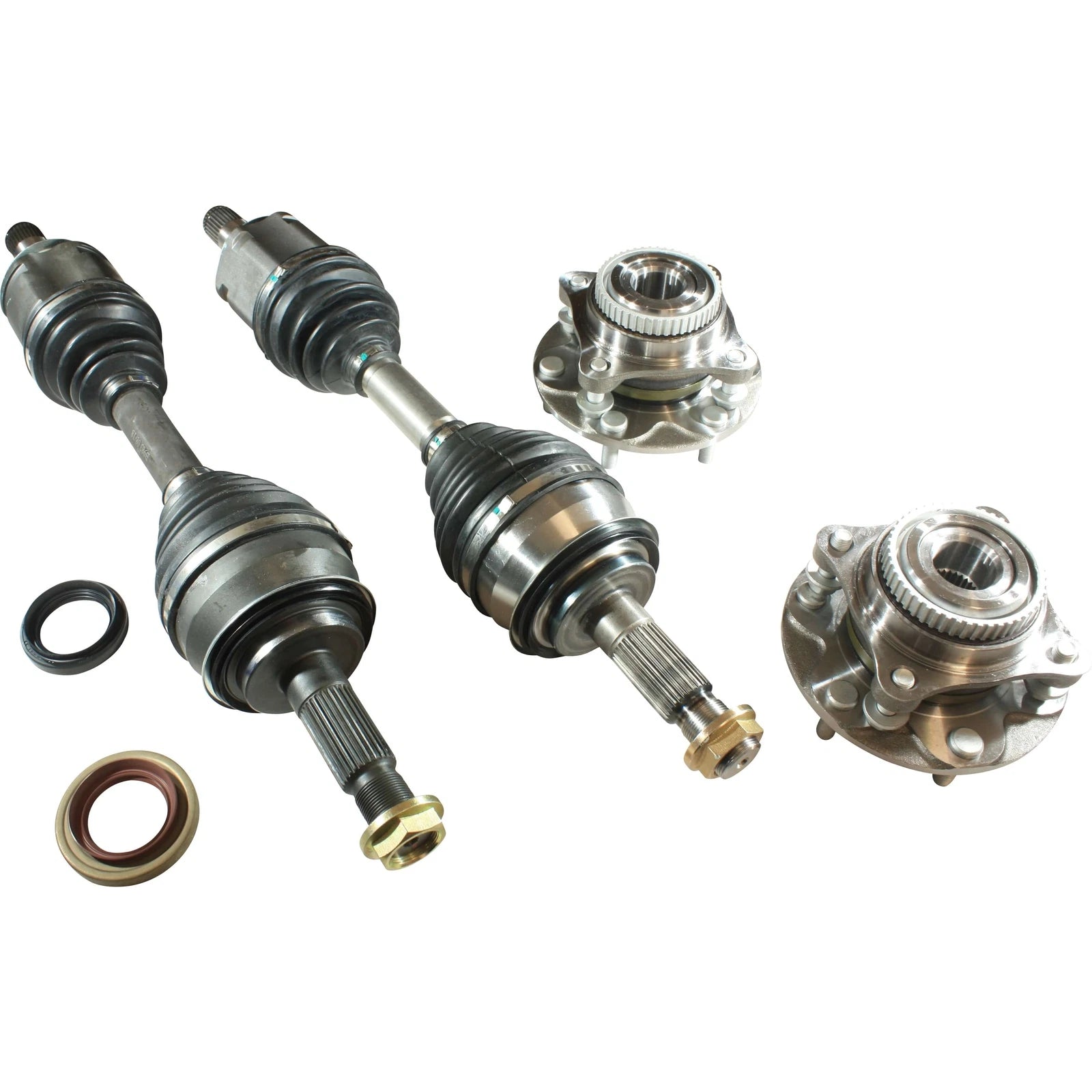

KIT CONTENTS

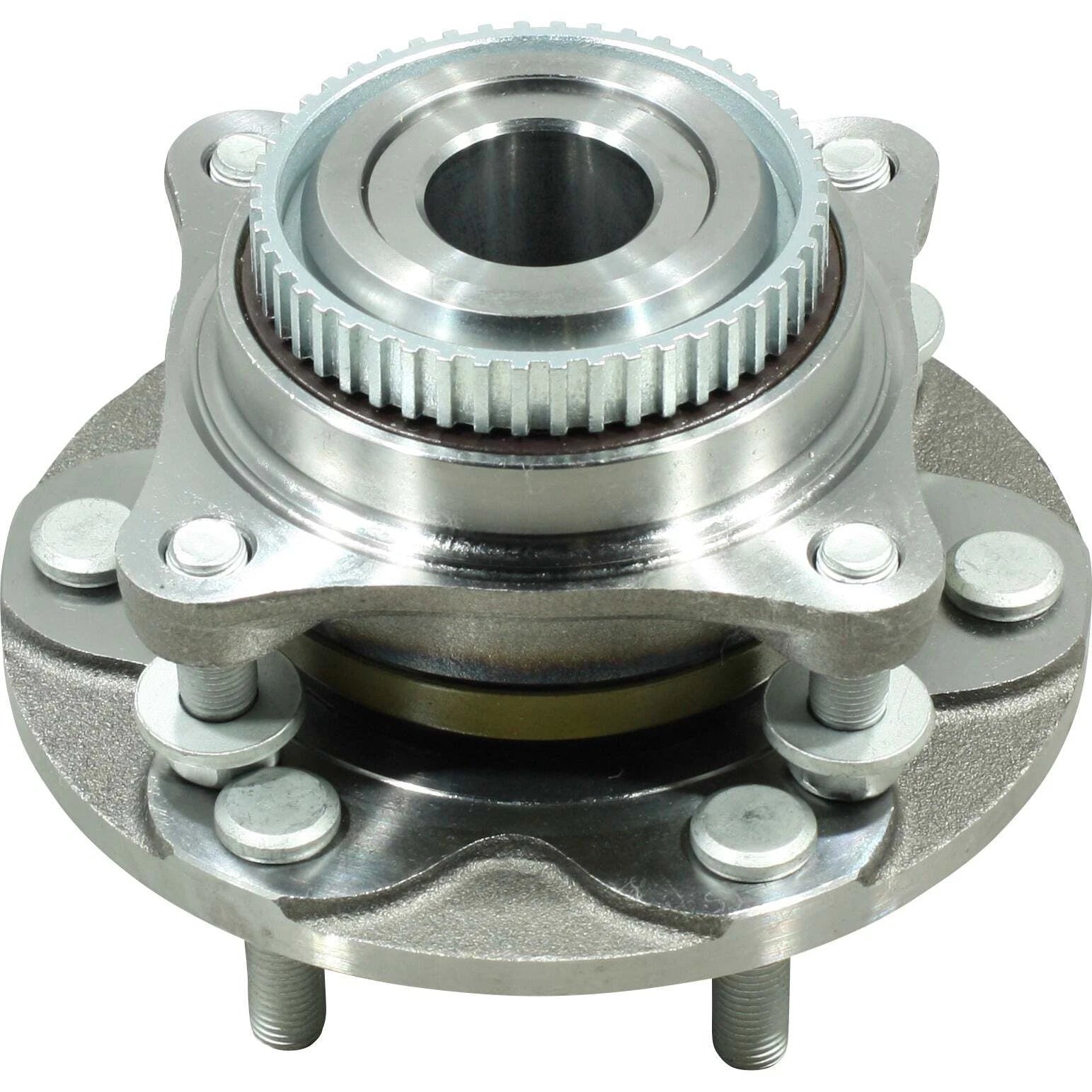

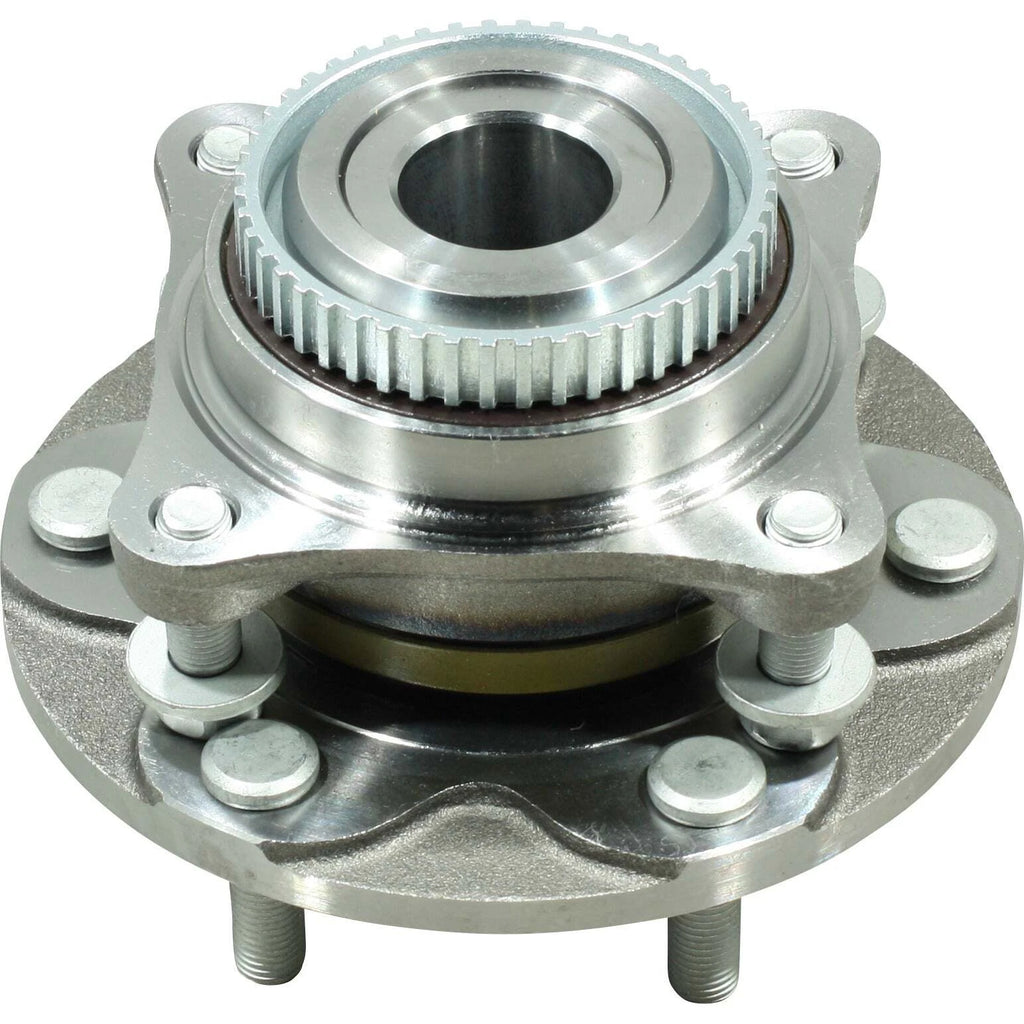

• 2 x Front wheel bearing hub assemblies (ready to bolt on)

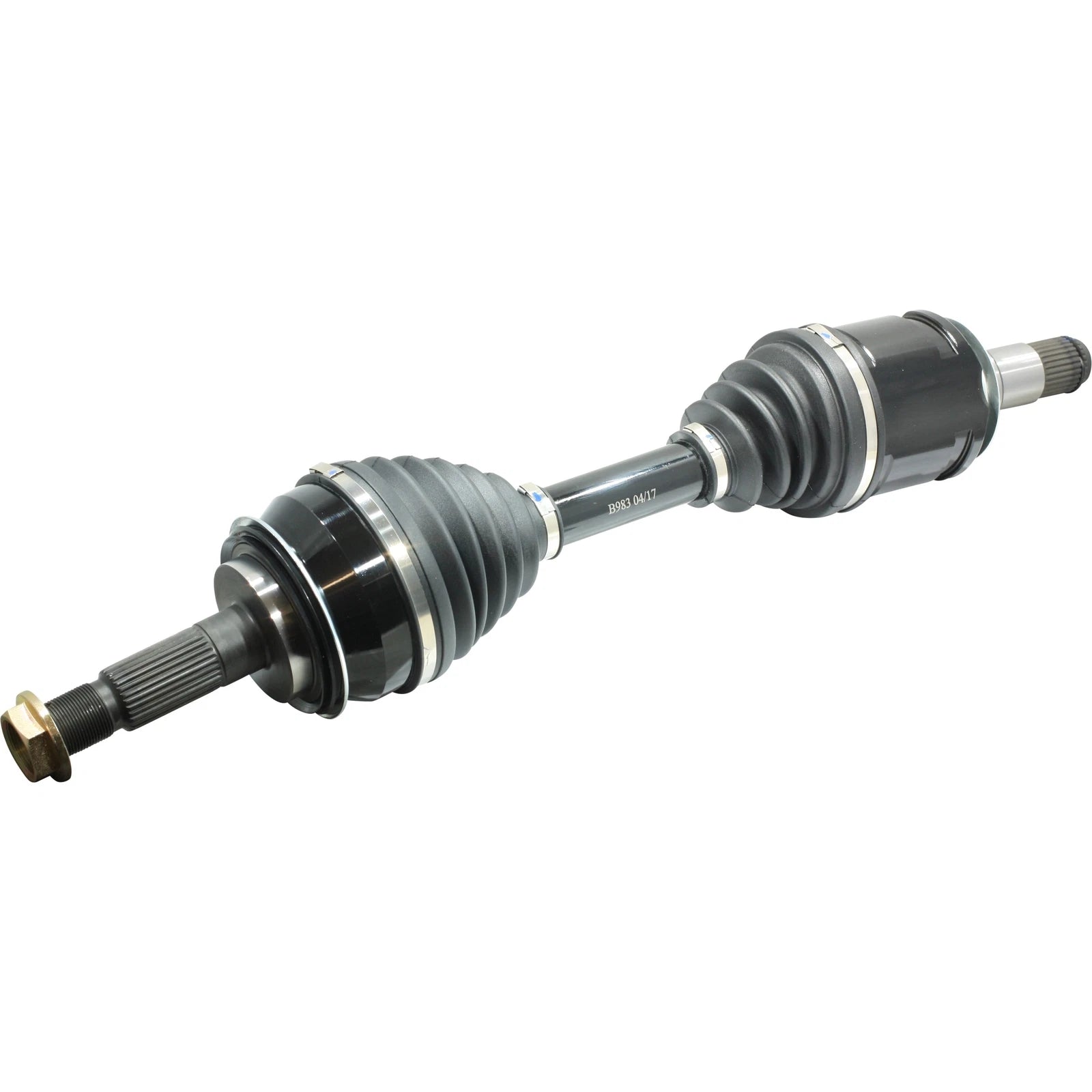

• 2 x Front CV driveshafts
• 2 x Differential output seals

FEATURES & BENEFITS

• Manufactured to OEM specifications for fitment and performance
• Heat-treated chrome steel construction for strength and durability
• High-quality neoprene CV boots with stainless steel clamps for contamination resistance
• Molybdenum grease for smooth operation at varying angles, speeds and high RPM
• ABS compatible with integrated seal and tone ring (where specified)

SPECIFICATIONS

• Overall CV shaft length: 630 mm - 690 mm
• Wheel end spline: 30T
• Wheel end seal size: 72.5 mm
• Diff end spline: 30T
• Diff side seal size: 47 mm
• ABS: Yes – integrated seal and tone ring

WARRANTY

• CV driveshafts: 12 months / 20,000 km (whichever occurs first)
• CV boots: 3 months from date of purchase

Warranty is subject to correct installation and use under normal operating conditions.
