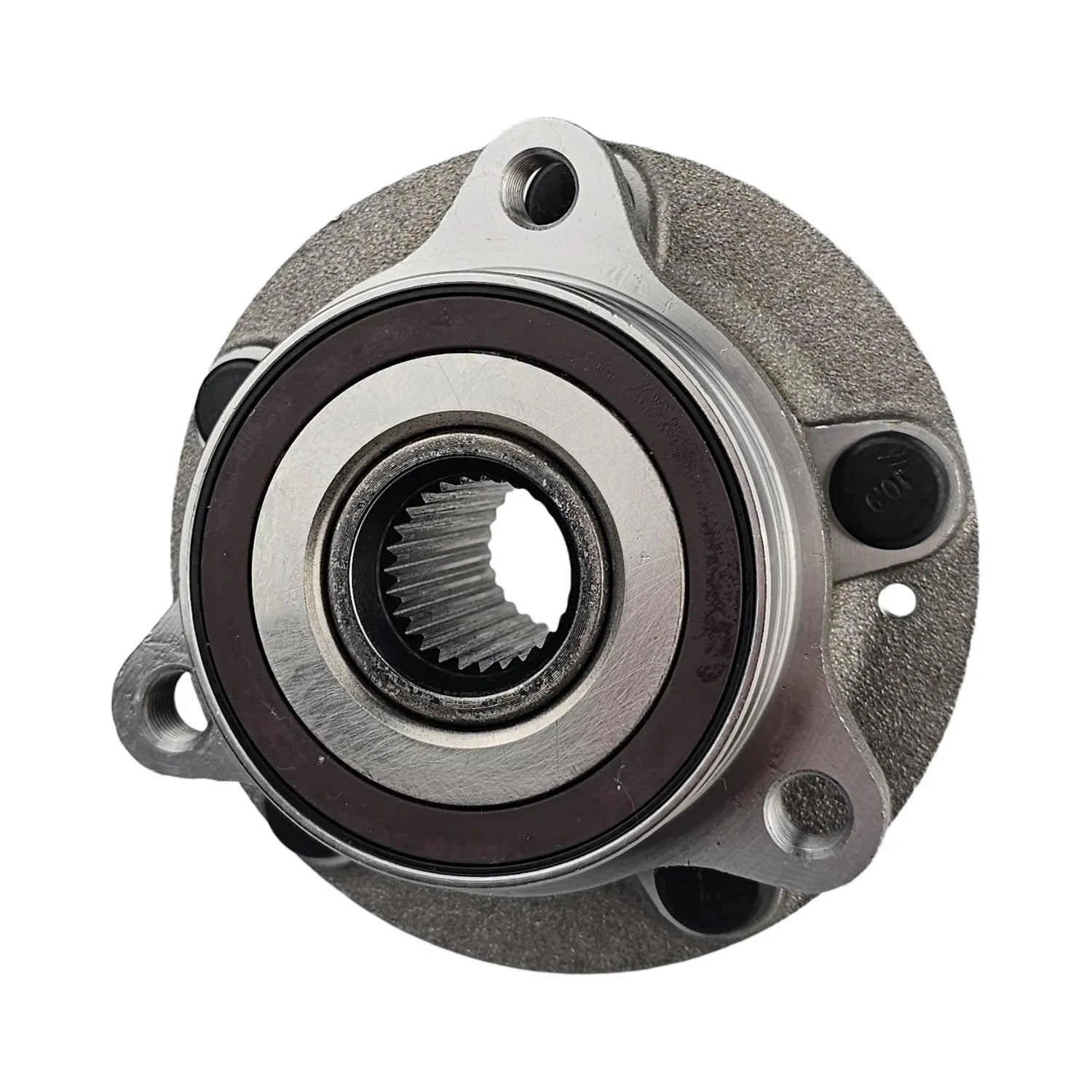

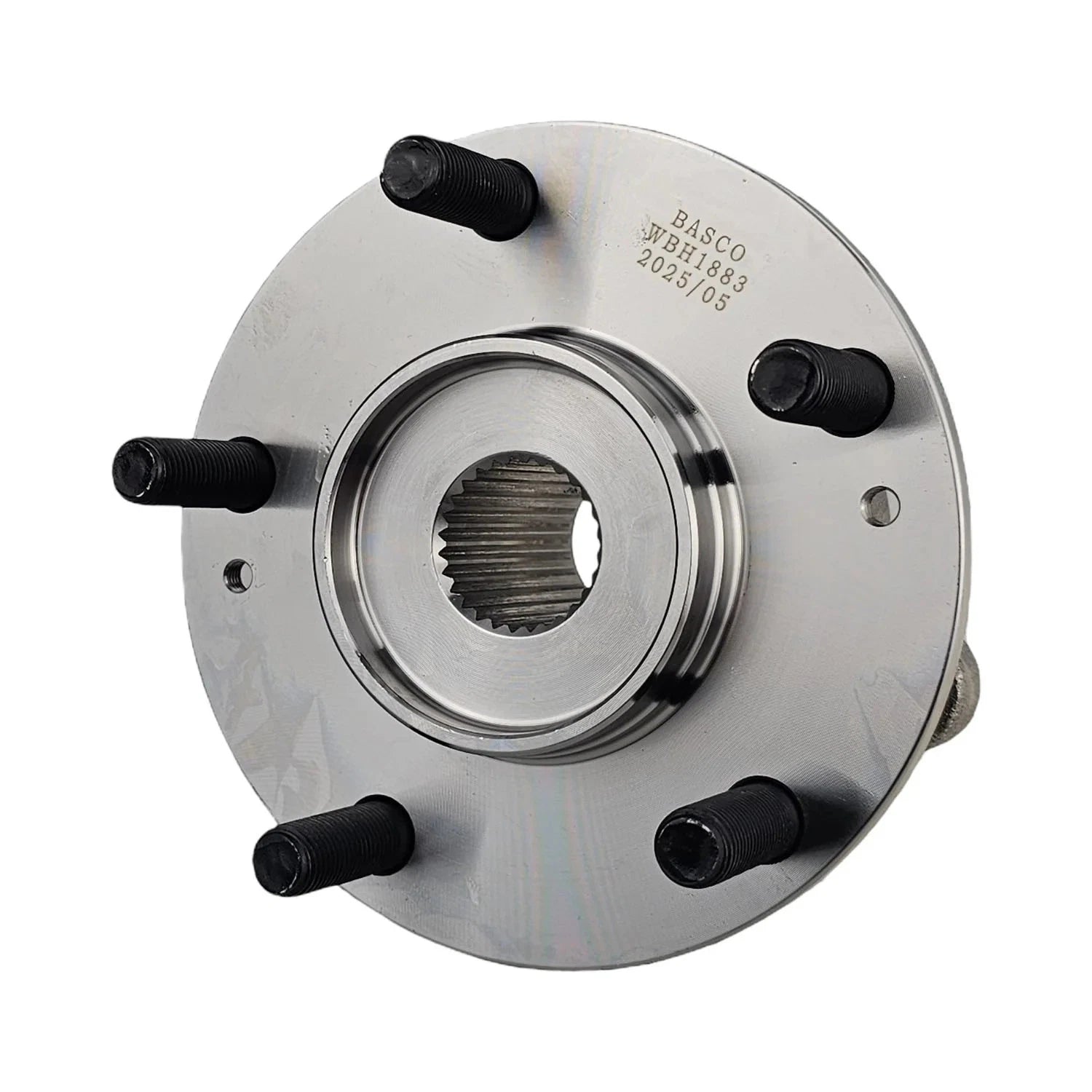

Front Wheel Bearing Hub Assembly for Hyundai Kona OS 2017-On 88mm

PRODUCT OVERVIEW

Premium front wheel bearing hub assembly designed for Hyundai Kona OS models using an 88mm hub pilot diameter. Features a 3-bolt flange design and integrated ABS sensor for reliable, quiet operation and long service life.

Note: For Hyundai Kona models using an 82mm hub pilot diameter, please refer to part number WBH1263.

KEY FEATURES

• 3-bolt hub flange with 88mm hub pilot diameter
• Integrated ABS sensor for precise wheel speed signal
• Manufactured from premium steel with heavy-duty seals
• Precision engineered to OEM specifications for smooth, quiet running
• High-grade rubber on ABS sensor wiring (where applicable) for durability

VEHICLE COMPATIBILITY

Suitable for selected Hyundai Kona OS vehicles using an 88mm hub pilot diameter, including:

• Hyundai Kona OS 1.6L G4FJ, G4FP Turbo I/C AWD DCT (09/2017 - 07/2023) – 88mm hub pilot diameter
• Hyundai Kona OS 2.0L G4NH, G4NS FWD Automatic CVT (09/2017 - 07/2023) – 88mm hub pilot diameter
• Hyundai Kona OS BEV EM16 Electric FWD Automatic (07/2018 - 01/2024) – 88mm hub pilot diameter

Always confirm hub pilot diameter and specifications against your existing component before purchase.

SPECIFICATIONS

• Spline count: 27T
• Hub pilot diameter: 88mm
• Integrated ABS sensor: Yes
• Wheel stud pattern (5 stud PCD): M12 x 1.5 @ 144.3mm
• 3-bolt hub flange PCD: M12 x 1.25 @ 115mm
• Flange outer diameter: 139mm
• Wheel pilot outer diameter: 67mm
• Brake pilot outer diameter: 69mm
• Flange offset: 38.5mm

WHAT'S INCLUDED

• 1 x complete front wheel bearing hub assembly

QUALITY & WARRANTY

This hub assembly is produced using precise machining practices to deliver smoother rolling performance and extended service life. All bearing hubs and components are supplied with a 12 month / 20,000km warranty, subject to correct installation and operating conditions.
