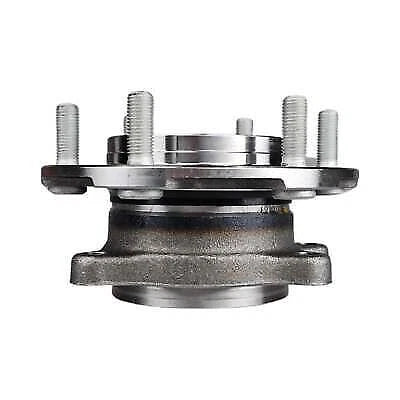

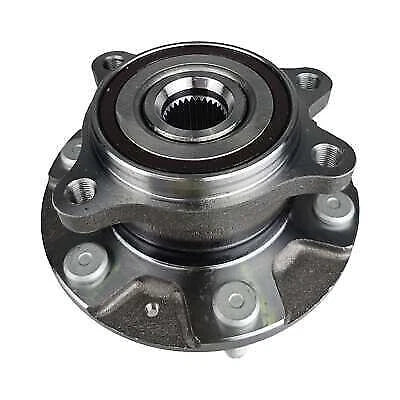

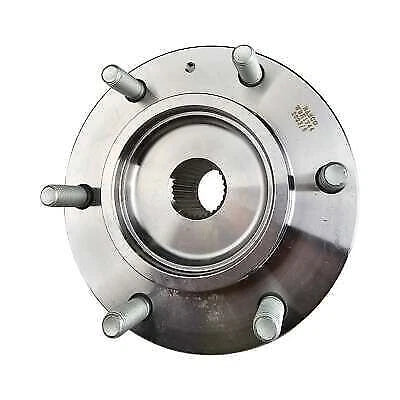

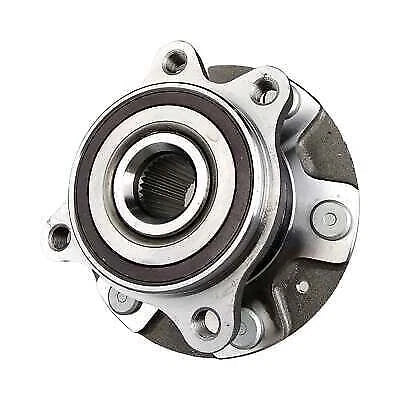

Front wheel bearing hub assembly for Isuzu D-Max and Mazda BT-50 4WD utes
Front Wheel Bearing Hub Assembly for Isuzu D-Max & Mazda BT-50 4WD
Front Wheel Bearing Hub Assembly for Isuzu D-Max & Mazda BT-50 4WD
Front Wheel Bearing Hub Assembly for Isuzu D-Max & Mazda BT-50 4WD
Click to zoom in
Load image into Gallery viewer, Front wheel bearing hub assembly for Isuzu D-Max and Mazda BT-50 4WD utes
Load image into Gallery viewer, Front Wheel Bearing Hub Assembly for Isuzu D-Max & Mazda BT-50 4WD
Load image into Gallery viewer, Front Wheel Bearing Hub Assembly for Isuzu D-Max & Mazda BT-50 4WD
Load image into Gallery viewer, Front Wheel Bearing Hub Assembly for Isuzu D-Max & Mazda BT-50 4WD

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Mounting, Balancing

  • Fast Delivery

    Get your order delivered at lightning speed

Front Wheel Bearing Hub Assembly for Isuzu D-Max & Mazda BT-50 4WD

2 8
195740877963
In stock
Engine Components
A$338.16
PRODUCT OVERVIEW Premium front wheel bearing hub assembly engineered for select Isuzu D-Max and Mazda BT-50...
A$338.16
customers are viewing this product
Front Wheel Bearing Hub Assembly for Isuzu D-Max & Mazda BT-50 4WD
Description

PRODUCT OVERVIEW

Premium front wheel bearing hub assembly engineered for select Isuzu D-Max and Mazda BT-50 4WD applications. Manufactured from high-grade steel with heavy-duty seals and OEM-grade sensors for quiet, smooth operation and long service life.

VEHICLE COMPATIBILITY

Designed to suit the following 4WD models (verify all details against your vehicle before purchase):

  • Mazda BT-50 XS B19C, B19D, B19E TFS87 11/2021–2024, 4 Door Wellside, Diesel 1.9L RZ4E-TC, 4WD
  • Mazda BT-50 GT, XT, XTR, SP B30B, B30C TFS40 08/2020–2024, 4 Door Wellside, Diesel 3.0L 4JJ3-TCX, 4WD
  • Mazda BT-50 XT B30B, B30C TFS40 08/2020–2024, 4 Door Cab Chassis, Diesel 3.0L 4JJ3-TCX, 4WD
  • Mazda BT-50 XT Freestyle B30B, B30C TFS40 08/2020–2024, 4 Door Cab Chassis, Diesel 3.0L 4JJ3-TCX, 4WD
  • Mazda BT-50 XT B30B, B30C TFS40 08/2020–2024, 2 Door Cab Chassis, Diesel 3.0L 4JJ3-TCX, 4WD

Isuzu D-Max applications:

  • Isuzu D-Max TFS TFS40 07/2020–2024, 4 Door Utility, Diesel 3.0L 4JJ3-TCX, 4WD
  • Isuzu D-Max LS-U, SX Spacecab TFS TFS40 07/2020–2024, 4 Door Utility, Diesel 3.0L 4JJ3-TCX, 4WD
  • Isuzu D-Max SX TFS TFS40 07/2020–2024, 2 Door Utility, Diesel 3.0L 4JJ3-TCX, 4WD
  • Isuzu D-Max TFS TFS87 10/2022–2024, 4 Door Utility, Diesel 1.9L RZ4E-TC, 4WD

KEY FEATURES

  • Premium steel construction for strength and durability
  • Heavy-duty seals for improved contamination protection
  • OEM-grade integrated ABS sensor (where applicable)
  • Precision machining for smooth, quiet operation
  • Designed to meet or exceed OEM specifications

SPECIFICATIONS

  • Spline quantity: 29 teeth
  • Wheel flange outer diameter: 166 mm
  • Stud pattern: 6 stud PCD M12 x 1.5 @ 139.7 mm
  • Wheel pilot diameter: 100 mm
  • Brake pilot diameter: 101 mm
  • Flange offset: 56.5 mm
  • Hub pilot diameter: 95 mm
  • 4 bolt hub: M12 x 1.5
  • 4 bolt hub, centre-to-centre D1: 50.5 mm
  • 4 bolt hub, centre-to-centre D2: 86.5 mm
  • Integrated ABS ring: Yes, 96 teeth

WHAT'S INCLUDED

  • 1 x Front wheel bearing hub assembly

WARRANTY & NOTES

  • Warranty: 12 months or 20,000 km (whichever occurs first)
  • Professional installation is recommended
  • Always confirm spline count, stud pattern and dimensions before ordering

Vehicle Compatibility

Make Model Year Submodel Variant Engine Notes
Isuzu D-Max 2023 TFR,TFS Platform/Chassis 3.0 DDI 4x4 AWD Diesel 3.0L 4cyl 140kW 4JJ3-TCX 2999cc 140kW (Diesel)
Isuzu D-Max 2023 TFR,TFS Ute 3.0 DDI 4x4 AWD Diesel 3.0L 4cyl 140kW 4JJ3-TCX 2999cc 140kW (Diesel)
Mazda BT-50 2023 TF Platform/Chassis 1.9 TDi 4x4 (TFS87J) AWD Diesel 1.9L 4cyl 110kW RZ4E-TC 1898cc 110kW (Diesel)
Mazda BT-50 2023 TF Ute 1.9 TDi 4x4 (TFS87J) AWD Diesel 1.9L 4cyl 110kW RZ4E-TC 1898cc 110kW (Diesel)
Mazda BT-50 2023 TF Ute 3.0 4x4 (TFS40JPR, TFS40JDR) AWD Diesel 3.0L 4cyl 140kW 4JJ3-TCX 2999cc 140kW (Diesel)
Isuzu D-Max 2022 TFR,TFS Platform/Chassis 1.9 DDI RWD Diesel 1.9L 4cyl 110kW RZ4E-TC 1898cc 110kW (Diesel)
Isuzu D-Max 2022 TFR,TFS Platform/Chassis 3.0 DDI 4x4 AWD Diesel 3.0L 4cyl 140kW 4JJ3-TCX 2999cc 140kW (Diesel)
Isuzu D-Max 2022 TFR,TFS Ute 3.0 DDI 4x4 AWD Diesel 3.0L 4cyl 140kW 4JJ3-TCX 2999cc 140kW (Diesel)
Mazda BT-50 2022 TF Platform/Chassis 1.9 TDi 4x4 (TFS87J) AWD Diesel 1.9L 4cyl 110kW RZ4E-TC 1898cc 110kW (Diesel)
Mazda BT-50 2022 TF Ute 1.9 TDi 4x4 (TFS87J) AWD Diesel 1.9L 4cyl 110kW RZ4E-TC 1898cc 110kW (Diesel)
Mazda BT-50 2022 TF Ute 3.0 4x4 (TFS40JPR, TFS40JDR) AWD Diesel 3.0L 4cyl 140kW 4JJ3-TCX 2999cc 140kW (Diesel)
Isuzu D-Max 2021 TFR,TFS Platform/Chassis 1.9 DDI RWD Diesel 1.9L 4cyl 110kW RZ4E-TC 1898cc 110kW (Diesel)
Isuzu D-Max 2021 TFR,TFS Platform/Chassis 3.0 DDI 4x4 AWD Diesel 3.0L 4cyl 140kW 4JJ3-TCX 2999cc 140kW (Diesel)
Isuzu D-Max 2021 TFR,TFS Ute 3.0 DDI 4x4 AWD Diesel 3.0L 4cyl 140kW 4JJ3-TCX 2999cc 140kW (Diesel)
Mazda BT-50 2021 TF Platform/Chassis 1.9 TDi 4x4 (TFS87J) AWD Diesel 1.9L 4cyl 110kW RZ4E-TC 1898cc 110kW (Diesel)
Mazda BT-50 2021 TF Ute 1.9 TDi 4x4 (TFS87J) AWD Diesel 1.9L 4cyl 110kW RZ4E-TC 1898cc 110kW (Diesel)
Mazda BT-50 2021 TF Ute 3.0 4x4 (TFS40JPR, TFS40JDR) AWD Diesel 3.0L 4cyl 140kW 4JJ3-TCX 2999cc 140kW (Diesel)
Isuzu D-Max 2020 TFR,TFS Platform/Chassis 3.0 DDI 4x4 AWD Diesel 3.0L 4cyl 140kW 4JJ3-TCX 2999cc 140kW (Diesel)
Isuzu D-Max 2020 TFR,TFS Ute 3.0 DDI 4x4 AWD Diesel 3.0L 4cyl 140kW 4JJ3-TCX 2999cc 140kW (Diesel)
Mazda BT-50 2020 TF Ute 3.0 4x4 (TFS40JPR, TFS40JDR) AWD Diesel 3.0L 4cyl 140kW 4JJ3-TCX 2999cc 140kW (Diesel)
