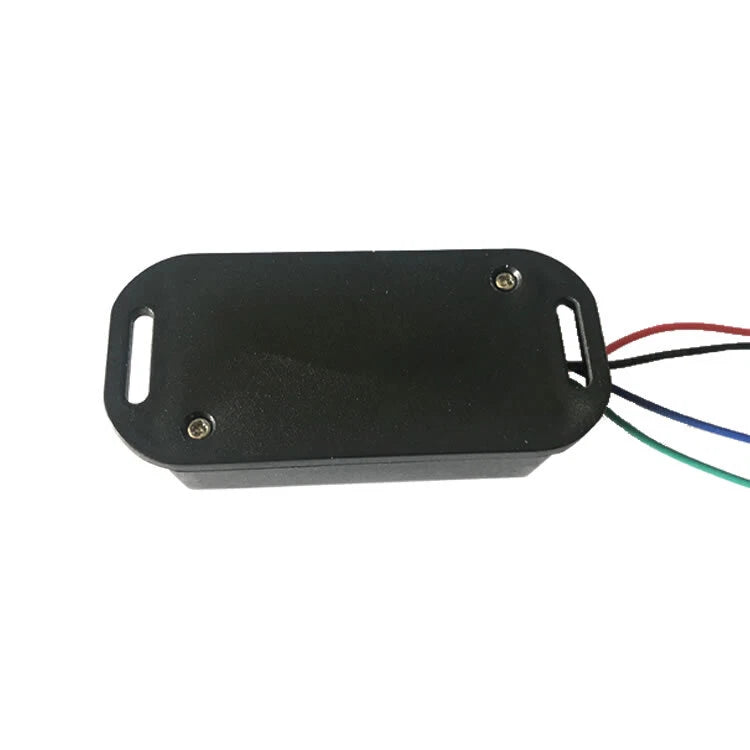

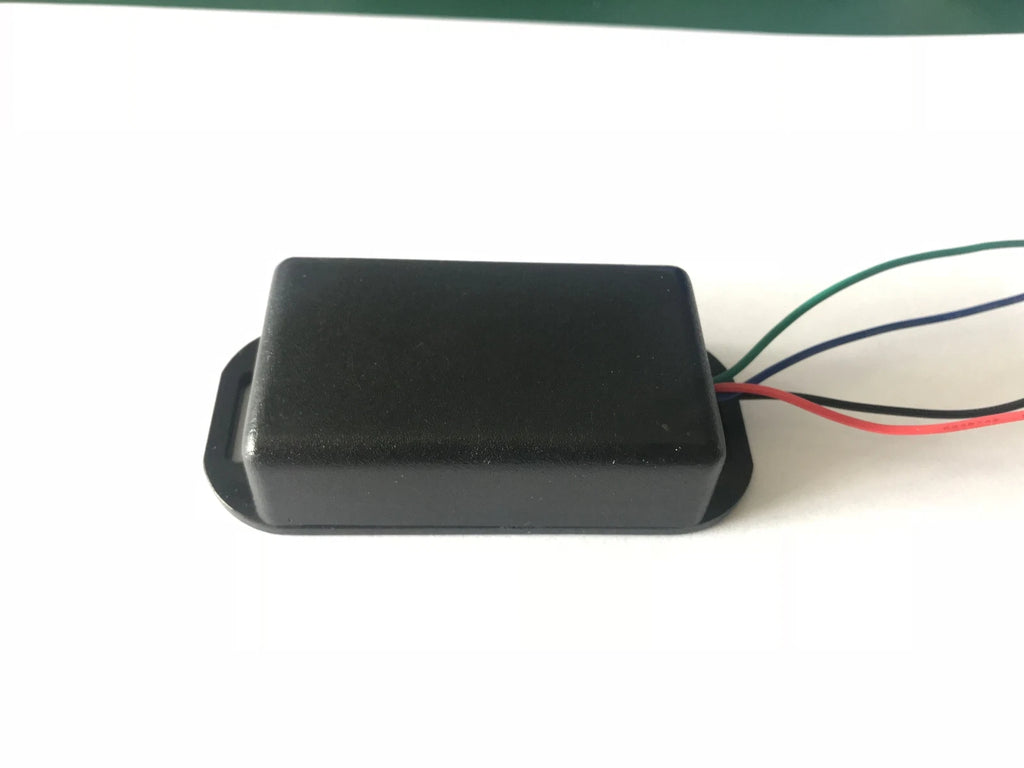

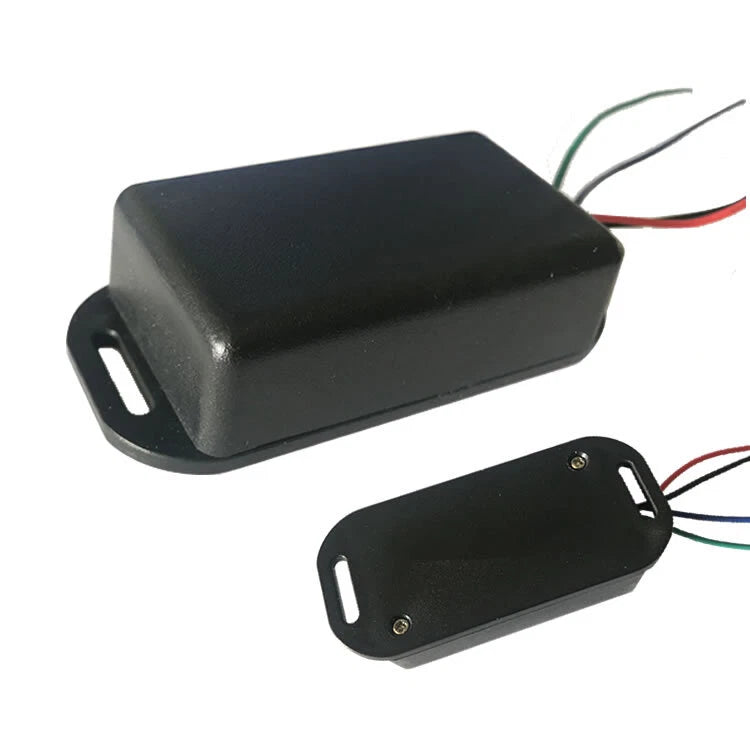

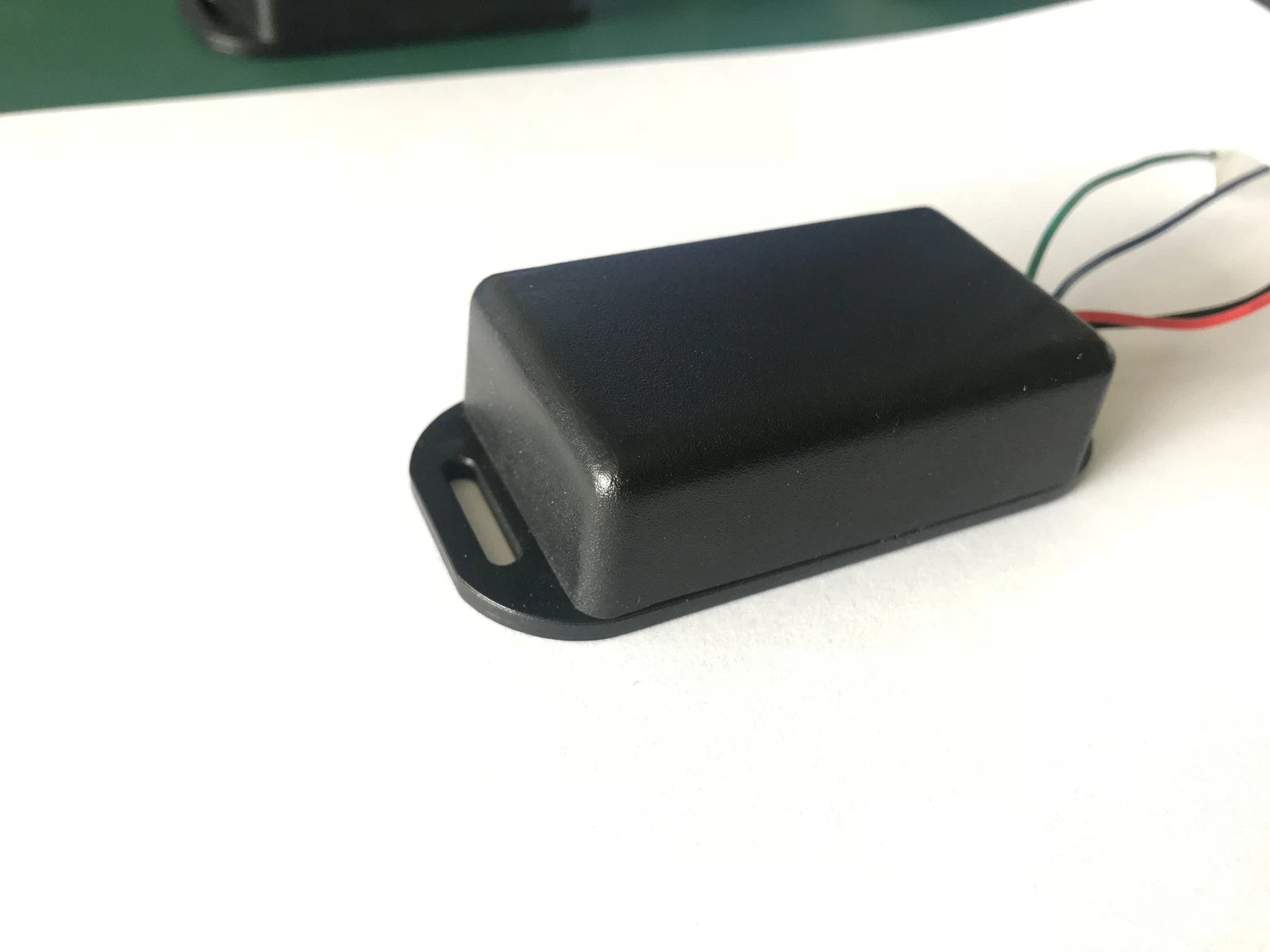

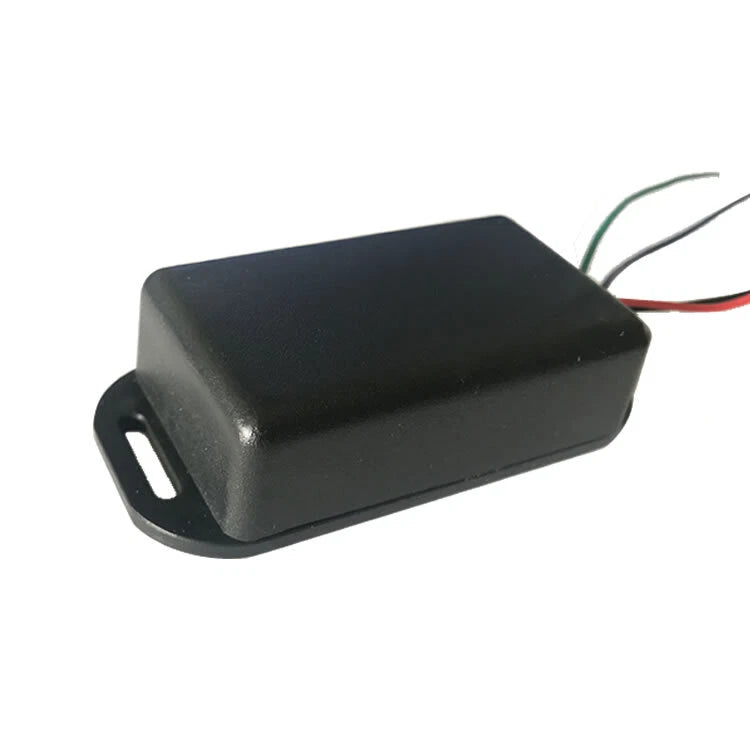

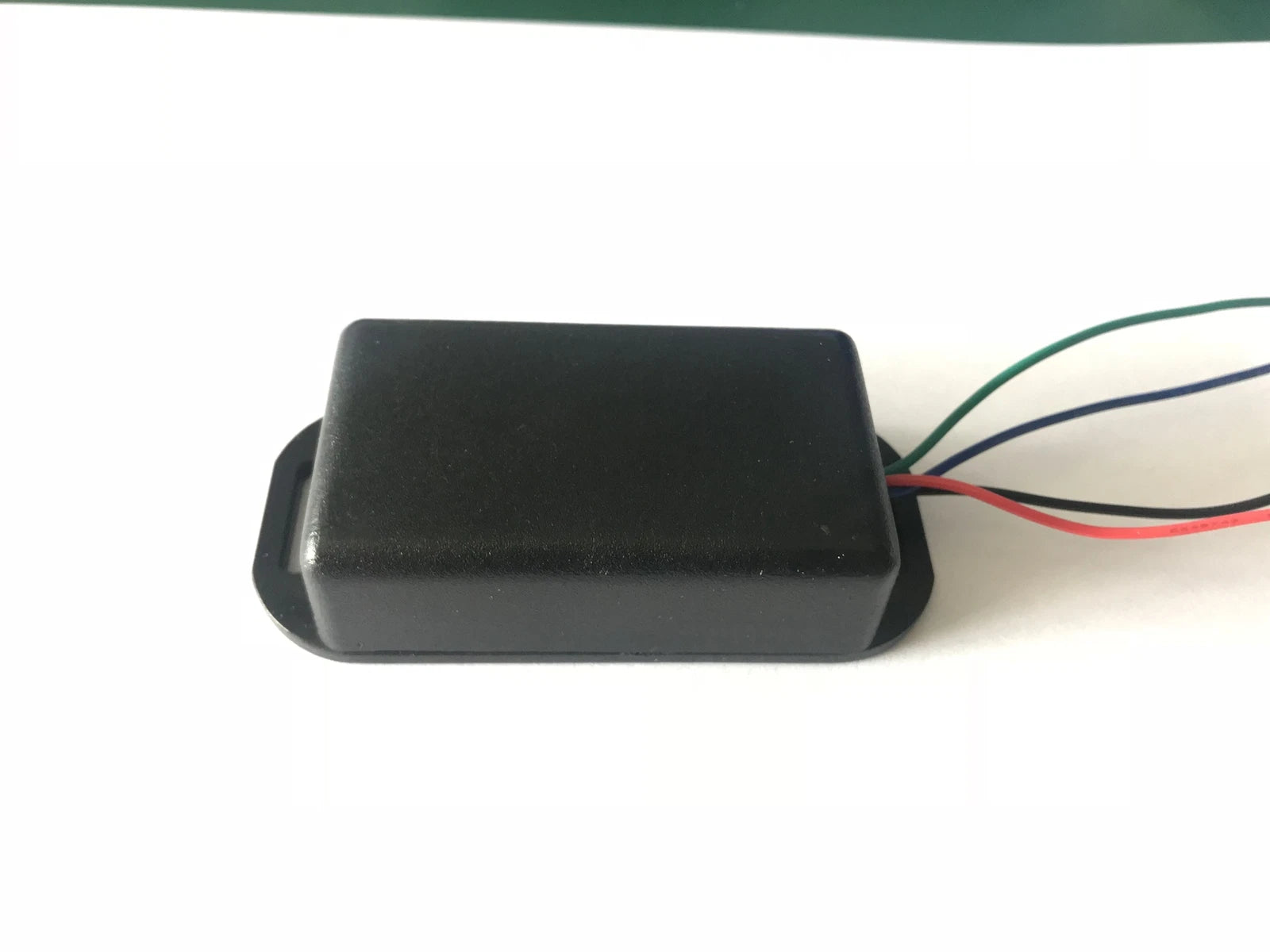

Fuel Gauge Interface Module Ohm Range Converter Connect any Sender To Fuel Gauge

1. Acts as Interface Between Fuel Senders & Gauges

2. Reads any fuel sender

3. Works with any fuel gauge

4. Accurately Corrects OHM Mismatch & Erratic Movement from Fuel Slosh

5. Custom Calibration for empty, half level and full

Fuel Gauges are designed to work with a specific ohm range.

Different automobile and gauge manufacturers use different ohm ranges to correctly operate their gauges. This can cause problems for a person who is updating their vehicle with new gauges or a new gas tank and fuel sender.

This module will allow you to use your stock sender with any fuel gauge and vice versa.

Instructions：

1/Mount module in a clean dry cool position.

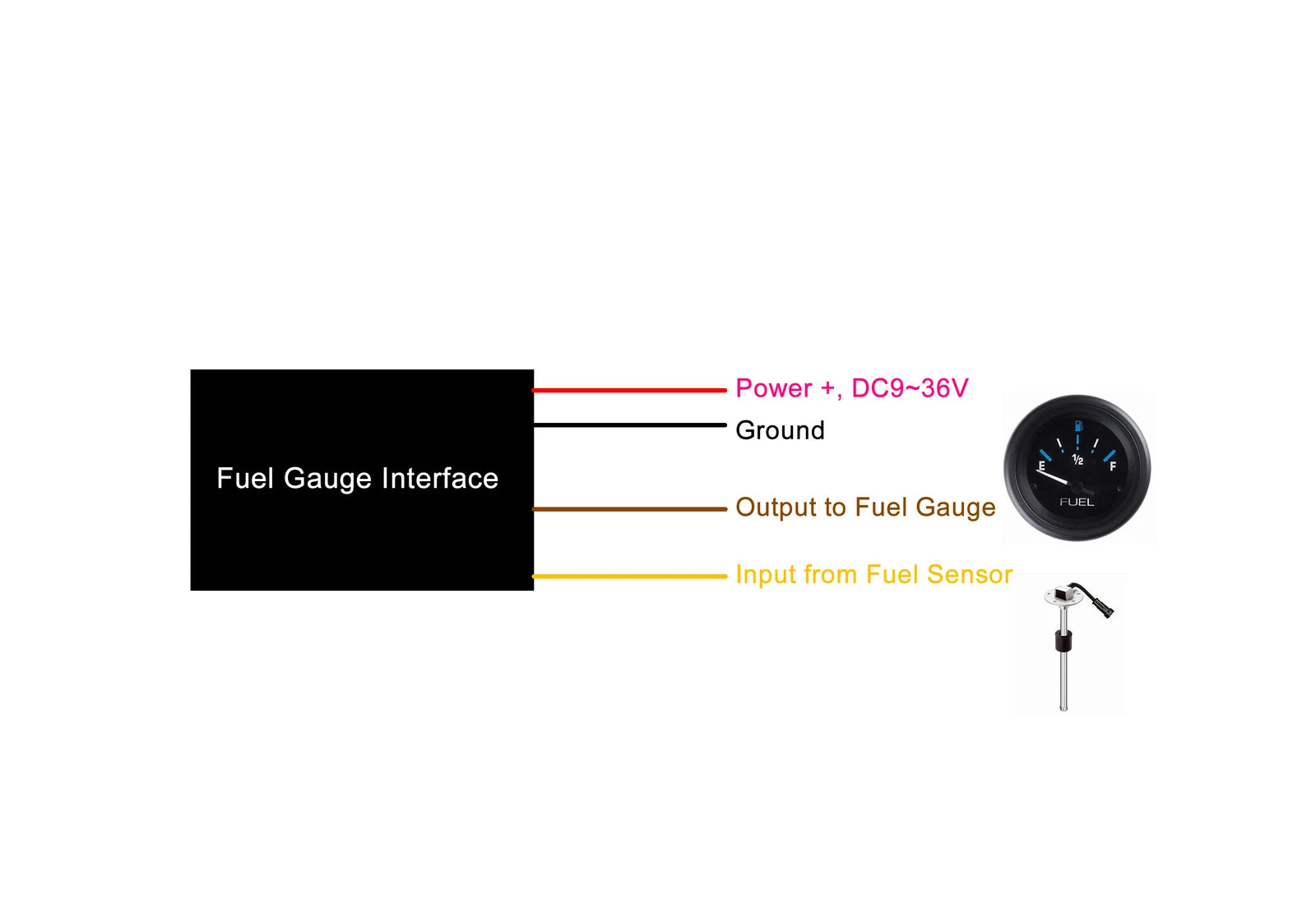

2/Connect wires as guide photo above

3/Using store mode,program and store Full,Half,Empty and “Power on” positions.

4/Using power on mode,program how you want the gauge to operate when car is started.

5/Operated in run mode and check.

IMPORTANT NOTICE

When adjusting the screw, move gauge from Full to Empty to avoid hysteresis error.

Some gauges are very slow to move. Please allow time to stabilize.

The tank sender must have the same Ground as FM101 , otherwise erratic readings will result.

Store mode

1/Power off .Wait 5 seconds. Press “F" switch and power on then release “F" switch.

2/Red LED only will turn on

3/Set fuel resistor to Full position. Adjust gauge to Full using the calibration screw onPress "F"switch then release.

4/Set fuel resistor to 1/2 way.Adjust gauge to 1/2 way using the calibration screw.Press “H" switch then release.

5/Set fuel resistor to Emptv.Adiust the gauge to Empty usina the calibration screw.Press “E”switch then release.

6/Adjust the calibration screw to where vou want the gatne to o to when the car is started.(Usually this will be the position of the pointer when the car is off)

Press“"E”" and"F" simultaneously then release.

Power on mode：

1/Power off. Wait 5 seconds.

2/Choose where you want the gauge to start from when the car is started(Usually the gauge "off position" )

Press "E" switch and power on,release “E” switch.

lf you want the gauge to start at the preset position(set in store mode step /6).(suits gauges with no damping)Press “H" switch and power on,Release“H" switch.

3/Green LED will turn on.

Run mode

1/Power off, Wait 5 seconds, then power on.

2/Green LED will turn on.

Package Included:

1 x Fuel Gauge Interface
