Front & Rear Brake Rotors and Pads Kit for Mitsubishi Pajero NS SWB 2007-2009

PRODUCT OVERVIEW

Complete front and rear brake package including disc rotors and brake pads, engineered as an OE-style replacement set for selected Mitsubishi Pajero NS SWB applications (2007–2009). Designed to improve braking performance, pedal feel and durability.

KIT CONTENTS

• 2 x Front vented disc rotors
• 2 x Rear vented disc rotors
• 1 x Set of front brake pads (with wear sensor(s) if applicable)
• 1 x Set of rear brake pads (with wear sensor(s) if applicable)

DISC ROTOR FEATURES

• Direct OE-style design for correct fitment
• Optimised thermal conductivity for stable braking performance
• Helps reduce brake judder and vibration
• Improved damping characteristics to minimise brake noise
• High resistance to distortion and thermal cracking
• Enhanced braking safety and confidence
• Maximised rotor service life
• Effective braking with reduced pedal effort
• Lower operating temperatures to reduce stress on brake components
• Reduced wear for longer-lasting braking system components

BRAKE PAD FEATURES

• European OE-quality friction material
• High durability compared with many aftermarket brands
• Consistent and firm pedal feel
• High-temperature compound for demanding driving conditions
• Optimised formulation to shorten braking distance
• ECE R90 compliant for performance and safety

DISC ROTOR SPECIFICATIONS

Front / Rear dimensions (where two values are shown, the first refers to the front rotor and the second to the rear rotor):

• Diameter: 289 mm / 300 mm
• Height: 46 mm / 73 mm
• Maximum thickness: 25.8 mm / 22 mm
• Minimum thickness: 24.4 mm / 20 mm
• Centre hole: 94 mm / 94 mm
• Stud holes: 6 / 6
• Construction: vented front / vented rear (V / V)

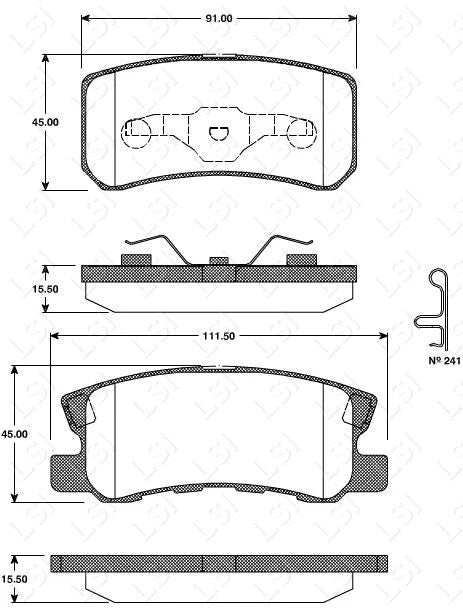

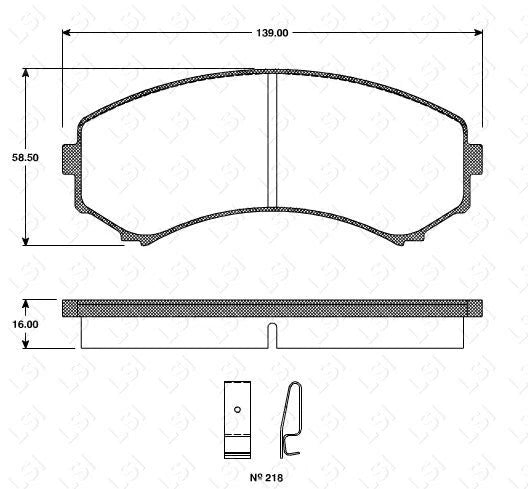

BRAKE PAD MEASUREMENTS

Pad backing plate dimensions (multiple values indicate different pads within the axle set):

• Length: 139 mm / 112 mm / 91 mm
• Height: 58 mm / 45 mm
• Thickness: 15 mm / 15 mm

FITMENT INFORMATION

This kit is specified for select Mitsubishi Pajero NS SWB models from 2007 to 2009. There may be variations within the same model year and body style. Always confirm rotor and pad dimensions, stud count, and vented configuration against your existing components before purchase and installation.

INSTALLATION & NOTES

• Professional installation and proper bedding-in of pads and rotors are recommended.
• Replace in axle pairs (both sides) to maintain balanced braking performance.
• Inspect brake fluid, hoses and hardware when installing this kit.
