Front & Rear Brake Pads and Disc Rotors Kit for VW Caddy 2K 2016-2021

PRODUCT OVERVIEW

Complete front and rear brake service kit for Volkswagen Caddy 2K (2016-2021), including European heavy duty brake pads and matching disc rotors for both axles.

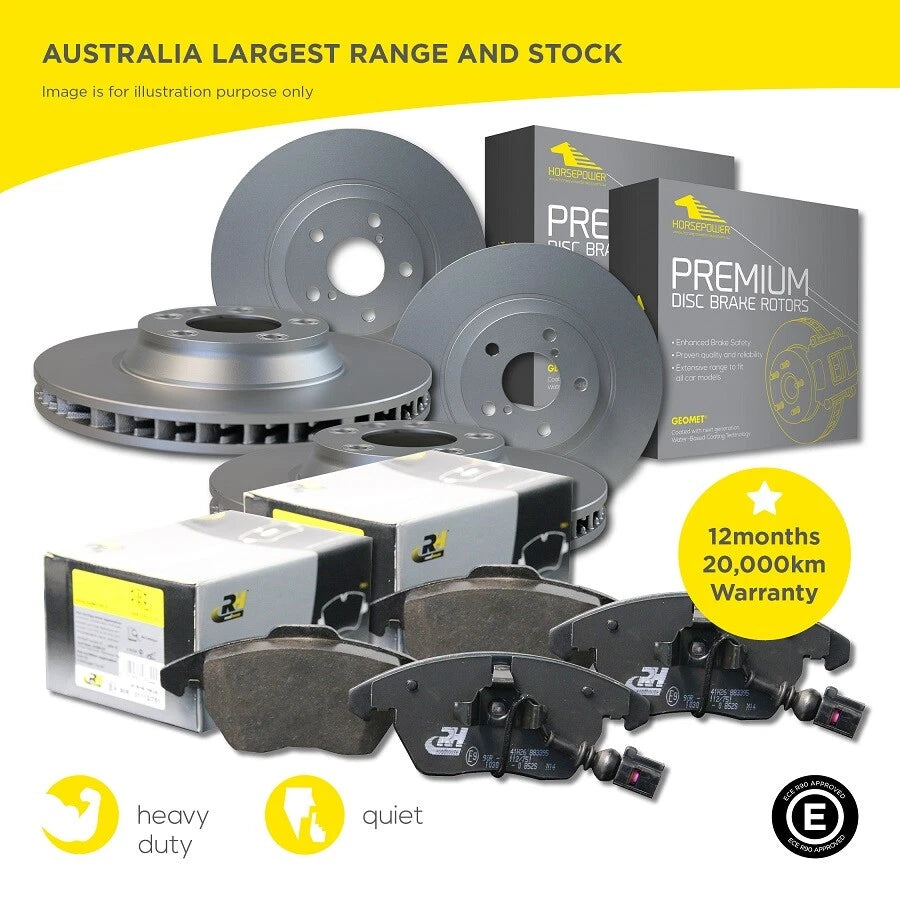

KIT CONTENTS

• 2 x Front disc rotors (vented)
• 2 x Rear disc rotors (solid)
• 1 x Set of front brake pads (with wear sensor where applicable)
• 1 x Set of rear brake pads (with wear sensor where applicable)

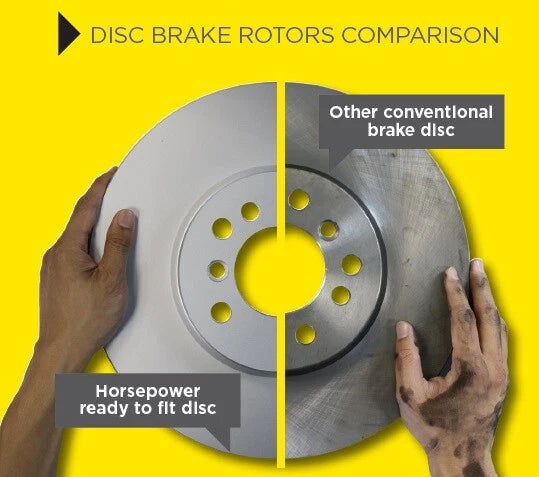

DISC ROTOR FEATURES

• Direct match to OE design and dimensions
• Optimal thermal conductivity for effective heat dissipation
• Helps reduce brake judder and vibration
• Improved damping to minimise braking noise
• High resistance to distortion and thermal cracking
• Enhanced braking safety and consistent performance
• Maximised rotor life with reduced wear
• Improved brake effectiveness with less pedal effort
• Lower operating temperatures to reduce stress on brake components

BRAKE PAD FEATURES

• European OE-quality friction material
• High durability compared to most aftermarket brands
• Consistent, firm pedal feel
• High temperature resistance for demanding use
• Reduced braking distance (tested improvement of approx. 7.4%)
• ECE R90 approved for performance and safety

DISC ROTOR DIMENSIONS

• Front / Rear Diameter: 288 mm / 272 mm
• Front / Rear Height: 50 mm / 48 mm
• Front / Rear Max. Thickness: 25 mm / 10 mm
• Front / Rear Min. Thickness: 23 mm / 8 mm
• Front / Rear Centre Hole: 65 mm / 65 mm
• Stud Holes: 5 / 5
• Front: Vented, Rear: Solid

BRAKE PAD DIMENSIONS

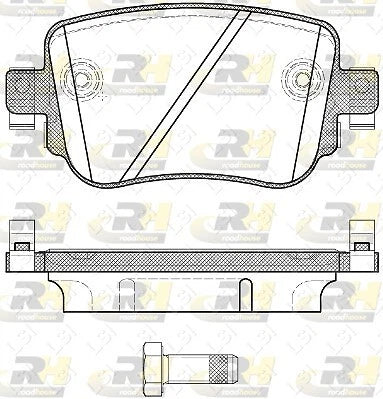

• Front / Rear Length: 162 mm / 104 mm
• Front / Rear Height: 65 mm / 52 mm
• Front / Rear Thickness: 19 mm / 17 mm
• Sensor Cable Length (front / rear where fitted): 200 mm / 170 mm

FITMENT INFORMATION

This kit is designed for Volkswagen Caddy 2K models (2016-2021) equipped with:

• 288 mm vented front disc rotors
• 272 mm rear disc rotors
• Front European heavy duty brake pads with sensor
• Rear European heavy duty brake pads

Important: Before purchasing, confirm that your vehicle has 288 mm front rotors and 272 mm rear rotors, as some models in this range use different brake sizes.

NOTES

• Professional installation is recommended.
• Always check rotor and pad dimensions against your existing components.
• Suitable as a full front and rear replacement set.
