Full Front & Rear Bendix Brake Pad and Disc Kit for Corolla ZRE152R ZRE182R 07-18

PRODUCT OVERVIEW

Full front and rear Bendix brake service kit for Corolla ZRE152R and ZRE182R models from 2007 to 2018. This complete kit includes matched disc rotors and brake pads designed to meet OE performance and reliability requirements.

SKU: SET_FS_ZRE0718BDX

Note: This kit suits ZRE152R and ZRE182R models from 2007 to 2018. It is not suitable for ZRE172.

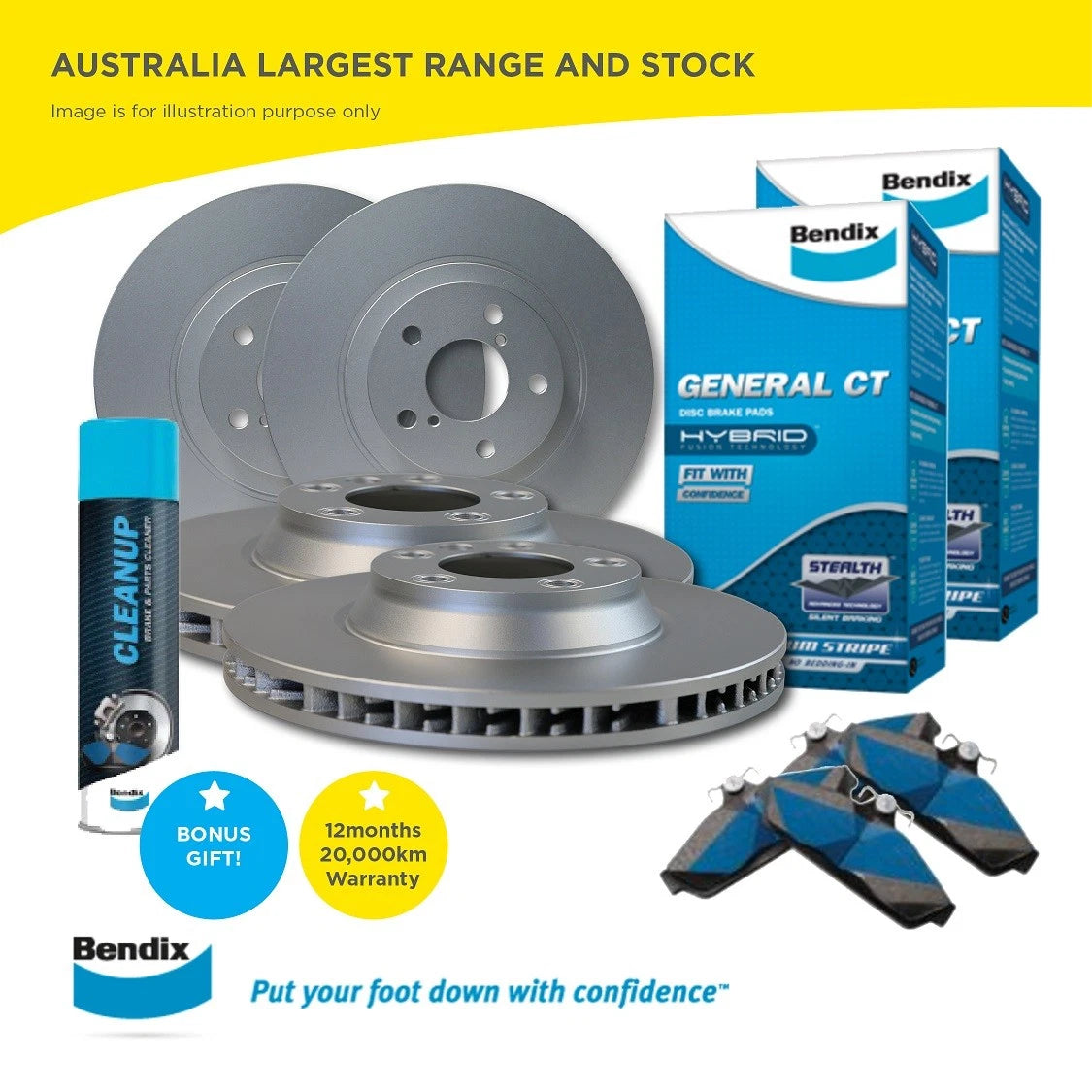

KIT CONTENTS

• 2 x Front disc rotors
• 2 x Rear disc rotors

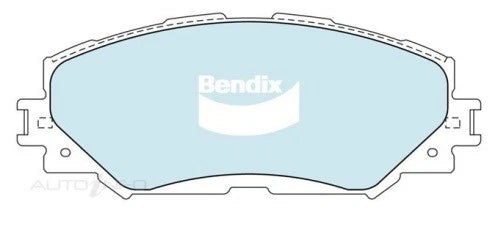

• 1 x Set of front brake pads (with wear sensor(s) if applicable)

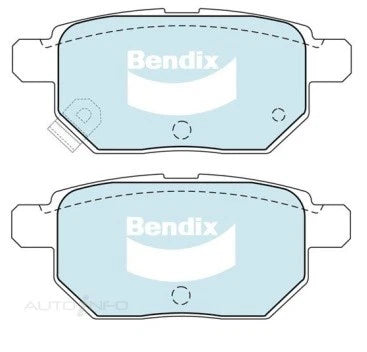

• 1 x Set of rear brake pads (with wear sensor(s) if applicable)

DISC ROTOR FEATURES

• Direct fit design matched to OE specifications
• Optimised thermal conductivity for stable braking
• Helps prevent brake judder and vibration
• Improved damping to reduce braking noise
• High resistance to distortion and thermal cracking
• Enhanced braking safety and performance
• Long rotor service life
• High brake effectiveness with reduced pedal effort
• Lower operating temperatures to reduce stress on components
• Reduced wear for extended component life

BRAKE PAD FEATURES

• Manufactured to JIS D-4411 industrial standard
• Formulation suitable for Australian, Japanese and Korean vehicles
• Consistent, confident pedal feel
• Low brake noise
• Low dust output to help keep wheels cleaner
• Suitable for everyday driving conditions

DISC ROTOR DIMENSIONS

Disc rotor dimensions (front / rear):

• Diameter: 275 mm / 259 mm
• Height: 46.2 mm / 30 mm
• Maximum thickness: 21 mm / 9 mm
• Minimum thickness: 19 mm / 7.5 mm
• Centre hole: 62 mm / 62 mm
• Number of studs: 5 / 5
• Vented / solid: Vented

BRAKE PAD MEASUREMENTS

Brake pad dimensions (front / rear):

• Length: 139 mm / 99 mm
• Height: 56 mm / 42 mm
• Thickness: 17 mm / 15 mm

FITMENT NOTES

• Suitable for Corolla ZRE152R and ZRE182R models from 2007 to 2018
• Not suitable for Corolla ZRE172
• For best results, confirm part dimensions and specifications against your existing components before purchase

ORDERING INFORMATION

• Parts compatibility lists are a guide only; always verify against the details above
• If unsure, have your mechanic measure existing rotors and pads to confirm suitability
