Front & Rear Heavy Duty Brake Discs & Pads Kit for VW Transporter T5

PRODUCT OVERVIEW

Complete front and rear heavy duty brake service kit for Volkswagen Transporter, Caravelle, Multivan and Kombi T5 SWB and LWB models equipped with 308 mm vented front disc rotors and 294 mm vented rear disc rotors.

This kit includes matched rotors and European heavy duty brake pads with wear sensors (where applicable), designed to improve braking performance, reduce noise and extend component life.

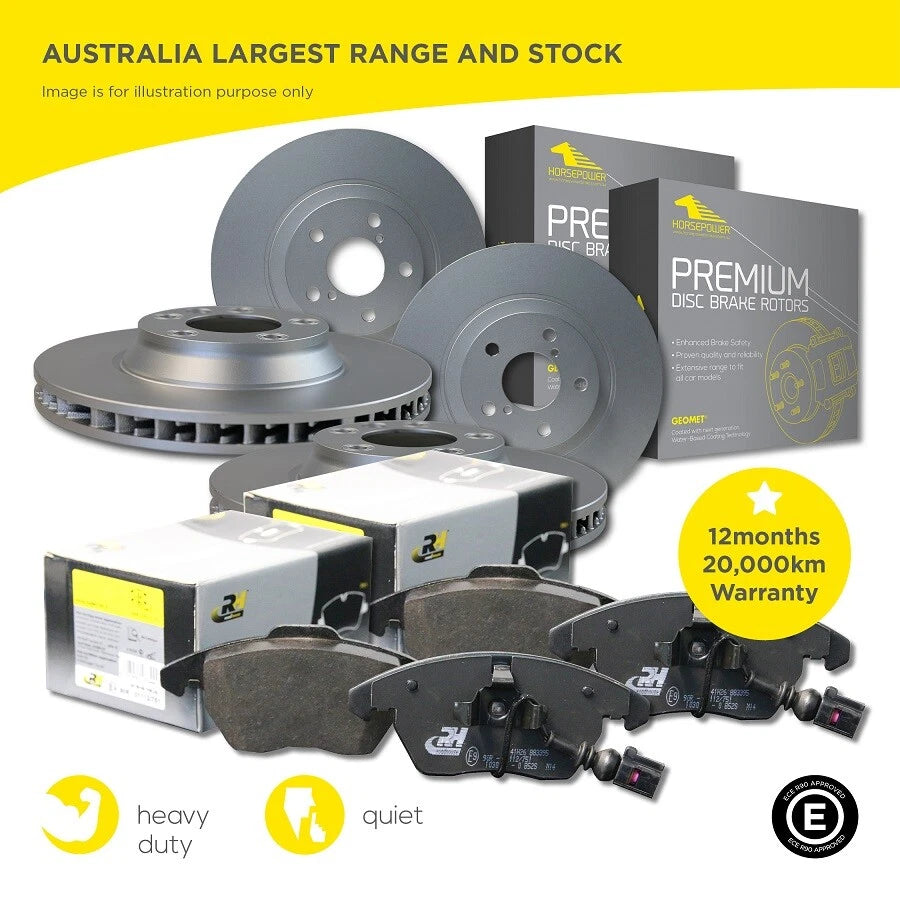

KIT CONTENTS

• 2 x Front vented disc rotors
• 2 x Rear vented disc rotors
• 1 x Set of front heavy duty brake pads with sensor (if applicable)
• 1 x Set of rear heavy duty brake pads with sensor (if applicable)

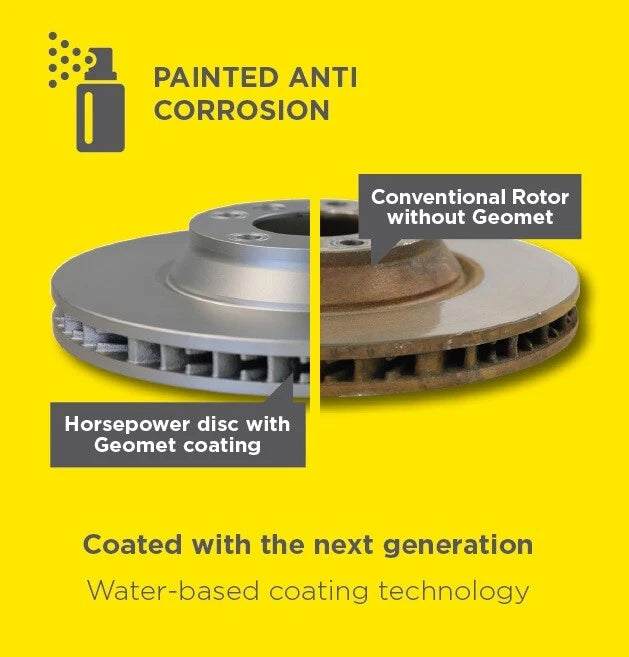

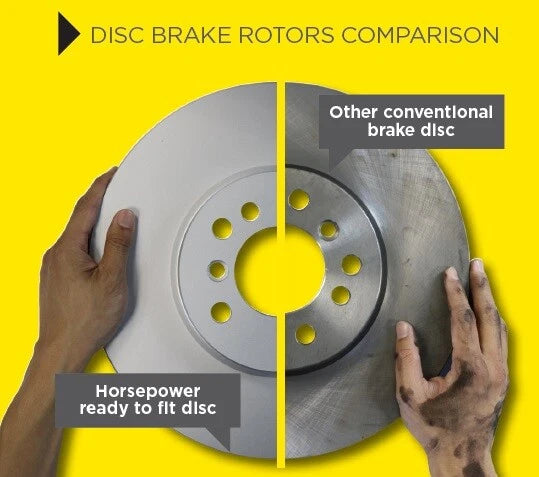

DISC ROTOR FEATURES

• Direct match to OE design for correct fitment
• Optimised thermal conductivity to manage heat
• Helps prevent brake judder and vibration
• Reduced braking noise due to improved damping characteristics
• High resistance to distortion and thermal cracking
• Enhanced braking safety and consistent performance
• Long rotor service life
• Effective braking with reduced pedal effort
• Lower operating temperatures to reduce stress on brake components
• Lower wear rates for extended component life

BRAKE PAD FEATURES

• European OE-quality friction material
• High durability compared with standard aftermarket pads
• Stable, confident pedal feel
• High temperature capability for demanding use
• Shortened braking distance compared with many standard pads
• Manufactured to ECE R90 standard

DISC ROTOR SPECIFICATIONS

Front / Rear rotor dimensions:

• Diameter: 308 mm (front) / 294 mm (rear)
• Height: 55.2 mm (front) / 44 mm (rear)
• Maximum thickness: 29 mm (front) / 22 mm (rear)
• Minimum thickness: 25.5 mm (front) / 19 mm (rear)
• Centre bore: 76 mm (front) / 76 mm (rear)
• Wheel studs: 5 (front) / 5 (rear)
• Type: Vented front / vented rear

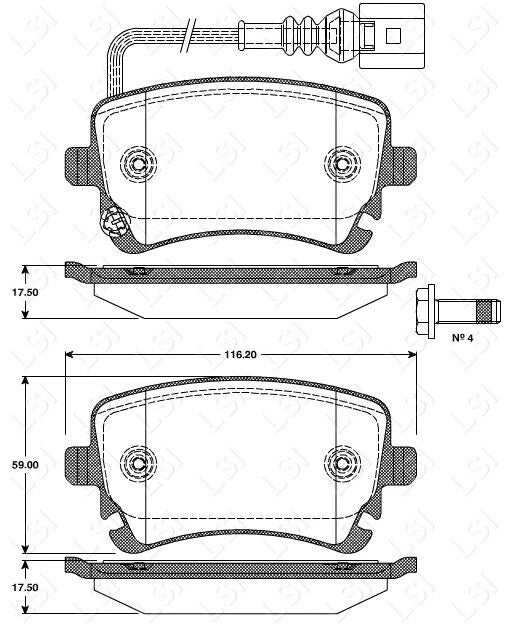

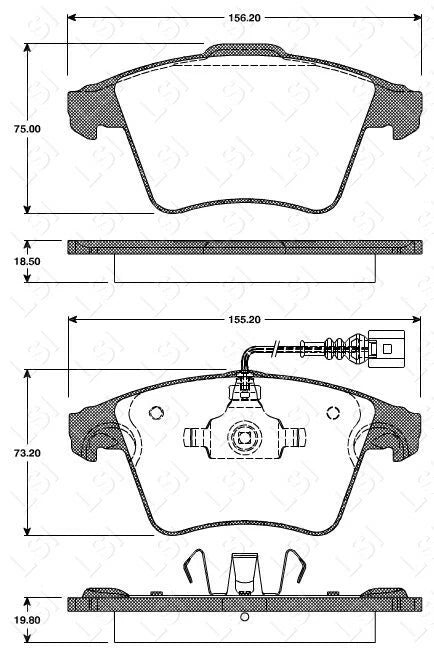

BRAKE PAD MEASUREMENTS

Front / Rear pad dimensions:

• Length: 156 mm (front) / 116 mm (rear)
• Height: 74 mm (front) / 59 mm (rear)
• Thickness: 19 mm (front) / 17 mm (rear)
• Sensor lead length: 200 mm (front) / 170 mm (rear)

FITMENT & COMPATIBILITY

• Suitable for Volkswagen Transporter, Caravelle, Multivan and Kombi T5 SWB and LWB models that use:
• 308 mm vented front disc rotors, and
• 294 mm vented rear disc rotors

Important: Before purchase, confirm your vehicle is equipped with 308 mm front and 294 mm rear vented rotors. Some T5 variants use different rotor and pad sizes.

NOTES

• Professional installation is recommended.
• Check and follow all manufacturer torque settings and bedding-in procedures.
• Compare all parts with existing components before final installation.
