Heavy Duty Front & Rear Brake Kit for Mercedes Vito W639 2007–2015

COMPLETE KIT CONTENTS

• 2 x front disc rotors
• 2 x rear disc rotors
• 1 x set of front brake pads (with wear sensor(s) if applicable)
• 1 x set of rear brake pads (with wear sensor(s) if applicable)

DISC ROTOR FEATURES

• Designed to match original equipment specifications
• Optimised thermal conductivity for effective heat dissipation
• Helps reduce brake judder and vibration
• Improved damping characteristics to minimise braking noise
• High resistance to distortion and thermal cracking
• Enhanced braking safety and performance
• Engineered for maximum rotor service life
• High brake effectiveness with reduced pedal effort
• Lower operating temperatures to reduce stress on brake components
• Reduced wear for longer component life

BRAKE PAD FEATURES

• European OE-quality friction material
• High durability versus most aftermarket brands
• Consistent, stable pedal feel
• High-temperature compound for heavy duty use
• Designed to shorten braking distance by approximately 7.4%
• Manufactured to ECE R90 standards

DISC ROTOR DIMENSIONS

• Diameter: 300 mm (front) / 296 mm (rear)
• Height: 58.5 mm (front) / 53 mm (rear)
• Maximum thickness: 28 mm (front) / 10 mm (rear)
• Minimum thickness: 25 mm (front) / 8 mm (rear)
• Centre hole diameter: 67 mm (front and rear)
• Wheel studs: 5 (front and rear)
• Ventilation: vented front / solid rear

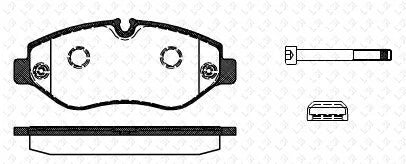

BRAKE PAD MEASUREMENTS

• Length: 165 mm
• Height: 62 mm
• Thickness: 20.8 mm
• Sensor lead length: 4 x 95 mm

APPLICATION NOTES

• Suitable for Mercedes-Benz Vito W639 models from 2007 to 2015 (front and rear axle set)
• Check all dimensions and specifications against existing components before purchase
• Professional installation is recommended
