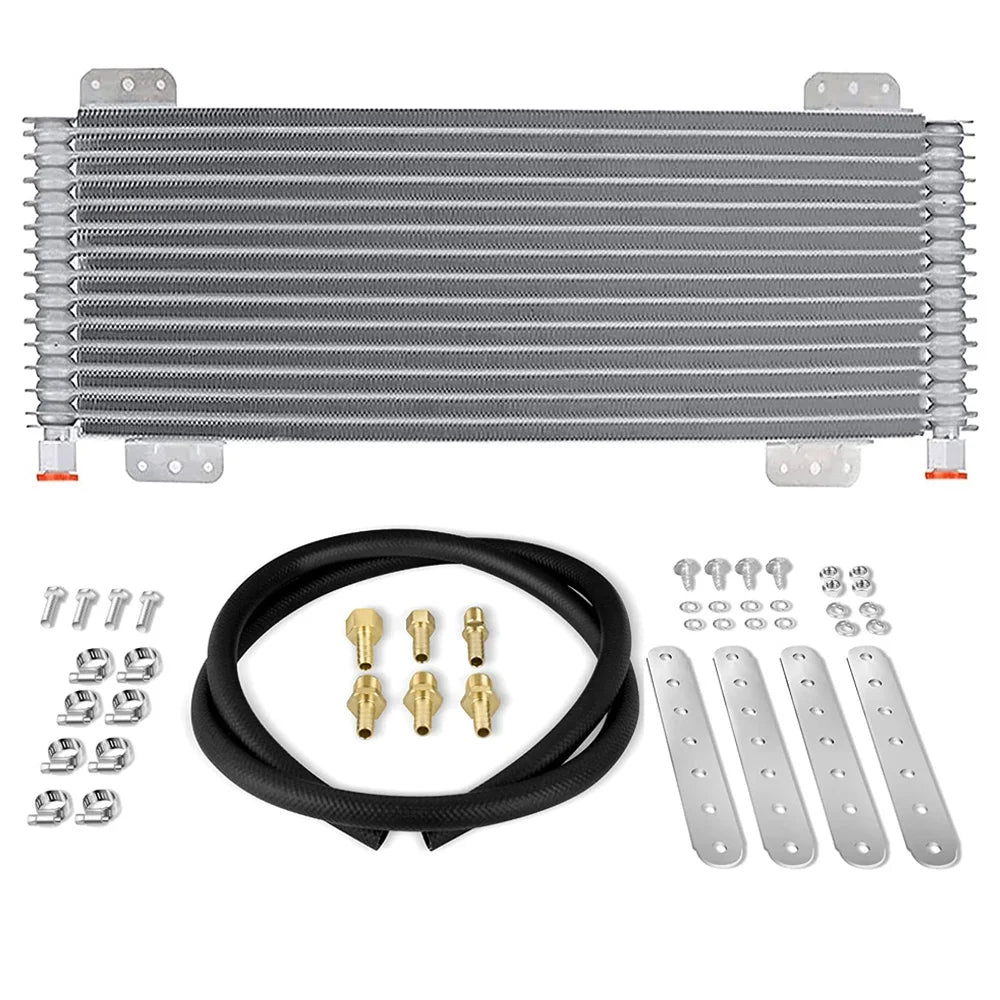

Heavy Duty Universal 13 Plate Low Pressure Drop Automatic Transmission Oil Cooler 8.5 x 22.8 x 1.25 Inch

Product Overview

This heavy-duty universal automatic transmission oil cooler uses a 13-plate fin and plate design with a low pressure drop layout. Measuring 8.5 x 22.8 x 1.25 inches with 3/8 inch inverted flare hex fittings, it is aimed at trucks, four-wheel drives and tow vehicles that work hard, with the supplier quoting a 40,000 GVW rating.

Key Features and Benefits

• 13-plate fin and plate design
• Low pressure drop layout
• 3/8 inch inverted flare hex fittings
• GVW rating of 40,000, as stated by the supplier
• Aluminium construction, silver finish

Vehicle Compatibility

This cooler is listed for universal use. Fitment is supplier-stated, so please confirm dimensions, mounting space and line connections before ordering. The supplier title also mentions an engine oil bypass kit, but no bypass components are detailed, so please contact us if you need clarification.

Product Specifications

• Product type: transmission oil cooler
• Plates: 13
• Size: 8.5 x 22.8 x 1.25 inches
• Fittings: 3/8 inch inverted flare hex
• GVW rating: 40,000, per supplier
• Material: aluminium
• Colour: silver
• Packed size: 69 x 25 x 8 cm
• Packed weight: approximately 3.0 kg

Installation and Usage

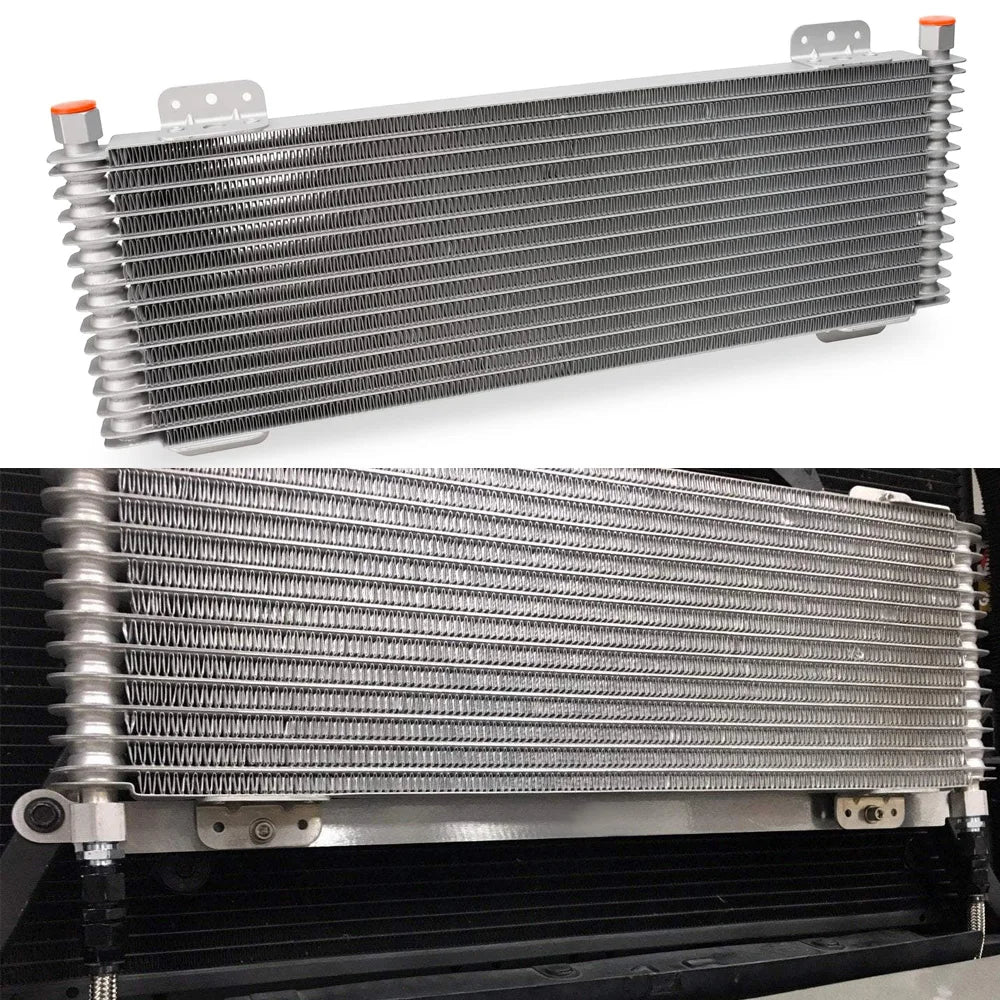

Mount the cooler where it receives good airflow, typically ahead of the radiator or condenser, using suitable brackets. Connect it into the transmission cooler return line with oil-rated hose and correct fittings, keeping lines clear of heat and moving parts. Check the transmission fluid level at operating temperature after installation and inspect for leaks after a test drive.

Package Contents

One transmission oil cooler. Hoses, brackets and fittings beyond those on the cooler are not itemised.

Important Fitment Notice

For help with sizing, send us your VIN and towing details before ordering. Images are for reference only. Fluid system modifications must be secure and leak-free to pass a Warrant of Fitness or Certificate of Fitness in New Zealand. Please include your vehicle and towing weight when you contact us.
