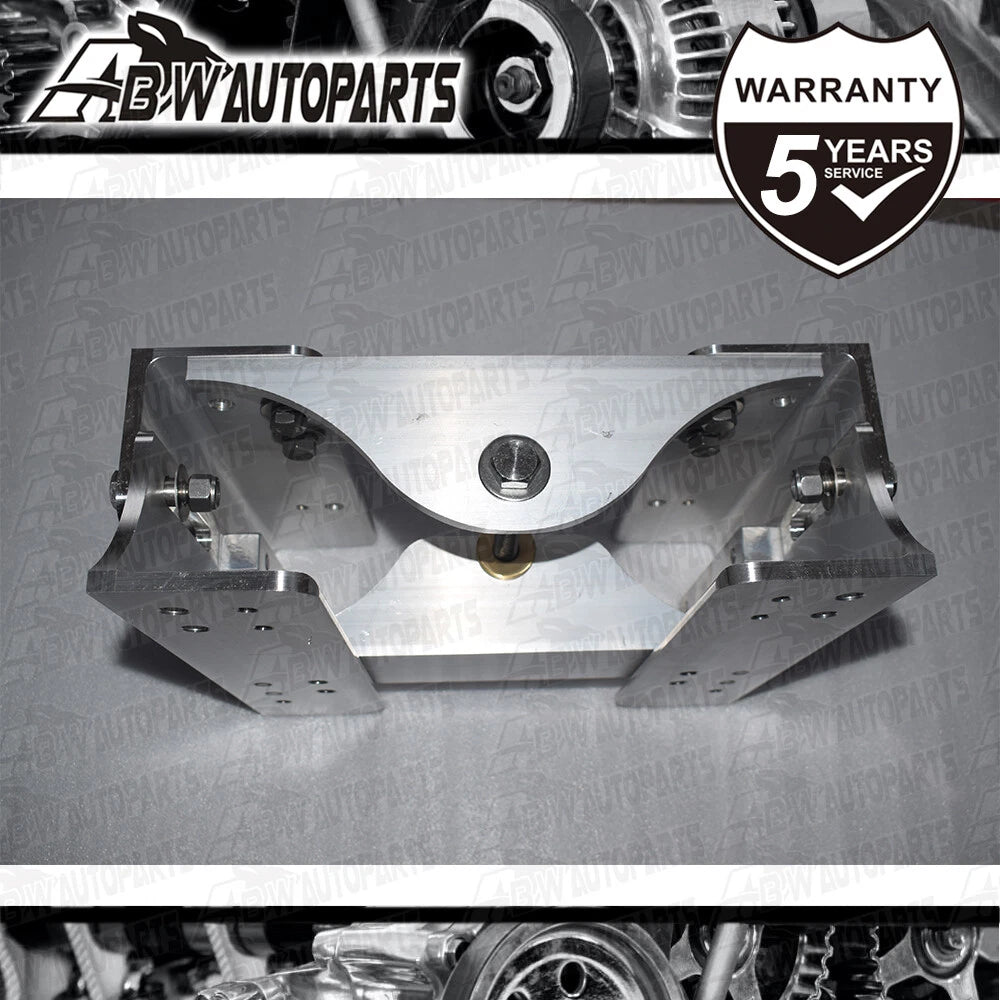

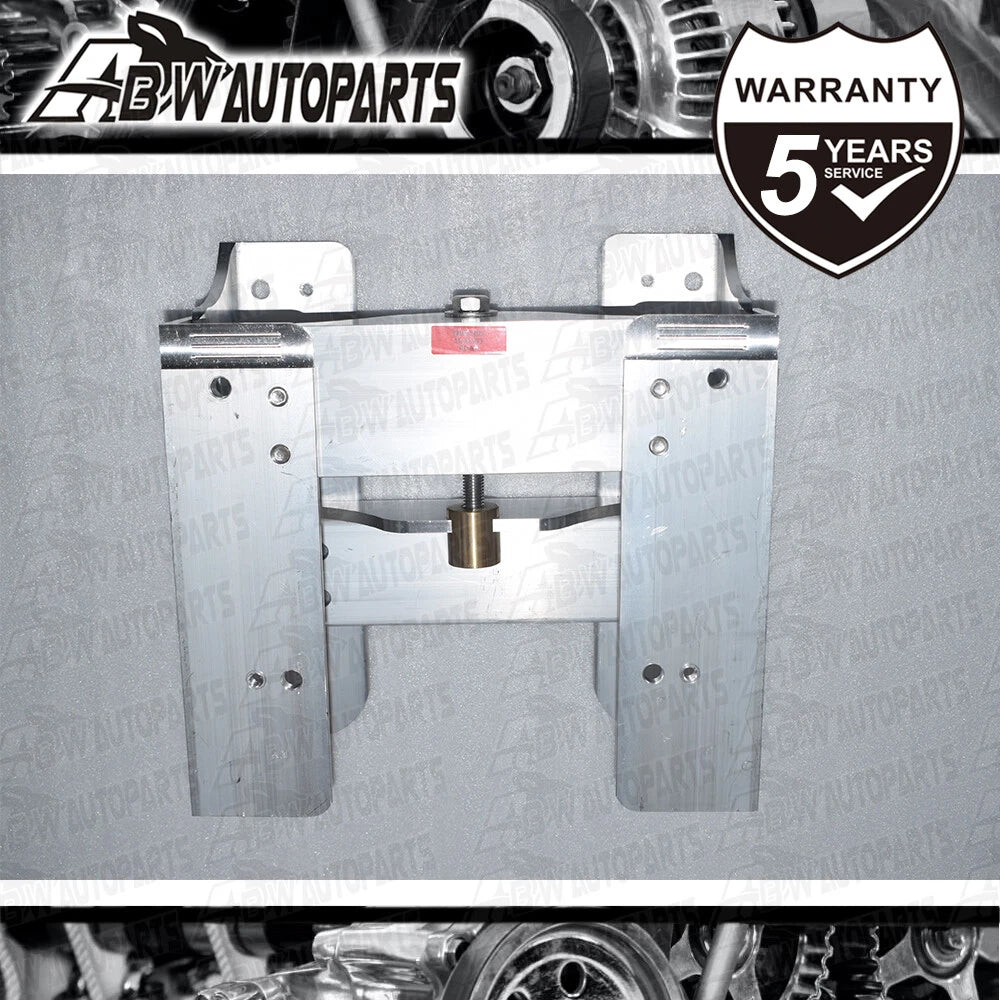

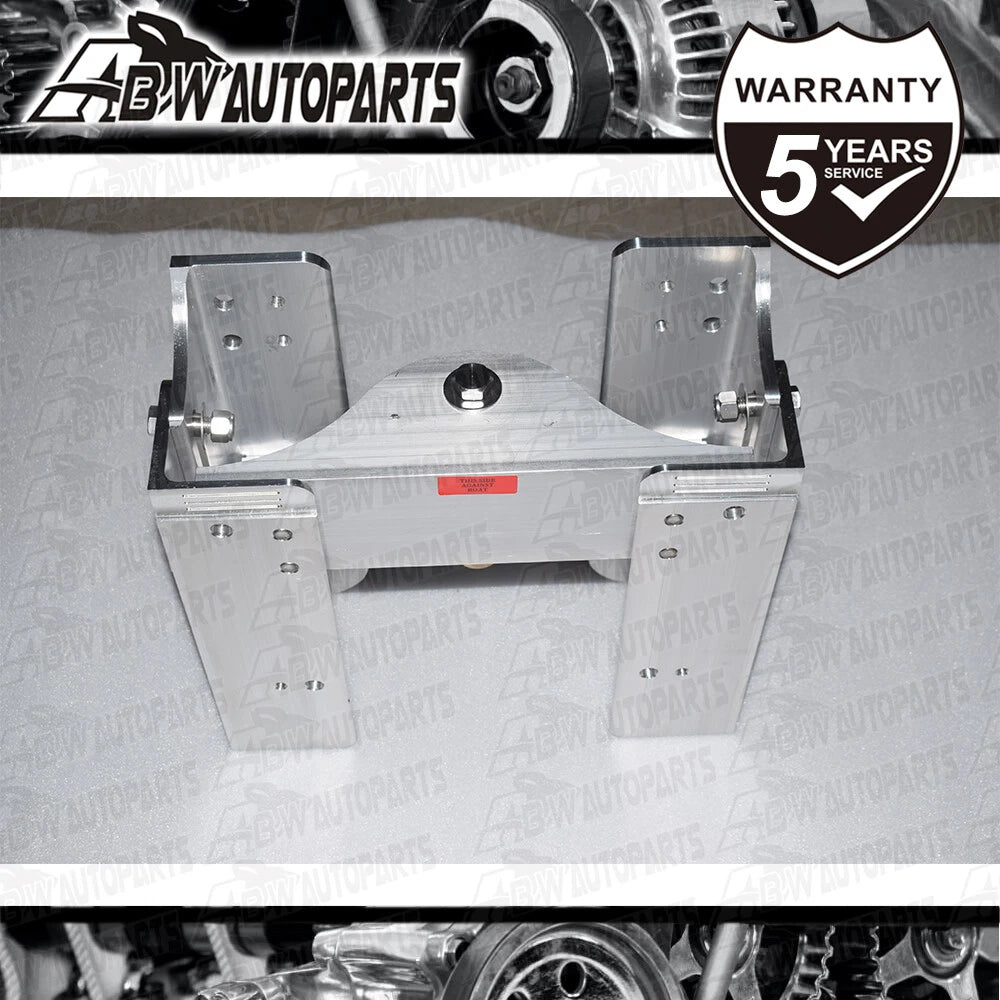

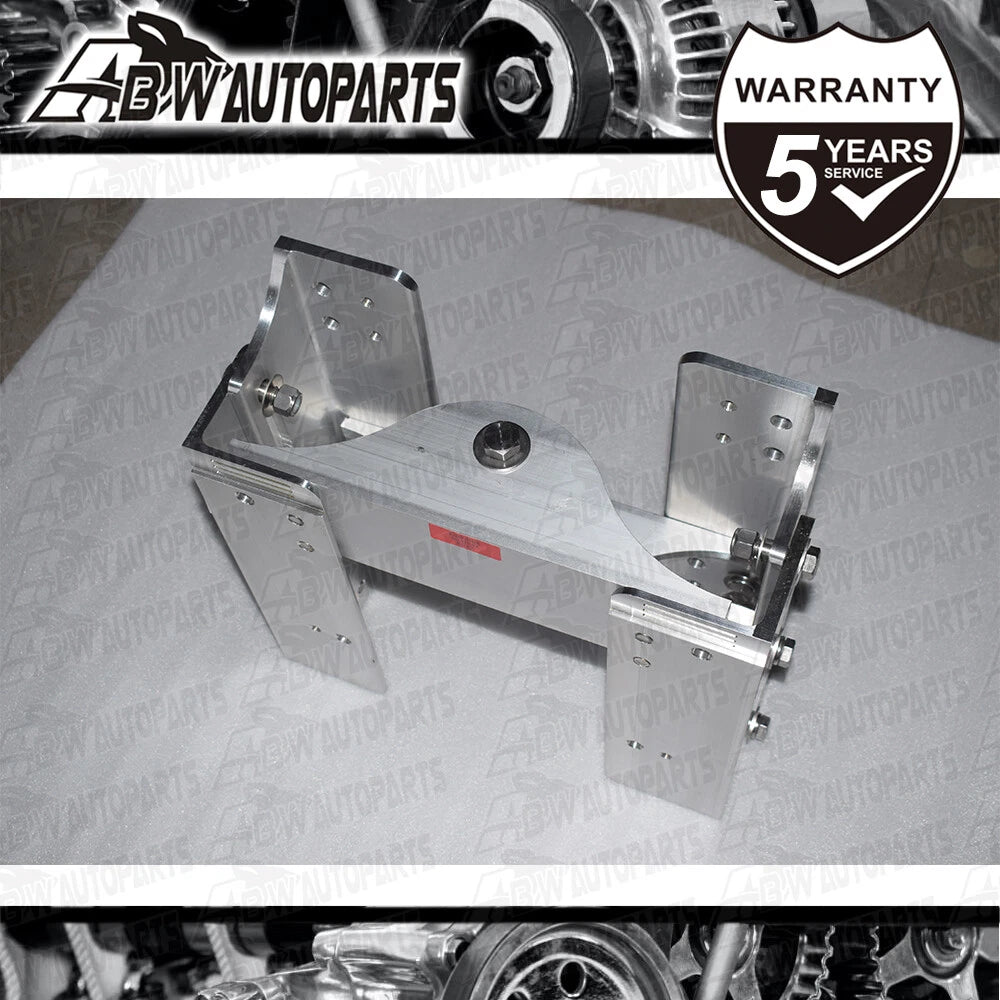

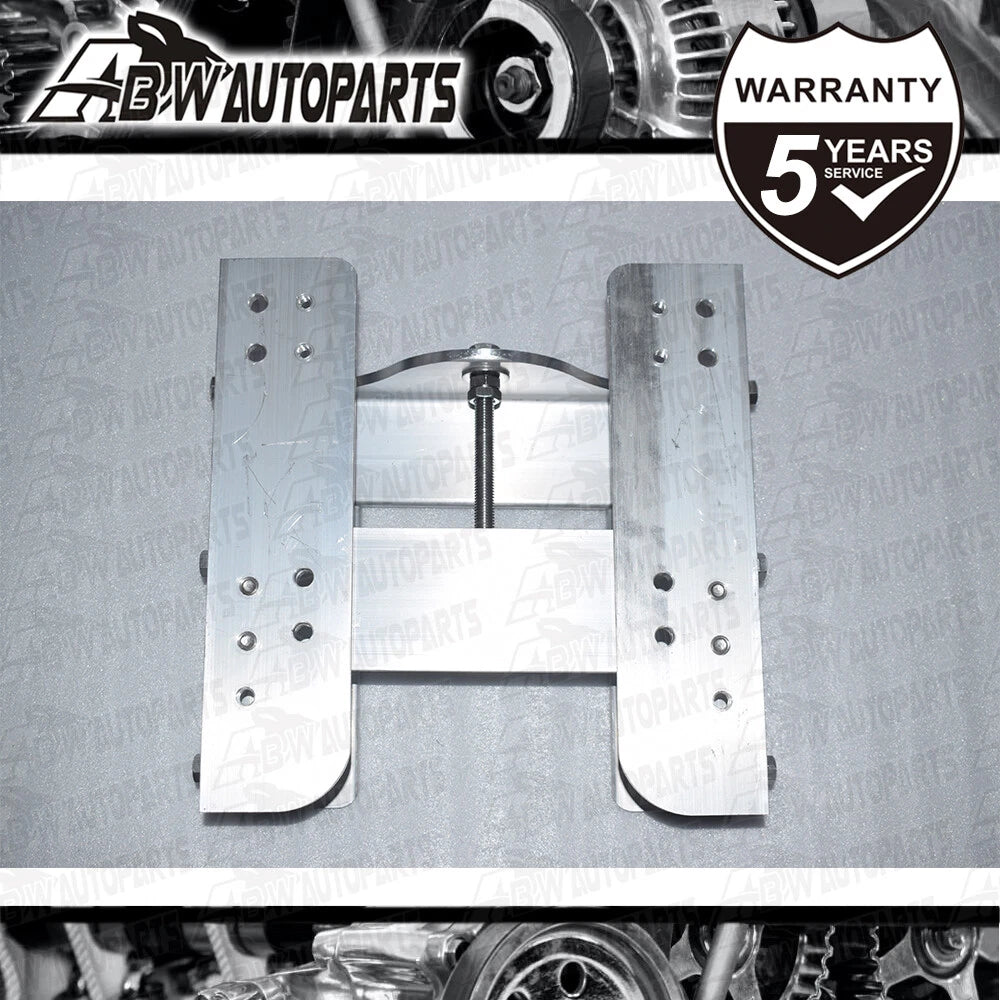

JPL4500 adjustable 6 inch outboard boat jack plate with 4 inch vertical lift
JPL4500 Adjustable 6" Outboard Jack Plate, 4" Vertical Lift, 225 HP Max
JPL4500 Adjustable 6" Outboard Jack Plate, 4" Vertical Lift, 225 HP Max
JPL4500 Adjustable 6" Outboard Jack Plate, 4" Vertical Lift, 225 HP Max
JPL4500 Adjustable 6" Outboard Jack Plate, 4" Vertical Lift, 225 HP Max
JPL4500 Adjustable 6" Outboard Jack Plate, 4" Vertical Lift, 225 HP Max
JPL4500 Adjustable 6" Outboard Jack Plate, 4" Vertical Lift, 225 HP Max
Click to zoom in
Load image into Gallery viewer, JPL4500 adjustable 6 inch outboard boat jack plate with 4 inch vertical lift
Load image into Gallery viewer, JPL4500 Adjustable 6" Outboard Jack Plate, 4" Vertical Lift, 225 HP Max
Load image into Gallery viewer, JPL4500 Adjustable 6" Outboard Jack Plate, 4" Vertical Lift, 225 HP Max
Load image into Gallery viewer, JPL4500 Adjustable 6" Outboard Jack Plate, 4" Vertical Lift, 225 HP Max
Load image into Gallery viewer, JPL4500 Adjustable 6" Outboard Jack Plate, 4" Vertical Lift, 225 HP Max
Load image into Gallery viewer, JPL4500 Adjustable 6" Outboard Jack Plate, 4" Vertical Lift, 225 HP Max
Load image into Gallery viewer, JPL4500 Adjustable 6" Outboard Jack Plate, 4" Vertical Lift, 225 HP Max

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Mounting, Balancing

  • Fast Delivery

    Get your order delivered at lightning speed

JPL4500 Adjustable 6" Outboard Jack Plate, 4" Vertical Lift, 225 HP Max

2 8
196184765749
In stock
Auto Parts
A$588.00
PRODUCT OVERVIEW The JPL4500 adjustable outboard jack plate provides precise engine height control for improved holeshot,...
A$588.00
customers are viewing this product
JPL4500 Adjustable 6" Outboard Jack Plate, 4" Vertical Lift, 225 HP Max
Description

PRODUCT OVERVIEW

The JPL4500 adjustable outboard jack plate provides precise engine height control for improved holeshot, lift and overall performance. Designed for outboard applications up to 225 HP, it offers durable construction and smooth, reliable adjustment.

KEY FEATURES

  • Single adjusting jack plate with 6" setback
  • Up to 4" of adjustable vertical movement
  • Adjusts easily by turning a single steel bolt
  • Maximum rating: 225 horsepower
  • Approximate weight: 27 lbs

CONSTRUCTION & MATERIALS

  • High-strength, polished aircraft-quality aluminum plates
  • Bronze and brass hardware to help eliminate binding
  • Designed for smooth, consistent adjustment under load

PERFORMANCE INDICATORS

This jack plate can help optimize engine height when you experience issues such as:

  • Poor holeshot or slow planing
  • Outboard not running perpendicular to the water at top speed
  • Ability to trim fully up without prop slip or water pressure loss at full throttle
  • Hull not lifting efficiently at speed

MOUNTING HOLE DIMENSIONS

  • Pre-drilled for 1/2" stainless mounting hardware
  • 12 7/8" across the top two holes, center to center
  • 9 7/8" across the bottom two holes, center to center
  • 8" vertical distance between top and bottom mounting holes

FITMENT NOTICE

No specific vessel or engine fitment data is provided. Verify all dimensions and ratings against your transom and outboard specifications before purchase and installation.
