Jockey Wheel Bracket Clamp 48mm, 2-Hole, 350kg Bolt-On / Weld-On

Product Overview

This heavy-duty jockey wheel bracket clamp is designed to securely mount a jockey wheel to a trailer drawbar. It can be either bolted or welded on, providing a simple and effective solution for adding or replacing a jockey wheel assembly.

Key Features

• Suits up to 350kg rated jockey wheels
• Durable zinc plated finish for corrosion resistance
• Can be bolt-on or weld-on to the trailer drawbar
• Bracket bolt holes: 13mm diameter
• Suits 48mm O.D. tube clamp type jockey wheels

Specifications

• Mount type: Bolt-on or weld-on
• Rated capacity: 350kg (when used with suitable jockey wheel)
• Suits tube size: 48mm O.D. clamp type jockey wheels
• Bolt hole diameter: 13mm

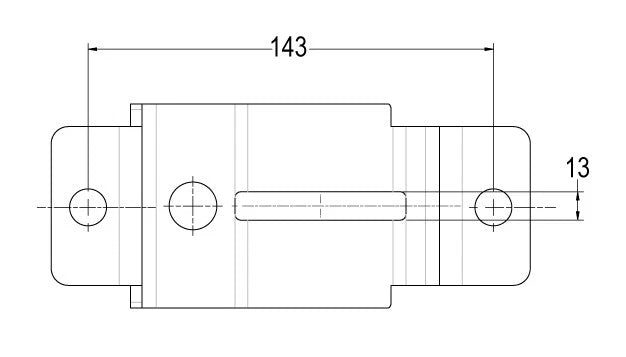

• Distance between mounting holes (centre to centre): 143mm
• Clamp thread: M12 (different to some common brands)
• Finish: Zinc plated steel

Installation Notes

• Suitable for use on trailer drawbars where a clamp-on jockey wheel is required
• Can be welded directly to the drawbar or fixed using appropriate mounting bolts
• Ensure the mounting surface and fasteners are suitable for the load rating
• Always follow safe working practices when welding or drilling trailer components
