Jockey Wheel Clamp Fixed Bracket 8-Hole Removable 48mm 350kg

PRODUCT OVERVIEW

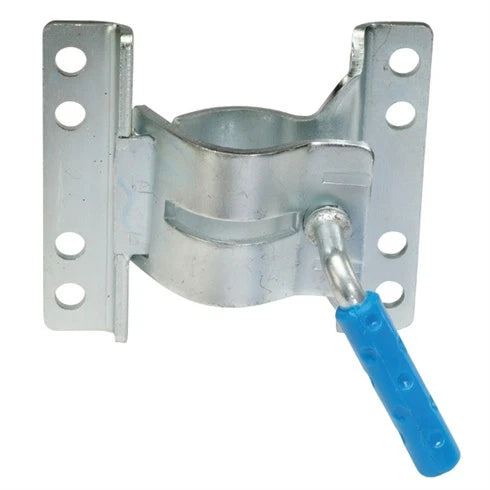

This fixed jockey wheel clamp features an 8-hole mounting pattern for flexible U-bolt positioning on trailer, caravan, boat trailer and camper drawbars. The removable design allows you to easily detach the jockey wheel when not in use, improving security and storage convenience.

KEY FEATURES

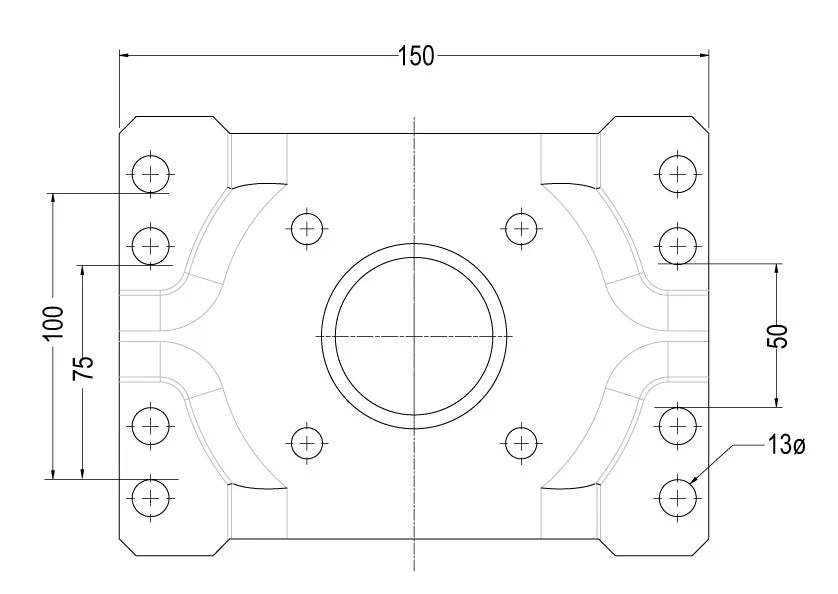

• Fixed jockey wheel clamp with 8 mounting holes for versatile positioning
• Designed for use with bolt-on U-bolts (sold separately)
• Suitable for mounting on 50mm, 75mm and 100mm drawbars when used with appropriate U-bolts
• Suits 350kg jockey wheels (capacity limited to jockey wheel rating)
• Compatible with 48mm O.D. tube clamp-type jockey wheels
• Removable jockey wheel arrangement for easy removal and storage when not required

APPLICATIONS

• General duty and box trailers
• Caravans and camper trailers
• Boat trailers
• Off-road and utility trailers

INSTALLATION NOTES

• U-bolts are required for installation (check size and inclusion before purchase)
• Confirm your jockey wheel tube diameter is 48mm O.D. before fitting
• Install to a suitable, structurally sound drawbar surface
• Installation should be carried out according to safe workshop practices and torque recommendations for U-bolts
