LED Side Marker Clearance Lights Red Amber 12-24V Trailer Truck 4pc

PRODUCT OVERVIEW

Compact LED side marker and clearance lights with red and amber output, suitable for universal 12–24V applications such as trailers, trucks, caravans, vans, RVs, lorries and boats. Sold as a set of 4 lamps.

KEY FEATURES

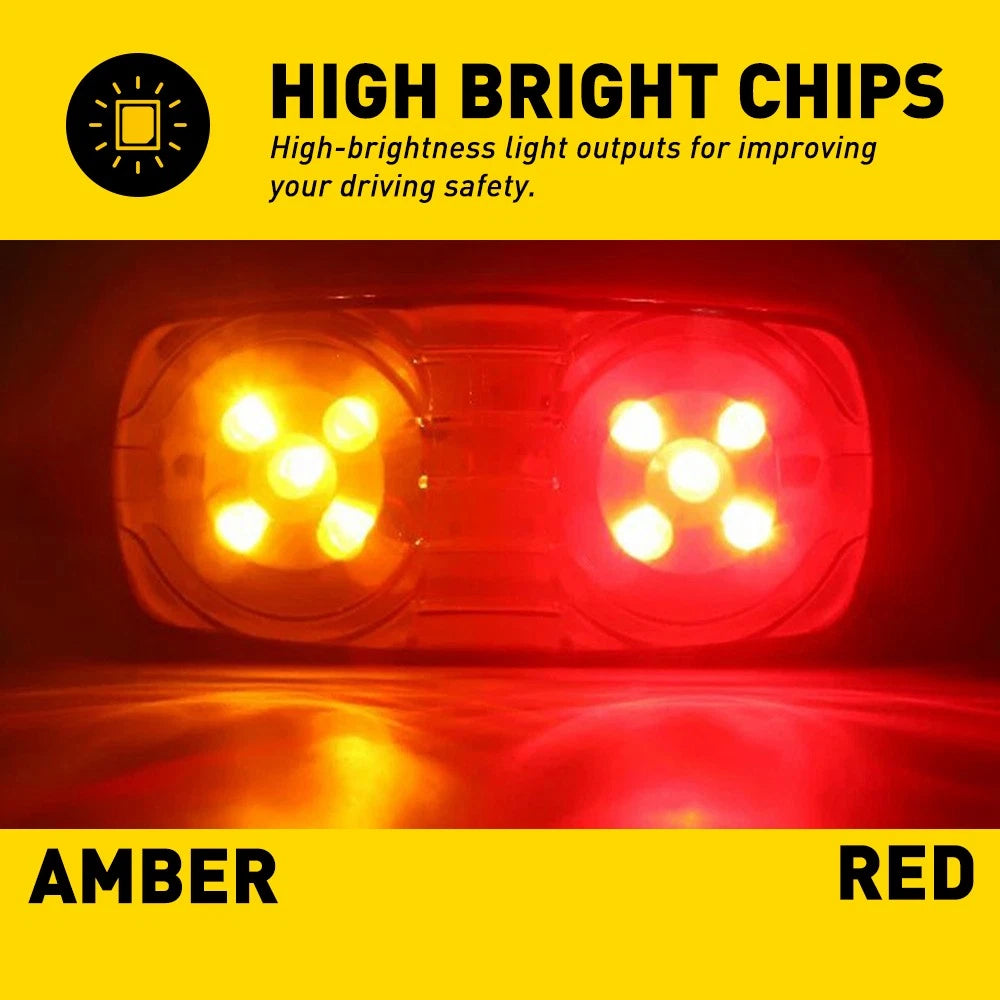

• High-brightness LEDs improve side visibility and driving safety.
• IP67 waterproof rating for reliable operation in rain and harsh conditions.

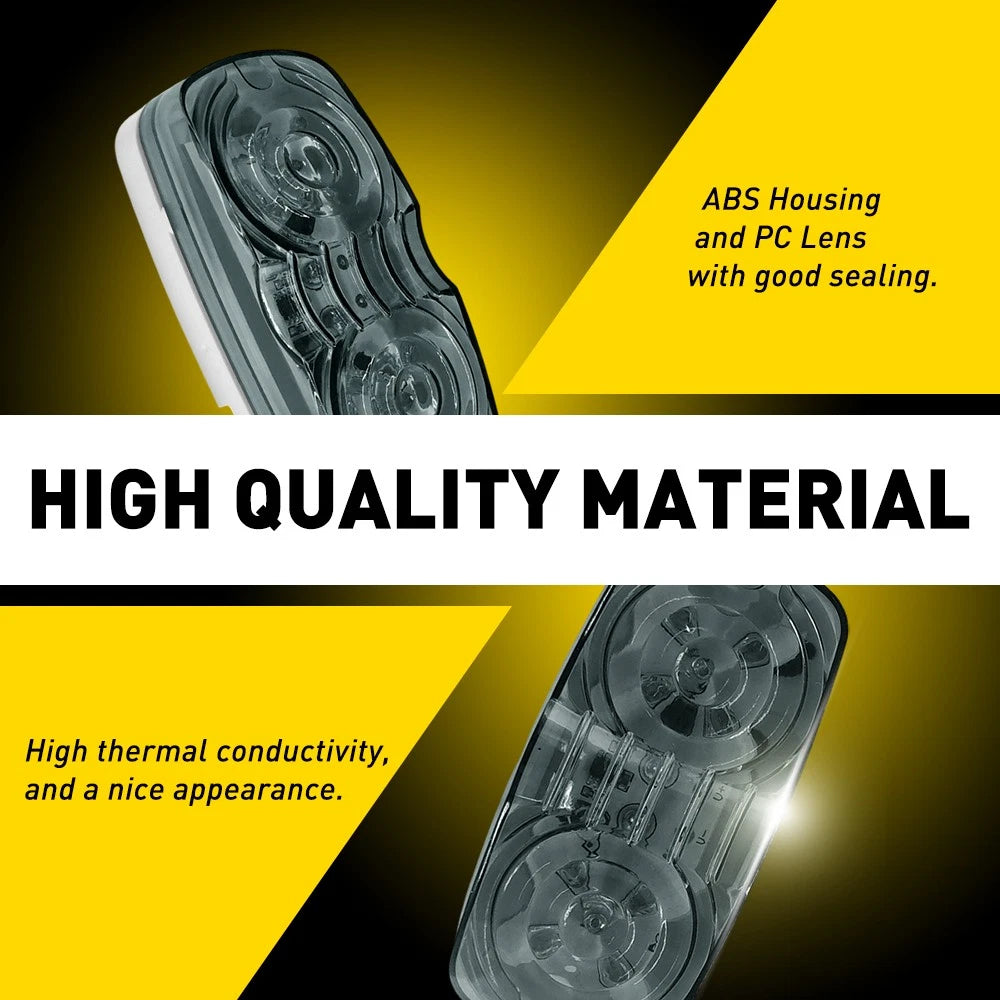

• Slim ABS housing with PC lens for impact resistance and heat dissipation.
• Low power consumption with long service life over 50,000 hours.
• Simple screw mounting and 3-wire connection for fast, direct installation.
• Universal fitment for 12–24V DC systems on a wide range of vehicles and trailers.

SPECIFICATIONS

• Product type: Side marker / clearance light
• Lighting technology: LED
• Light colour: Red + Amber
• Voltage: 12V–24V DC
• Bulb type: LED, 10 LEDs per lamp
• Wattage: 5 W (approx.)
• Lumens: up to 3200 lm (set, approx.)
• Waterproof rating: IP67
• Service life: > 50,000 hours
• Material: ABS housing, PC lens
• Lens colour: Smoke / tinted
• Housing colour: Black
• Mounting style: Screw mount
• Wiring: 3-wire connection
• Placement: Front or rear, left or right, driver or passenger side

DIMENSIONS

• Lamp body length: 100 mm (approx. 3.9 in)
• Width: 49 mm (approx. 1.9 in)
• Height: 27–28 mm (approx. 1.1 in)
• Distance between mounting holes: 76 mm

INSTALLATION NOTES

• Designed for direct replacement with no modification required in most applications.
• Secure to the vehicle body using screws through the integrated mounting holes.
• Connect to a suitable 12–24V DC circuit using the 3-wire harness.
• If necessary, reuse your original rubber seal to improve fit and sealing.

PACKAGE CONTENTS

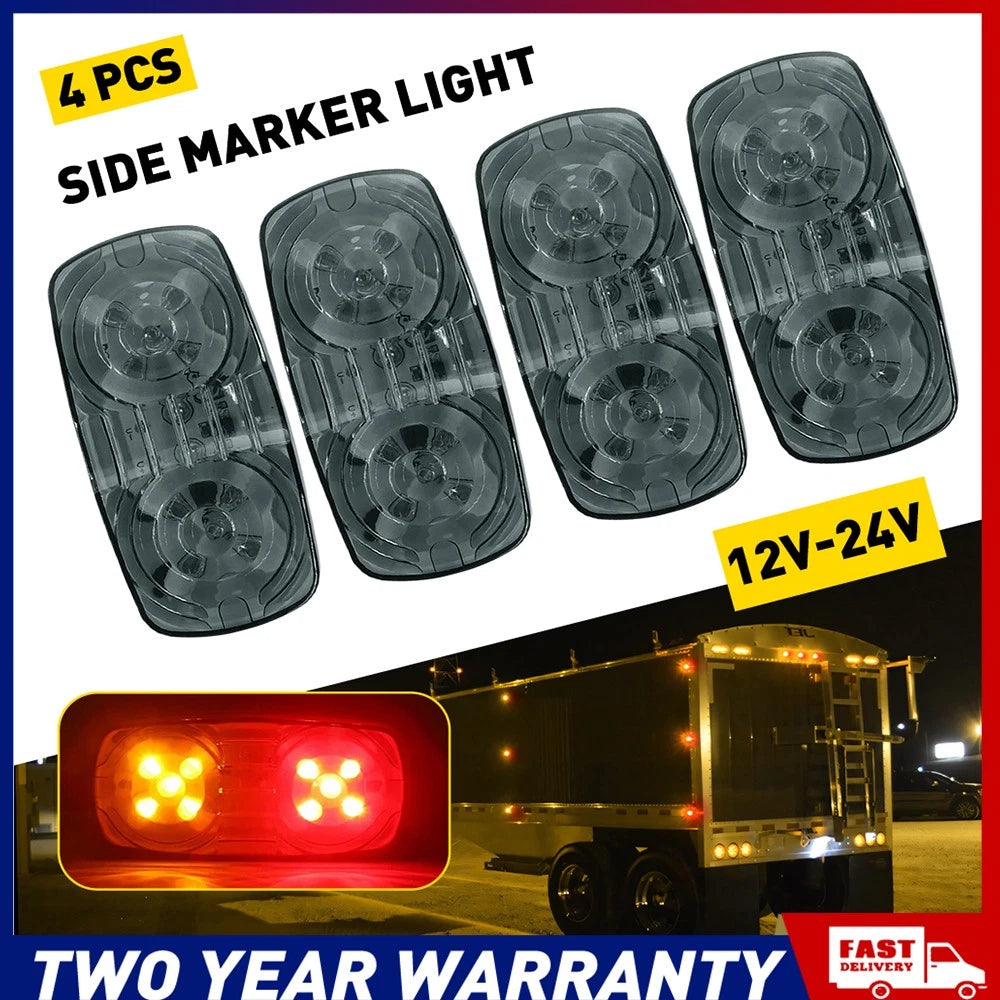

• 4 x LED side marker / clearance lights
