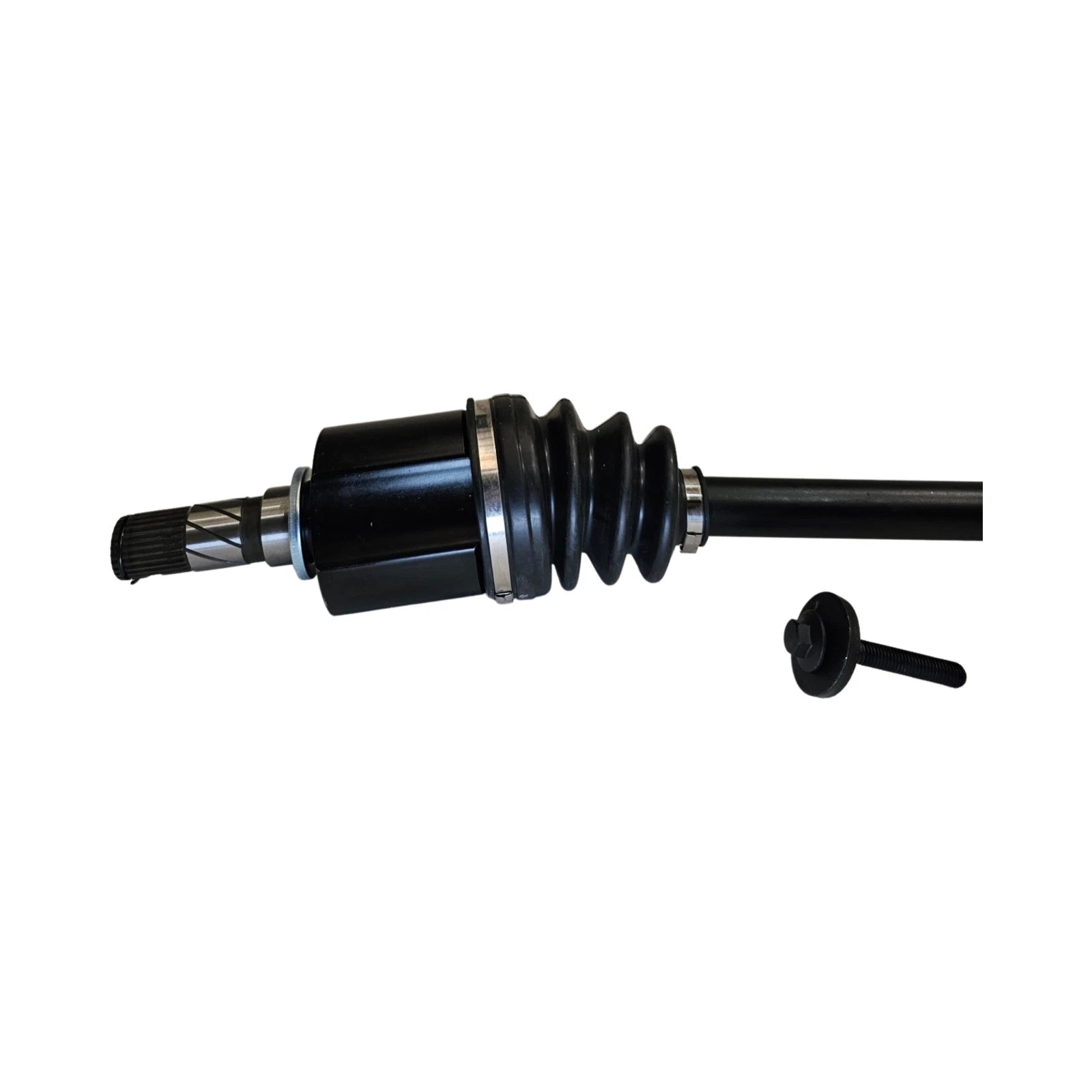

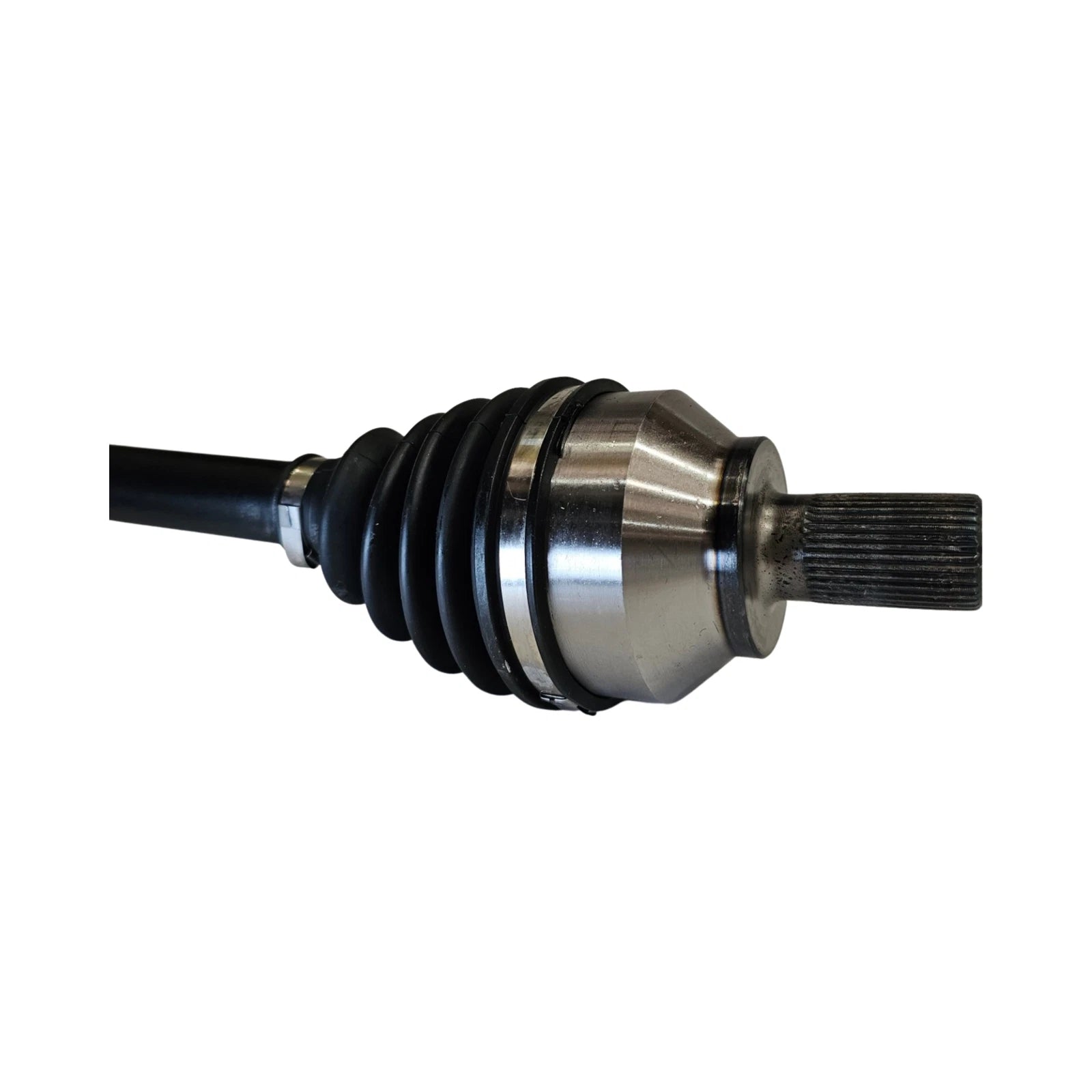

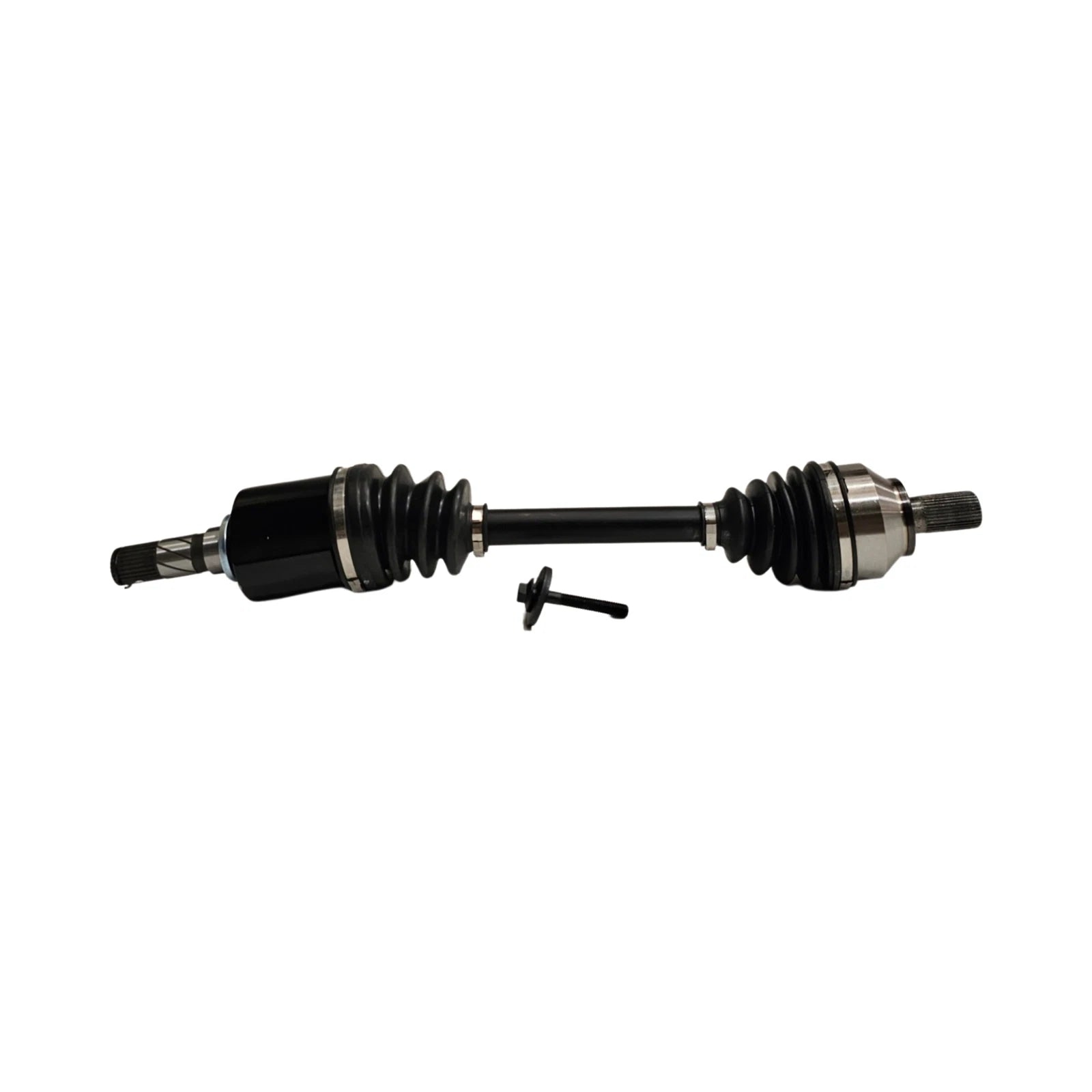

Front Left CV Axle Drive Shaft for Mazda 3 BK 1.6L 2.0L 2.3L MT 2003-2005

PRODUCT OVERVIEW

Front left CV axle drive shaft for Mazda 3 BK manual transmission models. Designed to meet OEM specifications with a hub bolt style outer joint for secure fitment and reliable power transfer.

KEY FEATURES

• Built to OEM specifications for fit, performance and durability
• Heat-treated chrome steel components for extended service life
• High-quality neoprene dust boots with stainless steel clamps to help prevent contamination
• Premium moly grease for smooth operation at varying angles and speeds
• Supplied as a complete shaft, ready to install

VEHICLE COMPATIBILITY

Front left, manual transmission, hub bolt style outer joint:

• Mazda 3 / Mazda3 BK 1.6L (BK14, BK12) 2003 – up to 2005
• Mazda 3 / Mazda3 BK 2.0L (BKFP, BKFS) 2003 – up to 2005
• Mazda 3 / Mazda3 BK 2.3L (BK3P, BK3S) 2003 – up to 2005

Includes sub-models: SP23, MAXX, Neo, Sport (where fitted with manual transmission and hub bolt style outer joint). Please verify all specifications and fitment details against your vehicle before purchase.

SPECIFICATIONS

• Position: Front left (driver side in RHD markets)
• Drivetrain: FWD, manual transmission
• Length (compressed): 589 mm
• Spline count – outer/wheel side: 36
• Spline count – inner/diff side: 28
• Hub bolt style outer joint: M10 x 1.5

WHAT'S INCLUDED

• 1 x complete CV axle drive shaft (front left)

WARRANTY

• 12 month / 20,000 km warranty on CV driveshaft (whichever occurs first)
• CV boots are covered for 3 months from date of purchase

Installation by a qualified technician is recommended. Always compare spline counts, overall length and joint style to your original component before fitting.
