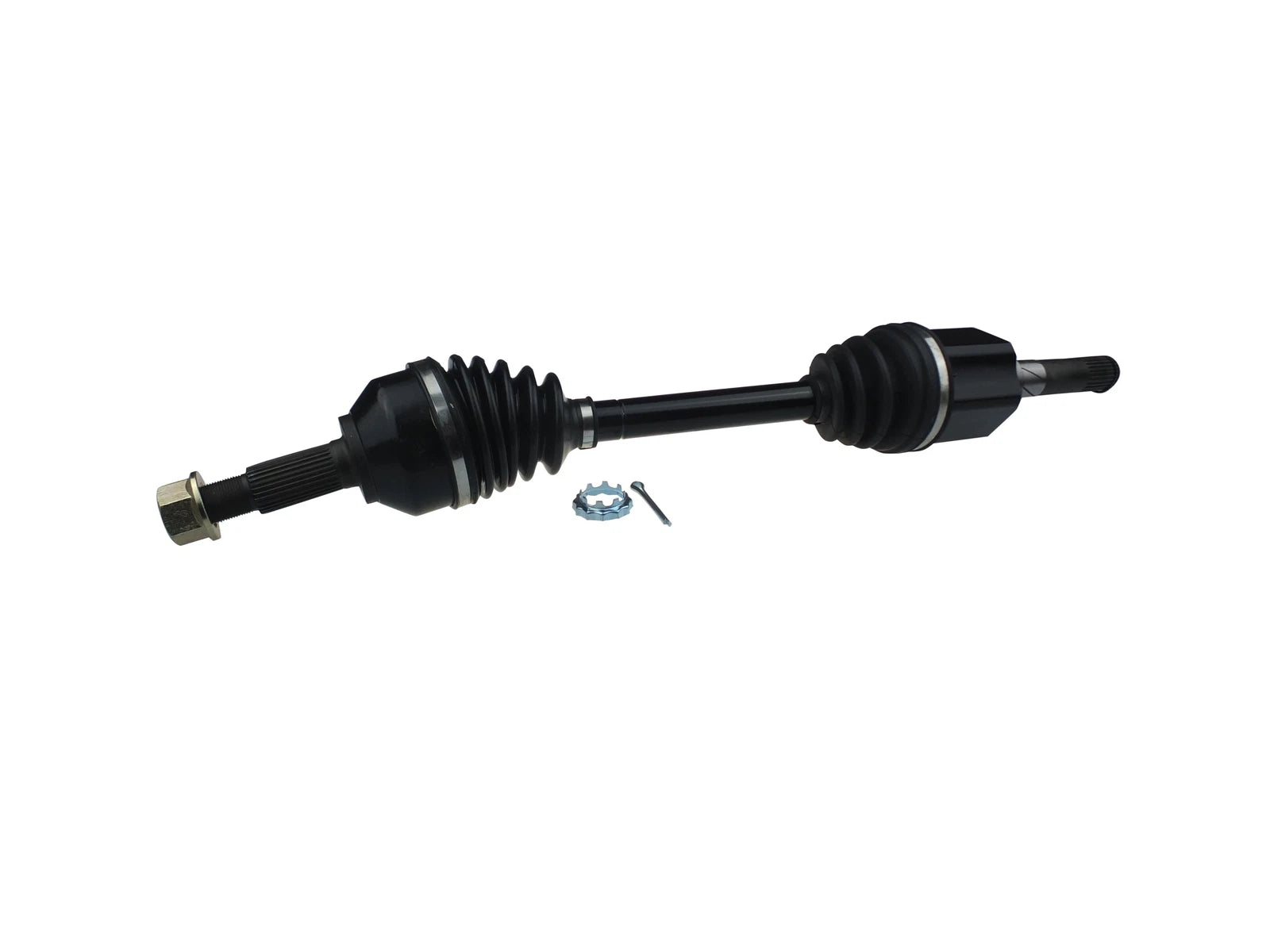

Front Left CV Axle Drive Shaft for Nissan X-Trail, Dualis & Renault Koleos CVT

PRODUCT OVERVIEW

High-quality front left CV axle drive shaft designed for selected Nissan X-Trail T31, Nissan Dualis J10/KNJ10 and Renault Koleos H45 CVT models. Built to OEM specifications for reliable performance in FWD, 4WD and AWD applications where specified.

Constructed from heat-treated chrome steel to maximise strength and service life. Fitted with high-quality Neoprene dust boots and stainless steel clamps to help prevent contamination. Packed with moly grease for smooth operation at varying angles, speeds and high revolutions.

Important: Front left, CVT transmission only. Check inner joint spline length before purchase. If inner joint spline length does not match, refer to part numbers CVA1593 or CVA1544 as applicable.

KEY FEATURES

• Front left CV axle drive shaft for selected CVT models
• Heat-treated chrome steel construction for durability
• High-quality Neoprene dust boots with stainless steel clamps
• Moly grease for reduced friction at high speed and angle
• Manufactured to meet OEM specifications

SPECIFICATIONS

• Position: Front left (driver/passenger side as per regional configuration)
• Transmission: CVT only (see vehicle notes)
• Drivetrain: FWD / 4WD / AWD where specified by model
• Length (compressed): 667 mm
• Spline count outer / wheel side: 29
• Spline count inner / diff side: 27
• Inner joint spline length from dust shield: 75 mm

VEHICLE COMPATIBILITY NOTES

This CV axle is suitable for selected CVT-equipped models only. Always confirm transmission type, drivetrain, and spline measurements before ordering.

• Nissan X-Trail T31 (08/2007 - 03/2015)
  2.5L QR25DE I4 16V DOHC VVT, CVT, 4WD, for CVT only, includes various Adventure Edition, ST, ST Limited Edition, ST-L, TI, 25S, 25ST, 25X, 25XT, 25XTT, Axis sub-models.
• Nissan Dualis J10 / KNJ10 (05/2007 - 07/2013)
  2.0L MR20DE I4 16V DOHC VVT, Manual / CVT, FWD / 4WD / AWD, for CVT only. Check shaft length. Includes NZ sub-models 20G, 20S, Cross Rider, Four 4WD.
• Renault Koleos H45 (09/2008 - 08/2016)
  2.5L I4 16V DOHC VVT, CVT, AWD, for AWD CVT only. Check inner joint spline length from dust shield (75 mm). If not correct, check part no: CVA1544. Includes BOSE SE, BOSE SE PREMIUM, DYNAMIQUE, PRIVILEGE sub-models.

WHAT'S INCLUDED

• 1 x Front left CV axle drive shaft

WARRANTY

CV driveshaft covered by a 12 month / 20,000 km warranty. Note: CV boots are covered for 3 months from date of purchase.
