| Item Specifics |
|---|
|
Type
|
Thermo Fan
|
|
Brand
|
PT0
|
|
Manufacturer Part Number
|
SYRCFSB1PT0-1
|
|
Placement on Vehicle
|
Left
|
|
Features
|
Curved Blade
|
|
Manufacturer Warranty
|
2 Years
|
|
Make
|
For Subaru
|
|
Reference OE/OEM Number
|
45121AG000
|
|
Interchange Part Number
|
45121AG000
|
|
Superseded Part Number
|
45121AG000
|
Cooling Fan Extra Silent for 2008-2011 Subaru Impreza 2.5L 2011-2013 Forester
*Fast Delivery from AU.
*Trusted Aussie Seller. Local Warehouse Warranty.
*Local Pick up available in Auburn NSW Mon.-Fri. 9:00am to 4:00pm*
Description:

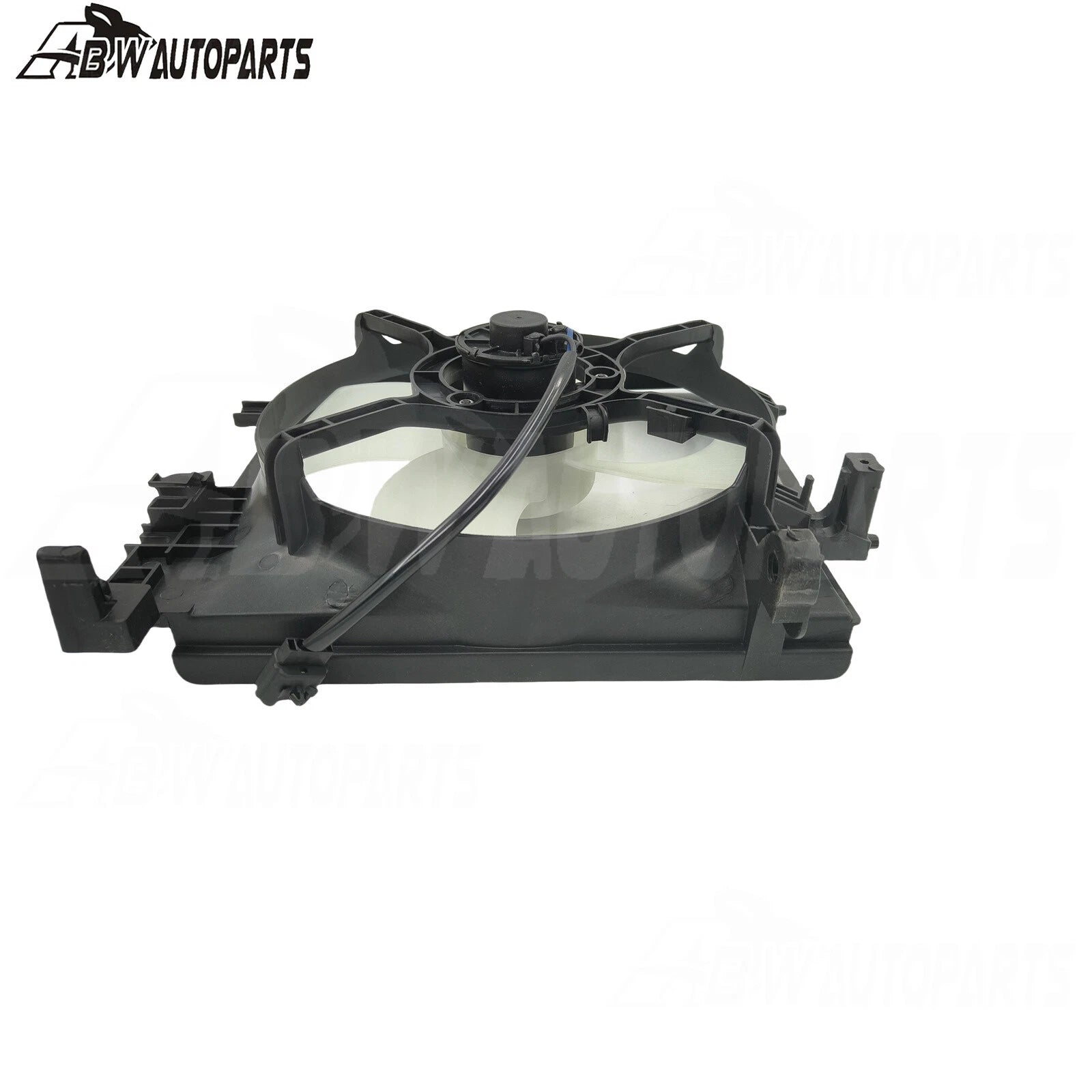

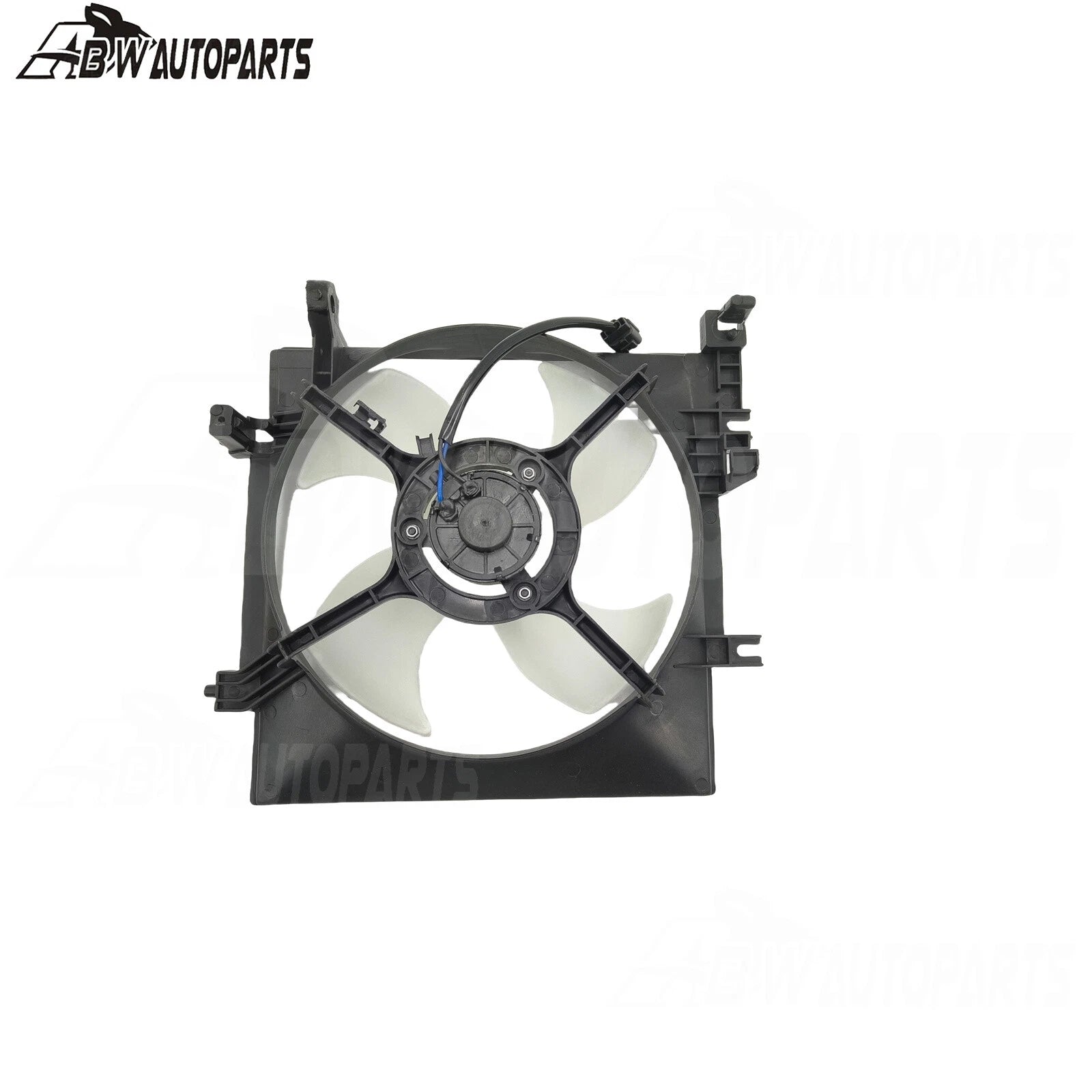

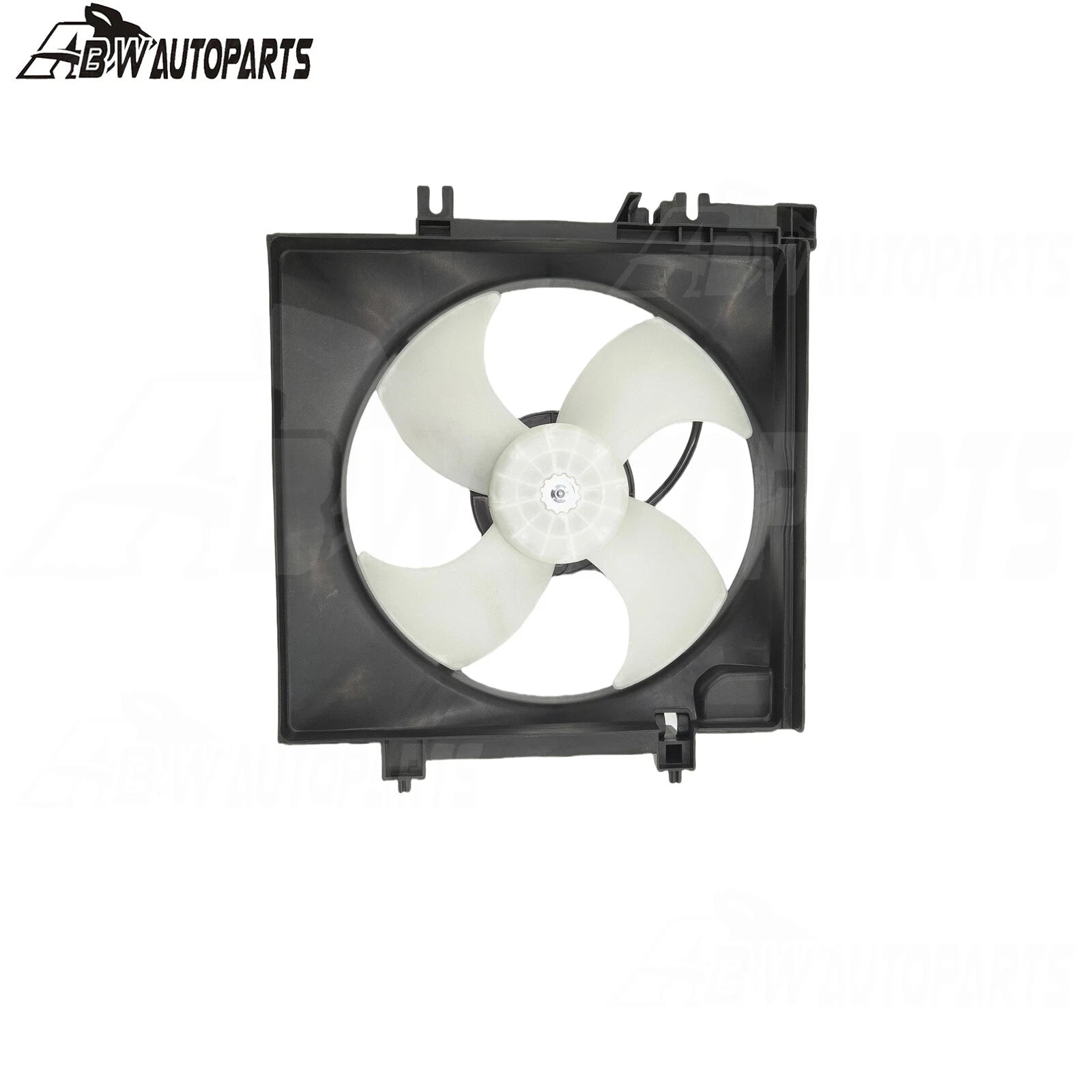

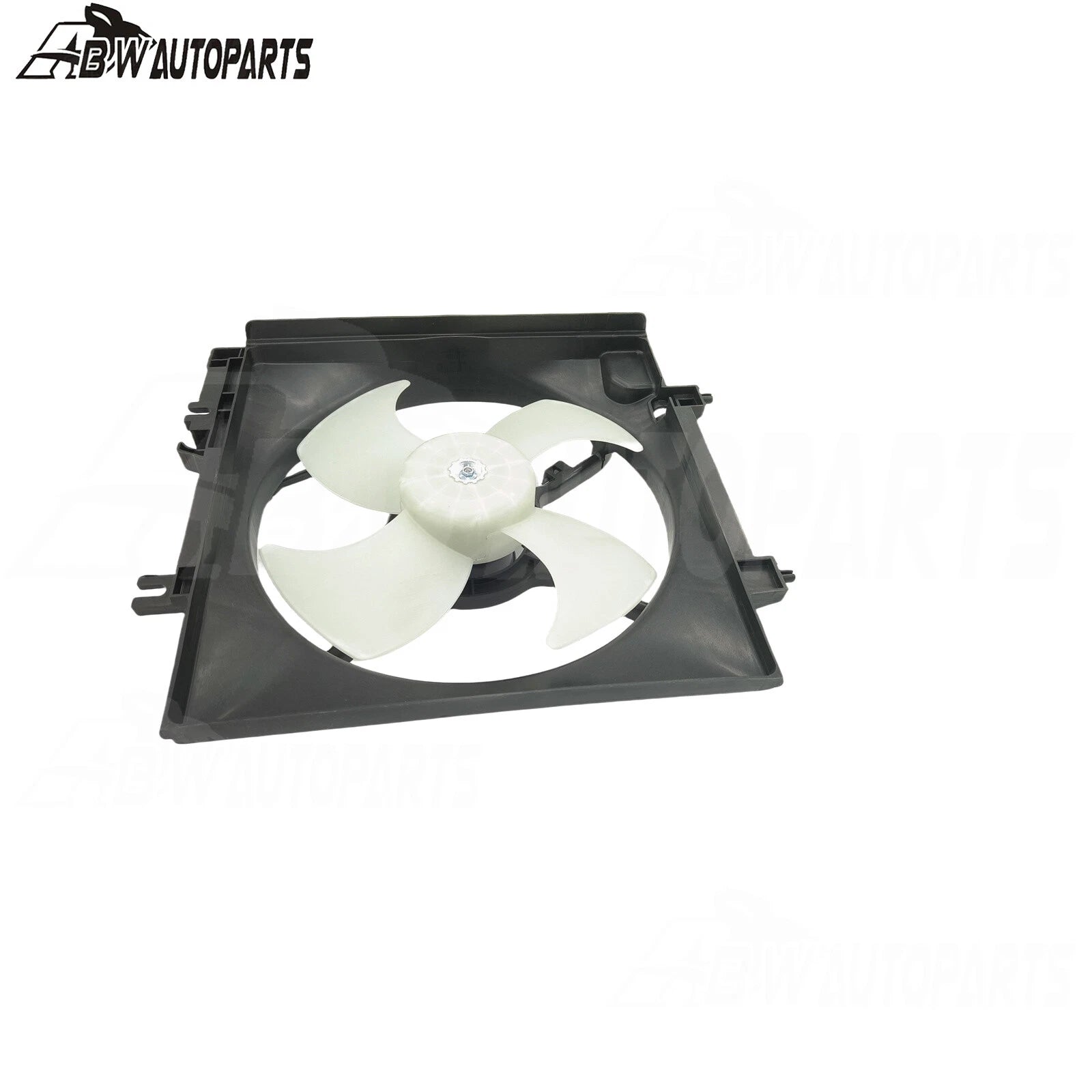

Radiator Cooling Thermo Fan Left Passenger For 2008-2011 Subaru Impreza 2.5L 2011-2013 Forester
Features:
Type: THERMO FAN
Condition: 100% Brand New
Placement of Vehicle: LEFT, Passenger Side
Easy installation
Warranty: 2 Years
Suit:
FOR SUBARU FORESTER (SH_) 2.0 AWD (SH5) 2008-2013 EJ204 SUV
FOR SUBARU FORESTER (SH_) 2.5 XS AWD (SH9) 2009-2013 EJ25 SUV
FOR SUBARU FORESTER (SH_) 2.5 XT AWD 2008-2013 EJ255 SUV
FOR SUBARU IMPREZA Hatchback (GR, GH, G3) 1.5 AWD (GH3) 2008-2012 EL15 Hatchback
FOR SUBARU IMPREZA Hatchback (GR, GH, G3) 1.5 F (GH2) 2007-2012 EL15 Hatchback
FOR SUBARU IMPREZA Hatchback (GR, GH, G3) 2.0 R AWD 2008-2012 EJ204 Hatchback
FOR SUBARU IMPREZA Hatchback (GR, GH, G3) 2.5 STI CS400 AWD (GRF) 2010-2013 EJ257 Hatchback
FOR SUBARU IMPREZA Hatchback (GR, GH, G3) 2.5 WRX AWD 2008-2011 EJ255 Hatchback
FOR SUBARU IMPREZA Hatchback (GR, GH, G3) 2.5 WRX STI AWD 2008-2013 EJ257 Hatchback
OEM: 45121AG000
Package:
1 x THERMO FAN (LEFT)
Note:
Please double check the vehicle’s original part number before purchasing this part.
Notes:
The radiator cooling fan is an integral part of your car that is responsible for cooling the radiator of your car. The radiator cooling fan does this by either pulling or pushing air into the radiator keeping the radiator temperatures within the safe levels. A damaged radiator cooling fan is a determining factor in preventing your car from overheating. Below are the materials that you need along with the instructions on how to replace a radiator cooling fan.
Step 1: Locate the Radiator Cooling Fan
Locating the radiator cooling fan is the first step in replacing it. Turn off your car and allow it to cool off. Open the hood of your car and you will be able to see the radiator that is located at the back of the grill at the front portion of your engine compartment. The radiator cooling fan is attached at the back of the radiator through a mounting frame. Under the engine and the radiator is a sticking cylinder that is encased in a small casing. That is the radiator cooling fan motor that you may need to change or repair other than the radiator cooling fan itself.
Step 2: Disconnect the Power Supply
On the fan motor is an electric cable running towards the engine. Find the connector of the wires from your engine and from your radiator fan motor and disconnect it. Using two masking tapes with different colors, note the connection of the wires so that you will not have a hard time reconnecting the wires later.
Step 3: Remove the Fan Housing
Using a crescent wrench, remove the four screws located at each corner of the fan housing. Remove the fasteners at the sides of the fan housing as well. A radiator cooling fan housing is relatively large and you may need to remove all the obstructions like hoses and wirings so that you can extract the fan housing off your car hood. Hold the housing firmly and lift it off your engine compartment. Be careful in removing the fan housing to avoid damaging it. Place the fan housing on a clutter-free working table.
Step 4: Remove the Radiator Cooling Fan and the Fan Motor
The fan blade is either pinned or screwed to a shaft. With a screwdriver, loosen the fan blade and slide if off its shaft. You may need to remove a keeper that prevents the fan blades from moving up in the shaft up and down. As to the fan motor itself, remove it from the fan housing using a screwdriver.
Step 5: Attach the Replacement Radiator Cooling Fan and Fan Motor
Install the new fan motor into the fan housing. Slide your replacement radiator cooling fan into the shaft, insert the keeper and secure the new cooling fan and keeper into place. Return the fan housing back into its proper place and secure the screws and the fasteners. Reattach the hoses and wires you removed in step 3. Connect the fan motor into the car electrical system using the electrical tape guide you made in step 2. You just learned how to replace your radiator cooling fan as well as your radiator cooling fan motor.
