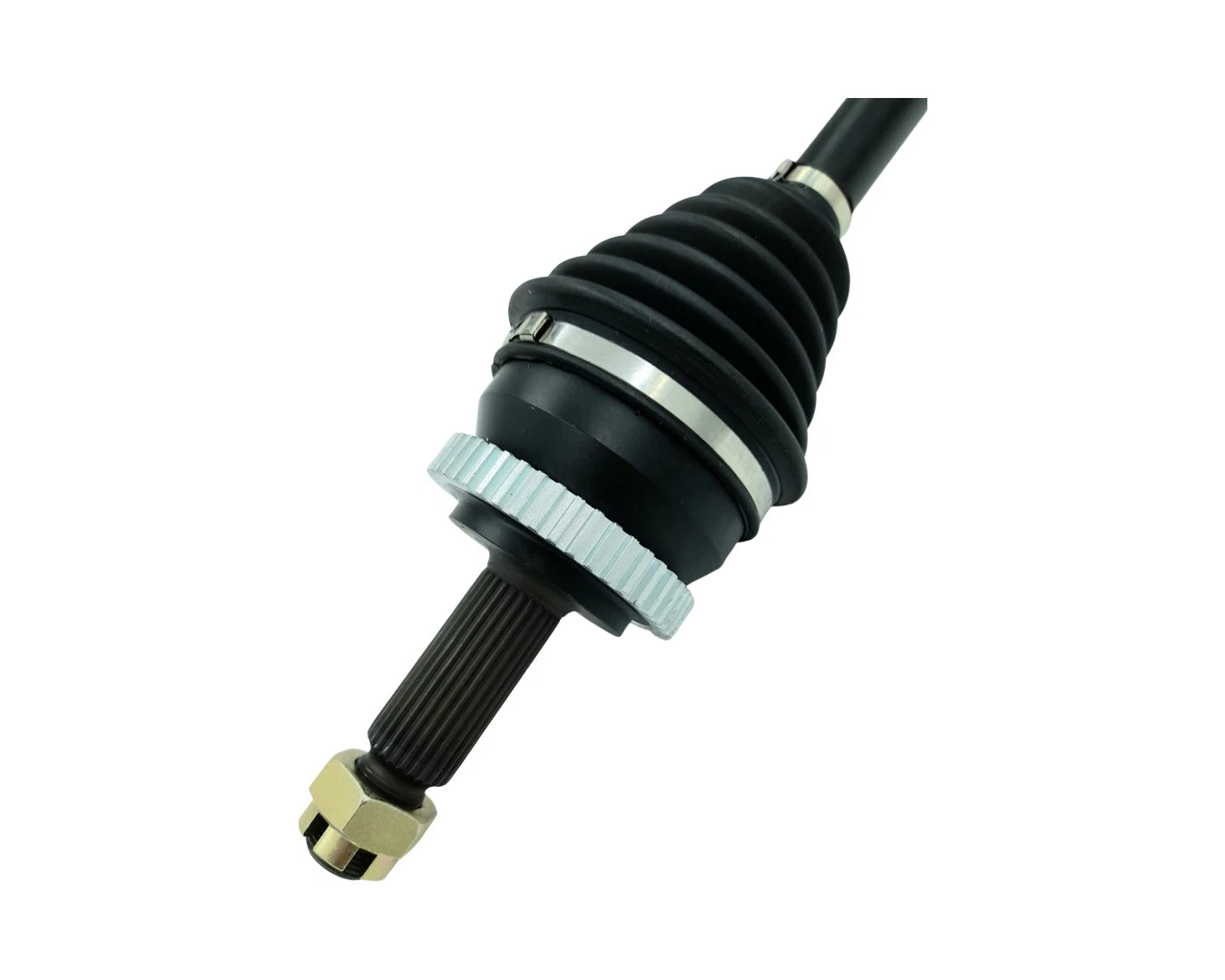

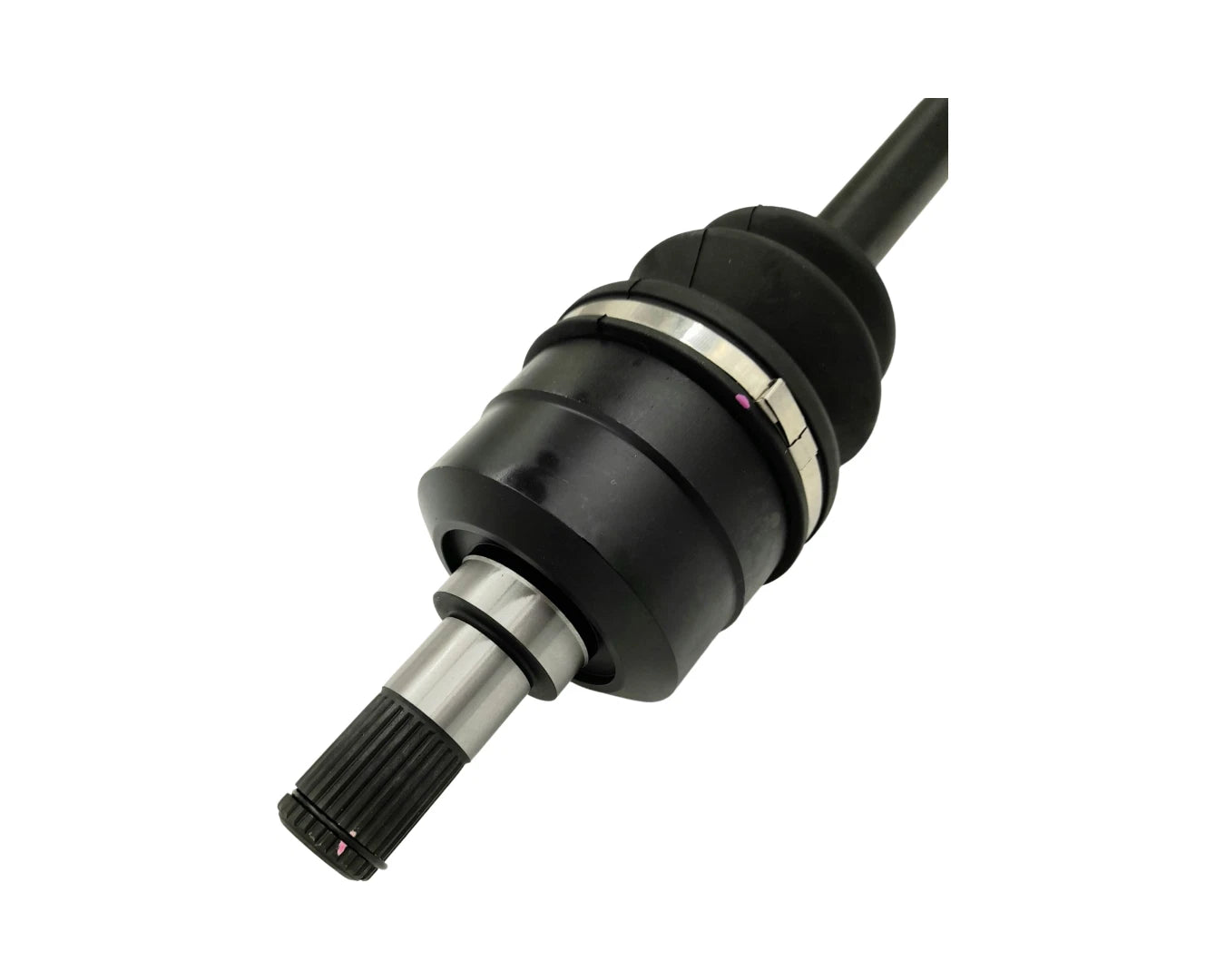

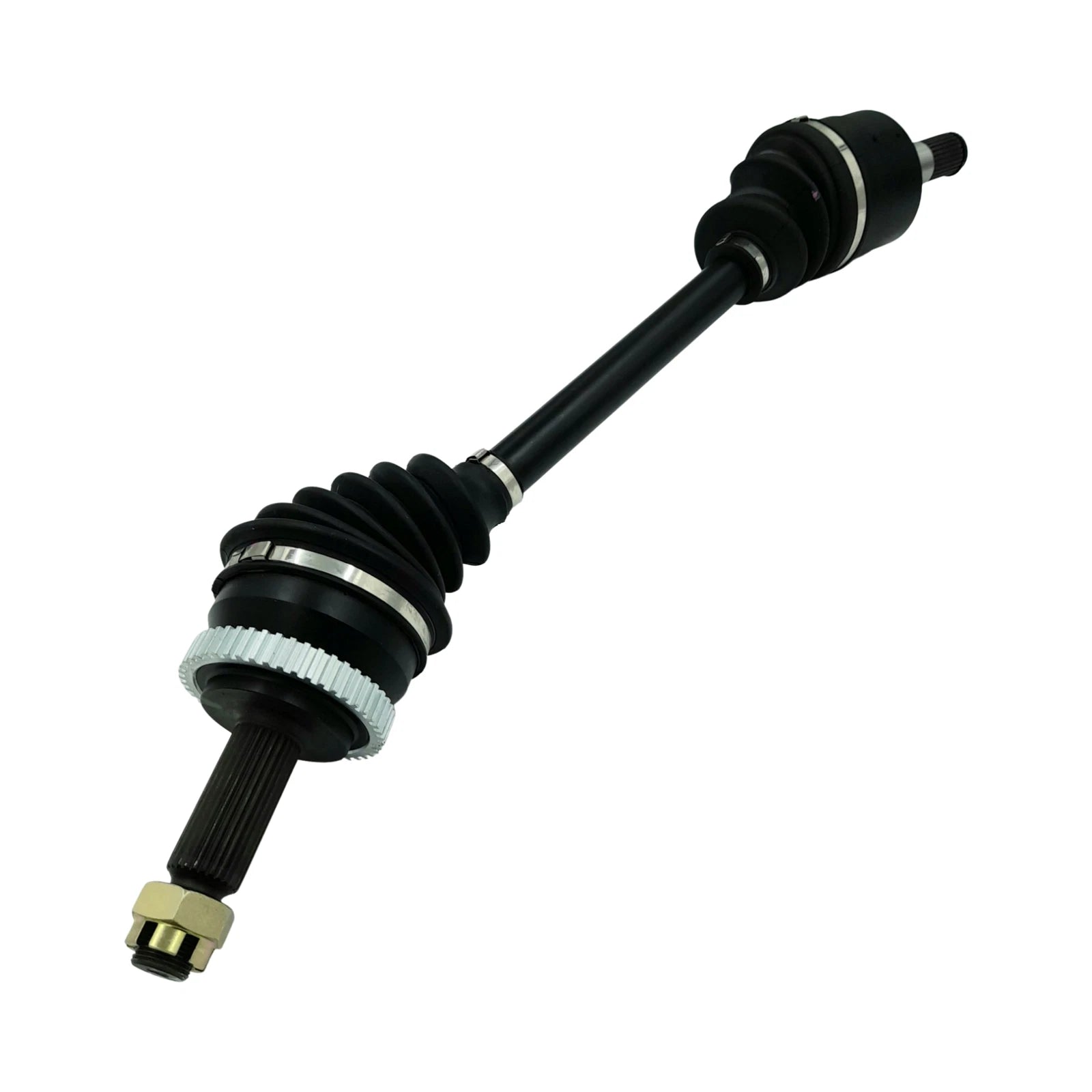

LH Front CV Axle Shaft for Hyundai ix35, Tucson & Kia Sportage 2004-2013

PRODUCT OVERVIEW

Left hand front CV joint axle drive shaft engineered to OEM specifications for selected Hyundai ix35, Hyundai Tucson and Kia Sportage automatic models from 2004-2013.

INCLUDED

• 1 x complete CV axle shaft assembly

KEY FEATURES

• Built to OEM standards using heat-treated chrome steel for maximum durability
• High-quality neoprene dust boots with stainless steel clamps to minimise contamination
• Filled with high-performance moly grease for smooth operation at varying angles and speeds
• Designed for direct replacement of the original front left automatic CV axle shaft

SPECIFICATIONS

• Position: Front left (driver side in RHD markets)
• Transmission: Automatic
• Length (compressed): 668 mm
• Spline count – outer / wheel side: 27 teeth
• Spline count – inner / diff side: 27 teeth
• ABS ring: 48 teeth
• Hub nut: M22 x 1.5

VEHICLE COMPATIBILITY

• Hyundai ix35 LM (2010-2013) 2.4L G4KE
• Hyundai Tucson (2004-2010) 2.0L G4GC, 2.0L D4EA, 2.7L G6BA
• Kia Sportage (2005-2010) 2.0L G4GC, 2.7L G6BA

Always confirm spline counts, dimensions and transmission type against your original part before purchase.

WARRANTY

• 12 month / 20,000 km warranty on CV driveshaft assembly
• CV boots warranted for 3 months from date of purchase
