  • LH CV Joint & Axle Shaft for Toyota LandCruiser 80/105 Series 1990–4/1994

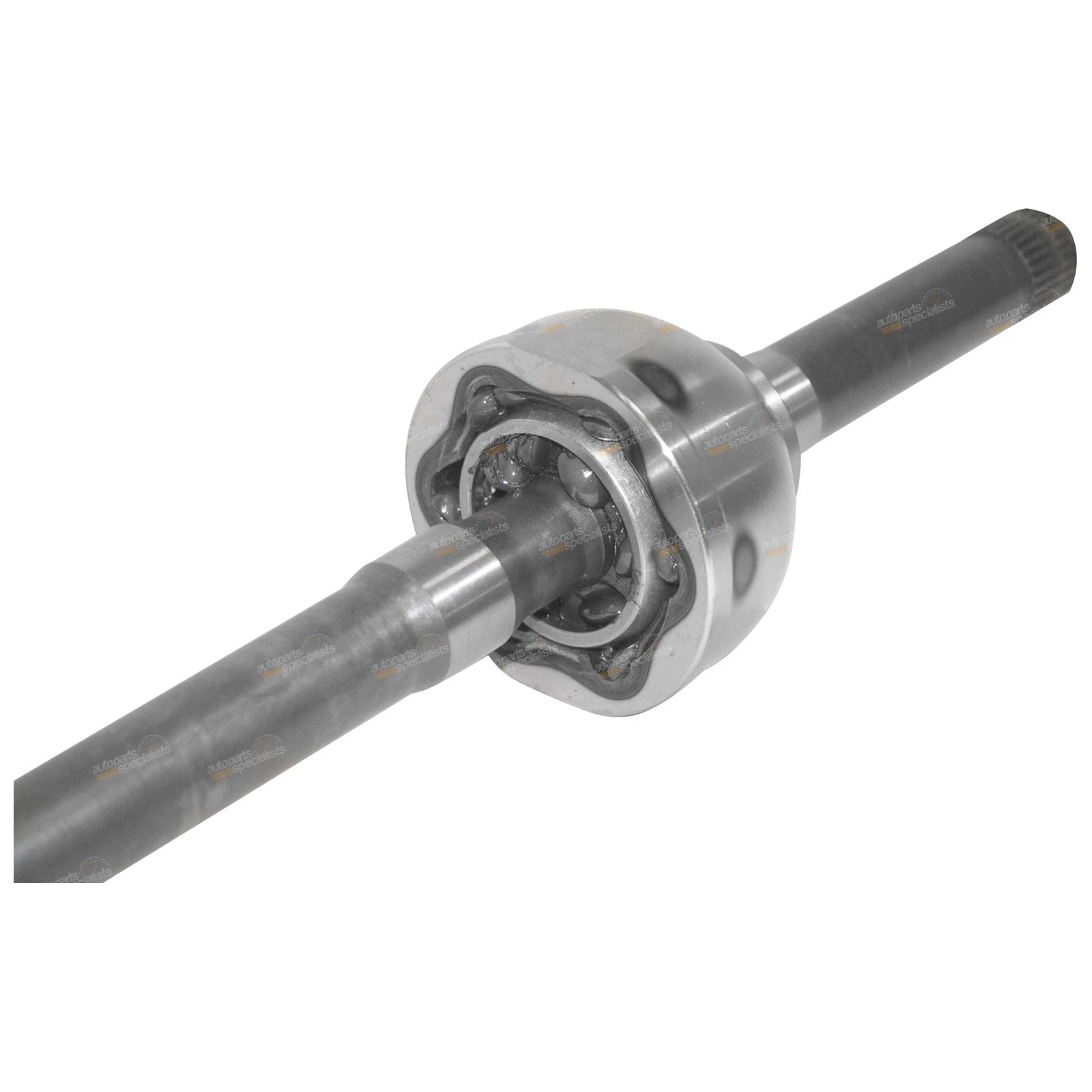

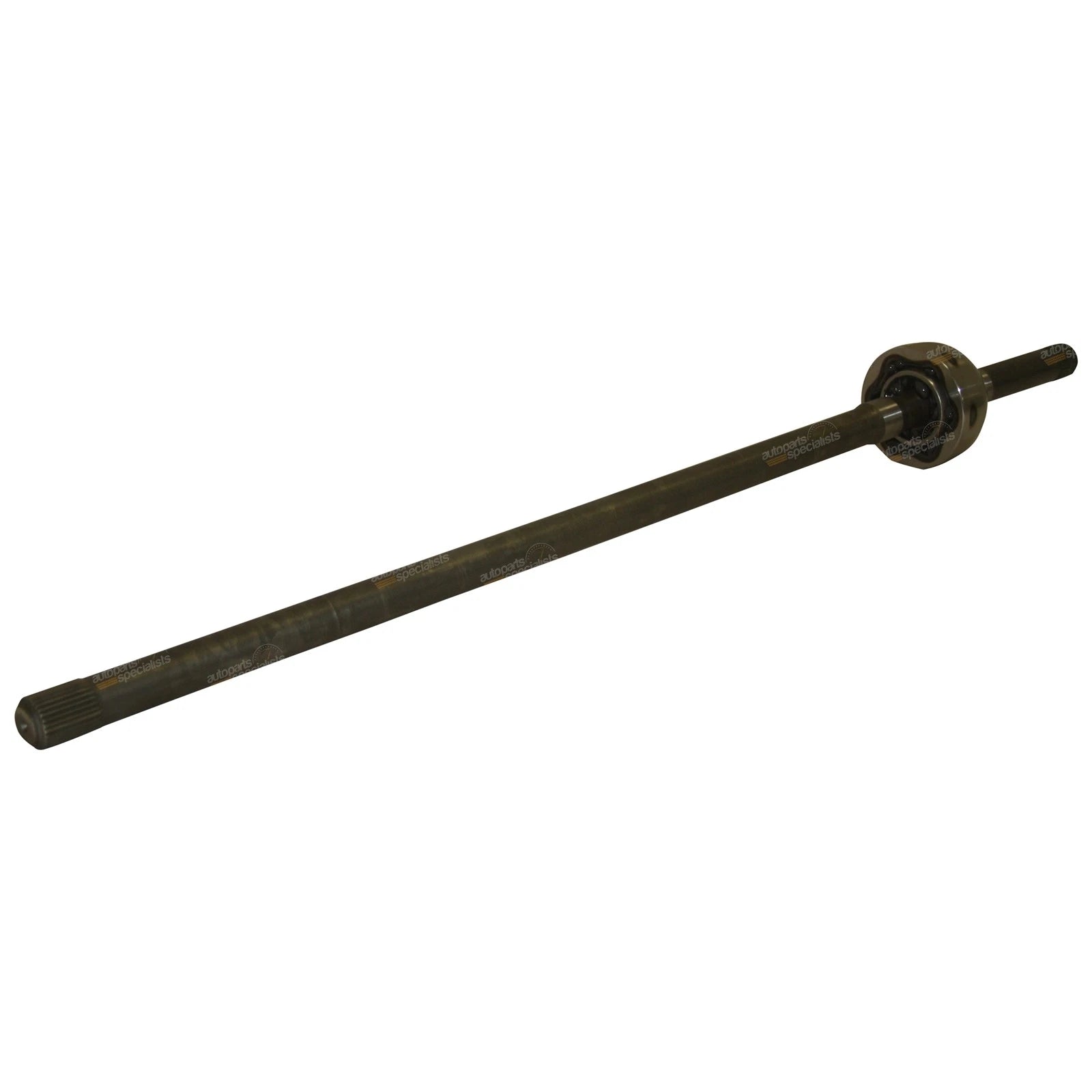

Left CV joint and axle shaft for Toyota LandCruiser 80/105 Series 1990–4/1994, outer joint and shaft
LH CV Joint & Axle Shaft for Toyota LandCruiser 80/105 Series 1990–4/1994
LH CV Joint & Axle Shaft for Toyota LandCruiser 80/105 Series 1990–4/1994
Click to zoom in
Load image into Gallery viewer, Left CV joint and axle shaft for Toyota LandCruiser 80/105 Series 1990–4/1994, outer joint and shaft
Load image into Gallery viewer, LH CV Joint & Axle Shaft for Toyota LandCruiser 80/105 Series 1990–4/1994
Load image into Gallery viewer, LH CV Joint & Axle Shaft for Toyota LandCruiser 80/105 Series 1990–4/1994

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Mounting, Balancing

  • Fast Delivery

    Get your order delivered at lightning speed

LH CV Joint & Axle Shaft for Toyota LandCruiser 80/105 Series 1990–4/1994

2 8
266842808347
In stock
Transmission & Drivetrain
A$285.12
PRODUCT OVERVIEW Brand new high-quality left-hand CV joint (Birfield) and CV axle shaft assembly. This unit...
A$285.12
customers are viewing this product
LH CV Joint & Axle Shaft for Toyota LandCruiser 80/105 Series 1990–4/1994
Description

PRODUCT OVERVIEW

Brand new high-quality left-hand CV joint (Birfield) and CV axle shaft assembly. This unit is the longer of the two front shafts and is supplied as an outer joint plus shaft.

KEY FEATURES

  • Complete LH outer CV joint and axle shaft assembly
  • Birfield-style constant velocity joint for smooth power delivery
  • Direct replacement for worn or damaged factory components
  • Engineered for durability and long service life

VEHICLE APPLICATION

Suitable for selected Toyota LandCruiser models as outlined below. Always confirm compatibility with your specific vehicle details.

  • LandCruiser 80 Series up to 4/1994
  • LandCruiser 105 Series with free wheeling hub only
  • Series codes: FJ80R, FZJ105, FZJ80R, HDJ80R, HZJ105R, HZJ80R

This is a vehicle-specific part. Check all model, series and hub details before ordering.

SPECIFICATIONS

  • Position: Left-hand (driver side in RHD vehicles)
  • Assembly type: Outer CV joint + axle shaft
  • Configuration: Front axle, longer shaft

REFERENCE NUMBERS

  • Part reference: CVA989
  • Part reference: ZPN-03025

NOTES

  • Professional installation is recommended.
  • Compare the existing part and reference numbers to ensure correct fitment.

Vehicle Compatibility

Make Model Series Years Badge Engine Details Gearing Drive Position
Toyota Landcruiser FJ80R 1990-1992 incl.: GXL, Standard 6 cyl 3F 4.0L 3955cc 5 speed Manual 4X4 Front LH
Toyota Landcruiser FJ80R 1990-1992 incl.: GXL, Sahara 6 cyl 3F-E 4.0L 3955cc 4 speed Automatic 4X4 Front LH
Toyota Landcruiser FZJ80R 1992-1993 incl.: GXL, Sahara 6 cyl 1FZ-FE 4.5L 4477cc 4 speed Automatic 4X4 Front LH
Toyota Landcruiser FZJ80R 1/1994-4/1994 incl.: Blue Marlin, GXL, Sahara 6 cyl 1FZ-FE 4.5L 4477cc 4 speed Automatic 4X4 Front LH
Note1:only suits only up to 4/1994
Toyota Landcruiser FZJ80R 1992-1993 incl.: GXL, RV 6 cyl 1FZ-FE 4.5L 4477cc 5 speed Manual 4X4 Front LH
Toyota Landcruiser FZJ80R 1/1994-4/1994 incl.: Blue Marlin, GXL, RV 6 cyl 1FZ-FE 4.5L 4477cc 5 speed Manual 4X4 Front LH
Note1:only suits only up to 4/1994
Toyota Landcruiser HDJ80R 1990-1993 incl.: GXL, Sahara 6 cyl 1HD-T 4.2L 4164cc 4 speed Automatic 4X4 Front LH
Toyota Landcruiser HDJ80R 1/1994-4/1994 incl.: GXL, Sahara 6 cyl 1HD-T 4.2L 4164cc 4 speed Automatic 4X4 Front LH
Note1:only suits only up to 4/1994
Toyota Landcruiser HDJ80R 1990-1993 incl.: GXL, Sahara 6 cyl 1HD-T 4.2L 4164cc 5 speed Manual 4X4 Front LH
Toyota Landcruiser HDJ80R 1/1994-4/1994 incl.: GXL 6 cyl 1HD-T 4.2L 4164cc 5 speed Manual 4X4 Front LH
Note1:only suits only up to 4/1994
Toyota Landcruiser HZJ80R 1990-1993 incl.: GXL, Standard 6 cyl 1HZ 4.2L 4164cc 5 speed Manual 4X4 Front LH
Toyota Landcruiser HZJ80R 1/1994-4/1994 incl.: DX, GXL, Standard 6 cyl 1HZ 4.2L 4164cc 5 speed Manual 4X4 Front LH
Note1:only suits only up to 4/1994

Make Model Year Submodel Variant Engine Notes
Toyota LandCruiser 1994 J80 SUV 4.2 D (HZJ80) AWD Diesel 4.2L 6cyl 94kW 1H-Z 4164cc 94kW (Diesel) HZJ80R;6 cyl Diesel 1HZ 4.2L;4X4 Wagon;only suits only up to 4/1994;Front LH Read more Read more compatibility notes
Toyota LandCruiser 1994 J80 SUV 4.5 EFi 4WD (FZJ80) AWD Petrol 4.5L 6cyl 158kW 1FZ-FE 4477cc 158kW (Petrol) FZJ80R;6 cyl Petrol 1FZ-FE 4.5L;4X4 Wagon;only suits only up to 4/1994;Front LH Read more Read more compatibility notes
Toyota LandCruiser 1994 SUV 4.2 TD (HDJ80, HDJ81) AWD Diesel 4.2L 6cyl 123kW 1HD-T 4164cc 123kW (Diesel) HDJ80R;6 cyl Turbo Diesel 1HD-T 4.2L;4X4 Wagon;only suits only up to 4/1994;Front LH Read more Read more compatibility notes
Toyota LandCruiser 1993 J80 SUV 4.2 D (HZJ80) AWD Diesel 4.2L 6cyl 94kW 1H-Z 4164cc 94kW (Diesel) HZJ80R;6 cyl Diesel 1HZ 4.2L;4X4 Wagon;Front LH
Toyota LandCruiser 1993 J80 SUV 4.5 EFi 4WD (FZJ80) AWD Petrol 4.5L 6cyl 158kW 1FZ-FE 4477cc 158kW (Petrol) FZJ80R;6 cyl Petrol 1FZ-FE 4.5L;4X4 Wagon;Front LH
Toyota LandCruiser 1993 SUV 4.2 TD (HDJ80, HDJ81) AWD Diesel 4.2L 6cyl 123kW 1HD-T 4164cc 123kW (Diesel) HDJ80R;6 cyl Turbo Diesel 1HD-T 4.2L;4X4 Wagon;Front LH
Toyota LandCruiser 1992 J80 SUV 4.0 (FJ80) AWD Petrol 4.0L 6cyl 110kW 3F 3956cc 110kW (Petrol) FJ80R;6 cyl Petrol 3F 4.0L;4X4 Wagon;Front LH
Toyota LandCruiser 1992 J80 SUV 4.2 D (HZJ80) AWD Diesel 4.2L 6cyl 94kW 1H-Z 4164cc 94kW (Diesel) HZJ80R;6 cyl Diesel 1HZ 4.2L;4X4 Wagon;Front LH
Toyota LandCruiser 1992 J80 SUV 4.5 EFi 4WD (FZJ80) AWD Petrol 4.5L 6cyl 158kW 1FZ-FE 4477cc 158kW (Petrol) FZJ80R;6 cyl Petrol 1FZ-FE 4.5L;4X4 Wagon;Front LH
Toyota LandCruiser 1992 J80 SUV 4.0 EFi (FJ80) AWD Petrol 4.0L 6cyl 112kW 3F-E 3956cc 112kW (Petrol) FJ80R;6 cyl Petrol 3F-E 4.0L;4X4 Wagon;Front LH
Toyota LandCruiser 1992 SUV 4.2 TD (HDJ80, HDJ81) AWD Diesel 4.2L 6cyl 123kW 1HD-T 4164cc 123kW (Diesel) HDJ80R;6 cyl Turbo Diesel 1HD-T 4.2L;4X4 Wagon;Front LH
Toyota LandCruiser 1991 J80 SUV 4.0 (FJ80) AWD Petrol 4.0L 6cyl 110kW 3F 3956cc 110kW (Petrol) FJ80R;6 cyl Petrol 3F 4.0L;4X4 Wagon;Front LH
Toyota LandCruiser 1991 J80 SUV 4.2 D (HZJ80) AWD Diesel 4.2L 6cyl 94kW 1H-Z 4164cc 94kW (Diesel) HZJ80R;6 cyl Diesel 1HZ 4.2L;4X4 Wagon;Front LH
Toyota LandCruiser 1991 J80 SUV 4.0 EFi (FJ80) AWD Petrol 4.0L 6cyl 112kW 3F-E 3956cc 112kW (Petrol) FJ80R;6 cyl Petrol 3F-E 4.0L;4X4 Wagon;Front LH
Toyota LandCruiser 1991 SUV 4.2 TD (HDJ80, HDJ81) AWD Diesel 4.2L 6cyl 123kW 1HD-T 4164cc 123kW (Diesel) HDJ80R;6 cyl Turbo Diesel 1HD-T 4.2L;4X4 Wagon;Front LH
Toyota LandCruiser 1990 J80 SUV 4.0 (FJ80) AWD Petrol 4.0L 6cyl 110kW 3F 3956cc 110kW (Petrol) FJ80R;6 cyl Petrol 3F 4.0L;4X4 Wagon;Front LH
Toyota LandCruiser 1990 J80 SUV 4.2 D (HZJ80) AWD Diesel 4.2L 6cyl 94kW 1H-Z 4164cc 94kW (Diesel) HZJ80R;6 cyl Diesel 1HZ 4.2L;4X4 Wagon;Front LH
Toyota LandCruiser 1990 J80 SUV 4.0 EFi (FJ80) AWD Petrol 4.0L 6cyl 112kW 3F-E 3956cc 112kW (Petrol) FJ80R;6 cyl Petrol 3F-E 4.0L;4X4 Wagon;Front LH
Toyota LandCruiser 1990 SUV 4.2 TD (HDJ80, HDJ81) AWD Diesel 4.2L 6cyl 123kW 1HD-T 4164cc 123kW (Diesel) HDJ80R;6 cyl Turbo Diesel 1HD-T 4.2L;4X4 Wagon;Front LH
