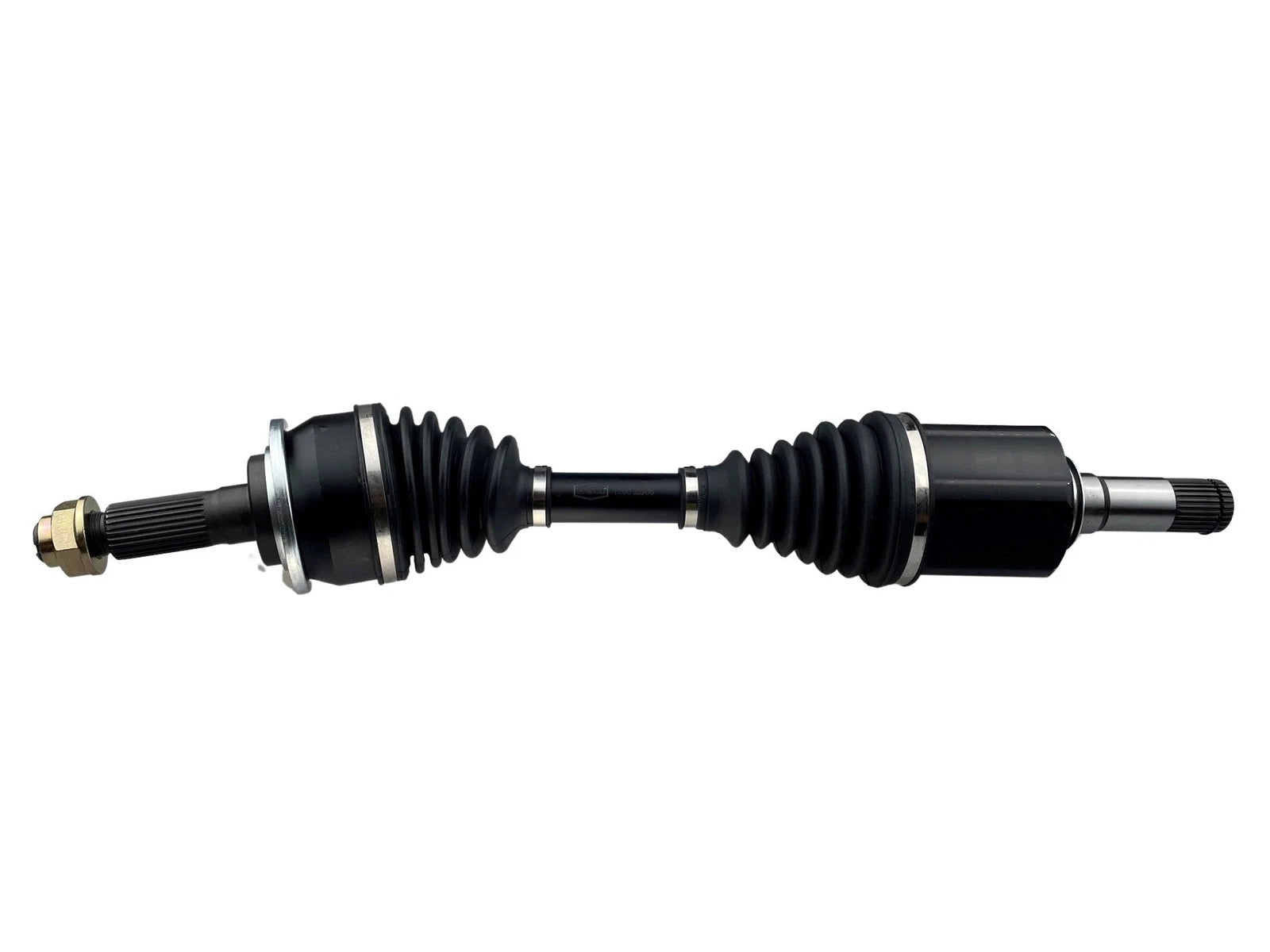

LH Front CV Joint Drive Shaft for Ford Ranger PX & Mazda BT-50 Raised

PRODUCT OVERVIEW

Left-hand front CV axle drive shaft for 4WD automatic and manual models, designed for vehicles raised up to 40mm. Features an additional 10mm extended travel to cater for increased suspension movement.

KEY FEATURES

• Engineered to OEM specifications for direct fit and reliable performance
• Heat-treated chrome steel construction for strength and durability
• High-quality neoprene dust boots with stainless steel clamps to resist contamination
• Molybdenum grease for smooth operation at varying angles, speeds and high RPM
• Inner joint design provides 10mm extended travel for raised suspension applications (up to 40mm lift)

VEHICLE COMPATIBILITY

• Ford Ranger PX1, PX2, PX3 4WD MAN / AUTO (09/2011-06/2022)
  Engines: 2.0L Y2NS, 2.2L P4AT, 3.2L P5AT
  Sub-models include XL, XLS, XL PLUS, XLT, Wildtrak, Super Cab XL, Sport, FX4, Limited
  Does not fit Raptor or Raptor X models
• Mazda BT-50 UP / UR 3.2L P5AT 4WD MAN / AUTO (11/2011-07/2020)
  Models include XT, GT, XTR, XT Freestyle Cab, XTR Freestyle Cab, Boss

TECHNICAL SPECIFICATIONS

• Position: Front left (LH), CV axle drive shaft
• Drivetrain: 4WD
• Spline count (wheel end): 28
• Spline count (diff side): 29
• Nut: M24 x 1.5
• Overall length: 610.0 mm + 10 mm extended travel (inner joint)
• Suitable for vehicles raised up to approximately 40 mm

WHAT'S INCLUDED

• 1 x complete left-hand CV driveshaft assembly

WARRANTY

• 12 month / 20,000 km warranty on CV driveshaft assembly
• CV boots warranted for 3 months from date of purchase
