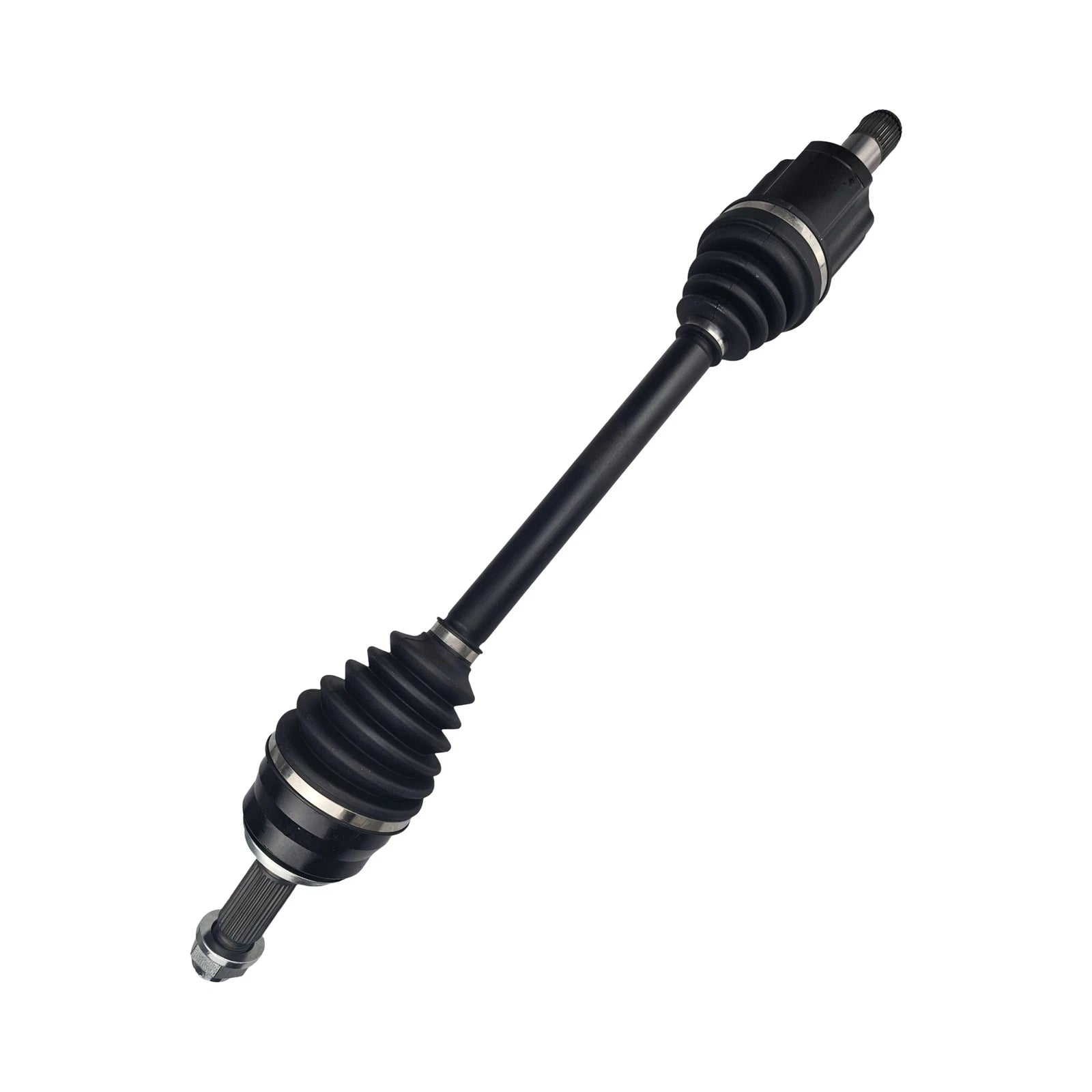

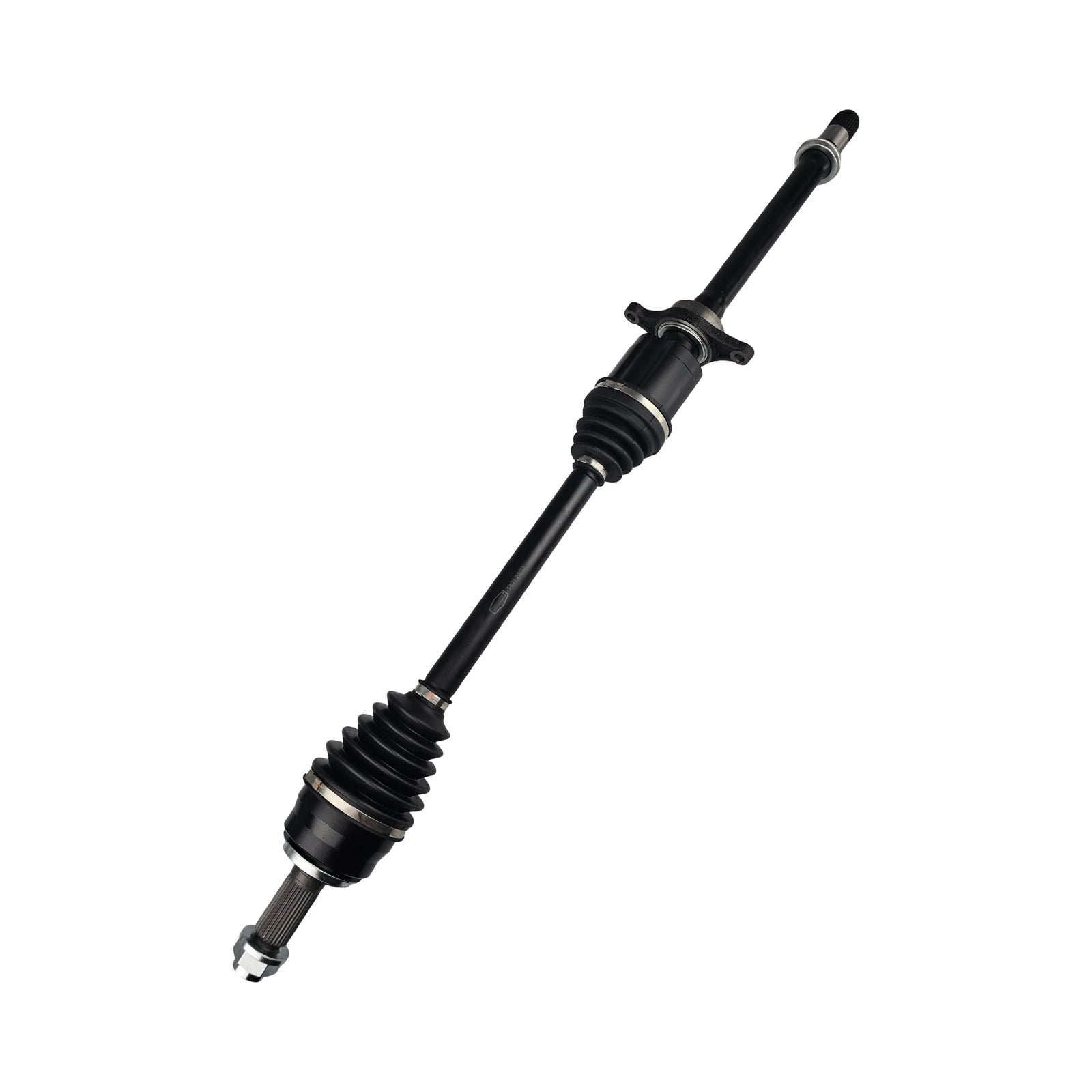

LH RH CV Axle Drive Shafts for Honda Odyssey RC K24W7 02/2014-On

PRODUCT OVERVIEW

Left and right CV axle drive shafts designed for CVT FWD applications, built to OEM-style specifications for durability and smooth power delivery.

KEY FEATURES

• Complete LH and RH CV axle shafts for front-wheel drive
• Heat-treated chrome steel construction for strength and longevity
• High-quality neoprene dust boots with stainless steel clamps to resist contamination
• Molybdenum grease for reduced friction at varying angles and speeds
• Manufactured to OEM-style specifications for reliable fit and performance

VEHICLE APPLICATION

Suitable for Honda Odyssey RC 2.4L K24W7 I4 16V DOHC i-VTEC from 02/2014-on.

• Transmission: CVT
• Drive type: Front-wheel drive (FWD)
• Models include: VTi, VTi-L

Important: Always confirm compatibility with your specific vehicle variant and build date before purchase.

SPECIFICATIONS - LEFT HAND SIDE

• Length (compressed): 723 mm
• Spline count outer / wheel side: 30T
• Spline count inner / diff side: 31T
• Inboard joint type: Tripod
• Outboard joint type: Ball

SPECIFICATIONS - RIGHT HAND SIDE

• Length (compressed): 1040 mm
• Spline count outer / wheel side: 30T
• Spline count inner / diff side: 31T
• Inboard joint type: Tripod
• Outboard joint type: Ball

WHAT'S INCLUDED

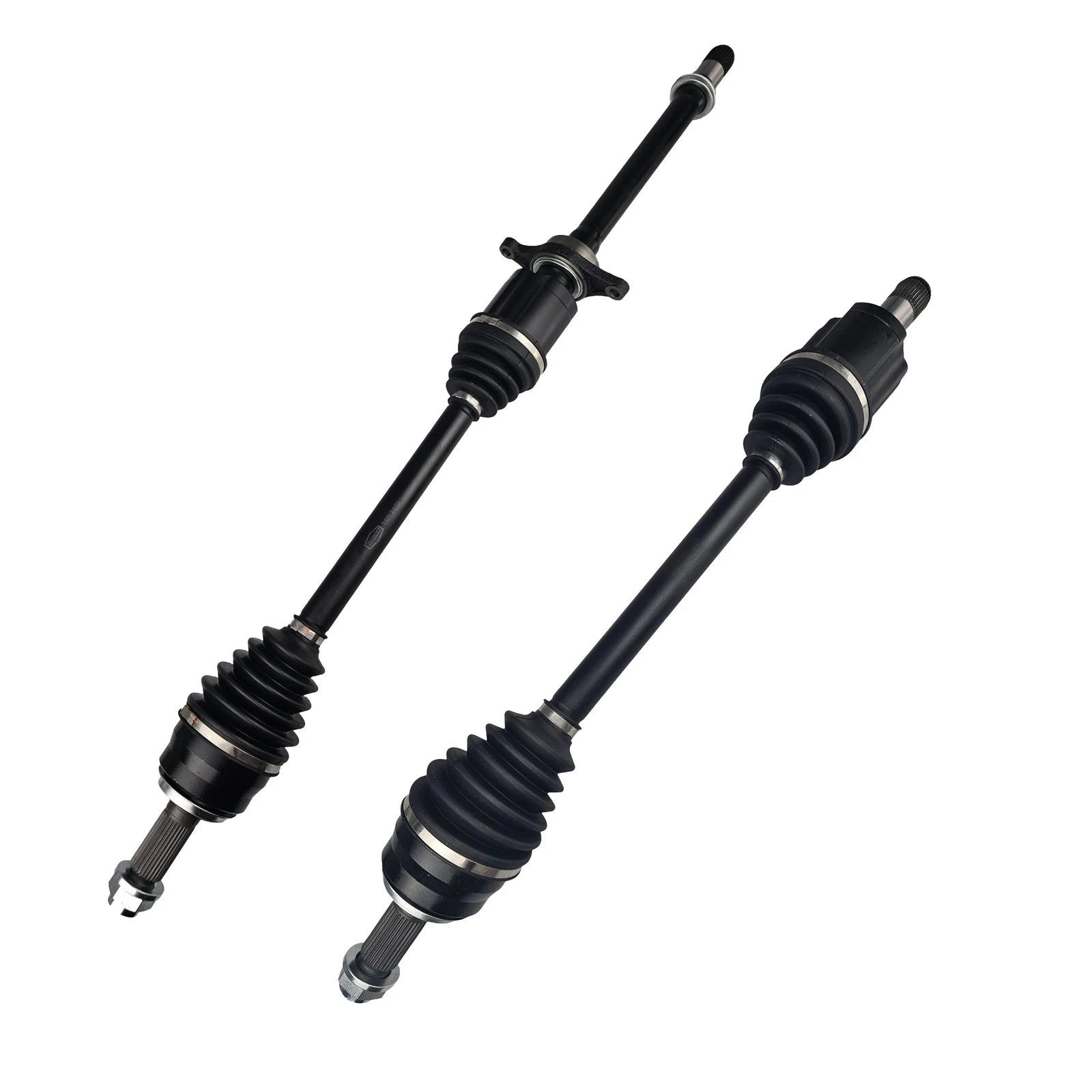

• 2 x CV axle shafts (left and right hand side)

QUALITY & WARRANTY

Part of a comprehensive range of constant velocity driveshafts engineered for the driveline aftermarket. The range covers a wide selection of passenger and 4WD applications and is backed by a 12 month / 20,000 km warranty on CV driveshafts.

Warranty note: CV boots are warranted for 3 months from date of purchase.
