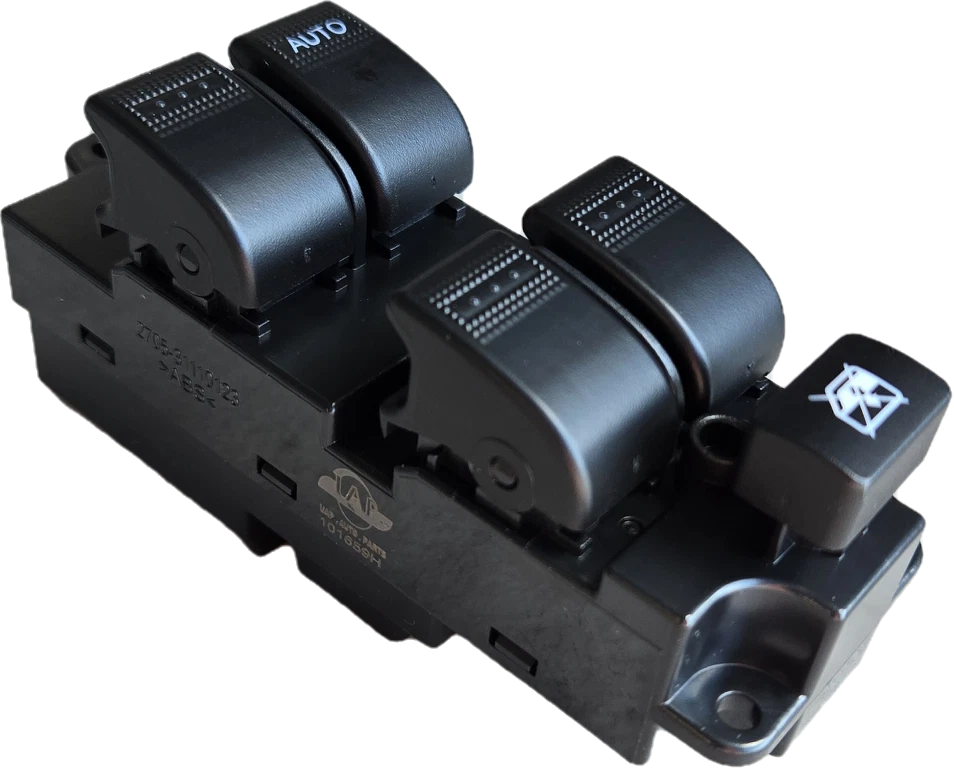

Front Right Master Window Switch 11+4 Pin for Ford Ranger, Mazda BT-50

PRODUCT OVERVIEW

This electric master window switch is designed for the front right (driver) side and provides reliable control of the power windows. It is a high-quality aftermarket replacement, supplied as a brand new unit.

KEY FEATURES

• Application: Master window switch
• Operating mode: Electric
• Placement on vehicle: Front right (driver side)

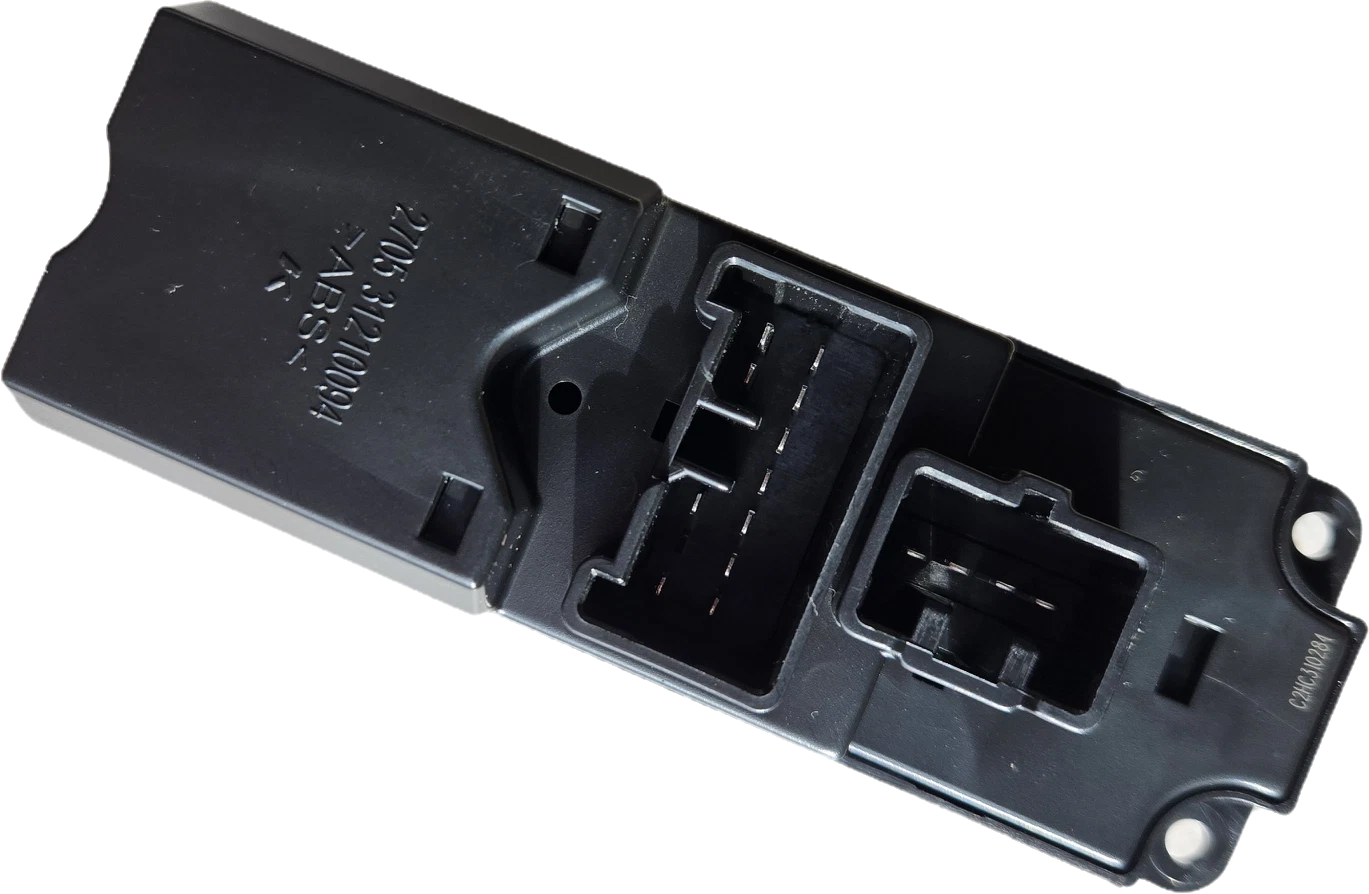

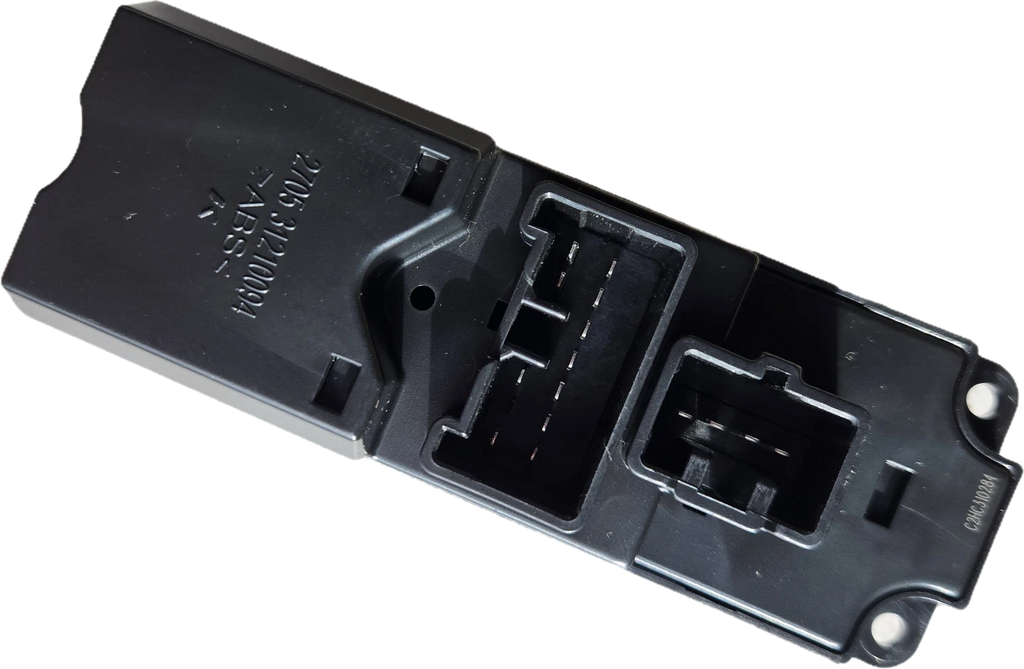

• Connector: 11 + 4 pins
• Condition: Brand new
• Specification: High quality aftermarket replacement
• MPN / Item No.: 101659H
• Reference OEM numbers: AB39-14540-AB, AB3914540AB
• Quantity supplied: 1 piece
• Manufacturer warranty: 3 months (part only)

VEHICLE FITMENT

• Ford Ranger PX 09/2011 - 03/2022
• Mazda BT-50 UP 07/2011 - 2015
• Mazda BT-50 UR 07/2015 - 07/2020

Fitment information is provided as a guide only. Always compare the part number, plug type (11+4 pins) and product images with your original switch before purchasing.

ANTI-PINCH FUNCTION SETUP (IF APPLICABLE)

For window regulator motors with anti-pinch and one-touch function, the motor must be correctly initialised after installation. Do not operate or test the motor before it is fully installed in the door, otherwise the anti-pinch function may fail and require resetting.

• The motors are tested and set before delivery.
• Install the motor and connect it to the one-touch window switch.
• Pull the switch up: the window should travel fully to the top.
• If the window drops after reaching the top, perform the reset procedure below.

ANTI-PINCH RESET PROCEDURE

• Step 1: Pull the window switch briefly so the window moves slightly up to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top position.
• Step 3: Press the switch briefly so the window moves slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom position.
• Step 5: Pull the one-touch switch to move the window fully up to the top.

The reset is complete if the window remains at the top and does not drop. If it still drops, repeat the steps until successful.

INSTALLATION & WARRANTY NOTES

• Intended for use as a replacement part for repair purposes.
• Installation by a qualified automotive technician is strongly recommended.
• Window regulator switches are covered by a 3-month manufacturer warranty (part only).
• Warranty covers replacement of the defective part only and excludes labour, misuse, incorrect installation, modification or damage.

Product images are for reference and may appear slightly different in colour due to screen and lighting variations. Always match the product and connector layout to your original switch before ordering.
