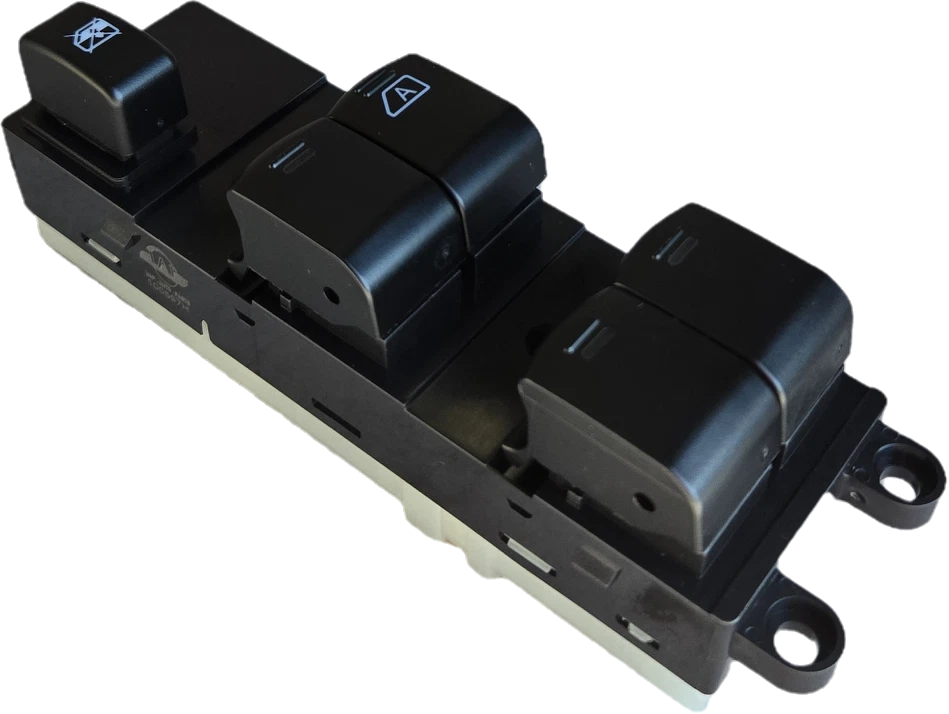

Master Power Window Switch Front Right 14+3 Pin for Nissan Navara D40 / Pathfinder R51

PRODUCT OVERVIEW

This front right master power window switch is a high-quality aftermarket replacement designed for selected Nissan models. It features a 14+3 pin configuration and is supplied as a brand new part.

KEY FEATURES

• Application: Master power window switch
• Operating mode: Electric
• Placement on vehicle: Front right (driver side in RHD vehicles)

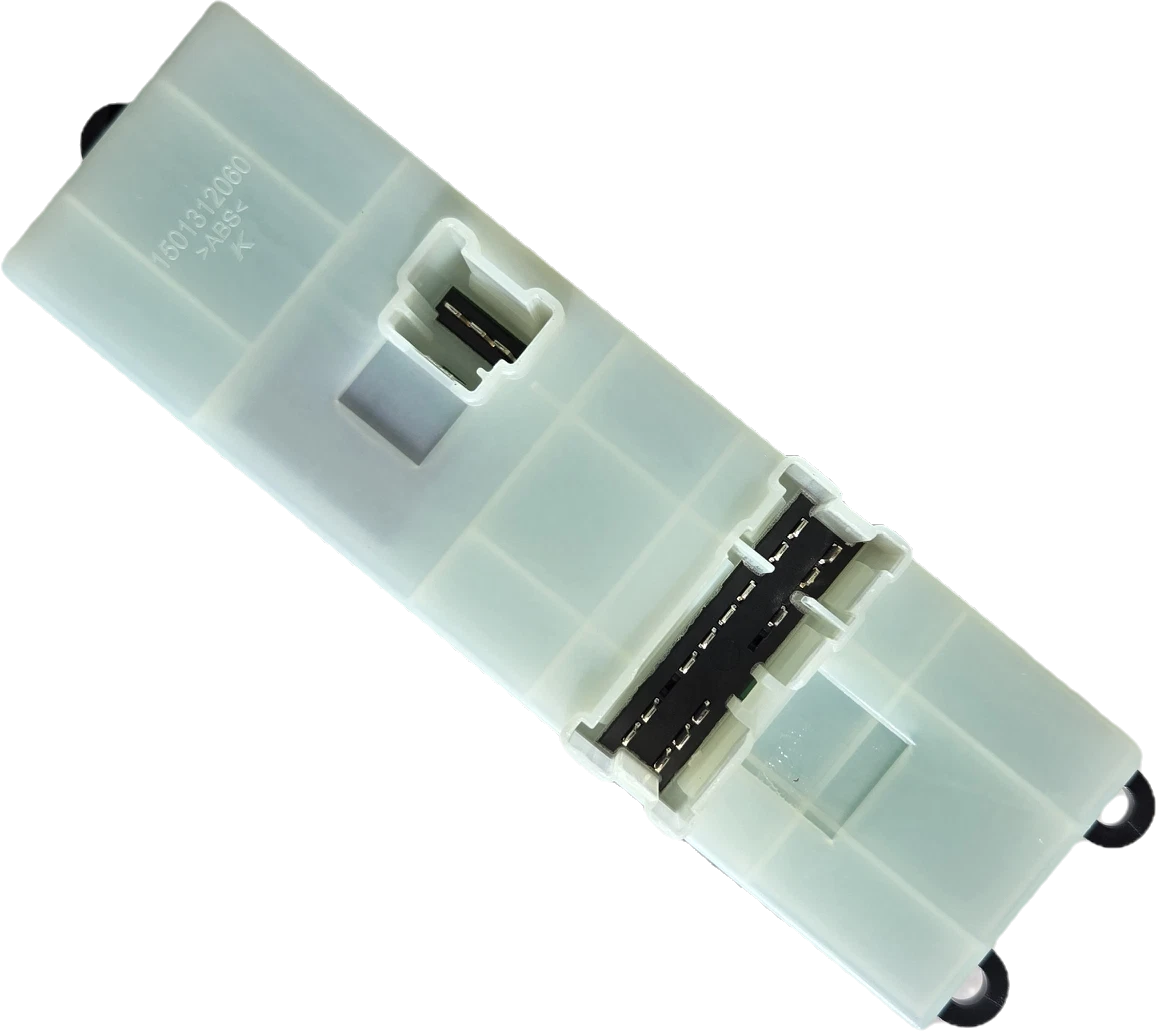

• Connector: 14+3 pin configuration
• Quality: High quality aftermarket replacement
• Condition: Brand new
• MPN / Item No.: 100597H
• Reference OEM numbers: 25401-EB30B, 25401EB30B
• Quantity supplied: 1 piece
• Manufacturer warranty: 3 months (part only)

VEHICLE COMPATIBILITY

• Nissan Navara D40 12/2005–10/2015, VIN: VSK (Spain built)
• Nissan Pathfinder R51 01/2005–10/2013, VIN: VSK (Spain built)
• Nissan Qashqai J10 08/2009–01/2016

Always compare the connector, pin count and appearance with your original switch and verify OEM numbers before purchasing.

ANTI-PINCH FUNCTION NOTICE

If used with a window regulator motor featuring an anti-pinch function, the motor must be correctly set up after installation.

• Do not test the motor before it is installed in the door, or the anti-pinch function may fail.
• Motors are pre-tested and set before dispatch, but may require resetting after installation.
• Install the motor and connect it to the one-touch window switch. Pull the switch up; the window should travel fully up.
• If the window drops down after reaching the top, perform the reset procedure below.

ANTI-PINCH RESET PROCEDURE

• Step 1: Pull the window switch briefly so the window moves slightly up to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top position.
• Step 3: Press the window switch briefly so the window moves slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom position.
• Step 5: Pull the one-touch switch to move the window fully up to the top and check that it no longer drops down.

If the window still drops after reaching the top, repeat the reset steps until the function operates correctly.

IMPORTANT NOTES

• This part is intended for repair and replacement purposes.
• Product colour may vary slightly due to lighting and screen settings.
• Images are of the actual product supplied; match them to your original part before ordering.
• For reliability and warranty validity, installation by a qualified automotive technician is strongly recommended.
