12V Universal Motorcycle Tachometer Speedometer Gauge with LED Backlight

OVERVIEW

This 12V universal motorcycle tachometer and speedometer gauge features a compact round design with LED backlighting for clear visibility in day or night riding conditions. It is suitable for most motorcycles; always verify dimensions and wiring before installation.

KEY FEATURES

• Universal 12V gauge for most motorcycle applications
• 0–13,000 RPM measurement range
• LED backlight with internal night light for low-light visibility
• Full-sweep red illuminated index on a high-contrast black face
• Lightweight, compact circular design
• General mechanical speed line interface

SPECIFICATIONS

• Measurement range: 0–13,000 RPM
• Input voltage: DC 12V
• Mirror diameter: approx. 58 mm (2.3 in)
• Outer diameter: approx. 68 mm (2.7 in)
• Body size: approx. 60 mm (2-3/8 in) x 56 mm (2-3/16 in)
• Color: silver housing with black face
• Instructions: not included

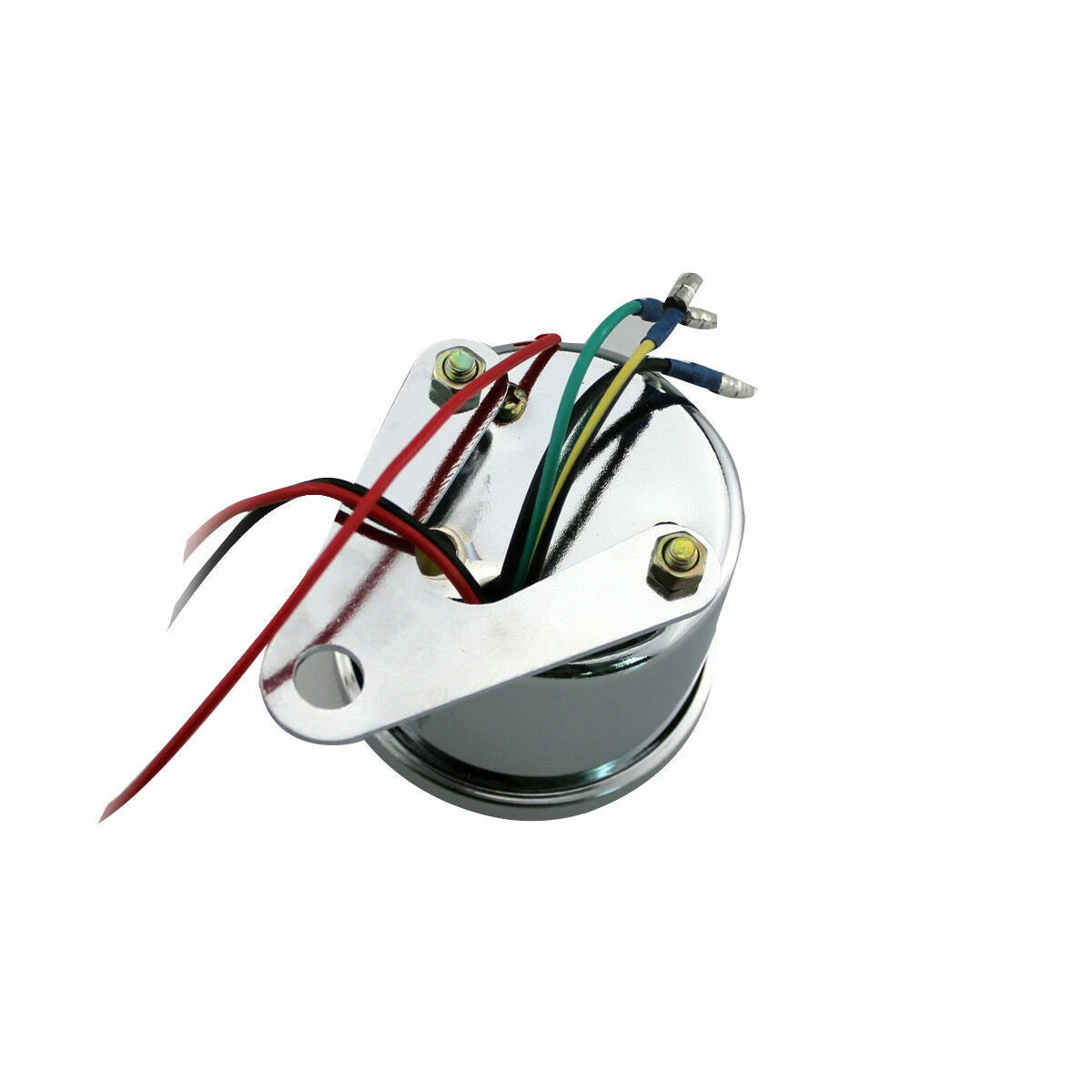

WIRE CONNECTION

• Long red wire: positive (+)
• Long black wire: negative (−)
• Short green wire: ground
• Short yellow/black wire: engine signal
• Short black wire: power / ignition lock positive

FITMENT NOTES

This is a universal gauge designed to fit many motorcycle models. Please check the dimensions, voltage, and wiring configuration of your motorcycle before purchase and installation.

PACKAGE CONTENTS

• 1 x 12V LED backlight motorcycle tachometer/speedometer gauge
