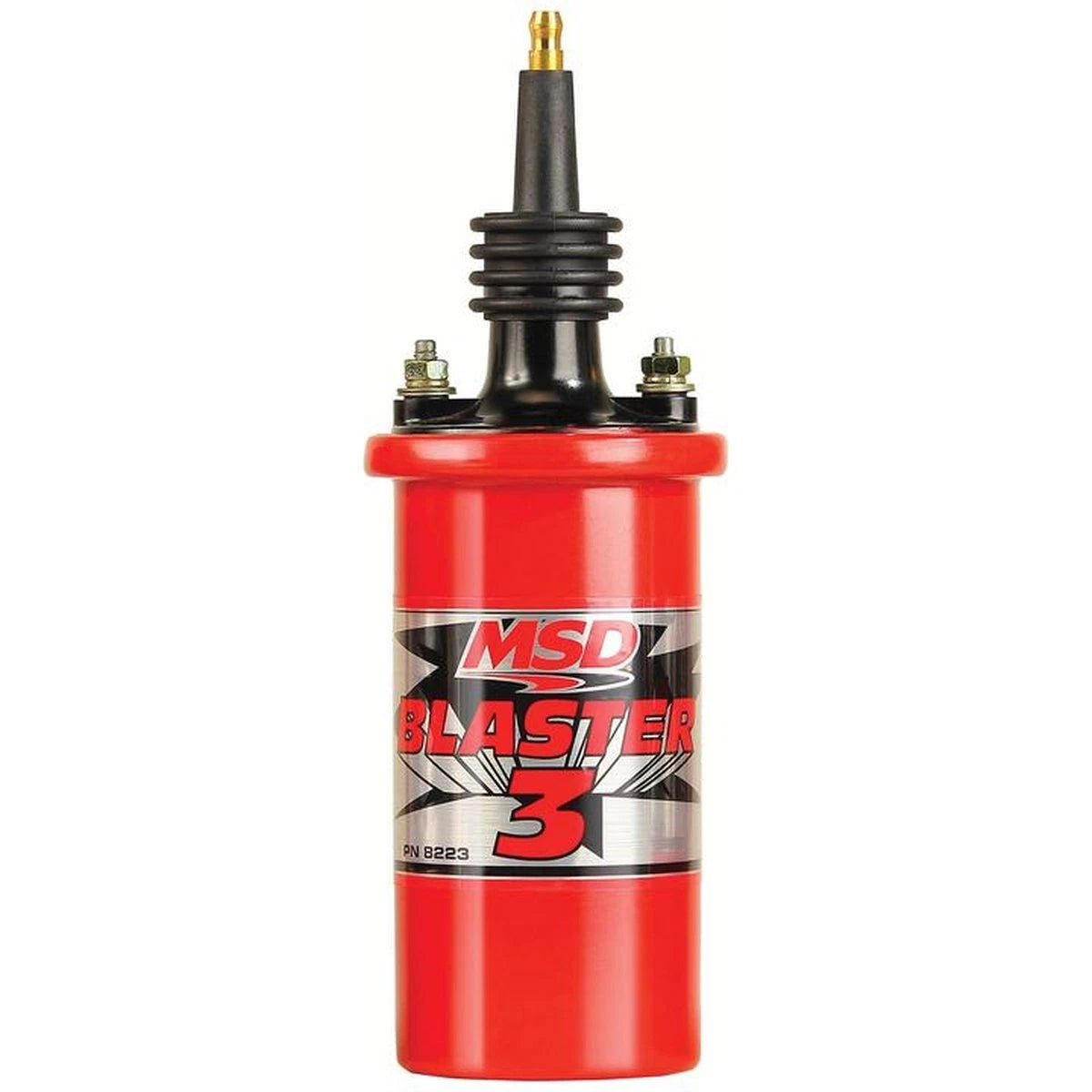

MSD Blaster 3 High Performance Ignition Coil MSD8223

PRODUCT OVERVIEW

The MSD Blaster 3 Ignition Coil MSD8223 is designed as a high performance upgrade for stock and MSD ignition systems. Featuring a high turns ratio and low primary resistance, it delivers increased spark energy and improved ignition performance in a durable, oil-filled metal canister design.

KEY FEATURES

• Extra tall secondary tower for a secure coil wire connection
• Improved output coil for electronic ignitions and MSD Ignition controls
• 100:1 turns ratio with low primary resistance for high voltage output
• Red metal canister filled with premium grade oil for efficient cooling
• Supplied with 90° spark plug style terminal and boot
• CARB E.O. approved for emissions compliance where applicable

APPLICATION NOTES

This coil can be used with a stock ignition, Blaster Ignition, or MSD 5, 6 and 7 Ignition Controls. Most late-model electronic ignitions do not require a ballast resistor; always check your ignition system and manufacturer specifications to confirm if a ballast resistor is required for your application. Certain systems, such as Mallory Unilite, do require a ballast resistor.

TECHNICAL SPECIFICATIONS

• Brand: MSD
• Part number: MSD8223
• Product type: Ignition coil
• Emission code: 1
• Inductance: 8 mH
• Maximum voltage: 45,000 V
• Peak current: 140 mA
• Primary resistance: 0.7 Ω
• Secondary resistance: 4.5 kΩ
• Spark duration: 350 µs
• Turns ratio: 100:1

FITMENT INFORMATION

No specific vehicle compatibility is provided for this part number. Always verify ignition coil specifications and mounting requirements against your vehicle before purchase or installation.
