Alternator 80A for Toyota Hilux Hiace Landcruiser Prado 1KD-FTV 12V

PRODUCT OVERVIEW

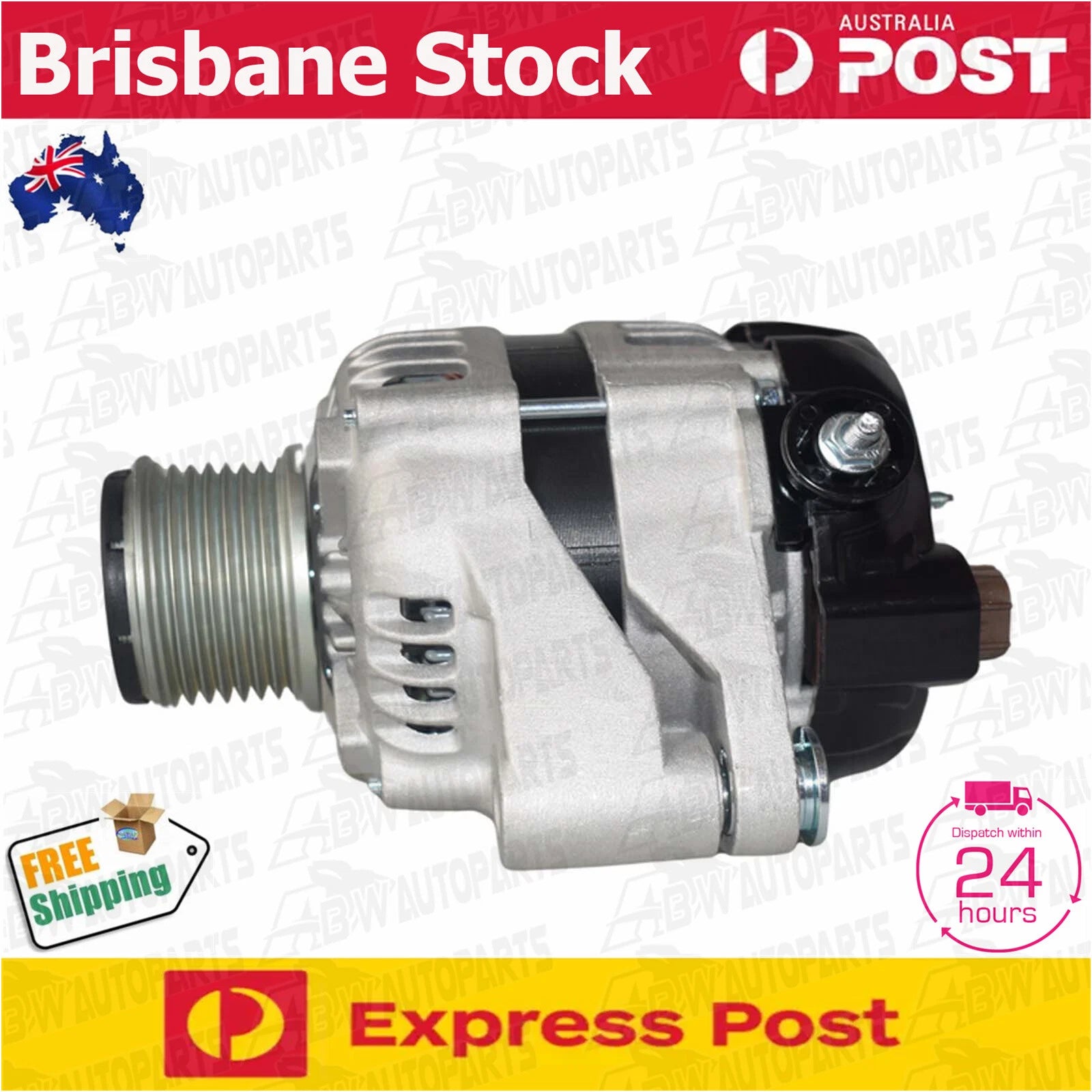

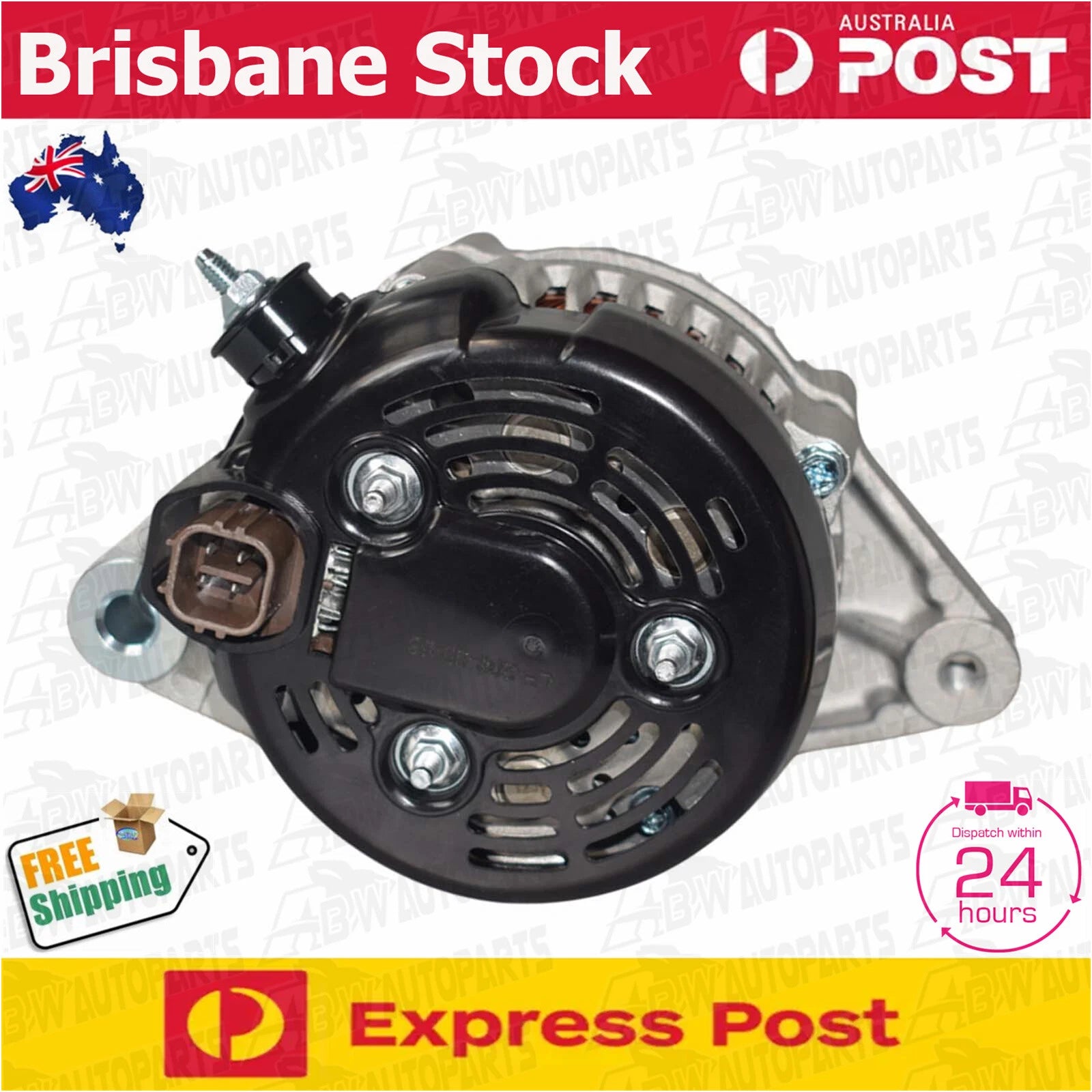

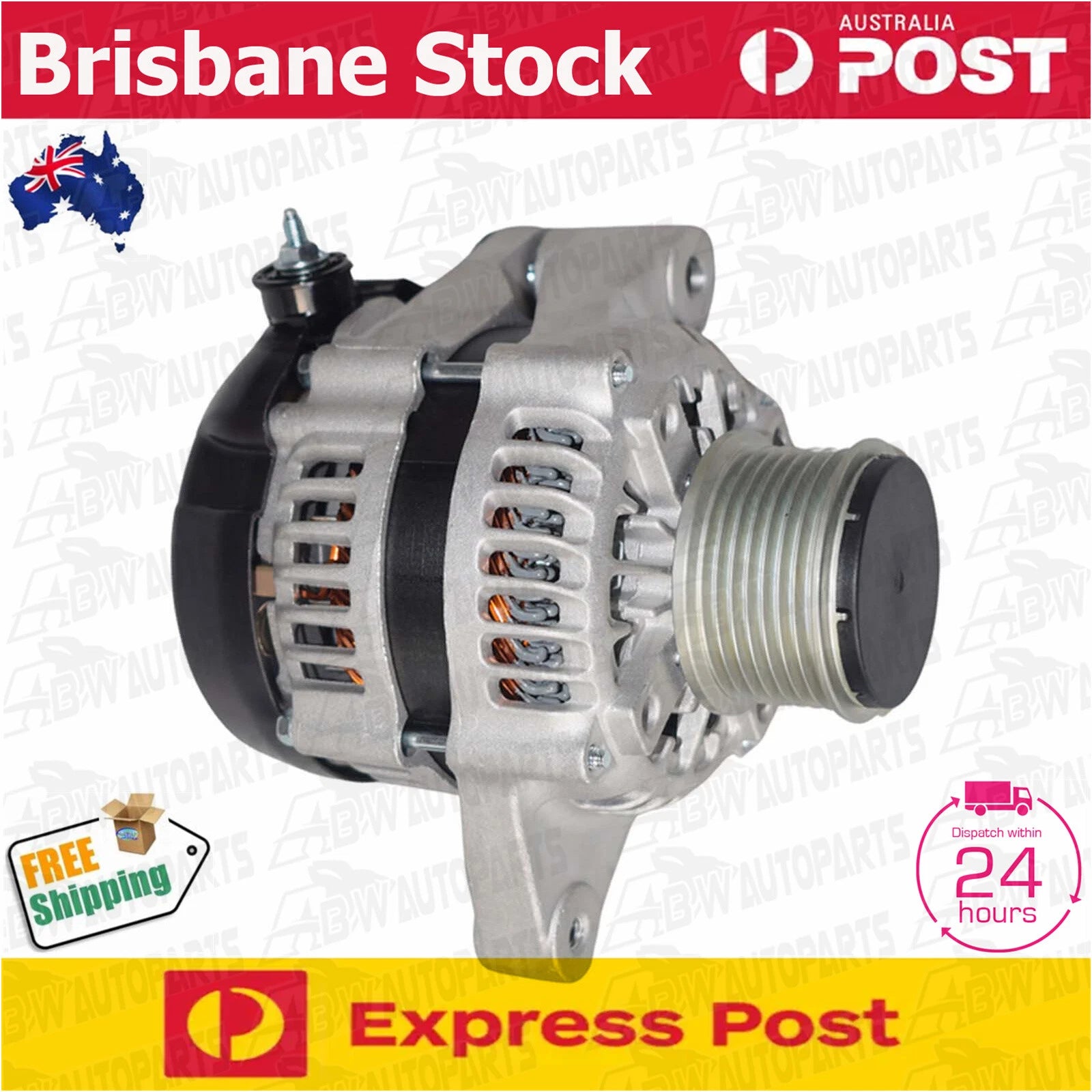

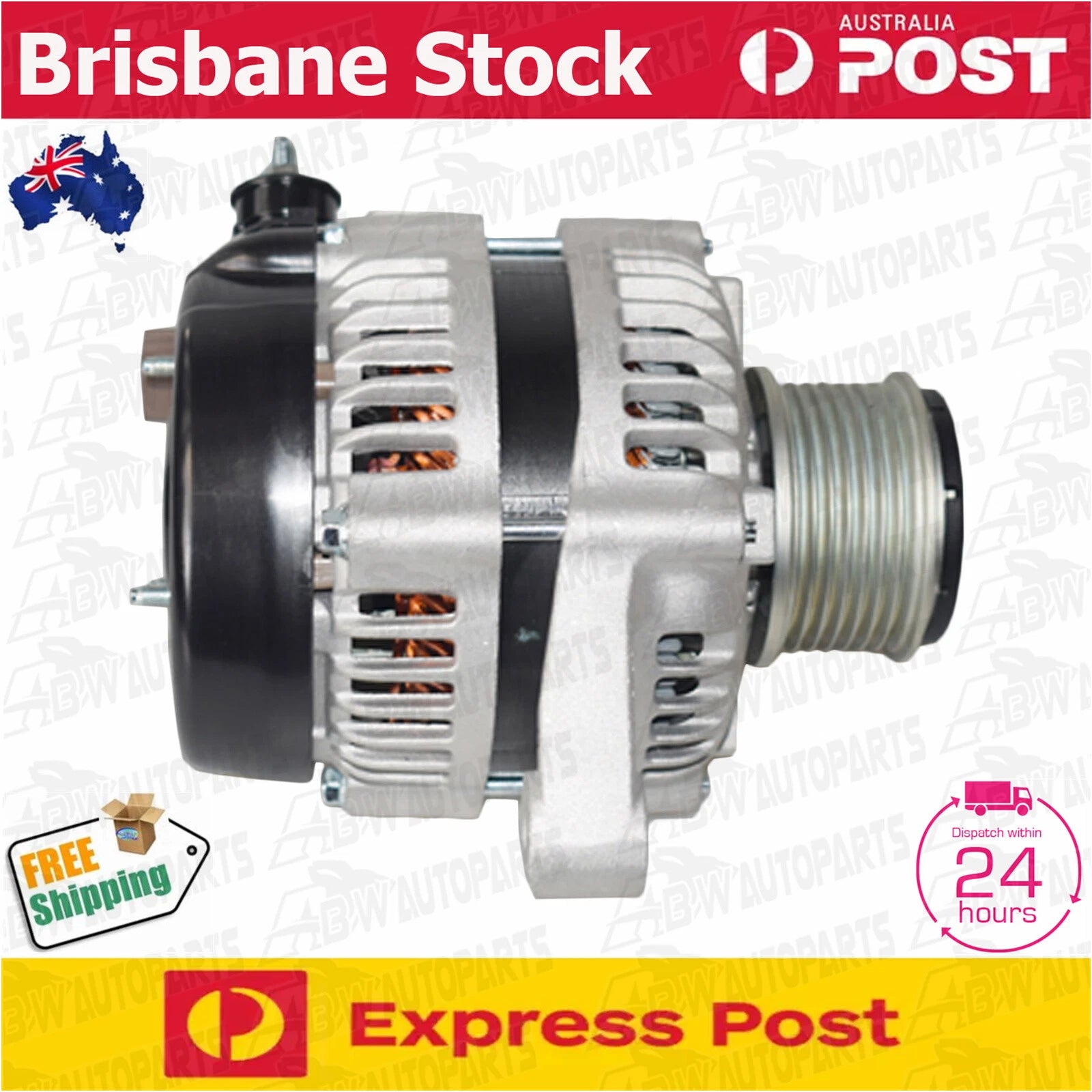

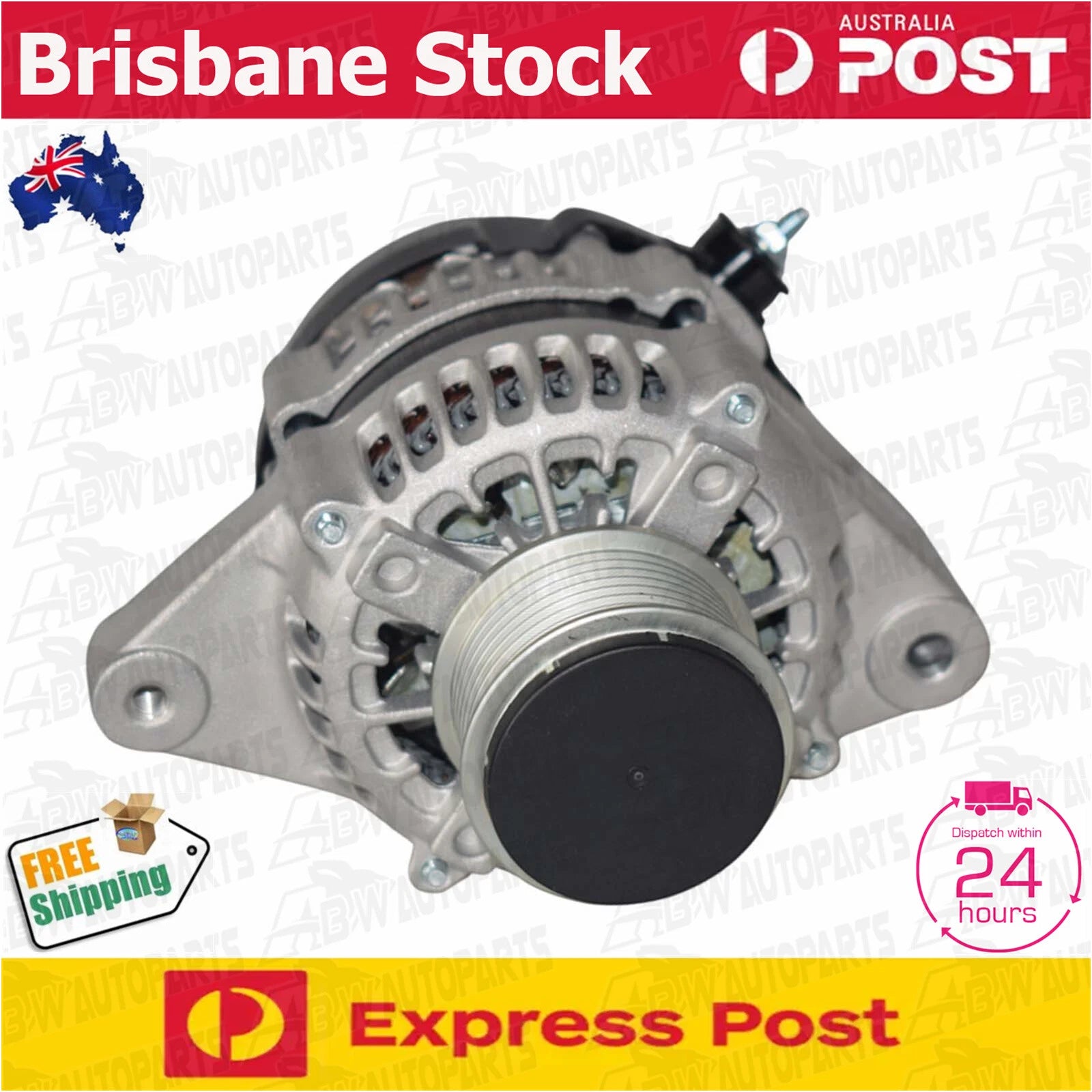

This 12V 80A alternator is designed for selected Toyota diesel applications using 1KD-FTV and 2KD-FTV engines. It features a clutch pulley and direct-fit plug connection. Please confirm specifications and output rating against your original unit before purchase.

KEY SPECIFICATIONS

• Voltage: 12V
• Output current: 80A
• Adjustment hole: M8
• Pivot hole: M10
• Adjustment to pivot: 163 mm
• Pivot length: 58 mm
• Pulley diameter: 63 mm
• Number of grooves: 7PV

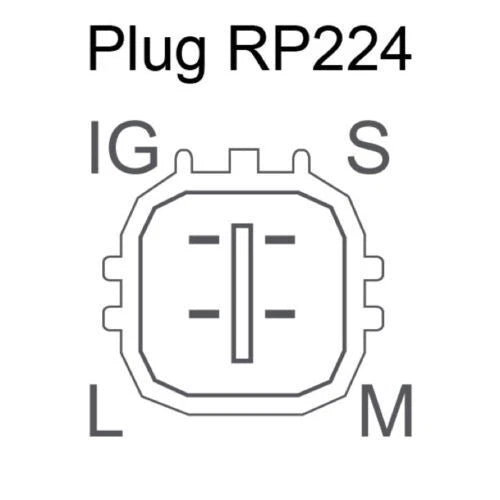

• Plug type: RP224
• Pulley type: clutch pulley

VEHICLE APPLICATIONS

This alternator suits selected Toyota diesel models where an 80A unit with the above dimensions and plug is required, including:

• Toyota Hiace KDH220, KDH222 with 2KD-FTV 2.5L diesel (approx. 2005–2006)
• Toyota Hiace KDH201, KDH221, KDH223 with 1KD-FTV 3.0L diesel (approx. 2005–2015)
• Toyota Hilux KUN16, KUN26, KZN156, KZN167 with 1KD-FTV 3.0L turbo diesel (approx. 2005–2015)
• Toyota Landcruiser Prado KDJ120 with 1KD-FTV 3.0L diesel (approx. 2006–2009)

There are two different alternator outputs (80A and 130A) for these models and they are not interchangeable. Always verify the amperage rating and mounting details on your original alternator before ordering.

OEM REFERENCE & PART NOTES

• OEM reference: 27060-0L021 (for cross-checking only)
• Professional installation is recommended.

PACKAGE CONTENTS

• 1 x Alternator (80A)
