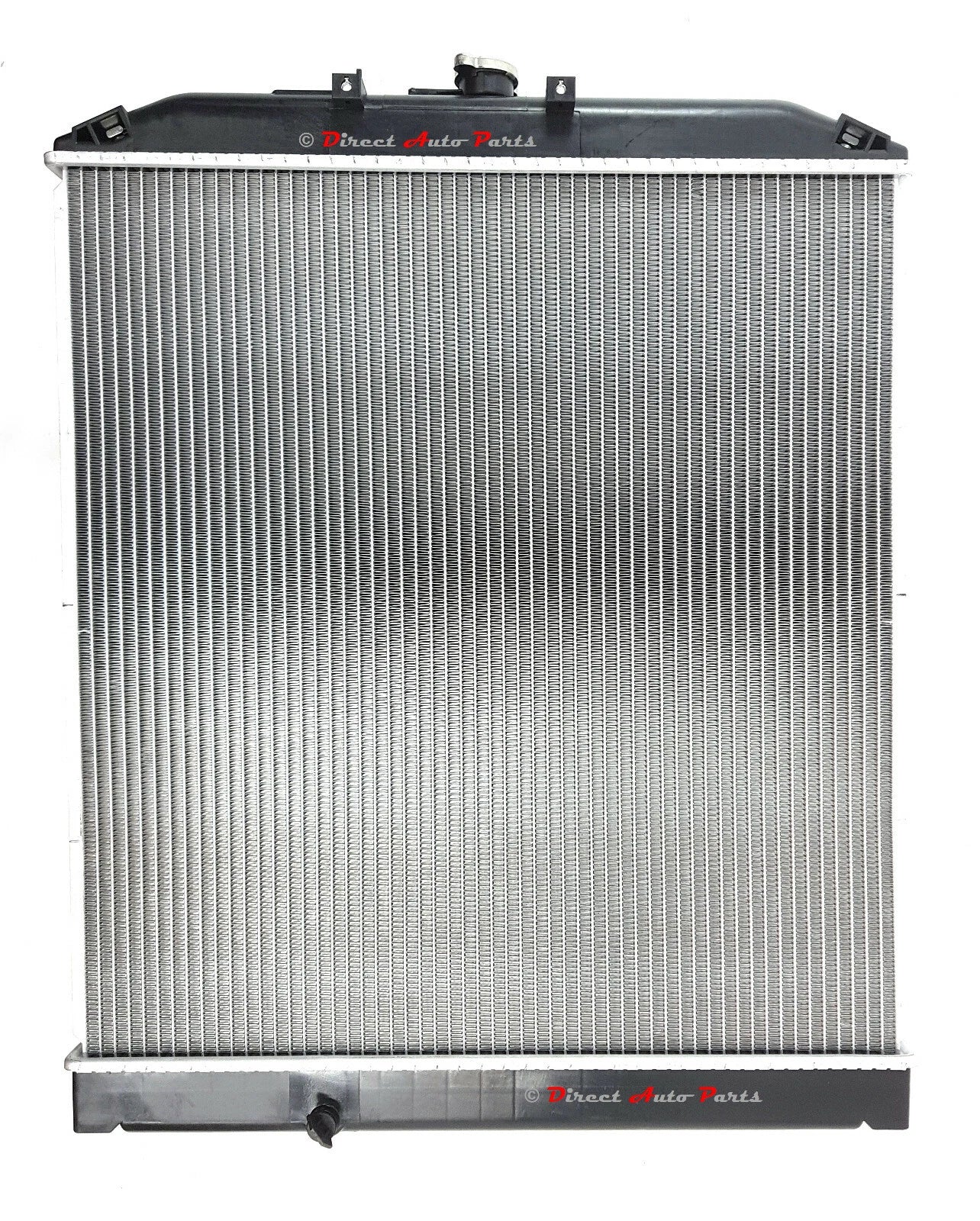

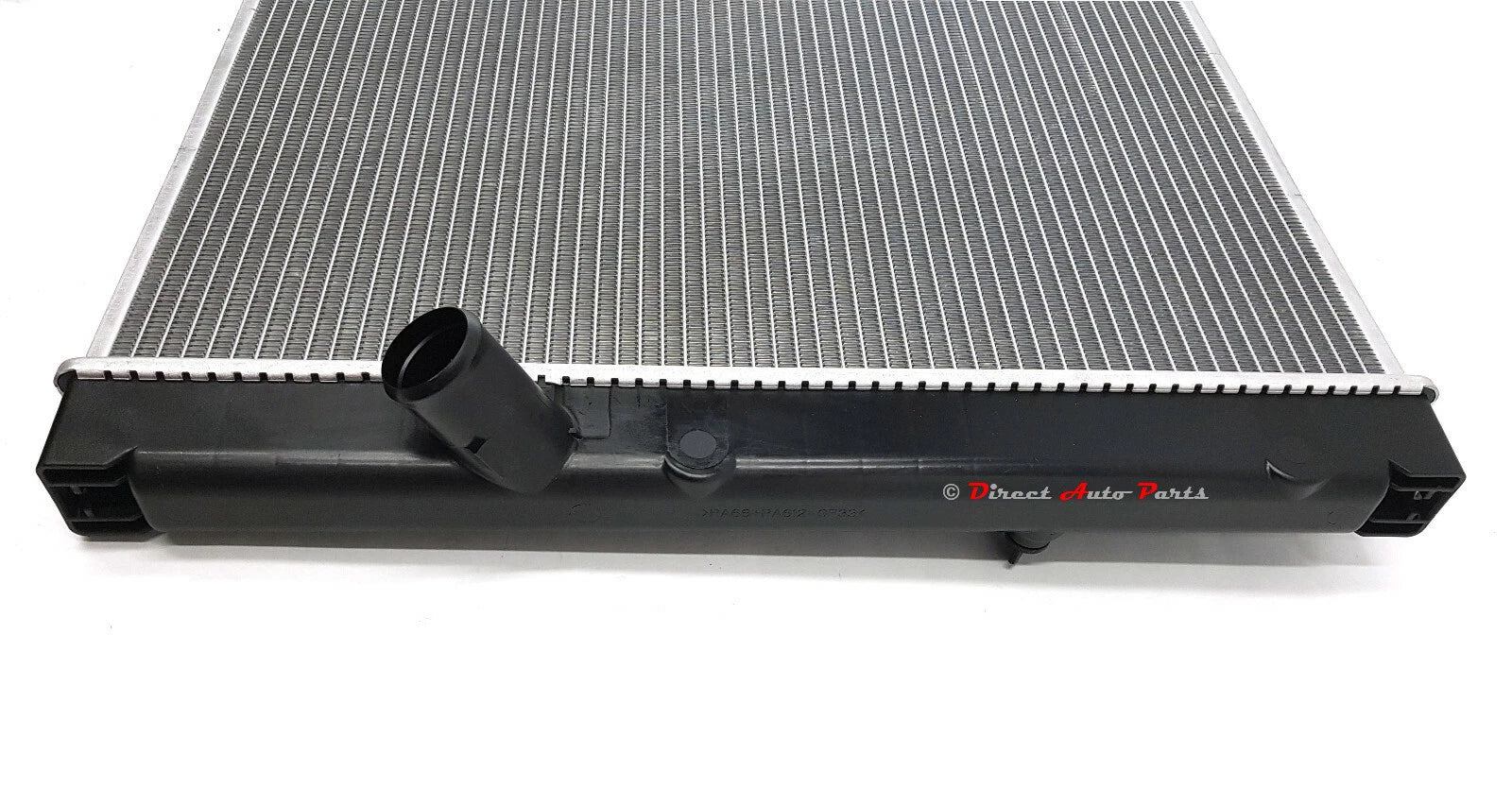

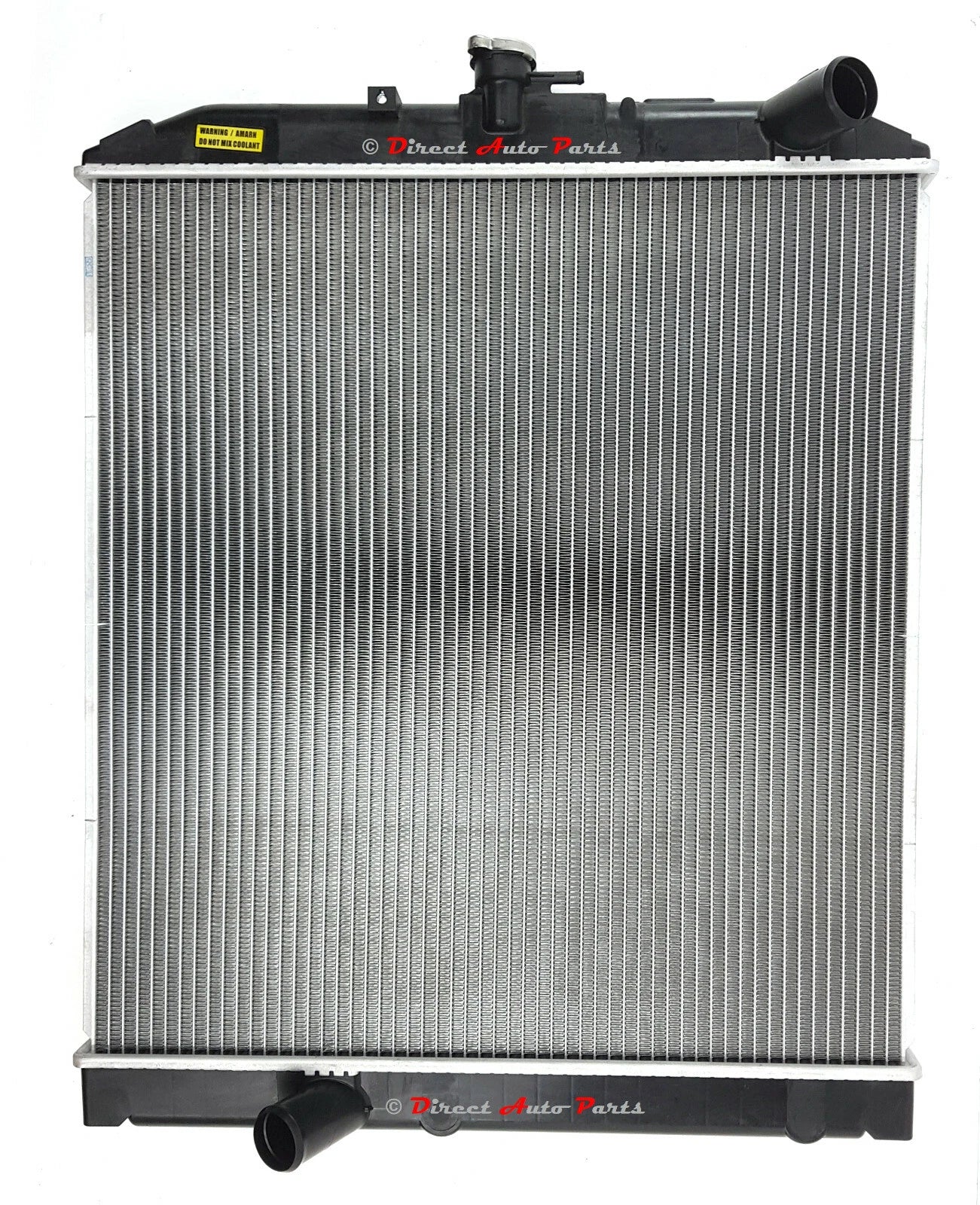

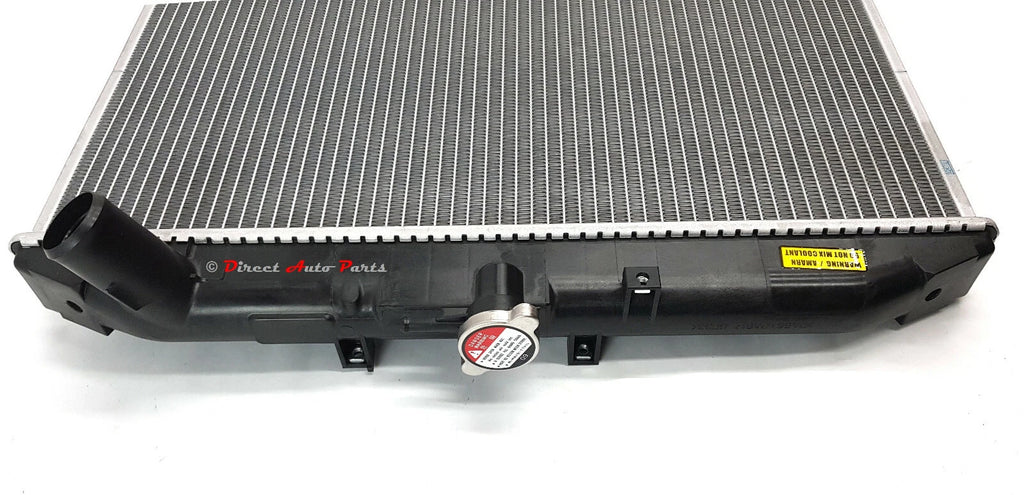

Radiator for Hino 300 / Dutro XZU S05C-TB MT 600x568x32 2000-On

PRODUCT OVERVIEW

Brand new high-quality aftermarket radiator suitable for Hino 300 Series and Dutro XZU Series trucks from 2000-on, fitted with S05C-TB engine and manual transmission. Designed as a direct replacement, compatible with OEM part number 1640078130.

KEY FEATURES

• Application: Hino 300 Series & Dutro XZU Series (2000-on)
• Engine: S05C-TB
• Transmission: Manual
• Construction: Plastic tank / aluminium core
• Condition: Brand new aftermarket replacement
• Warranty: 12-month replacement warranty (no labour)

CORE DIMENSIONS

• Core height: 600 mm
• Core width: 568 mm
• Core thickness: 32 mm
• Inlet diameter: 42 mm
• Outlet diameter: 42 mm

Measure tank-to-tank height first, then width, then thickness to ensure compatibility. Check core size carefully before ordering.

OEM REFERENCE

• Compatible with OEM: 1640078130

INSTALLATION & WARRANTY CONDITIONS

To maintain warranty coverage, this radiator must be installed by a qualified mechanic in a registered workshop. All pre-installation and post-installation procedures recommended by the manufacturer must be followed, including stray/electric current testing.

• Thoroughly drain and flush the cooling system before installation.
• Inspect and, if necessary, replace radiator cap, hoses, clamps, thermostat, water pump and fans.
• Test for stray/electric current in the cooling system; rectify any issues before fitting.
• Refill with the manufacturer-specified coolant type and correct concentration.
• Use distilled or demineralised water when mixing concentrate coolant.
• Do not mix different coolant brands or types.
• Run engine to normal operating temperature and check for leaks.

Failure to follow correct installation procedures, including stray current testing and coolant specification, may void the manufacturer's warranty.

SHIPPING & PICKUP

• Free standard postage within Australia
• Local pickup available in NSW (contact store for details)

FITMENT NOTICE

No specific vehicle VIN compatibility data is supplied. Always confirm engine type, transmission, and core dimensions against your existing radiator before purchase.
